Product Overview

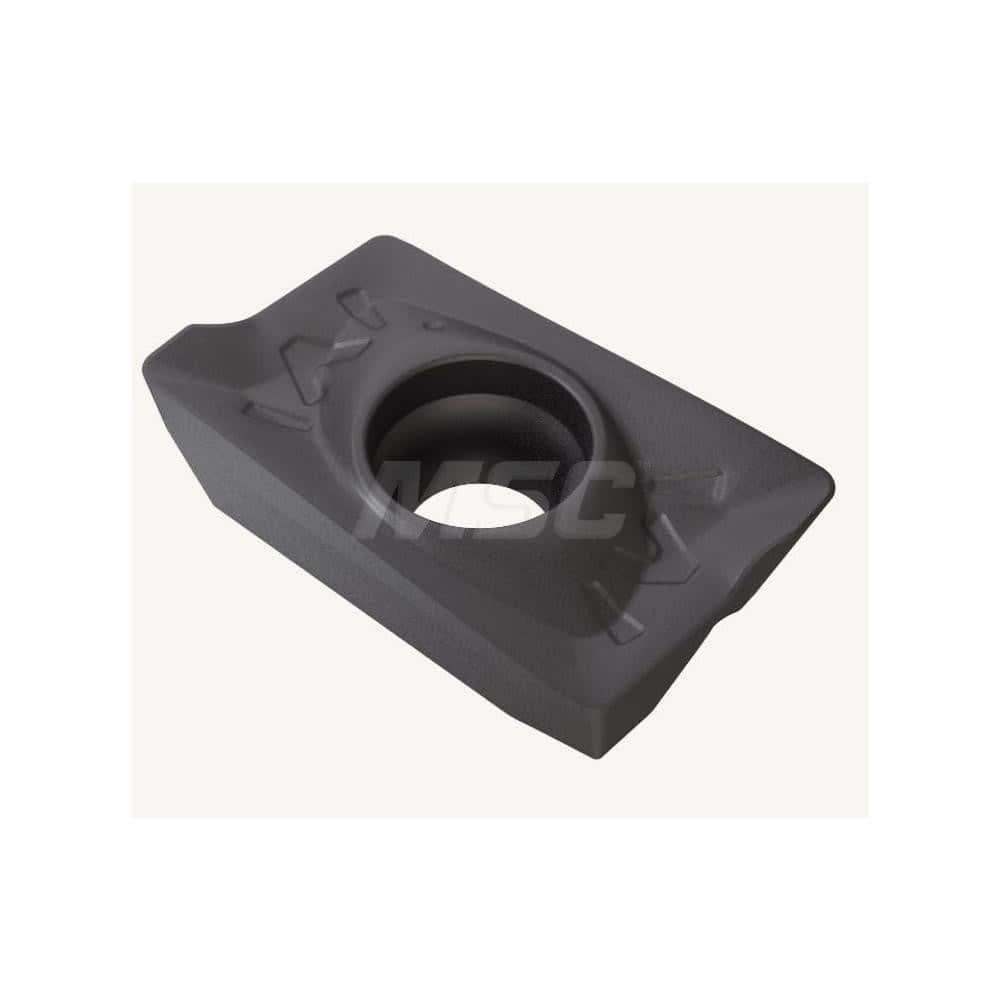

APKT160424PDTRYG602

Category Path

Category:

Holemaking

Subcategory:

Drilling

Subtype:

Indexable Drill Inserts

Product Specs

# of Cutting Edges:

2

Application:

P,M,K,S,H

Chipbreaker Application:

General Application

Clearance Angle:

11°

Corner Radius (Decimal Inch):

0.09375

Corner Radius (frac):

0.09375

Corner Radius (in):

0.09375

Corner Radius (mm):

2.4

Cutting Edge Angle:

90°

Cutting Edge Length (fraction):

0.598

Cutting Edge Length (in):

0.598

Cutting Edge Lgth (mm):

15.1892

Depth of Cut:

14

Edge Condition:

Chamfered

Edge Length (fraction):

0.598425197

Edge Length (in):

0.598425197

Edge Length (mm):

15.2

Feed Direction:

Right hand Insert

Grade:

YG602

Height Tolerance (± inch):

0.000984252

Height Tolerance (± mm):

0.025

IC Tolerance (± inch):

0.002

IC Tolerance (± mm):

0.0508

Insert IC (fraction):

0.37

Insert IC (inch):

0.37

Insert IC (mm):

9.398

Insert Style:

With Screw hole, chipbreaker on one side only

Insert Type:

With Screw hole, chipbreaker on one side only

Material:

Carbide

Package Height (inches):

0.625

Package Length (inches):

4

Package Weight (lbs):

0.185

Package Width (inches):

1.75

Shape:

Parallelogram 80°

Sys. Of Measurement:

Inch

Thickness (fraction):

0.209

Thickness (in):

0.209

Thickness (mm):

5.3086

Thickness Tolerance (± inch):

0.005

Thickness Tolerance (± mm):

0.127

Type:

MILLING INSERT

Wiper Edge Clearance:

11°

Wiper Edge Length:

0.059

Manufacturer Info

Manufactured By:

YG-1
