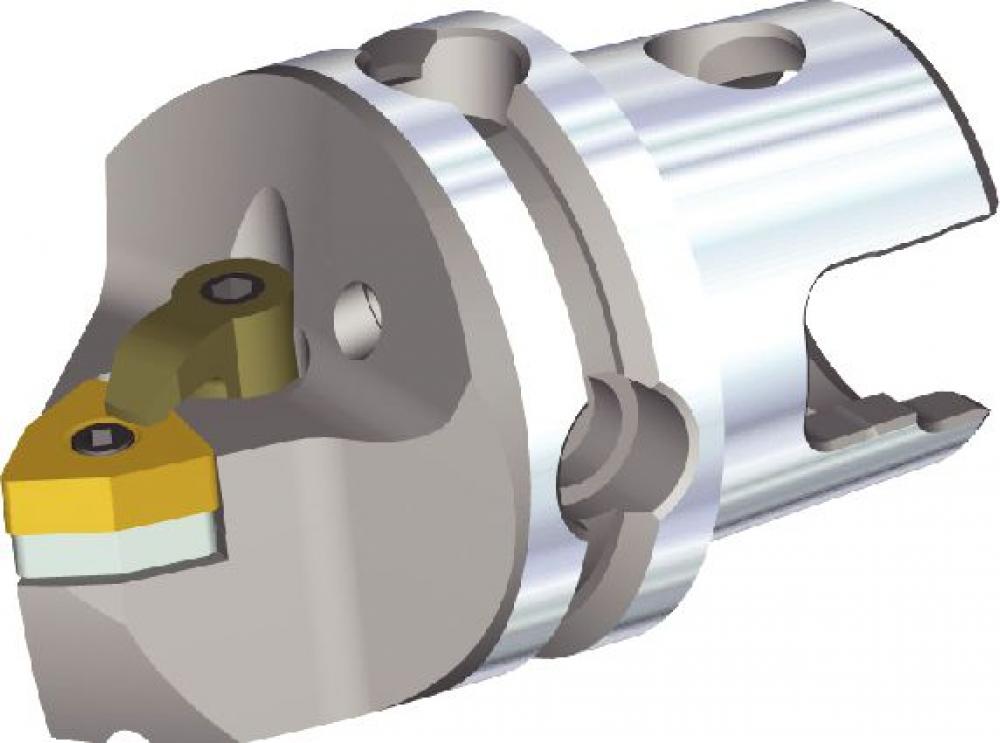

KM63TSMWMNR08115 by WIDIA
Call For Price
- Part Number: 3487604
- UPC: 00000027112809
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
KM63XMZ KENLOC 50°-95° CNTRLINE RH WN.08
Long Description
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
End Mill Holders, Adapters and Accessories
Insert Shape:
W-Trigon 80
Adapter Style Machine Side:
KM
Adapter Type Machine Side:
Taper Shank
ANSI Catalog Number:
KM63TSMWMNR08115
Body Material Group:
Steel
Catalog Gage Insert 1:
WN..080408/WN..432
Catalog Gage Insert 1_221:
WN..080408/WN..432
Clamping Type:
M - Top and Hole Clamping
Coolant Entry Style:
Off-center Axial Coolant
Coolant Exit:
Off-center Axial w/ Nozzle
Coolant Supply:
Yes
Hand of Tool:
R - Right
Insert Shape - Marcom Calc:
Trigon 80
Insert Shape_228:
W-Trigon 80
ISO Catalog Number:
KM63TSMWMNR08115
MAKTX (SAP Description):
KM63XMZ KENLOC 50°-95° CNTRLINE RH WN.08
Number of Insert Seats:
1
SAP Material Number:
3487604
[A]Coolant Hole Dia Inch:
0.2362
[A]Coolant Hole Diameter Metric:
6.0000
[CSMS]System Size Machine Side:
KM63TS
[CUBMS]Unit of Tool:
MM - Metric
[DMIN]Min BoreDia_Ax GrvDia In:
3.9370
[DMIN]Min BoreDia_Ax GrvDia In_49:
3.9370
[DMIN]Min BoreDia_Ax GrvDia mm:
100.0000
[DMIN]Min BoreDia_Ax GrvDia mm_50:
100.0000
[D]Adapter/Shank/Bore Dia Frac:
2.4803
[D]Adapter/Shank/Bore Dia Inch:
2.4803
[D]Adapter/Shank/Bore Dia mm:
63.0000
[F] F Dimension Inch:
0.0000
[F] F Dimension Inch_57:
0.0000
[F] F Dimension Metric:
0.0000
[F] F Dimension Metric_58:
0.0000
[GAMMAO] Orthogonal Rake Angle:
-5.000
[GAMMAO] Orthogonal Rake Angle_70:
-5.000
[H1] Cutting Height Inch:
0.00000
[H1] Cutting Height Inch_79:
0.00000
[H1] Cutting Height Metric:
0.0000
[H1] Cutting Height Metric_80:
0.0000
[KRA] Lead Angle ANSI:
40.000
[KRA] Lead Angle ANSI_95:
40.000
[KRI] Lead Angle ISO:
50.000
[KRI] Lead Angle ISO_98:
50.000
[L10] Cutting Edge Length Inch:
0.3420
[L10] Cutting Edge Length Inch_139:
0.3420
[L10] Cutting Edge Length mm:
8.6870
[L10] Cutting Edge Length mm_140:
8.6870
[L1] Tool Length Inch:
4.5280
[L1] Tool Length Inch_135:
4.5280
[L1] Tool Length Metric:
115.0000
[L1] Tool Length Metric_136:
115.0000
[L4]Maximum Boring Depth Inch:
4.5280
[L4]Maximum Boring Depth mm:
115.0000
[LAMBDAS] Inclination Angle:
-5.000
[LAMBDAS] Inclination Angle_155:
-5.000
[LPR]Protruding Length Inch:
4.5280
[LPR]Protruding Length Inch_168:
4.5280
[LPR]Protruding Length Metric:
115.0000
[LPR]Protruding Length Metric_169:
115.0000
[LS] Shank Length Inch:
1.5728
[LS] Shank Length Metric:
39.9500
[L]Tool Overall Length Inch:
6.1000
[L]Tool Overall Length Inch_121:
6.1000
[L]Tool Overall Length mm:
154.9500
[L]Tool Overall Length mm_122:
154.9500
Manufactured By:
WIDIA
