Product Overview

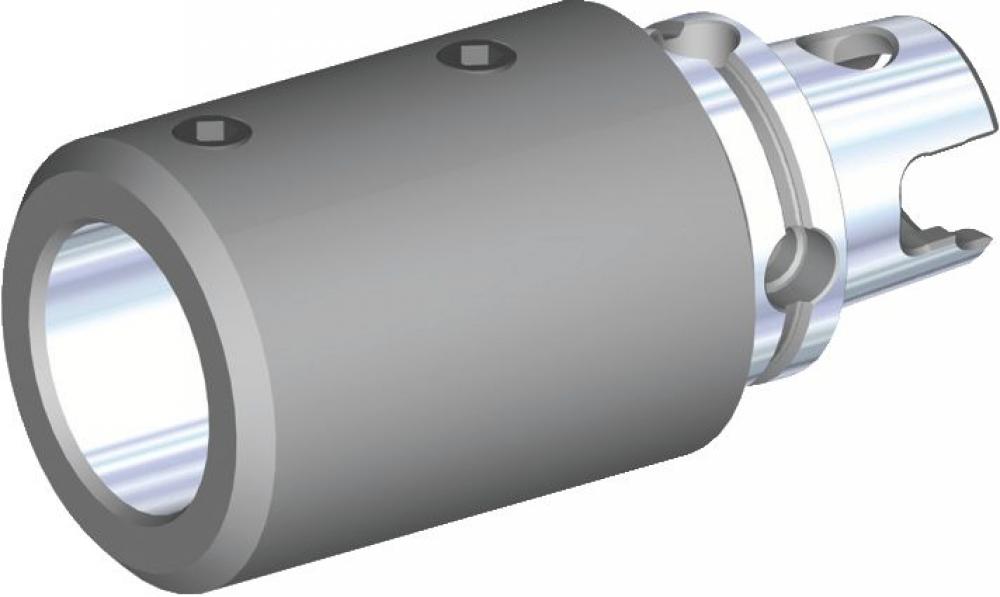

KM50 BORING BAR ADAPTER Ø1-1/2 X 3.54"

Category Path

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

End Mill Holders, Adapters and Accessories

Product Specs

Adapter Style Machine Side:

KM

Adapter Style Machine Side-Marcom Calc:

KM

Adapter Type Machine Side:

Taper Shank

Adapter Type Workpiece Side:

ZYL - Cylindrical Adapter

ANSI Catalog Number:

KM50TSBAI24354

Coolant Entry Style:

Concentric Axial Coolant

Coolant Exit:

Concentric Axial Coolant

Coolant Supply:

Yes

Front End Tool Type:

Boring Bar Adapter

Hand of Tool:

N - Neutral

ISO Catalog Number:

KM50TSBAI24354

MAKTX (SAP Description):

KM50 BORING BAR ADAPTER Ø1-1/2 X 3.54"

SAP Material Number:

3790288

[A]Coolant Hole Dia Inch:

0.3150

[A]Coolant Hole Diameter Metric:

8.0000

[CSMS]System Size Machine Side:

KM50TS

[CUBMS]Unit of Tool:

MM - Metric

[D1]Adapt/Shank/BoreDiaWKPS F:

1 1/2

[D1]Adapt/Shank/BoreDiaWKPS In:

1.5000

[D1]Adapt/Shank/BoreDiaWKPS In_12:

1.5000

[D1]Adapt/Shank/BoreDiaWKPS mm:

38.1000

[D1]Adapt/Shank/BoreDiaWKPS mm_13:

38.1000

[D2]Body Dia 1 Workpce Side In:

2.2835

[D2]Body Dia 1 Workpce Side In_25:

2.2835

[D2]Body Dia 1 Workpce Side mm:

58.0000

[D2]Body Dia 1 Workpce Side mm_26:

58.0000

[D]Adapter/Shank/Bore Dia Frac:

1.9685

[D]Adapter/Shank/Bore Dia Inch:

1.9685

[D]Adapter/Shank/Bore Dia mm:

50.0000

[FLGT]Flange Length Metric:

18.0000

[L1]Gage Length 1 Inch:

3.5433

[L1]Gage Length 1 Inch_123:

3.5433

[L1]Gage Length 1 Metric:

90.0000

[L1]Gage Length 1 Metric_124:

90.0000

[L2]Usable Length Inch:

3.5433

[L2]Usable Length Metric:

90.0000

[L9]Clamping Length Inch:

2.6772

[L9]Clamping Length Inch_153:

2.6772

[L9]Clamping Length Metric:

68.0000

[L9]Clamping Length Metric_154:

68.0000

[LPR]Protruding Length Inch:

3.5433

[LPR]Protruding Length Inch_166:

3.5433

[LPR]Protruding Length Metric:

90.0000

[LPR]Protruding Length Metric_167:

90.0000

[LS] Shank Length Inch:

1.2579

[LS] Shank Length Metric:

31.9500

[LTA]Tool Assembly Length Inch:

3.5433

[LTA]Tool Assembly Length mm:

90.0000

[L] Overall Length Inch:

4.8012

[L] Overall Length Inch_103:

4.8012

[L] Overall Length Metric:

121.9500

[L] Overall Length Metric_104:

121.9500

Manufacturer Info

Manufactured By:

WIDIA
