CV40KM32354

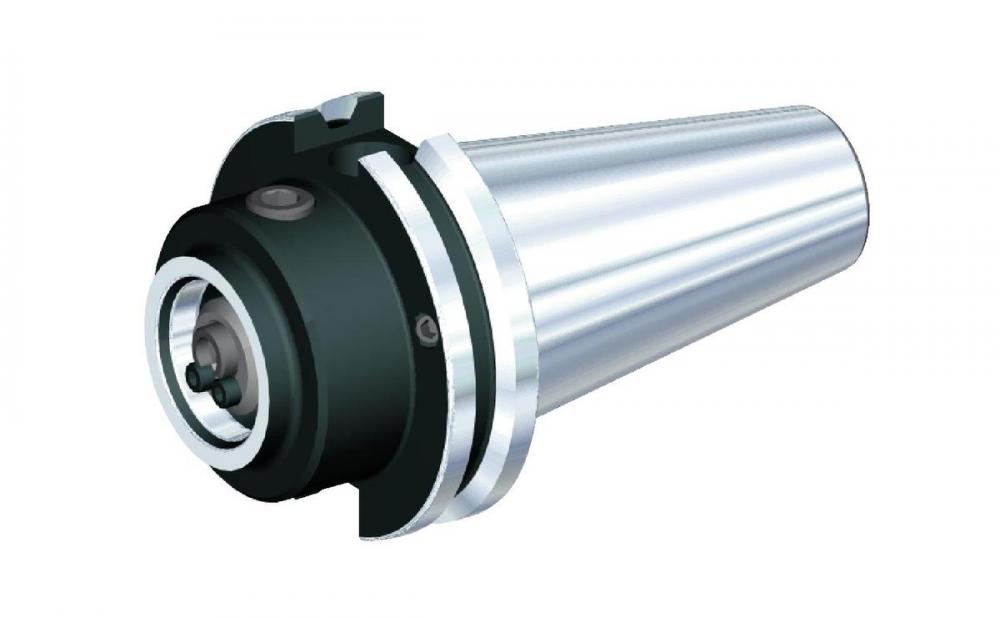

CV40KM32354 by WIDIA

Call For Price
  • Part Number: 2992434
  • UPC: 00000271128076
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
KM32 - CV40 X 90MM
Long Description
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
End Mill Holders, Adapters and Accessories
Actuation Screw ID Drive Size:
5 mm
Adapter Style Machine Side:
CV-Caterpillar V-Flange In
Adapter Style Machine Side-Marcom Calc:
CV V-Flange
Adapter Type Machine Side:
Taper Shank
Adapter Type Workpiece Side:
KMT - KM Adapter
ANSI Catalog Number:
CV40KM32354
Coolant Entry Style:
Flange & Axial Coolant
Coolant Exit:
Concentric Axial Coolant
Coolant Supply:
Yes
Front End Tool Type:
KM Modular Adapter
Hand of Tool:
N - Neutral
ISO Catalog Number:
CV40KM32354
MAKTX (SAP Description):
KM32 - CV40 X 90MM
SAP Material Number:
2992434
[A]Coolant Hole Dia Inch:
0.2460
[A]Coolant Hole Diameter Metric:
6.2480
[CSMS]System Size Machine Side:
CV40
[CSWS]System SizeWorkpieceSide:
KM32
[CUBMS]Unit of Tool:
IN - Inch
[D1]Adapt/Shank/BoreDiaWKPS In:
1.2600
[D1]Adapt/Shank/BoreDiaWKPS In_12:
1.2600
[D1]Adapt/Shank/BoreDiaWKPS mm:
32.0000
[D1]Adapt/Shank/BoreDiaWKPS mm_13:
32.0000
[D21]Body Dia 2 Workpce Sde In:
1.7500
[D21]Body Dia 2 Workpce Sde mm:
44.4500
[D2]Body Dia 1 Workpce Side In:
1.2600
[D2]Body Dia 1 Workpce Side In_25:
1.2600
[D2]Body Dia 1 Workpce Side mm:
32.0000
[D2]Body Dia 1 Workpce Side mm_26:
32.0000
[D5]Body Dia. Machine Side In:
2.5000
[D5]Body Dia. Machine Side In_38:
2.5000
[D5]Body Dia. Machine Side mm:
63.5000
[D5]Body Dia. Machine Side mm_39:
63.5000
[D]Adapter/Shank/Bore Dia Frac:
1 3/4
[D]Adapter/Shank/Bore Dia Inch:
1.7500
[D]Adapter/Shank/Bore Dia mm:
44.4500
[FLGT]Flange Length Metric:
15.8750
[G3]CL_CONN_THD_SIZE_MS_INT:
0.625-11 UNC
[L1]Gage Length 1 Inch:
3.5430
[L1]Gage Length 1 Inch_123:
3.5430
[L1]Gage Length 1 Metric:
90.0000
[L1]Gage Length 1 Metric_124:
90.0000
[L2]Usable Length Inch:
2.1360
[L2]Usable Length Metric:
54.2500
[L4] Flange-Front End Dist In:
2.7930
[L4] Flange-Front End Dist mm:
70.9420
[LF]Functional Length Inch:
3.5430
[LF]Functional Length Inch_158:
3.5430
[LF]Functional Length Metric:
90.0000
[LF]Functional Length Metric_159:
90.0000
[LPR]Protruding Length Inch:
3.5430
[LPR]Protruding Length Inch_166:
3.5430
[LPR]Protruding Length Metric:
90.0000
[LPR]Protruding Length Metric_167:
90.0000
[LS] Shank Length Inch:
2.8100
[LS] Shank Length Metric:
71.3740
[LTA]Tool Assembly Length Inch:
3.5430
[LTA]Tool Assembly Length mm:
90.0000
[L] Overall Length Inch:
6.2300
[L] Overall Length Inch_103:
6.2300
[L] Overall Length Metric:
158.2500
[L] Overall Length Metric_104:
158.2500
Manufactured By:
WIDIA
