Product Overview

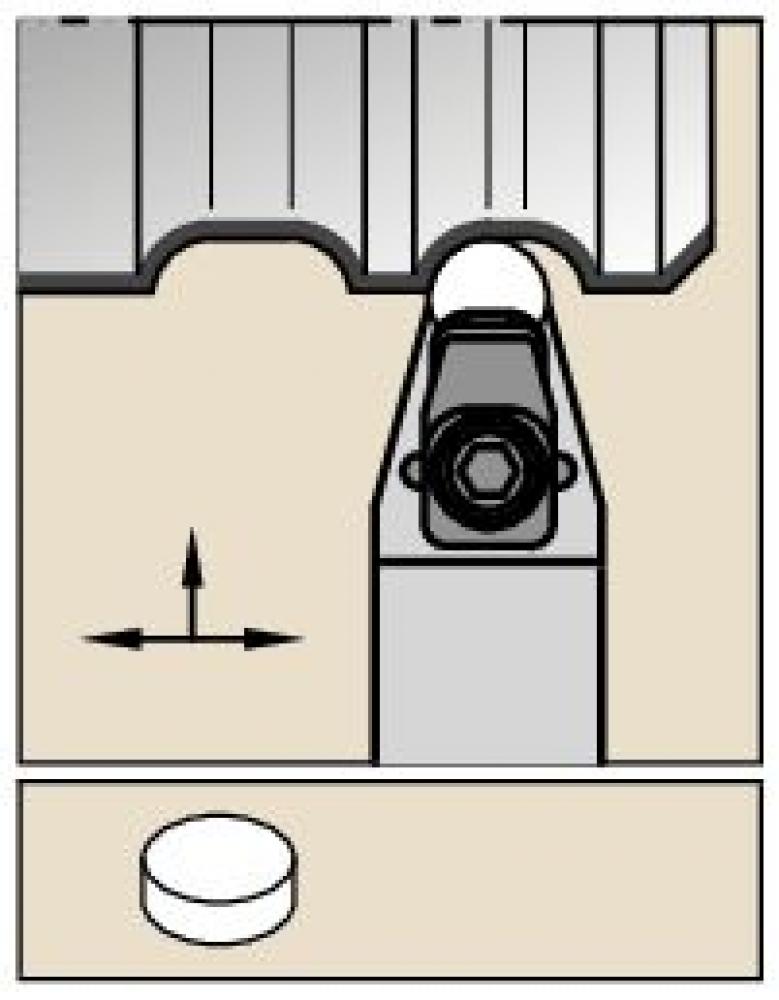

WIDIA CERAMIC INSERT HOLDERS

Category Path

Category:

Turning

Subcategory:

Groove and Turn and Parting Off

Subtype:

Groove and Turn Indexable Holders

Product Specs

Grade:

WG

Insert Shape:

R-Round

Adapter Style Machine Side:

Toolholder

Adapter Type Machine Side:

Square Shank

ANSI Catalog Number:

CRDNN3225P12MN7

Body Material Group:

Steel

Catalog Gage Insert 1:

RN.N120700

Catalog Gage Insert 1_221:

RN.N120700

Clamping Type:

C- Top Clamping

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

No

Hand of Tool:

N - Neutral

Insert Shape - Marcom Calc:

Round

Insert Shape_228:

R-Round

ISO Catalog Number:

CRDNN3225P12MN7

MAKTX (SAP Description):

WIDIA CERAMIC INSERT HOLDERS

Number of Insert Seats:

1

SAP Material Number:

3032552

[B] Shank Width Fraction:

63/64

[B] Shank Width Inch:

0.9843

[B] Shank Width Metric:

25.0000

[CUBMS]Unit of Tool:

MM - Metric

[F] F Dimension Fraction:

0.4921

[F] F Dimension Inch:

0.4921

[F] F Dimension Inch_57:

0.4921

[F] F Dimension Metric:

12.5000

[F] F Dimension Metric_58:

12.5000

[GAMMAF] Radial Rake Angle:

0.000 deg

[GAMMAF] Radial Rake Angle_68:

0.000 deg

[GAMMAP] Axial Rake Angle:

-8.500 deg

[GAMMAP] Axial Rake Angle_72:

-8.500 deg

[H1] Cutting Height Inch:

1.00000

[H1] Cutting Height Inch_79:

1.00000

[H1] Cutting Height Metric:

25.4000

[H1] Cutting Height Metric_80:

25.4000

[H] Shank Height Inch:

1.2598

[H] Shank Height Metric:

32.0000

[KRA] Lead Angle ANSI:

0.000 deg

[KRA] Lead Angle ANSI_95:

0.000 deg

[KRI] Lead Angle ISO:

90.000 deg

[KRI] Lead Angle ISO_98:

90.000 deg

[L1] Tool Length Inch:

6.6929

[L1] Tool Length Inch_135:

6.6929

[L1] Tool Length Metric:

170.0000

[L1] Tool Length Metric_136:

170.0000

[L2] Head Length Inch:

1.1811

[L2] Head Length Inch_149:

1.1811

[L2] Head Length Metric:

30.0000

[L2] Head Length Metric_150:

30.0000

[LPR]Protruding Length Inch:

6.6929

[LPR]Protruding Length Inch_168:

6.6929

[LPR]Protruding Length Metric:

170.0000

[LPR]Protruding Length Metric_169:

170.0000

[LS] Shank Length Inch:

5.5118

[LS] Shank Length Metric:

140.0000

[L]Tool Overall Length Inch:

6.6929

[L]Tool Overall Length Inch_121:

6.6929

[L]Tool Overall Length mm:

170.0000

[L]Tool Overall Length mm_122:

170.0000

Manufacturer Info

Manufactured By:

WIDIA
