Product Overview

CARBIDE SHANK PROFILING BAR

Category Path

Category:

Holemaking

Subcategory:

Boring

Subtype:

Modular Boring Systems

Product Specs

Grade:

WG

Insert Shape:

G-Rhombic 45

Adapter Style Machine Side:

Boring Bar Shank

Adapter Type Machine Side:

Boring Bar

ANSI Catalog Number:

CCPM81525L

Body Material Group:

Carbide

Catalog Gage Insert 1:

GP..050102

Catalog Gage Insert 1_221:

GP..050102

Clamping Type:

S - Screw Clamping

Coolant Supply:

Yes

Hand of Tool:

L - Left

Insert Shape - Marcom Calc:

Rhombic 45

Insert Shape_228:

G-Rhombic 45

ISO Catalog Number:

CCPM81525L

MAKTX (SAP Description):

CARBIDE SHANK PROFILING BAR

Number of Insert Seats:

1

SAP Material Number:

3896022

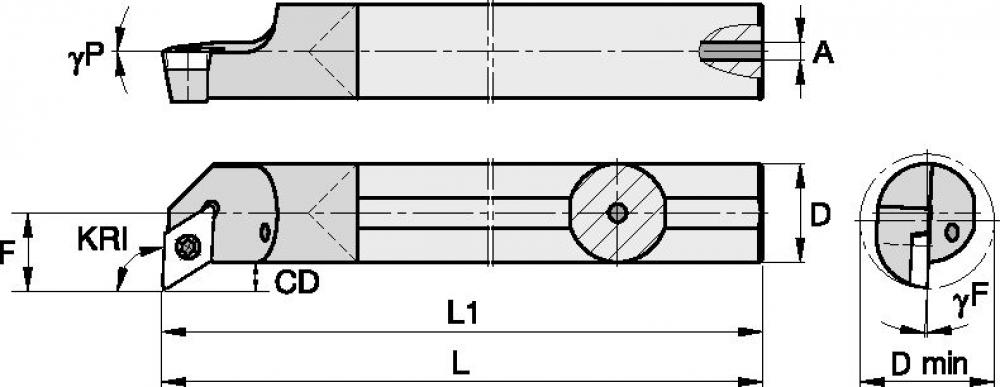

[A1]Coolant Hole Dia. Exit In:

0.0620

[A1]Coolant Hole Dia. Exit mm:

1.5700

[A]Coolant Hole Dia Inch:

0.0930

[A]Coolant Hole Diameter Metric:

2.2300

[CD]Cutting Depth Inch:

0.0900

[CD]Cutting Depth Inch_6:

0.0900

[CD]Cutting Depth Metric:

2.2800

[CD]Cutting Depth Metric_7:

2.2800

[CUBMS]Unit of Tool:

MM - Metric

[DMIN]Min BoreDia_Ax GrvDia In:

0.4230

[DMIN]Min BoreDia_Ax GrvDia In_49:

0.4230

[DMIN]Min BoreDia_Ax GrvDia mm:

10.7400

[DMIN]Min BoreDia_Ax GrvDia mm_50:

10.7400

[D]Adapter/Shank/Bore Dia Inch:

0.3150

[D]Adapter/Shank/Bore Dia mm:

8.0000

[F] F Dimension Inch:

0.2510

[F] F Dimension Inch_57:

0.2510

[F] F Dimension Metric:

6.3800

[F] F Dimension Metric_58:

6.3800

[GAMMAF] Radial Rake Angle:

0.000 deg

[GAMMAF] Radial Rake Angle_68:

0.000 deg

[GAMMAP] Axial Rake Angle:

0.000

[GAMMAP] Axial Rake Angle_72:

0.000

[H1] Cutting Height Inch:

0.01000

[H1] Cutting Height Inch_79:

0.01000

[H1] Cutting Height Metric:

0.2500

[H1] Cutting Height Metric_80:

0.2500

[KRA] Lead Angle ANSI:

-5.000

[KRA] Lead Angle ANSI_95:

-5.000

[KRI] Lead Angle ISO:

95.000

[KRI] Lead Angle ISO_98:

95.000

[L10] Cutting Edge Length Inch:

0.2087

[L10] Cutting Edge Length Inch_139:

0.2087

[L10] Cutting Edge Length mm:

5.3000

[L10] Cutting Edge Length mm_140:

5.3000

[L1] Tool Length Inch:

6.0000

[L1] Tool Length Inch_135:

6.0000

[L1] Tool Length Metric:

152.4000

[L1] Tool Length Metric_136:

152.4000

[L2] Head Length Inch:

0.5640

[L2] Head Length Inch_149:

0.5640

[L2] Head Length Metric:

14.3200

[L2] Head Length Metric_150:

14.3200

[LPR]Protruding Length Inch:

6.0000

[LPR]Protruding Length Inch_168:

6.0000

[LPR]Protruding Length Metric:

152.4000

[LPR]Protruding Length Metric_169:

152.4000

[LS] Shank Length Inch:

5.4360

[LS] Shank Length Metric:

138.0800

[L]Tool Overall Length Inch:

6.0000

[L]Tool Overall Length Inch_121:

6.0000

[L]Tool Overall Length mm:

152.4000

[L]Tool Overall Length mm_122:

152.4000

Manufacturer Info

Manufactured By:

WIDIA
