A25RMVUNR16 by WIDIA
Call For Price
- Part Number: 3852690
- UPC: 00000027112809
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview

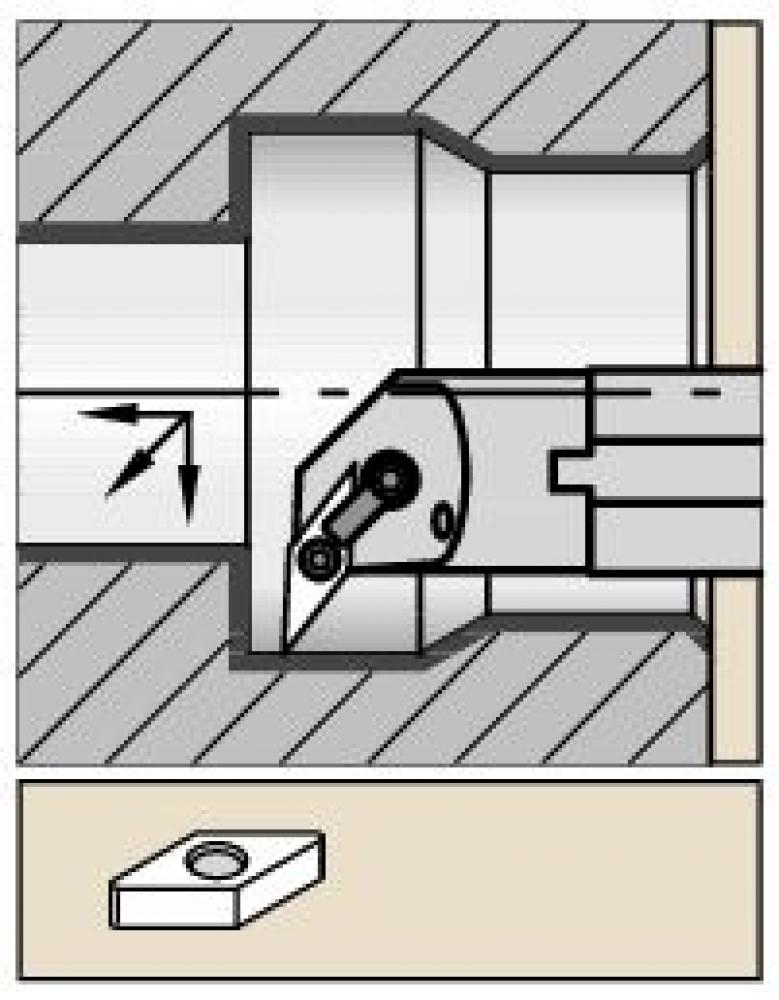

Boring Bar Metric Clamping System M
Long Description
Specifications
Details
Category:
Holemaking
Subcategory:
Boring
Subtype:
Modular Boring Systems
Grade:
WG
Insert Shape:
V-Diamond/Rhombic 35
Adapter Style Machine Side:
Boring Bar Shank
Adapter Type Machine Side:
Boring Bar
ANSI Catalog Number:
A25RMVUNR16
Body Material Group:
Steel
Catalog Gage Insert 1:
VN..160408
Catalog Gage Insert 1_221:
VN..160408
Clamping Type:
M - Top and Hole Clamping
Coolant Entry Style:
Concentric Axial Coolant
Coolant Exit:
Angular Axial Coolant Exit
Coolant Supply:
Yes
Hand of Tool:
R - Right
Insert Shape - Marcom Calc:
Diamond/Rhombic 35
Insert Shape_228:
V-Diamond/Rhombic 35
ISO Catalog Number:
A25RMVUNR16
MAKTX (SAP Description):
Boring Bar Metric Clamping System M
Number of Insert Seats:
1
SAP Material Number:
3852690
[A]Coolant Hole Dia Inch:
0.2520
[A]Coolant Hole Diameter Metric:
6.4000
[B] Shank Width Fraction:
0.8646
[B] Shank Width Inch:
0.8646
[B] Shank Width Metric:
21.960
[CS] Coolant Supply Size:
1/4-18 NPT
[CUBMS]Unit of Tool:
MM - Metric
[DMIN]Min BoreDia_Ax GrvDia In:
1.4570
[DMIN]Min BoreDia_Ax GrvDia In_49:
1.4570
[DMIN]Min BoreDia_Ax GrvDia mm:
37.0000
[DMIN]Min BoreDia_Ax GrvDia mm_50:
37.0000
[D]Adapter/Shank/Bore Dia Frac:
63/64
[D]Adapter/Shank/Bore Dia Inch:
0.9800
[D]Adapter/Shank/Bore Dia mm:
25.0000
[F] F Dimension Fraction:
0.8661
[F] F Dimension Inch:
0.8660
[F] F Dimension Inch_57:
0.8660
[F] F Dimension Metric:
22.0000
[F] F Dimension Metric_58:
22.0000
[GAMMAF] Radial Rake Angle:
-12.000 deg
[GAMMAF] Radial Rake Angle_68:
-12.000 deg
[GAMMAP] Axial Rake Angle:
-5.000
[GAMMAP] Axial Rake Angle_72:
-5.000
[H1] Cutting Height Inch:
0.00000
[H1] Cutting Height Inch_79:
0.00000
[H1] Cutting Height Metric:
0.0000
[H1] Cutting Height Metric_80:
0.0000
[H] Shank Height Inch:
0.9378
[H] Shank Height Metric:
23.820
[KRA] Lead Angle ANSI:
-3.000
[KRA] Lead Angle ANSI_95:
-3.000
[KRI] Lead Angle ISO:
93.000
[KRI] Lead Angle ISO_98:
93.000
[L10] Cutting Edge Length Inch:
0.6538
[L10] Cutting Edge Length Inch_139:
0.6538
[L10] Cutting Edge Length mm:
16.6060
[L10] Cutting Edge Length mm_140:
16.6060
[L1] Tool Length Inch:
7.8740
[L1] Tool Length Inch_135:
7.8740
[L1] Tool Length Metric:
200.0000
[L1] Tool Length Metric_136:
200.0000
[LH]Head Length Inch:
2.1640
[LH]Head Length Metric:
54.9700
[LPR]Protruding Length Inch:
0.7870
[LPR]Protruding Length Inch_168:
0.7870
[LPR]Protruding Length Metric:
200.0000
[LPR]Protruding Length Metric_169:
200.0000
[LS] Shank Length Inch:
5.7100
[LS] Shank Length Metric:
145.0300
[L]Tool Overall Length Inch:
7.8740
[L]Tool Overall Length Inch_121:
7.8740
[L]Tool Overall Length mm:
200.0000
[L]Tool Overall Length mm_122:
200.0000
Manufactured By:
WIDIA
