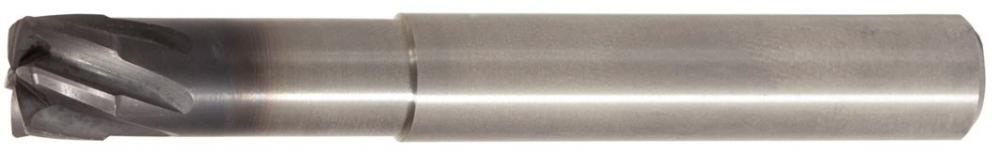

X-FEED Solid Endmill 12x12x36x100

Category Path

Category:

Milling

Subcategory:

Solid

Subtype:

Square End Mills

Product Specs

Coating:

AlTiN

Grade:

ALTIN-MT1

Number of Flutes:

6

Adapter Style Machine Side:

Straight-Cylindrical

Adapter Style Machine Side-Marcom Calc:

Straight Shank

Adapter Type Machine Side:

Cylindrical

ANSI Catalog Number:

70N712005MT

Body Material Group:

Heavy Metal

Center Cutting Tool:

Center Cutting

Coolant Entry Style:

No Coolant

Coolant Exit:

No Coolant

Coolant Supply:

No

Corner Style:

Torus

Ctlg Mounting Style Mach Side:

PLAIN

Cutting Tool Material:

Carbide

End Mill Finish Type:

Finisher

Engineering Tool Family:

70N7

Hand of Tool:

R - Right

Helix Hand:

R - Right Hand Helix/Flute

ISO Catalog Number:

70N712005MT

MAKTX (SAP Description):

X-FEED Solid Endmill 12x12x36x100

Milling Type:

E-End Mill

Number of Ends:

1 - Single Ended End Mill

Number of Flutes_231:

6

SAP Material Number:

3403492

[AP1MAX]1st Max Cut Depth In:

0.0157

[AP1MAX]1st Max Cut Depth mm:

0.4000

[AZ]Maximum Plunge Depth Inch:

0.3540

[AZ]Maximum Plunge DepthMetric:

9.0000

[CUBMS]Unit of Tool:

MM - Metric

[D1]Effective Cutting Dia In:

0.4720

[D1]Effective Cutting Dia mm:

12.0000

[D3]Neck Diameter Inch:

0.4330

[D3]Neck Diameter Metric:

11.0000

[D]Adapter/Shank/Bore Dia Inch:

0.4724

[D]Adapter/Shank/Bore Dia mm:

12.0000

[FHA]Helix Angle:

20.000

[KRA] Lead Angle ANSI:

0.000

[KRA] Lead Angle ANSI_94:

0.000

[KRI] Lead Angle ISO:

90.000

[KRI] Lead Angle ISO_97:

90.000

[L1]Gage Length Inch:

3.9370

[L1]Gage Length Metric:

100.0000

[L2]Head Length Inch:

0.3543

[L2]Head Length Inch_147:

0.3543

[L2]Head Length Metric:

9.0000

[L2]Head Length Metric_148:

9.0000

[L3]Maximum Depth End Mill In:

1.4170

[L3]Maximum Depth End Mill mm:

36.0000

[L9MS]Clamping LG Mach Side In:

1.7720

[L9MS]Clamping LG Mach Side mm:

45.0100

[LF]Functional Length Inch:

3.9370

[LF]Functional Length Inch_160:

3.9370

[LF]Functional Length Metric:

100.0000

[LF]Functional Length Metric_161:

100.0000

[LS] Shank Length Inch:

3.5039

[LS] Shank Length Metric:

89.0000

[LTA]Tool Assembly Length Inch:

2.1650

[LTA]Tool Assembly Length mm:

54.9900

[L] Overall Length Inch:

3.9370

[L] Overall Length Inch_107:

3.9370

[L] Overall Length Metric:

100.0000

[L] Overall Length Metric_108:

100.0000

[REPSILON]Corner Radius Inch:

0.0295

[REPSILON]Corner Radius Metric:

0.7500

[RT]Theoretical Cor Rad Prog I:

0.0453

[RT]Theoretical Cor Rad Prog I_174:

0.0453

[RT]Theoretical Cor Rad Prog M:

1.1500

[RT]Theoretical Cor Rad Prog M_175:

1.1500

Manufacturer Info

Manufactured By:

WIDIA
