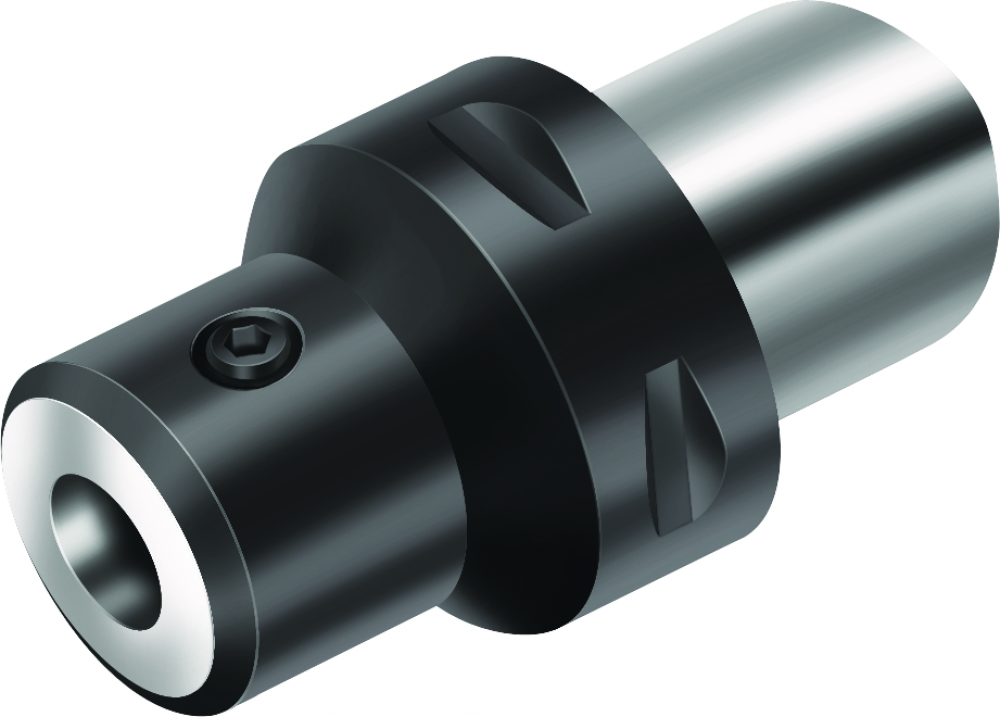

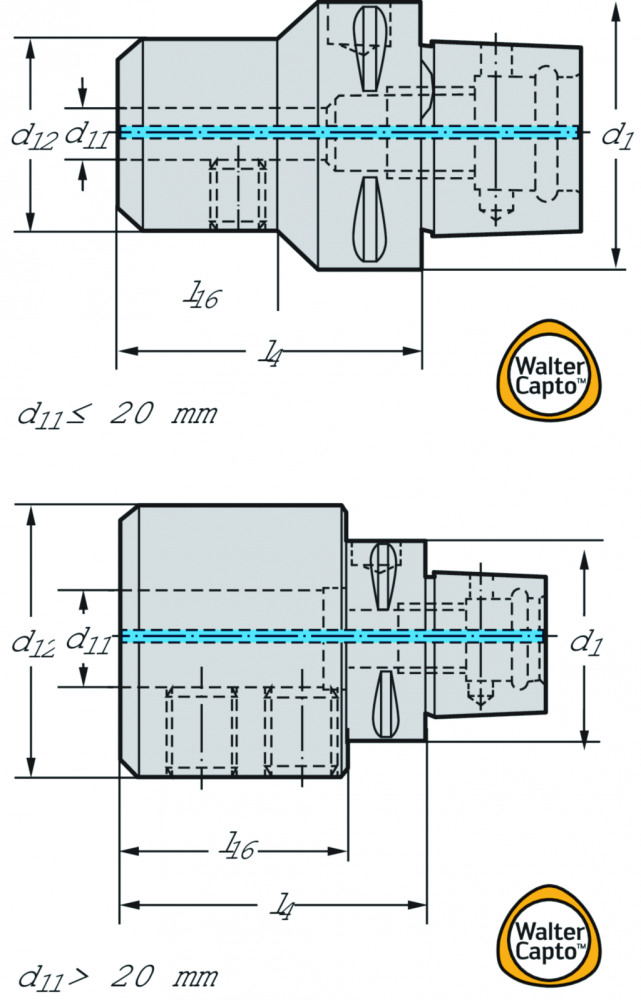

Weldon shank adaptor

Weldon shank adaptor by Walter Tool

Call For Price
  • Part Number: 5887146
  • UPC:
  • Availability:
    Loading Availability...
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (72)
Failed to load
Product Overview
Info & Guides
Weldon shank adaptor C8-391.20-32 080
Long Description
Weldon shank adaptor C.-391.20 • metric • d1=C8 • d11=32
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
End Mill Holders, Adapters and Accessories
A1 Body diameter:
72 mm
A1_INCH Body diameter:
2,83464566929134 inch
ART_ID_TO type=accessories:
7714737
ART_ID_TO type=consists_of:
5043608
ART_ID_TO type=others:
5887149;5887220;5887221;5887251;5887252;6418718;6418719;6424437;6424439;6424831;6425674;6728023;6728024;8463585
B1 Body length 1:
55,7 mm
B1_INCH Body length 1:
2,19291338582677 inch
B3 Protruding length:
80 mm
B3_INCH Protruding length:
3,1496062992126 inch
B4 Overall length:
128 mm
B4_INCH Overall length:
5,03937007874016 inch
B71 Functional length:
80 mm
B71_INCH Functional length:
3,1496062992126 inch
BBD Balanced By Design:
0
BD Body diameter:
72 mm
BD_INCH Body diameter:
2,83464566929134 inch
BLD Tool style code:
607013
BMC Body material code:
S
C11 Connection code type machine side:
CCS
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
9
C15 Connection code style machine side:
5
C2 Connection size code machine side:
800
C3 Connection diameter machine side:
80 mm
C3_INCH Connection diameter machine side:
3,1496062992126 inch
C4 Shank length:
48 mm
C4_INCH Shank length:
1,88976377952756 inch
C51 Connection code type workpiece side:
ZYL
C52 Connection code form at workpiece side:
10
C54 Connection code unit base workpiece side:
1
C55 Connection code style workpiece side:
5
C6 Connection size code workpiece side:
320
C71 Connection diameter min:
32 mm
C71_INCH Connection diameter min:
1,25984251968504 inch
CCFMS Connection code form at machine side:
1
CCFWS Connection code form at workpiece side:
10
CCMS Connection code machine side:
CCS01C0800$$$$
CCTMS Connection code type machine side:
CCS
CCTWS Connection code type workpiece side:
ZYL
CCWS Connection code workpiece side:
ZYL18S1259****
CNSC Coolant entry style code:
1
CONTENT_UNIT:
PCE
CUB Connection unit basis:
M
CUBPMS Connection unit base precision machine side:
C
CUBPWS Connection unit base precision workpiece si:
G
CURRENCY:
USD
CXSC Coolant exit style code:
1
CZCMS Connection size code machine side:
800
CZCWS Connection size code workpiece side:
320
D6 Rotational speed maximum:
14000 1/min
D7 Weight of item:
2,79 kg
D7_INCH Weight of item:
6,150834 lbs
d<sub>11</sub> Connection diameter:
32 mm
d<sub>12</sub> Body diameter:
72 mm
d<sub>1</sub> Connection size code:
C8
Designation Tool designation:
C8-391.20-32 080
E2 Kappa:
0 °
EAN:
0569912968
FMT Form type workpiece side:
INT
G35 Mounting hole count:
1
H21 Coolant entry style code:
1
H22 Coolant exit style code:
1
J1 Standard:
ISO26623-1
J21 Article number:
C8-391.20-32 080
J22 Product designation:
941
J3 Company code:
W
J4 Connection code workpiece side:
ZYL10G3200****
J6 Connection code machine side:
CCS01C0800$$$$
J7 Data chip provision:
0
KAP Kappa:
0 °
KEYWORD:
Adaptive Item|Holding||Basic Holders Coromant Capto System SANDVIK - Screw mounting|AB044
l<sub>16</sub> Usable length:
55,7 mm
l<sub>4</sub> Functional length:
80 mm
LF Functional length:
80 mm
LF_INCH Functional length:
3,1496062992126 inch
LPR Protruding length:
80 mm
LPR_INCH Protruding length:
3,1496062992126 inch
LS Shank length:
48 mm
LS_INCH Shank length:
1,88976377952756 inch
MANUFACTURER_AID:
C8-391.20-32 080
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-89
OAL Overall length:
128 mm
OAL_INCH Overall length:
5,03937007874016 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Weldon shank adaptor C.-391.20
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21022090
REFERENCE_FEATURE_GROUP_ID_GTC:
ADPRS
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112807
REFERENCE_FEATURE_GROUP_ID_Walter:
AB044-C
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RPMX Rotational speed maximum:
14000 1/min
SUPPLIER_AID:
5887146
SUPPLIER_ALT_AID:
5887146
TERRITORY:
US
TSYC Tool style code:
AB044-C
UDX.APPAREA:
Holding
UDX.BRAND:
Walter
UDX.CATFAM_CODE:
C.-391.20
UDX.CATFAM_DESCR:
Weldon shank adaptor
UDX.DESCR_TOOL:
For tools with a parallel shank and lateral clamping flat according to DIN 1835-B and DIN 6535-HB;(Tool-8838784)
UDX.DISCOUNTGROUP:
070
UDX.ITEMTYPE:
Adaptive Item
UDX.NET_WEIGHT:
6.1520
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
4.0945
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
5.3543
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
6.3350
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
89.7645
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
4.0945
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
AB044
WT Weight:
2,88 kg
WT Weight of item:
2,79 kg
WT_INCH Weight of item:
6,150834 lbs
XYWD xyw plane distance:
-80 mm
XYWD_INCH xyw plane distance:
-3,1496062992126 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
