Product Overview

Turning tools – Modular C4-MSS-E25R00

Turning tools – Modular C...-MSS...00 • Walter Cut • metric • Walter Capto^TM ISO 26623 • Right • C4 • 1.5748in

Category Path

Category:

Cutting Tools

Subcategory:

Cut-Off

Subtype:

Indexable Cutting Tools

Category Level 4:

Cut-Off Toolholders

Product Specs

ART_ID_TO type=consists_of:

5006506,5006722,5042272

ART_ID_TO type=others:

5012372;5012375;5012392;5012393;5012396;5012404;5012405;5012408;5012409;5012432;5012433;5012657;5012658;5012663;5012664;5012667;5029307;5029308;5029311;5040083;5040086;6417467;6418722;6419400;6419405;6424433;6424471;6424598;6424690;6424835;6426216;6426300;

B3 Protruding length:

53 mm

B3_INCH Protruding length:

2,08661417322835 inch

B4 Overall length:

77 mm

B4_INCH Overall length:

3,03149606299213 inch

B71 Functional length:

47,5 mm

B71_INCH Functional length:

1,87007874015748 inch

B72 Functional height:

25 mm

B72_INCH Functional height:

0,984251968503937 inch

B73 Functional width:

20,5 mm

B73_INCH Functional width:

0,807086614173228 inch

B92 Radial width:

26 mm

B92_INCH Radial width:

1,02362204724409 inch

C11 Connection code type machine side:

CCS

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

400

C3 Connection diameter machine side:

40 mm

C3_INCH Connection diameter machine side:

1,5748031496063 inch

C4 Shank length:

24 mm

C4_INCH Shank length:

0,94488188976378 inch

C51 Connection code type workpiece side:

PMA

C52 Connection code form at workpiece side:

3

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

R025

CCMS Connection code machine side:

CCS01C0400$$$$

CCWS Connection code workpiece side:

PMA03CR025****

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

C

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

400

CZCWS Connection size code workpiece side:

R025

D7 Weight of item:

0,46 kg

D7_INCH Weight of item:

1,014116 lbs

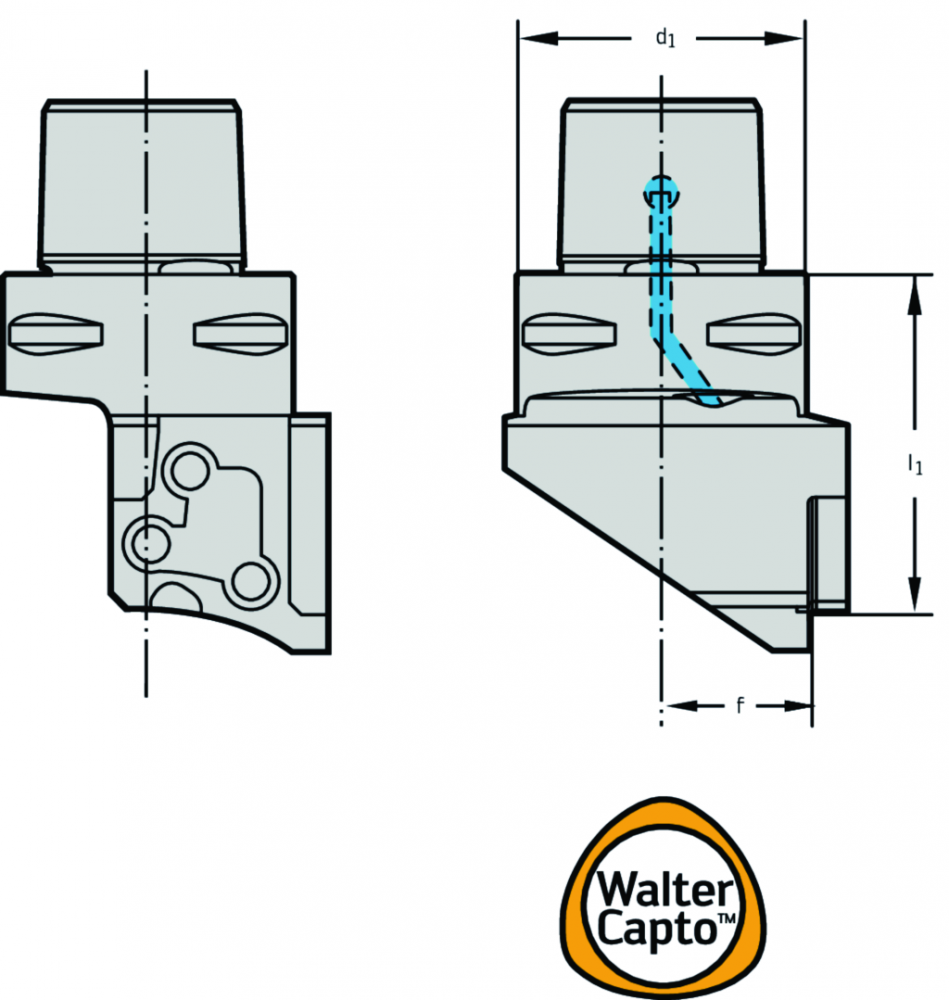

d₁ Connection size code:

C4

Designation Tool designation:

C4-MSS-E25R00

E1 Cutting direction:

R

E2 Kappa:

0 °

EAN:

0813206967

f Functional width:

20,5 mm

FMT Form type workpiece side:

EXT

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

HAND Cutting direction:

R

HF Functional height:

25 mm

HF_INCH Functional height:

0,984251968503937 inch

J1 Standard:

ISO26623-1

J21 Article number:

C4-MSS-E25R00

J3 Company code:

W

J4 Connection code workpiece side:

PMA03CR025****

J6 Connection code machine side:

CCS01C0400$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Parting/Grooving|Walter Cut|Basic Holders Coromant Capto System SANDVIK - XXX|D65PK

l₁ Functional length:

47,5 mm

LF Functional length:

47,5 mm

LF_INCH Functional length:

1,87007874015748 inch

LPR Protruding length:

53 mm

LPR_INCH Protruding length:

2,08661417322835 inch

LS Shank length:

24 mm

LS_INCH Shank length:

0,94488188976378 inch

MANUFACTURER_AID:

C4-MSS-E25R00

Module size Module size:

E25

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

77 mm

OAL_INCH Overall length:

3,03149606299213 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

RADW Radial width:

26 mm

RADW_INCH Radial width:

1,02362204724409 inch

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

Turning tools – Modular C...-MSS...00 • metric • Walter Capto^TM ISO 26623

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022090

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022090

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPNR

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

MSS-CAPTO-MODULAR-R

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

SUPPLIER_AID:

5012140

SUPPLIER_ALT_AID:

6909480

TERRITORY:

US

TSYC Tool style code:

MSS-CAPTO-MODULAR-R

UDX.APPAREA:

Parting/Grooving

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

Walter Capto^TM

UDX.BULLETTEXT_2:

Screw clamping

UDX.CATFAM_CODE:

C...-MSS

UDX.CATFAM_DESCR:

Turning tools – Modular

UDX.DISCOUNTGROUP:

065

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

1.0143

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

2.0866

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.6614

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

1.1775

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

15.9417

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

2.0866

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

D65PK

WF Functional width:

20,5 mm

WF_INCH Functional width:

0,807086614173228 inch

WT Weight of item:

0,46 kg

WT_INCH Weight of item:

1,014116 lbs

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

Screw clamping

Walter Capto^TM

Walter Capto^TM|Screw clamping

Manufacturer Info

Manufactured By:

Walter Tool
