T-slot milling cutters

T-slot milling cutters by Walter Tool

Call For Price
  • Part Number: 6795936
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (10)
Failed to load
Product Overview
Info & Guides

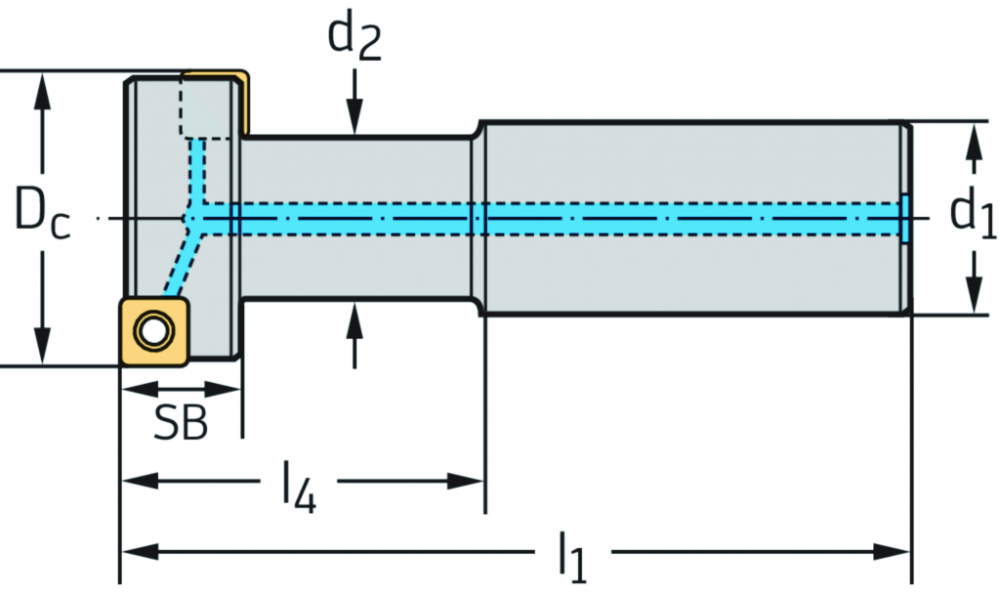

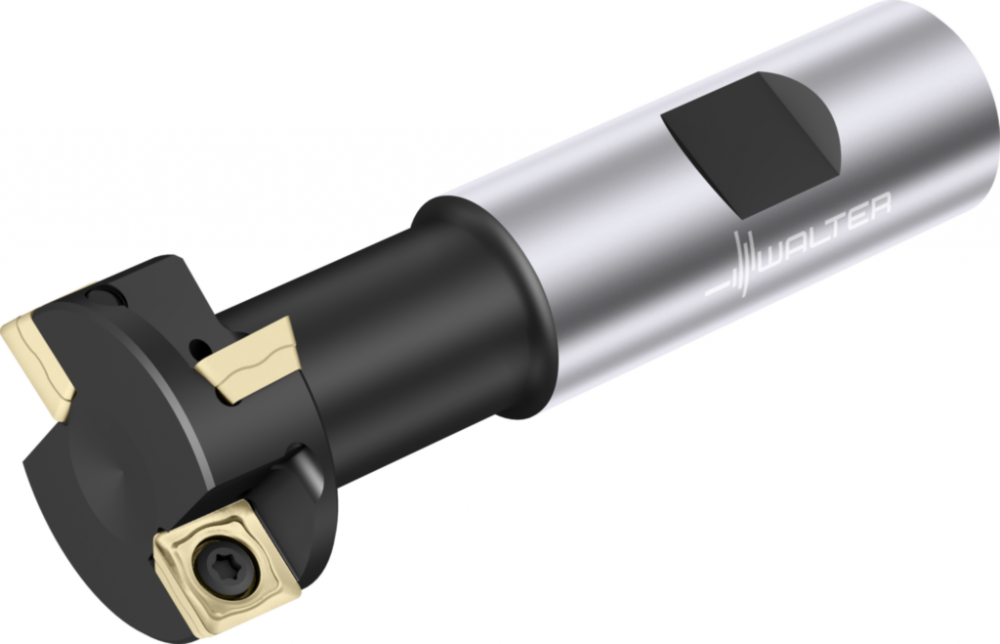

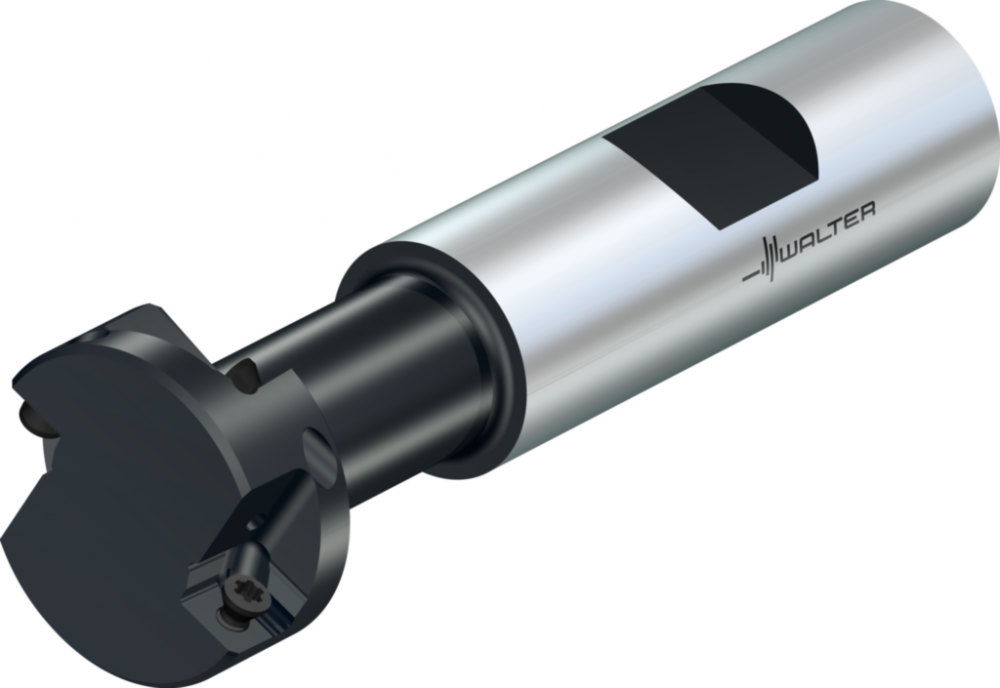

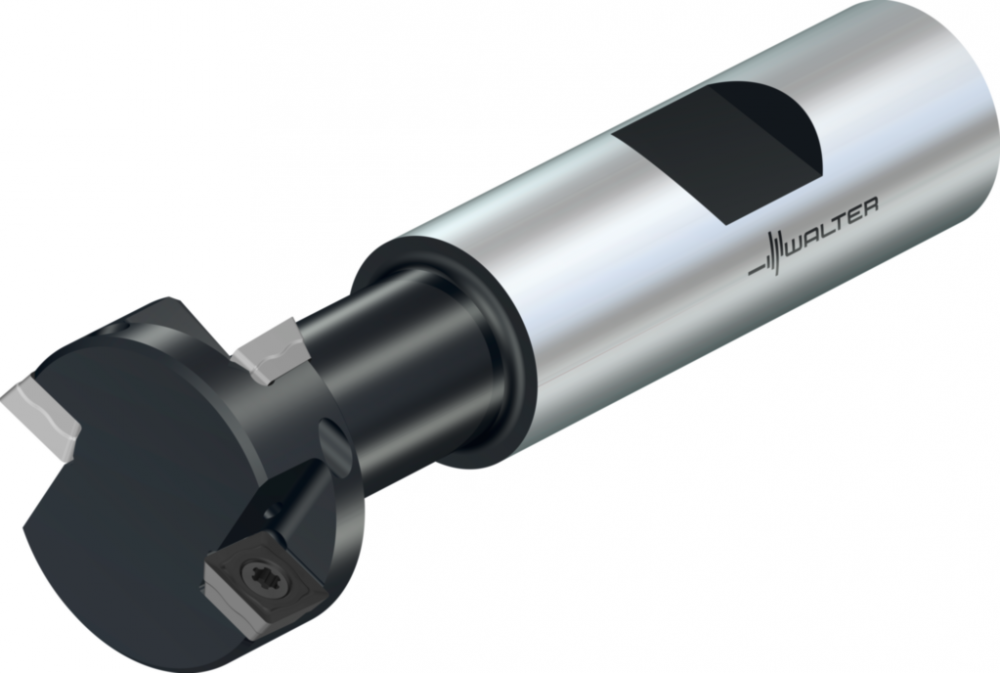

T-slot milling cutters M4575-025-W16-02-11
Long Description
T-slot milling cutters M4575 • DIN 1835 B shank • metric • ?=90° • Dc=0.9646in • SD .. 06T2 ..
Specifications
Details
Category:
Milling
Subcategory:
Solid
Subtype:
Milling Cutters
A1 Cutting diameter:
24,5 mm
A1_INCH Cutting diameter:
0,964566929133858 inch
A5 Neck diameter:
12,1 mm
A5_INCH Neck diameter:
0,476377952755905 inch
APMX Depth of cut maximum:
10,75 mm
APMX_INCH Depth of cut maximum:
0,423228346456693 inch
ART_ID_TO type=accessories:
5050320,5050330,5334285
ART_ID_TO type=consists_of:
5332922
ART_ID_TO type=others:
6795980, ;6795981, ;6795982, ;6795983, ;6795985, ;6795986, ;6795989, ;6795990, ;6795991, ;6795992, ;6841395, ;6952613, ;7169045, ;7169048, ;7169063, ;7169065, ;7469771, ;7924294, ;7924295, ;7924296, ;8285066, ;8285067, ;8441385, ;8462640, ;8462641, ;846264
B2 Depth of cut maximum:
10,75 mm
B2_INCH Depth of cut maximum:
0,423228346456693 inch
B3 Protruding length:
31 mm
B3_INCH Protruding length:
1,22047244094488 inch
B4 Usable length:
31 mm
B4_INCH Usable length:
1,22047244094488 inch
B5 Overall length:
80 mm
B5_INCH Overall length:
3,1496062992126 inch
BLD Tool style code:
3
BMC Body material code:
S
C11 Connection code type machine side:
ZYL
C12 Connection code form at machine side:
10
C14 Connection code unit base machine side:
1
C15 Connection code style machine side:
5
C2 Connection size code machine side:
160
C3 Connection diameter machine side:
16 mm
C31 ISO-tolerance class shank diameter:
h6
C3_INCH Connection diameter machine side:
0,62992125984252 inch
C4 Shank length:
48 mm
C4_INCH Shank length:
1,88976377952756 inch
CCFMS Connection code form at machine side:
10
CCMS Connection code machine side:
ZYL10G1600h$06
CCTMS Connection code type machine side:
ZYL
CDX Cutting depth maximum:
5 mm
CDX_INCH Cutting depth maximum:
0,196850393700787 inch
CICT Cutting item count:
2
CNSC Coolant entry style code:
1
CONTENT_UNIT:
PCE
CPDF Cutting pitch differential:
0
CUB Connection unit basis:
M
CURRENCY:
USD
CW Cutting width:
10,75 mm
CW_INCH Cutting width:
0,423228346456693 inch
CXSC Coolant exit style code:
3
D11 Mill tool type ISO:
F
D6 Rotational speed maximum:
25300 1/min
D7 Weight of item:
0,12 kg
D7_INCH Weight of item:
0,264552 lbs
D9 Adjustment property:
0
d<sub>1</sub> Connection diameter:
16 mm
d<sub>2</sub> Body diameter:
12,1 mm
D<sub>c</sub> Cutting edge diameter:
24,5 mm
DC Cutting diameter:
24,5 mm
DC_INCH Cutting diameter:
0,964566929133858 inch
Designation Tool designation:
M4575-025-W16-02-11
DN Neck diameter:
12,1 mm
DN_INCH Neck diameter:
0,476377952755905 inch
EAN:
0787282724
EPSR Insert included angle:
90 °
F1 Cutting direction:
R
F21 Peripheral effective cutting edge count:
2
F23 Number of insert mounting levels:
2
F24 Number of inserts per mounting level:
2
G13 Face mounted insert count:
4
G21 Clamping type code:
S
G22 Cutting item type count:
2
H21 Coolant entry style code:
1
H22 Coolant exit style code:
3
H4 Body material code:
S
HAND Cutting direction:
R
IC Inscribed circle diameter:
6,35 mm
IC_INCH Inscribed circle diameter:
0,25 inch
IH Insert hand:
R
IIC Insert interface code:
WR$$SD06T2043R***04
J1 Standard:
ISO3338-2
J11 Standard letter to the standard number:
WE
J21 Article number:
M4575-025-W16-02-11
J3 Company code:
W
J41 Insert interface code:
WR$$SD06T2043R***04
J6 Connection code machine side:
ZYL10G1600h$06
J7 Data chip provision:
0
J8 Machining operation:
FNU
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
90 °
KEYWORD:
Tool Item|Milling||T-slot milling cutters (1 on 1)|M4575
l<sub>1</sub> Overall length:
80 mm
l<sub>4</sub> Maximum projection length:
31 mm
LF Functional length:
56 mm
LF_INCH Functional length:
2,20472440944882 inch
LPR Protruding length:
31 mm
LPR_INCH Protruding length:
1,22047244094488 inch
LS Shank length:
48 mm
LSC Clamping length:
48 mm
LSC_INCH Clamping length:
1,88976377952756 inch
LS_INCH Shank length:
1,88976377952756 inch
LU Usable length:
31 mm
LU_INCH Usable length:
1,22047244094488 inch
MANUFACTURER_AID:
M4575-025-W16-02-11
No. of inserts Number of indexable inserts:
2 EA
NOI Insert index count:
20
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-87
OAL Overall length:
80 mm
OAL_INCH Overall length:
3,1496062992126 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
Possible indexable inserts:
SDM . 06T204
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
T-slot milling cutters M4575 • DIN 1835 B shank • metric • κ=90°
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21180803
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21180803
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21180803
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010503
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010503
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010503
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21180803
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21180803
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21180803
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21180803
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21180803
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21180803
REFERENCE_FEATURE_GROUP_ID_GTC:
MILTSI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
23241623
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
23241623
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
23171612
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23171612
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
23171612
REFERENCE_FEATURE_GROUP_ID_Walter:
M4575-W
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RMPX Ramping angle maximum:
0 °
RPMX Rotational speed maximum:
25300 1/min
S Insert thickness:
2,78 mm
SB Max. depth of cut:
10,75 mm
SC Insert shape code:
S
SUPPLIER_AID:
6795936
SUPPLIER_ALT_AID:
6795936
S_INCH Insert thickness:
0,109448818897638 inch
TERRITORY:
US
TSYC Tool style code:
3
UDX.APPAREA:
Milling
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
4 cutting edges per indexable insert
UDX.CATFAM_CODE:
M4575
UDX.CATFAM_DESCR:
T-slot milling cutters
UDX.DESCR_APPLICATION:
For machining radial grooves and T-slots in machine beds
UDX.DESCR_BENEFITS:
High level of cost-efficiency;Cost-effective procurement and inventory thanks to universal use of system insert;Four or two cutting edges per indexable insert;Concept requiring minimum resources;Low power requirement thanks to highly positive geometries;CO
UDX.DESCR_TOOL:
With internal coolant for reliable chip evacuation by compressed air or coolant;Walter M4574 T-slot milling cutter;T-slot milling cutter with square system insert for creating T-slots in accordance with DIN 650;With Weldon shank
UDX.DISCOUNTGROUP:
048
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
.2646
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
1.1811
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
5.1181
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
.2800
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
7.1398
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
1.1811
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
M4575
UDX.RANKING_ISO_H:
No application
UDX.RANKING_ISO_K:
Main application
UDX.RANKING_ISO_M:
Main application
UDX.RANKING_ISO_N:
Main application
UDX.RANKING_ISO_O:
No application
UDX.RANKING_ISO_P:
Main application
UDX.RANKING_ISO_S:
Main application
UDX.WORKING_CONDITION_ISO_H:
n/a
UDX.WORKING_CONDITION_ISO_K:
n/a
UDX.WORKING_CONDITION_ISO_M:
n/a
UDX.WORKING_CONDITION_ISO_N:
n/a
UDX.WORKING_CONDITION_ISO_O:
n/a
UDX.WORKING_CONDITION_ISO_P:
n/a
UDX.WORKING_CONDITION_ISO_S:
n/a
WT Weight:
0,12 kg
WT Weight of item:
0,12 kg
WT_INCH Weight of item:
0,264552 lbs
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
Z Number of teeth:
2 EA
ZEFF Face effective cutting edge count:
2
ZEFP Peripheral effective cutting edge count:
2
