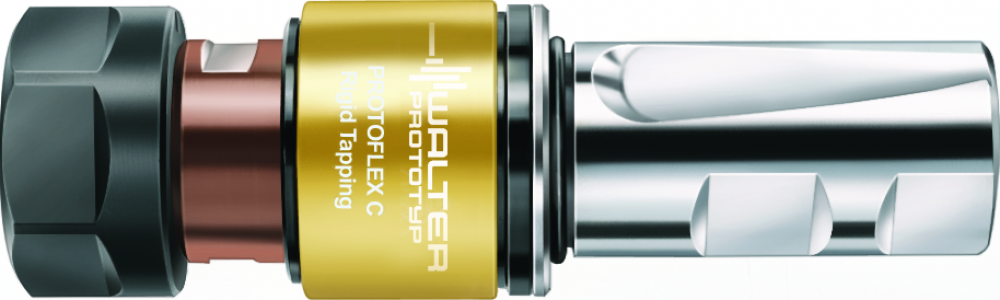

Synchronous thread cutting adaptor

Synchronous thread cutting adaptor by Walter Tool

Call For Price
  • Part Number: 7209473
  • UPC:
  • Availability:
    Loading Availability...
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (32)
Product Overview
Info & Guides
Synchronous thread cutting adaptor AB035-W25-ER25-088
Long Description

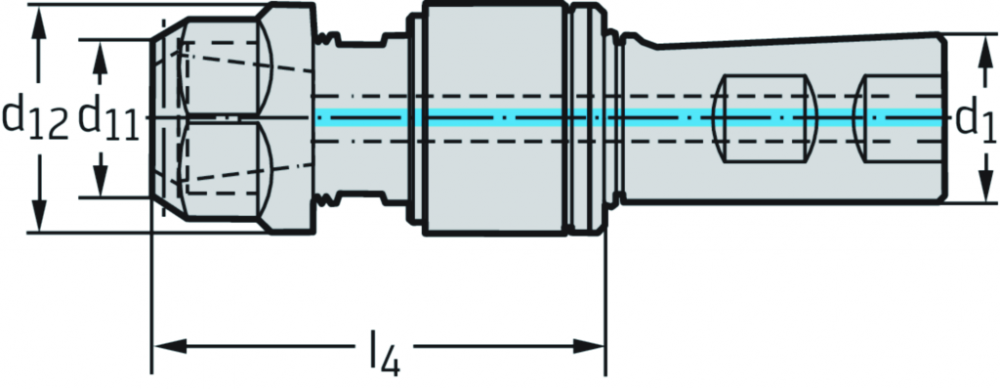

Synchronous thread cutting adaptor AB035-W • metric • d1=0.9843in • d11=1.0157in • for thread diameter size=M8-M20
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Collet Chucks
A2 Body diameter 2:
44 mm
A2_INCH Body diameter 2:
1,73228346456693 inch
A5 Diameter lock nut:
41,7 mm
A5_INCH Diameter lock nut:
1,64173228346457 inch
ART_ID_TO type=accessories:
5040704
ART_ID_TO type=consists_of:
5040688
ART_ID_TO type=others:
5007117;5007127;5007380;5007383;5012633;5012642;5887145;6257847;6257864;6257930;6257936;8651424;8651425;8651446;8651606;8651607;8651608;8651637;8651638;8651639;8651739;8651740;8651741;8651769;8651770;8651771;8698239;8698259;8698269;8698309
B2 Length 2:
42,2 mm
B2_INCH Length 2:
1,66141732283465 inch
B3 Protruding length:
88,1 mm
B3_INCH Protruding length:
3,46850393700787 inch
B4 Overall length:
138,9 mm
B4_INCH Overall length:
5,46850393700787 inch
B6 Adjustment nut height:
25 mm
B6_INCH Adjustment nut height:
0,984251968503937 inch
B71 Functional length:
125,4 mm
B71_INCH Functional length:
4,93700787401575 inch
BBD Balanced By Design:
0
BLD Tool style code:
513011
BMC Body material code:
S
C11 Connection code type machine side:
ZYL
C12 Connection code form at machine side:
18
C14 Connection code unit base machine side:
1
C15 Connection code style machine side:
5
C2 Connection size code machine side:
250
C3 Connection diameter machine side:
25 mm
C31 ISO-tolerance class shank diameter:
h6
C3_INCH Connection diameter machine side:
0,984251968503937 inch
C4 Shank length:
50,8 mm
C4_INCH Shank length:
2 inch
C51 Connection code type workpiece side:
SZD
C52 Connection code form at workpiece side:
2
C54 Connection code unit base workpiece side:
9
C55 Connection code style workpiece side:
5
C6 Connection size code workpiece side:
250
C711 ISO-tolerance class connection bore diameter:
h6
C81 Clamping length maximum:
50,8 mm
C81_INCH Clamping length maximum:
2 inch
CCFMS Connection code form at machine side:
18
CCFWS Connection code form at workpiece side:
2
CCMS Connection code machine side:
ZYL18G2500h$06
CCTMS Connection code type machine side:
ZYL
CCTWS Connection code type workpiece side:
SZD
CCWS Connection code workpiece side:
SZD02C0250****
CNSC Coolant entry style code:
1
Collets Collets:
ER25
CONTENT_UNIT:
PCE
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
G
CUBPWS Connection unit base precision workpiece si:
C
CURRENCY:
USD
CXSC Coolant exit style code:
1
CZCMS Connection size code machine side:
250
CZCWS Connection size code workpiece side:
250
D6 Rotational speed maximum:
8000 1/min
D7 Weight of item:
1,28 kg
D7_INCH Weight of item:
2,821888 lbs
d<sub>11</sub> Connection diameter:
M8-M20
d<sub>12</sub> Body diameter:
41,7 mm
d<sub>1</sub> Connection size code:
25
Designation Tool designation:
AB035-W25-ER25-088
E2 Kappa:
0 °
EAN:
0870669853
FMT Form type workpiece side:
INT
H Shank height:
23 mm
H21 Coolant entry style code:
1
H22 Coolant exit style code:
1
H_INCH Shank height:
0,905511811023622 inch
J1 Standard:
-
J21 Article number:
AB035-W25-ER25-088
J22 Product designation:
6441
J3 Company code:
W
J4 Connection code workpiece side:
SZD02C0250****
J6 Connection code machine side:
ZYL18G2500h$06
J7 Data chip provision:
0
KAP Kappa:
0 °
KEYWORD:
Adaptive Item|Holding||Basic Holders Ingersoll Tool connection - Collet chuck SANDVIK Coromant|AB035
l<sub>4</sub> Maximum projection length:
88,1 mm
LF Functional length:
125,4 mm
LF_INCH Functional length:
4,93700787401575 inch
LPR Protruding length:
88,1 mm
LPR_INCH Protruding length:
3,46850393700787 inch
LS Shank length:
50,8 mm
LSC Clamping length maximum:
50,8 mm
LSC_INCH Clamping length maximum:
2 inch
LS_INCH Shank length:
2 inch
MANUFACTURER_AID:
AB035-W25-ER25-088
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-89
OAL Overall length:
138,9 mm
OAL_INCH Overall length:
5,46850393700787 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Synchronous thread cutting adaptor AB035-W • metric
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21020302
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21020302
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21020302
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21022001
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21022001
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21022001
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21020302
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21020302
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21020302
REFERENCE_FEATURE_GROUP_ID_GTC:
ADPRS
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112807
REFERENCE_FEATURE_GROUP_ID_Walter:
AB035-W
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RPMX Rotational speed maximum:
8000 1/min
SUPPLIER_AID:
7209473
SUPPLIER_ALT_AID:
7209473
TERRITORY:
US
TSYC Tool style code:
AB035-W
UDX.APPAREA:
Holding
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
Integrated minimum compensation in axial and radial directions
UDX.CATFAM_CODE:
AB035-W
UDX.CATFAM_DESCR:
Synchronous thread cutting adaptor
UDX.DESCR_APPLICATION:
Synchronous machining;Suitable for taps and thread formers;Also for high cutting speeds;Can be used on all conventional machining centres
UDX.DESCR_BENEFITS:
Compensates for axial changes in position within a range of ±0.5 mm;High process reliability thanks to the reduced risk of fracture (particularly where dimensions are small);Longer threading tool life due to less friction
UDX.DESCR_TOOL:
Synchronous tapping adaptor with Weldon;Synchronous tapping adaptor;Patented micro-compensator made of a specially developed alloy;Integrated minimum compensation in axial and radial directions;MQL variant available on request
UDX.DISCOUNTGROUP:
077
UDX.ITEMTYPE:
Adaptive Item
UDX.NET_WEIGHT:
2.8224
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
2.7559
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
7.7559
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
2.8599
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
58.9062
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
2.7559
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
AB035
WT Weight:
1,28 kg
WT Weight of item:
1,28 kg
WT_INCH Weight of item:
2,821888 lbs
XYWD xyw plane distance:
-125,4 mm
XYWD_INCH xyw plane distance:
-4,93700787401575 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Manufactured By:
Walter Tool
Other Details
Integrated minimum compensation in axial and radial directions
