Part Number: 8033526 / Vendor ID #: 11770
Solid carbide shoulder milling cutters
by Walter Tool
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unknown.
Specific Products: ...

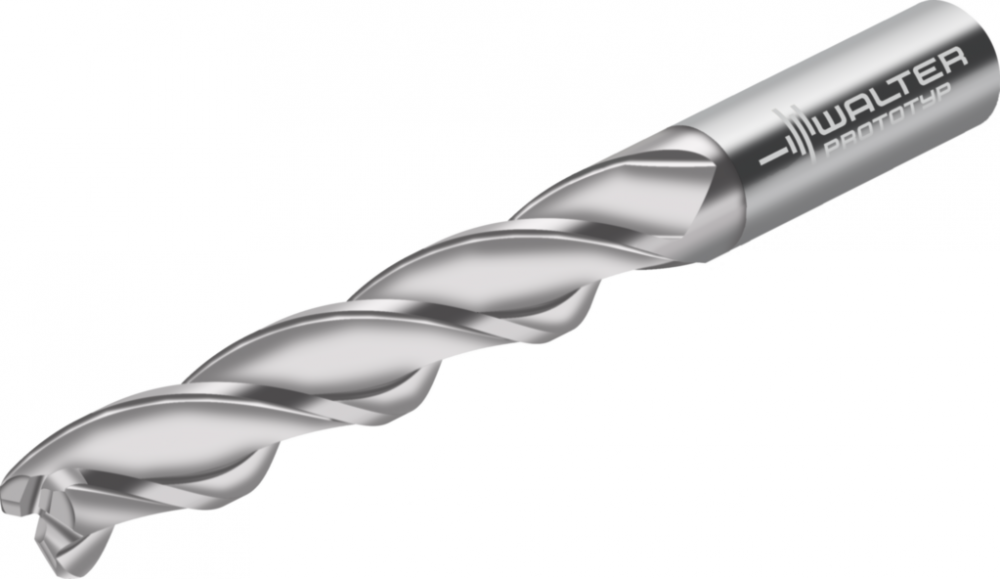

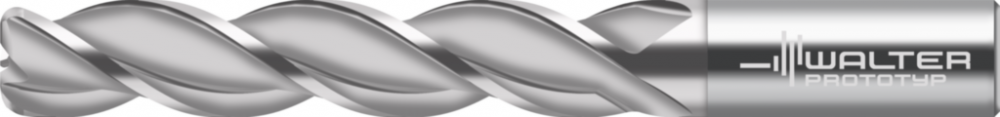

Solid carbide shoulder milling cutters MC166-12.0A3X300L-WJ30UU
Solid carbide shoulder milling cutters MC166 • Advance • DIN 6535 HA shank • metric • flute helix angle 35° • WJ30UU • Dc=0.4724in • R=0.1181in • Z=3
Category:
Milling
Subcategory:
Solid
Subtype:
Corner Radius and Corner Chamfer End Mills
A1 Cutting diameter:
12 mm
A1_INCH Cutting diameter:
0,47244094488189 inch
APMX Depth of cut maximum:
60 mm
APMX_INCH Depth of cut maximum:
2,36220472440945 inch
ART_ID_TO type=others:
5007214;6358413;6362346;6380959;6381038;6381039;6381079;6381121;6381125;6381126;6381127;6381128;6381129;6381180;6381181;6852042;6852043;6852047;6852048;6852121;6852122;6852123;6852124;8156066;8156069;8156073;8156076;8156080;8156082;8156086;8156088;8698234;
B2 Depth of cut maximum:
60 mm
B2_INCH Depth of cut maximum:
2,36220472440945 inch
B3 Protruding length:
73 mm
B3_INCH Protruding length:
2,8740157480315 inch
B4 Usable length:
60 mm
B4_INCH Usable length:
2,36220472440945 inch
B5 Overall length:
118 mm
B5_INCH Overall length:
4,64566929133858 inch
B6 Head length:
73 mm
B6_INCH Head length:
2,8740157480315 inch
B71 Functional length:
118 mm
B71_INCH Functional length:
4,64566929133858 inch
B9 Neck length:
60
BD Body diameter:
12 mm
BD_INCH Body diameter:
0,47244094488189 inch
BLD Tool style code:
1
BMC Body material code:
H
C11 Connection code type machine side:
ZYL
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
0
C15 Connection code style machine side:
5
C2 Connection size code machine side:
120
C3 Connection diameter machine side:
12 mm
C31 ISO-tolerance class shank diameter:
h6
C3_INCH Connection diameter machine side:
0,47244094488189 inch
C4 Shank length:
45 mm
C4_INCH Shank length:
1,77165354330709 inch
CBMD Chip breaker manufacturers designation:
STRAI
CCMS Connection code machine side:
ZYL01G1200h$06
CNSC Coolant entry style code:
0
COATING Coating:
unbeschichtet
CONTENT_UNIT:
PCE
CP Coolant pressure:
0 MPa
CPDF Cutting pitch differential:
1
CUB Connection unit basis:
M
CUBPMS Connection unit base precision machine side:
G
CURRENCY:
USD
CXSC Coolant exit style code:
0
CZCMS Connection size code machine side:
120
D6 Rotational speed maximum:
80000 1/min
D7 Weight of item:
0,155 kg
D7_INCH Weight of item:
0,341713 lbs
d<sub>1</sub> Shank diameter:
12 mm
D<sub>c</sub> Cutting edge diameter:
12 mm
DC Cutting diameter:
12 mm
DC_INCH Cutting diameter:
0,47244094488189 inch
Designation Tool designation:
MC166-12.0A3X300L-WJ30UU
E2 Rake angle radial:
8 °
E3 Rake angle axial:
8 °
EAN:
4042446315436
F1 Cutting direction:
R
F21 Peripheral effective cutting edge count:
3
F22 Face effective cutting edge count:
3
F3 Flute helix hand:
R
F4 Flute helix angle:
35 °
FHA Flute helix angle:
35 °
FHH Flute helix hand:
R
FMT Form type machine side:
EXT
G1 Corner radius:
3 mm
G1_INCH Corner radius:
0,118110236220472 inch
GAMF Rake angle radial:
8 °
GAMP Rake angle axial:
8 °
GRADE Grade manufacturer's designation:
WJ30UU
H11 Standard designation of the grade, main applic:
-
H21 Coolant entry style code:
0
H22 Coolant exit style code:
0
H3 Grade manufacturer's designation:
WJ30UU
H4 Body material code:
H
H5 Coating:
unbeschichtet
HAND Cutting direction:
R
IEP Interupted edge property:
0
J1 Standard:
PWZ-NORM XL
J11 Standard letter to the standard number:
HA
J21 Article number:
MC166-12.0A3X300L-WJ30UU
J3 Company code:
W
J6 Connection code machine side:
ZYL01G1200h$06
J7 Data chip provision:
0
J8 Machining operation:
FPL
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
90 °
KEYWORD:
Solid Cutting Tool|Milling||End milling cutters|MC166
l<sub>1</sub> Overall length:
118 mm
l<sub>4</sub> Functional length:
73 mm
L<sub>c</sub> Cutting edge length:
60 mm
LF Functional length:
118 mm
LF_INCH Functional length:
4,64566929133858 inch
LS Shank length:
45 mm
LS_INCH Shank length:
1,77165354330709 inch
LU Usable length:
60 mm
LU_INCH Usable length:
2,36220472440945 inch
MANUFACTURER_AID:
MC166-12.0A3X300L-WJ30UU
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-82
OAL Overall length:
118 mm
OAL_INCH Overall length:
4,64566929133858 inch
OHX Protruding length:
73 mm
OHX_INCH Protruding length:
2,8740157480315 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
r Radius:
3 mm
RE Corner radius:
3 mm
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Solid carbide shoulder milling cutters MC166 • Advance • DIN 6535 HA shank • metric • flute helix angle 35°
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21180601
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21180601
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21180601
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010504
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010504
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010504
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21180601
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21180601
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21180601
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21180601
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21180601
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21180601
REFERENCE_FEATURE_GROUP_ID_GTC:
MILSQS
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
23241614
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
23241614
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
23171612
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23171612
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
23171612
REFERENCE_FEATURE_GROUP_ID_Walter:
MC166-A-3-X-R-L
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RE_INCH Corner radius:
0,118110236220472 inch
RHO Rho:
0 °
RPMX Rotational speed maximum:
80000 1/min
SUPPLIER_AID:
8033526
SUPPLIER_ALT_AID:
8033526
TERRITORY:
US
TSYC Tool style code:
MC166-A-3-X-R-L
UDX.APPAREA:
Milling
UDX.BRAND:
Walter Prototyp
UDX.CATFAM_CODE:
MC166
UDX.CATFAM_DESCR:
Solid carbide shoulder milling cutters
UDX.DESCR_APPLICATION:
Specially designed for dynamic milling (low ae, high ap, large Lc);Developed in the aerospace industry; suitable for all sectors with ISO N machining;Specialist for finishing high walls;Dynamic roughing of deep pockets and
UDX.DESCR_BENEFITS:
High level of process reliability in unmanned machining;High productivity due to optimal metal removal rate with reduced machining times;Special micro-geometry for finishing high walls;Differential pitch for optimum operational smoothness and huge increase
UDX.DESCR_TOOL:
Lc = 5 × Dc;Increased core stability;WJ30UU grade (uncoated)
UDX.DISCOUNTGROUP:
M20
UDX.ITEMTYPE:
Solid Cutting Tool
UDX.NET_WEIGHT:
.3418
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
.9055
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
4.9213
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
.3726
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
4.0352
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
.9055
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
MC166
UDX.PRODUCTLINE:
Advance
UDX.RANKING_ISO_H:
No application
UDX.RANKING_ISO_K:
No application
UDX.RANKING_ISO_M:
No application
UDX.RANKING_ISO_N:
Main application
UDX.RANKING_ISO_O:
No application
UDX.RANKING_ISO_P:
No application
UDX.RANKING_ISO_S:
No application
UDX.WORKING_CONDITION_ISO_H:
n/a
UDX.WORKING_CONDITION_ISO_K:
n/a
UDX.WORKING_CONDITION_ISO_M:
n/a
UDX.WORKING_CONDITION_ISO_N:
good
UDX.WORKING_CONDITION_ISO_O:
n/a
UDX.WORKING_CONDITION_ISO_P:
n/a
UDX.WORKING_CONDITION_ISO_S:
n/a
ULDR Usable length diameter ratio:
5
WT Weight of item:
0,155 kg
WT_INCH Weight of item:
0,341713 lbs
XYWD xyw plane distance:
-118 mm
XYWD_INCH xyw plane distance:
-4,64566929133858 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Z Number of teeth:
3
ZEFF Face effective cutting edge count:
3
ZEFP Peripheral effective cutting edge count:
3
Manufactured By:
Walter Tool
