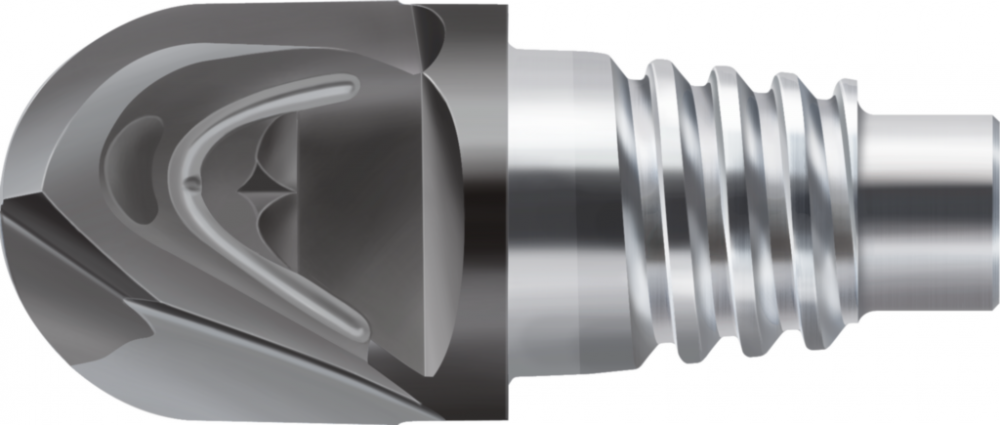

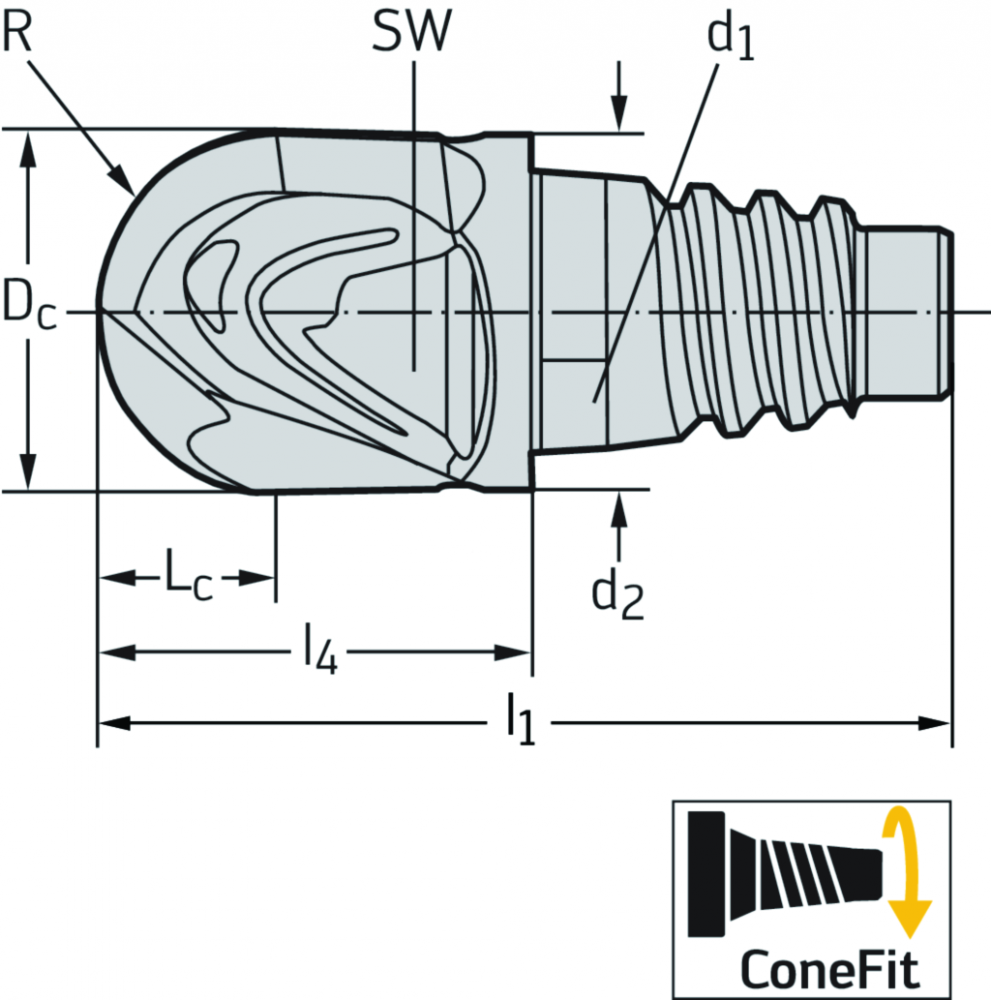

Solid carbide ball-nose copy milling cutters H1E01118-E10-10
Long Description
Solid carbide ball-nose copy milling cutters H1E01118 • Protostar® • ConeFit • TAX • metric • flute helix angle 10° • Dc=0.3937in • R=0.1969in • Z=2
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
End Mill Holders, Adapters and Accessories
A1 Cutting diameter:
10 mm
A1_INCH Cutting diameter:
0,393700787401575 inch
A5 Neck diameter:
9,7 mm
A5_INCH Neck diameter:
0,381889763779528 inch
APMX Depth of cut maximum:
8 mm
APMX_INCH Depth of cut maximum:
0,31496062992126 inch
ART_ID_TO type=accessories:
5613701
ART_ID_TO type=others:
5634445;5634446;5634672;5634673;5835462;5835463;5835464;5835465;5835466;5835467;5835468;5835469;5930080;5930105;6294148;7171619
B2 Depth of cut maximum:
8 mm
B2_INCH Depth of cut maximum:
0,31496062992126 inch
B3 Protruding length:
11,8 mm
B3_INCH Protruding length:
0,464566929133858 inch
B4 Usable length:
11,8 mm
B4_INCH Usable length:
0,464566929133858 inch
B5 Overall length:
23 mm
B5_INCH Overall length:
0,905511811023622 inch
B6 Head length:
11,8 mm
B6_INCH Head length:
0,464566929133858 inch
B71 Functional length:
11,8 mm
B71_INCH Functional length:
0,464566929133858 inch
B9 Neck length:
11,8
BD Body diameter:
9,7 mm
BD_INCH Body diameter:
0,381889763779528 inch
BLD Tool style code:
6
BMC Body material code:
H
C11 Connection code type machine side:
SAC
C12 Connection code form at machine side:
4
C14 Connection code unit base machine side:
8
C15 Connection code style machine side:
5
C2 Connection size code machine side:
100
C3 Connection diameter machine side:
9,7 mm
C3_INCH Connection diameter machine side:
0,381889763779528 inch
CCMS Connection code machine side:
SAC04A0100$$$$
CNSC Coolant entry style code:
0
COATING Coating:
TiAlN
CONTENT_UNIT:
PCE
CP Coolant pressure:
0 MPa
CPDF Cutting pitch differential:
0
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
A
CURRENCY:
USD
CXSC Coolant exit style code:
0
CZCMS Connection size code machine side:
100
D6 Rotational speed maximum:
999999 1/min
D7 Weight of item:
0,011 kg
D7_INCH Weight of item:
0,0242506 lbs
d<sub>1</sub> Connection size code:
E10
d<sub>2</sub> Body diameter:
9,7 mm
D<sub>c</sub> Cutting edge diameter:
10 mm
DC Cutting diameter:
10 mm
DC_INCH Cutting diameter:
0,393700787401575 inch
Designation Tool designation:
H1E01118-E10-10
DN Neck diameter:
9,7 mm
DN_INCH Neck diameter:
0,381889763779528 inch
E2 Rake angle radial:
10,5 °
E3 Rake angle axial:
1 °
EAN:
4042446221508
F1 Cutting direction:
R
F21 Peripheral effective cutting edge count:
2
F22 Face effective cutting edge count:
2
F3 Flute helix hand:
R
F4 Flute helix angle:
10 °
FHA Flute helix angle:
10 °
FMT Form type machine side:
EXT
GAMF Rake angle radial:
10,5 °
GAMP Rake angle axial:
1 °
GRADE Grade manufacturer's designation:
TAX
H11 Standard designation of the grade, main applic:
-
H21 Coolant entry style code:
0
H22 Coolant exit style code:
0
H3 Grade manufacturer's designation:
TAX
H4 Body material code:
H
H5 Coating:
TiAlN
HAND Cutting direction:
R
J1 Standard:
PWZ-NORM
J21 Article number:
H1E01118-E10-10
J3 Company code:
W
J6 Connection code machine side:
SAC04A0100$$$$
J7 Data chip provision:
0
J8 Machining operation:
FFO
KAP Kappa:
0 °
KEYWORD:
Solid Cutting Tool|Milling|Protostar®|Ball nose milling cutters|1H1E01118
l<sub>1</sub> Overall length:
23 mm
l<sub>4</sub> Functional length:
11,8 mm
L<sub>c</sub> Cutting edge length:
8 mm
LF Functional length:
11,8 mm
LF_INCH Functional length:
0,464566929133858 inch
MANUFACTURER_AID:
H1E01118-E10-10
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-82
OAL Overall length:
23 mm
OAL_INCH Overall length:
0,905511811023622 inch
OHX Protruding length:
11,8 mm
OHX_INCH Protruding length:
0,464566929133858 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
2
QUANTITY_MIN:
2
r Radius:
5 mm
RE Corner radius:
5 mm
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Solid carbide ball-nose copy milling cutters H1E01118 • Protostar® • ConeFit • TAX • metric • flute helix angle 10°
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010504
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010504
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010504
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21180606
REFERENCE_FEATURE_GROUP_ID_GTC:
MILBNSS
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
23241614
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
23241614
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
23171612
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23171612
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
23171612
REFERENCE_FEATURE_GROUP_ID_Walter:
H1E01118
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RE_INCH Corner radius:
0,196850393700787 inch
RHO Rho:
0 °
RMPX Ramping angle maximum:
15 °
RPMX Rotational speed maximum:
999999 1/min
SUPPLIER_AID:
6068732
SUPPLIER_ALT_AID:
6068732
SW Wrench size:
6 mm
TERRITORY:
US
TSYC Tool style code:
H1E01118
UDX.APPAREA:
Milling
UDX.BRAND:
Walter Prototyp
UDX.BULLETTEXT_1:
Type N 10
UDX.CATFAM_CODE:
H1E01118
UDX.CATFAM_DESCR:
Solid carbide ball-nose copy milling cutters
UDX.DISCOUNTGROUP:
MS5
UDX.ITEMTYPE:
Solid Cutting Tool
UDX.NET_WEIGHT:
.0243
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
.9449
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
2.2441
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
.0728
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
4.4245
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
2.0866
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
1H1E01118
UDX.RANKING_ISO_H:
No application
UDX.RANKING_ISO_K:
Additional application
UDX.RANKING_ISO_M:
Main application
UDX.RANKING_ISO_N:
Additional application
UDX.RANKING_ISO_O:
No application
UDX.RANKING_ISO_P:
Main application
UDX.RANKING_ISO_S:
No application
UDX.WORKING_CONDITION_ISO_H:
n/a
UDX.WORKING_CONDITION_ISO_K:
moderate
UDX.WORKING_CONDITION_ISO_M:
good
UDX.WORKING_CONDITION_ISO_N:
moderate
UDX.WORKING_CONDITION_ISO_O:
n/a
UDX.WORKING_CONDITION_ISO_P:
good
UDX.WORKING_CONDITION_ISO_S:
n/a
ULDR Usable length diameter ratio:
1,18
WT Weight of item:
0,011 kg
WT_INCH Weight of item:
0,0242506 lbs
XYWD xyw plane distance:
-11,8 mm
XYWD_INCH xyw plane distance:
-0,464566929133858 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Z Number of teeth:
2
ZEFF Face effective cutting edge count:
2
ZEFP Peripheral effective cutting edge count:
2
Manufactured By:
Walter Tool
Other Details
Type N 10
