Solid carbide ball-nose copy milling cutters by Walter Tool
Call For Price
- Part Number: 5927034
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (681)
Product Overview

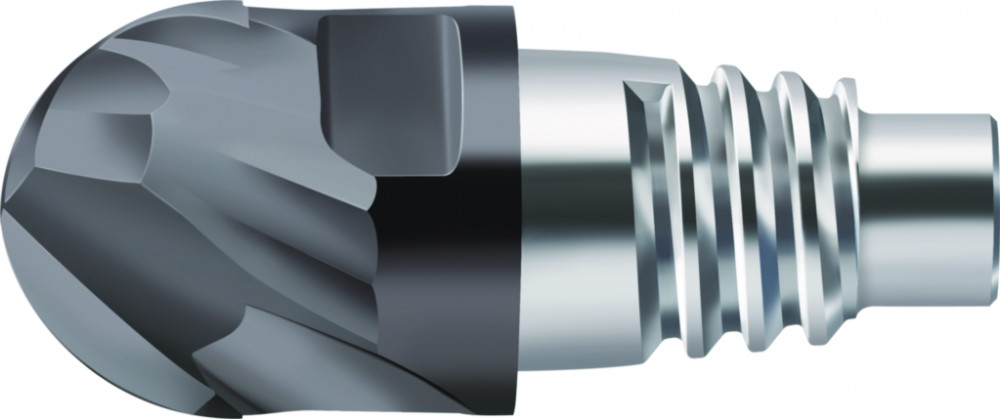

Solid carbide ball-nose copy milling cutters H8E01118-E12-12
Long Description
Solid carbide ball-nose copy milling cutters H8E01118 • Protostar® • ConeFit • TAX • metric • flute helix angle 40° • Dc=0.4724in • R=0.2362in • Z=2
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
End Mill Holders, Adapters and Accessories
A1 Cutting diameter:
12 mm
A1_INCH Cutting diameter:
0,47244094488189 inch
A5 Neck diameter:
11,7 mm
A5_INCH Neck diameter:
0,460629921259843 inch
APMX Depth of cut maximum:
6,5 mm
APMX_INCH Depth of cut maximum:
0,255905511811024 inch
ART_ID_TO type=accessories:
5033121,5613707,5678644
ART_ID_TO type=others:
5634447;5634448;5634449;5634450;5835470;5835471;5930081;5930106;5930110;7171650
B2 Depth of cut maximum:
6,5 mm
B2_INCH Depth of cut maximum:
0,255905511811024 inch
B3 Protruding length:
14,5 mm
B3_INCH Protruding length:
0,570866141732283 inch
B4 Usable length:
14,5 mm
B4_INCH Usable length:
0,570866141732283 inch
B5 Overall length:
28,3 mm
B5_INCH Overall length:
1,11417322834646 inch
B6 Head length:
14,5 mm
B6_INCH Head length:
0,570866141732283 inch
B71 Functional length:
14,5 mm
B71_INCH Functional length:
0,570866141732283 inch
B9 Neck length:
14,5
BD Body diameter:
11,7 mm
BD_INCH Body diameter:
0,460629921259843 inch
BLD Tool style code:
6
BMC Body material code:
H
C11 Connection code type machine side:
SAC
C12 Connection code form at machine side:
4
C14 Connection code unit base machine side:
8
C15 Connection code style machine side:
5
C2 Connection size code machine side:
120
C3 Connection diameter machine side:
11,7 mm
C3_INCH Connection diameter machine side:
0,460629921259843 inch
CCMS Connection code machine side:
SAC04A0120$$$$
CNSC Coolant entry style code:
0
COATING Coating:
TiAlN
CONTENT_UNIT:
PCE
CP Coolant pressure:
0 MPa
CPDF Cutting pitch differential:
0
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
A
CURRENCY:
USD
CXSC Coolant exit style code:
0
CZCMS Connection size code machine side:
120
D6 Rotational speed maximum:
999999 1/min
D7 Weight of item:
0,014 kg
D7_INCH Weight of item:
0,0308644 lbs
d<sub>1</sub> Connection size code:
E12
d<sub>2</sub> Body diameter:
11,7 mm
D<sub>c</sub> Cutting edge diameter:
12 mm
DC Cutting diameter:
12 mm
DC_INCH Cutting diameter:
0,47244094488189 inch
Designation Tool designation:
H8E01118-E12-12
DN Neck diameter:
11,7 mm
DN_INCH Neck diameter:
0,460629921259843 inch
E2 Rake angle radial:
10,5 °
E3 Rake angle axial:
1,5 °
EAN:
4042446200886
F1 Cutting direction:
R
F21 Peripheral effective cutting edge count:
2
F22 Face effective cutting edge count:
2
F3 Flute helix hand:
R
F4 Flute helix angle:
40 °
FHA Flute helix angle:
40 °
FMT Form type machine side:
EXT
GAMF Rake angle radial:
10,5 °
GAMP Rake angle axial:
1,5 °
GRADE Grade manufacturer's designation:
TAX
H11 Standard designation of the grade, main applic:
-
H21 Coolant entry style code:
0
H22 Coolant exit style code:
0
H3 Grade manufacturer's designation:
TAX
H4 Body material code:
H
H5 Coating:
TiAlN
HAND Cutting direction:
R
J1 Standard:
PWZ-NORM
J21 Article number:
H8E01118-E12-12
J3 Company code:
W
J6 Connection code machine side:
SAC04A0120$$$$
J7 Data chip provision:
0
J8 Machining operation:
FFO
KAP Kappa:
0 °
KEYWORD:
Solid Cutting Tool|Milling|Protostar®|Ball nose milling cutters|1H8E01118
l<sub>1</sub> Overall length:
28,3 mm
l<sub>4</sub> Functional length:
14,5 mm
L<sub>c</sub> Cutting edge length:
6,5 mm
LF Functional length:
14,5 mm
LF_INCH Functional length:
0,570866141732283 inch
MANUFACTURER_AID:
H8E01118-E12-12
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-82
OAL Overall length:
28,3 mm
OAL_INCH Overall length:
1,11417322834646 inch
OHX Protruding length:
14,5 mm
OHX_INCH Protruding length:
0,570866141732283 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
r Radius:
6 mm
RE Corner radius:
6 mm
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Solid carbide ball-nose copy milling cutters H8E01118 • Protostar® • ConeFit • TAX • metric • flute helix angle 40°
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010504
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010504
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010504
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21180606
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21180606
REFERENCE_FEATURE_GROUP_ID_GTC:
MILBNSS
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
23241614
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
23241614
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
23171612
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23171612
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
23171612
REFERENCE_FEATURE_GROUP_ID_Walter:
H8E01118
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RE_INCH Corner radius:
0,236220472440945 inch
RHO Rho:
0 °
RMPX Ramping angle maximum:
15 °
RPMX Rotational speed maximum:
999999 1/min
SUPPLIER_AID:
5927034
SUPPLIER_ALT_AID:
5927034
SW Wrench size:
10 mm
TERRITORY:
US
TSYC Tool style code:
H8E01118
UDX.APPAREA:
Milling
UDX.BRAND:
Walter Prototyp
UDX.BULLETTEXT_1:
Type N 40
UDX.CATFAM_CODE:
H8E01118
UDX.CATFAM_DESCR:
Solid carbide ball-nose copy milling cutters
UDX.DISCOUNTGROUP:
MS5
UDX.ITEMTYPE:
Solid Cutting Tool
UDX.NET_WEIGHT:
.0309
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
.7087
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
1.8898
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
.0617
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
.9490
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
.7087
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
1H8E01118
UDX.RANKING_ISO_H:
No application
UDX.RANKING_ISO_K:
Additional application
UDX.RANKING_ISO_M:
Main application
UDX.RANKING_ISO_N:
Additional application
UDX.RANKING_ISO_O:
No application
UDX.RANKING_ISO_P:
Main application
UDX.RANKING_ISO_S:
No application
UDX.WORKING_CONDITION_ISO_H:
n/a
UDX.WORKING_CONDITION_ISO_K:
n/a
UDX.WORKING_CONDITION_ISO_M:
n/a
UDX.WORKING_CONDITION_ISO_N:
n/a
UDX.WORKING_CONDITION_ISO_O:
n/a
UDX.WORKING_CONDITION_ISO_P:
n/a
UDX.WORKING_CONDITION_ISO_S:
n/a
ULDR Usable length diameter ratio:
1,208
WT Weight of item:
0,014 kg
WT_INCH Weight of item:
0,0308644 lbs
XYWD xyw plane distance:
-14,5 mm
XYWD_INCH xyw plane distance:
-0,570866141732283 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Z Number of teeth:
2
ZEFF Face effective cutting edge count:
2
ZEFP Peripheral effective cutting edge count:
2
Manufactured By:
Walter Tool
Other Details
Type N 40
