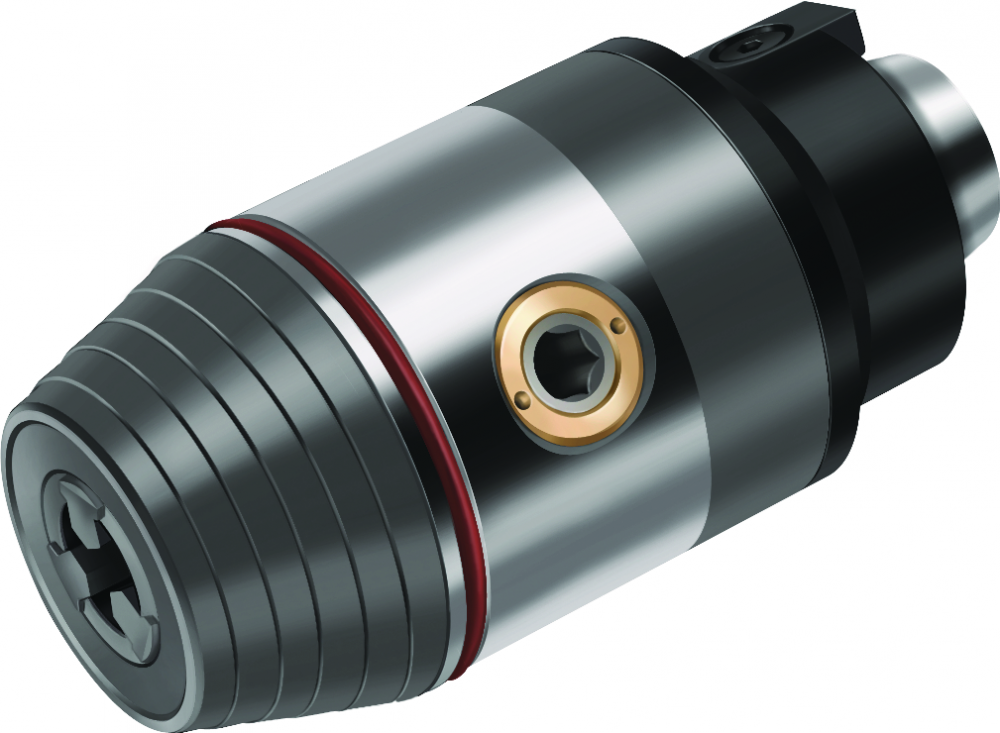

Small drill chuck

Small drill chuck by Walter Tool

Call For Price
  • Part Number: 5017272
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides
Small drill chuck A201M.0.50.092.13
Long Description
Small drill chuck A201M • metric • With clamping mechanism backup • d1=50 • d11=1 - 13
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Drill Chucks and Adapters
A1 Body diameter:
36,5 mm
A1_INCH Body diameter:
1,43700787401575 inch
A2 Body diameter 2:
50 mm
A2_INCH Body diameter 2:
1,96850393700787 inch
A4 Flange diameter:
50 mm
A4_INCH Flange diameter:
1,96850393700787 inch
ART_ID_TO type=others:
5006959;5006965;5006970;5006987;5006992;5007013;5007018;5007345;5007346;5007354;5007356;5007422;5007436;5007437;5007438;5007439;5021623;5024335;5034433;5034439
B1 Body length 1:
25 mm
B1_INCH Body length 1:
0,984251968503937 inch
B2 Length 2:
92 mm
B2_INCH Length 2:
3,62204724409449 inch
B3 Protruding length:
92 mm
B3_INCH Protruding length:
3,62204724409449 inch
B4 Overall length:
104 mm
B4_INCH Overall length:
4,09448818897638 inch
B71 Functional length:
92 mm
B71_INCH Functional length:
3,62204724409449 inch
BBD Balanced By Design:
0
BD Body diameter:
36,5 mm
BD_INCH Body diameter:
1,43700787401575 inch
BMC Body material code:
S
C11 Connection code type machine side:
NCT
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
8
C15 Connection code style machine side:
5
C2 Connection size code machine side:
500
C3 Connection diameter machine side:
50 mm
C3_INCH Connection diameter machine side:
1,96850393700787 inch
C4 Shank length:
12 mm
C4_INCH Shank length:
0,47244094488189 inch
C51 Connection code type workpiece side:
ZYL
C52 Connection code form at workpiece side:
1
C54 Connection code unit base workpiece side:
0
C55 Connection code style workpiece side:
6
C6 Connection size code workpiece side:
10
C71 Connection diameter min:
1 mm
C71_INCH Connection diameter min:
0,0393700787401575 inch
C72 Connection diameter max:
13 mm
C72_INCH Connection diameter max:
0,511811023622047 inch
CCFMS Connection code form at machine side:
1
CCFWS Connection code form at workpiece side:
1
CCMS Connection code machine side:
NCT01C0500$$$$
CCTMS Connection code type machine side:
NCT
CCTWS Connection code type workpiece side:
ZYL
CCWS Connection code workpiece side:
ZYL20R0393****ZYL20R5118****
CNSC Coolant entry style code:
0
CONTENT_UNIT:
PCE
CUB Connection unit basis:
M
CUBPMS Connection unit base precision machine side:
C
CUBPWS Connection unit base precision workpiece si:
F
CURRENCY:
USD
CXSC Coolant exit style code:
0
CZCMS Connection size code machine side:
500
CZCWS Connection size code workpiece side:
10
D6 Rotational speed maximum:
30000 1/min
D7 Weight of item:
1,174 kg
D7_INCH Weight of item:
2,5882004 lbs

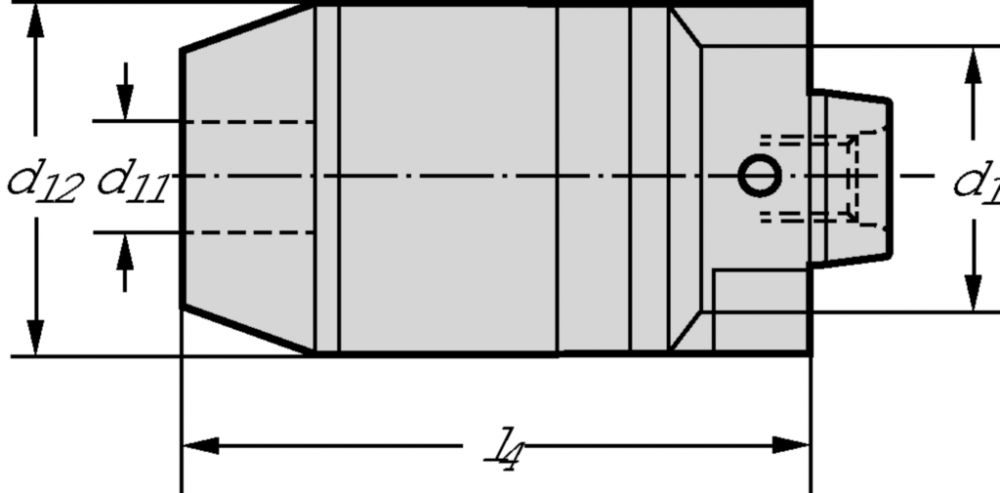

d<sub>11</sub> Connection size code:
1-13
d<sub>12</sub> Body diameter:
36,5 mm
d<sub>1</sub> Connection size code:
NCT 50
DCBN Connection bore diameter minimum:
1 mm
DCBN_INCH Connection bore diameter minimum:
0,0393700787401575 inch
DCBX Connection bore diameter maximum:
13 mm
DCBX_INCH Connection bore diameter maximum:
0,511811023622047 inch
Designation Tool designation:
A201M.0.50.092.13
E2 Kappa:
0 °
EAN:
0424989854
FMT Form type workpiece side:
INT
G35 Mounting hole count:
1
H21 Coolant entry style code:
0
H22 Coolant exit style code:
0
J1 Standard:
-
J21 Article number:
A201M.0.50.092.13
J3 Company code:
W
J4 Connection code workpiece side:
ZYL01F1000****ZYL01G1300****
J6 Connection code machine side:
NCT01C0500$$$$
J7 Data chip provision:
0
KAP Kappa:
0 °
KEYWORD:
Adaptive Item|Holding||Basic Holders Novex-NC-Tools WALTER - Screw mounting|A1300
l<sub>4</sub> Functional length:
92 mm
LF Functional length:
92 mm
LF_INCH Functional length:
3,62204724409449 inch
LPR Protruding length:
92 mm
LPR_INCH Protruding length:
3,62204724409449 inch
LS Shank length:
12 mm
LS_INCH Shank length:
0,47244094488189 inch
MANUFACTURER_AID:
A201M.0.50.092.13
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-89
OAL Overall length:
104 mm
OAL_INCH Overall length:
4,09448818897638 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Small drill chuck A201M • metric • With clamping mechanism backup
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21022003
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21022003
REFERENCE_FEATURE_GROUP_ID_GTC:
ADPRS
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112807
REFERENCE_FEATURE_GROUP_ID_Walter:
A201M.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RPMX Rotational speed maximum:
30000 1/min
SUPPLIER_AID:
5017272
SUPPLIER_ALT_AID:
5017272
TERRITORY:
US
TSYC Tool style code:
A201M.0
UDX.APPAREA:
Holding
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
With clamping mechanism backup
UDX.CATFAM_CODE:
A201M
UDX.CATFAM_DESCR:
Small drill chuck
UDX.DISCOUNTGROUP:
077
UDX.ITEMTYPE:
Adaptive Item
UDX.NET_WEIGHT:
2.5887
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
2.7559
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
5.9055
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
2.5887
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
44.8525
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
2.7559
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
A1300
WT Weight:
1,17 kg
WT Weight of item:
1,174 kg
WT_INCH Weight of item:
2,5882004 lbs
XYWD xyw plane distance:
-92 mm
XYWD_INCH xyw plane distance:
-3,62204724409449 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Manufactured By:
Walter Tool
Other Details
With clamping mechanism backup
To:
 From:
 Subject:
