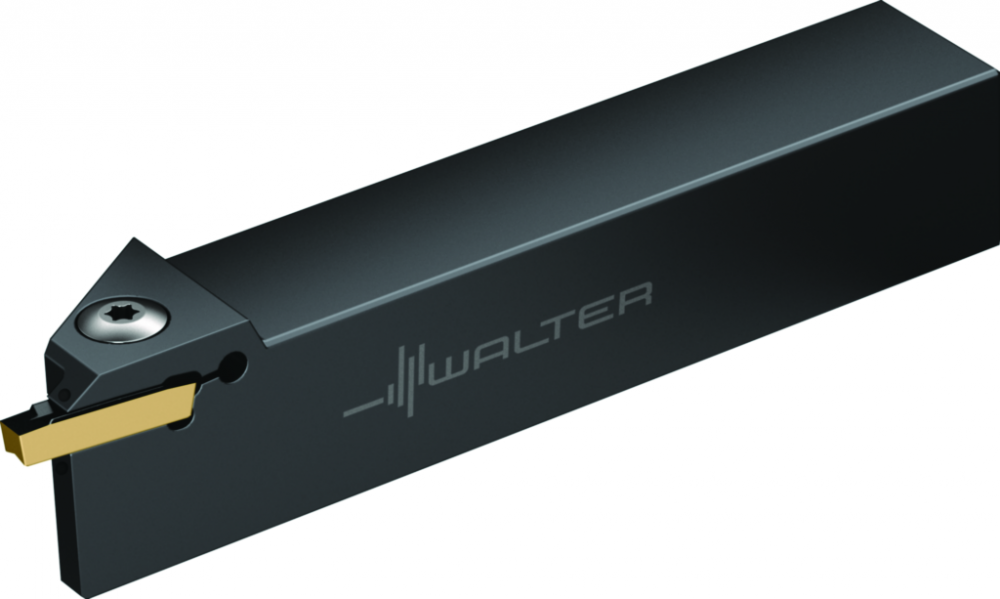

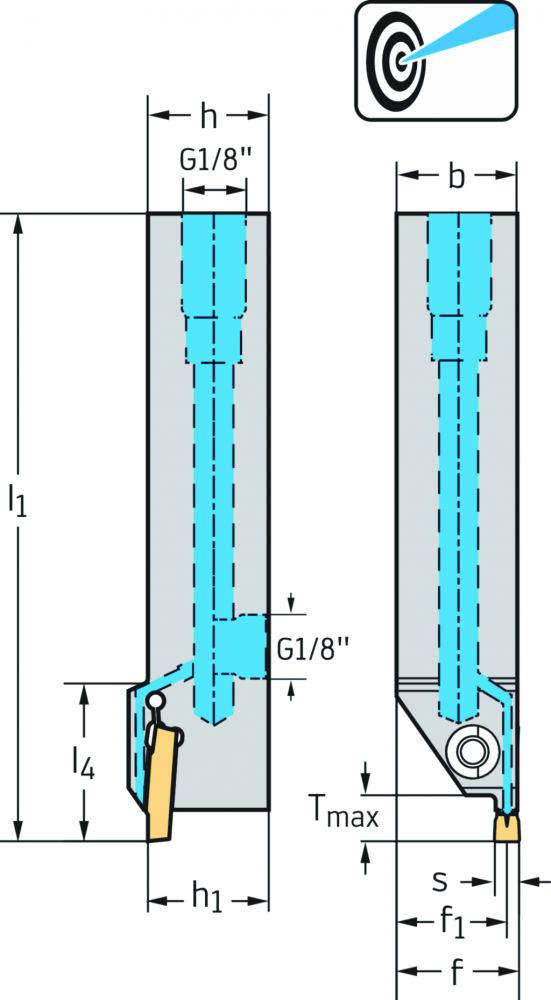

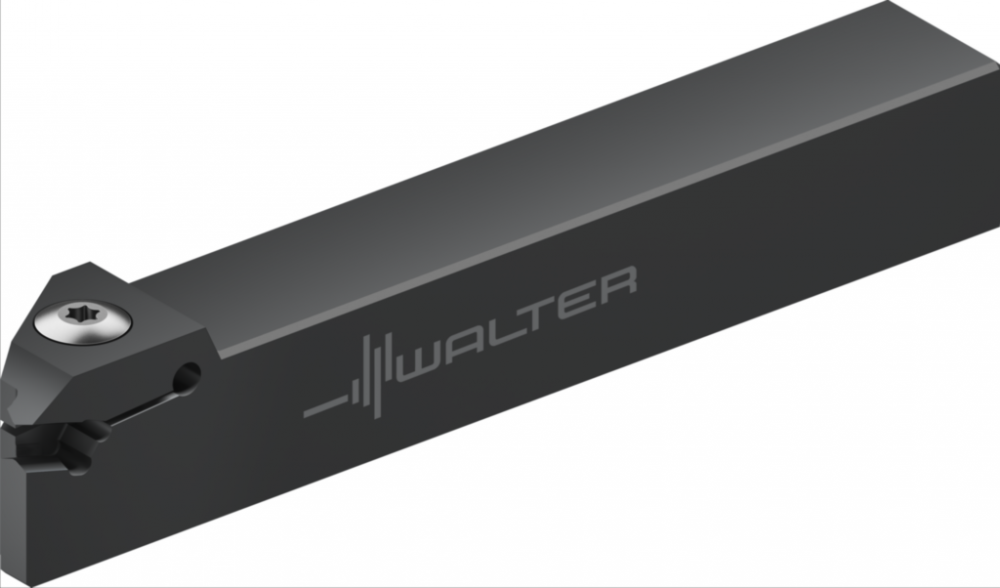

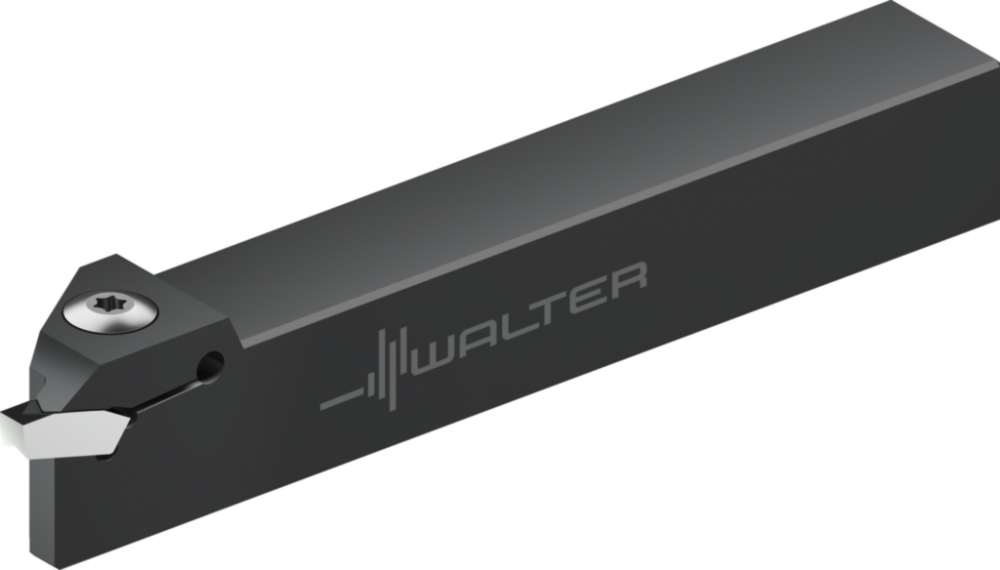

Shank tool – Universal G1511.16R-T6GX24-P
Long Description
Shank tool – Universal G1511...-P • Screw clamping • Precision cooling • inch • Square shank • Right • GX24 • s=0.0787in • Tmax=0.2362in
Specifications
Details
Category:
Cutting Tools
Subcategory:
Cut-Off
Subtype:
Indexable Cutting Tools
Category Level 4:
Cut-Off Toolholders
A1 Cutting edge length:
2 mm
A1_INCH Cutting edge length:
0,078740157480315 inch
A2 Functional width:
23,25 mm
A2_INCH Functional width:
0,915354330708661 inch
A3 Functional length:
150 mm
A3_INCH Functional length:
5,90551181102362 inch
A4 Functional height:
25,4 mm
A4_INCH Functional height:
1 inch
A71 Axial groove od min:
68 mm
A71_INCH Axial groove od min:
2,67716535433071 inch
A8 Cutting depth maximum:
6 mm
A8_INCH Cutting depth maximum:
0,236220472440945 inch
ART_ID_TO type=accessories:
5050323,5050334,6421702
ART_ID_TO type=consists_of:
5040976,5093333,5566295,6470228
ART_ID_TO type=others:
5106905, ;5108638, ;5108639, ;5573942, ;5612586, ;5612587, ;5612662, ;5665751, ;5512428, ;5512425, ;5849233, ;6089965, ;6089966, ;6090053, ;6090243, ;6090343, ;6090583, ;6090584, ;6091912, ;6091913, ;6091914, ;6091915, ;6091960, ;6091962, ;6091964, ;609200
b Shank width:
1 inch
B Shank width:
25,4 mm
B3 Protruding length:
150 mm
B3_INCH Protruding length:
5,90551181102362 inch
B5 Overall length:
150 mm
B5_INCH Overall length:
5,90551181102362 inch
BLD Tool style code:
4
BMC Body material code:
S
B_INCH Shank width:
1 inch
C11 Connection code type machine side:
VKT
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
3
C15 Connection code style machine side:
5
C2 Connection size code machine side:
1616
C4 Shank height:
25,4 mm
C4_INCH Shank height:
1 inch
C5 Shank width:
25,4 mm
C5_INCH Shank width:
1 inch
CCMS Connection code machine side:
VKT01B1616$$$$
CDX Cutting depth maximum:
6 mm
CDX_INCH Cutting depth maximum:
0,236220472440945 inch
CICT Cutting item count:
1
CNSC Coolant entry style code:
1
CONTENT_UNIT:
PCE
CP Coolant pressure:
150 MPa
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
B
CURRENCY:
USD
CW Cutting edge length:
2 mm
CW_INCH Cutting edge length:
0,078740157480315 inch
CXSC Coolant exit style code:
7
CZCMS Connection size code machine side:
1616
D7 Weight of item:
0,667 kg
D7_INCH Weight of item:
1,4704682 lbs
Designation Tool designation:
G1511.16R-T6GX24-P
E1 Tool cutting edge angle:
90 °
E2 Tool cutting edge angle type code:
E
E4 Rake angle orthogonal:
0 °
E5 Inclination angle:
0 °
EAN:
0824343935
F1 Cutting direction:
R
F2 Tool holder shape code:
G
F5 Clamping type code:
C
f<sub>1</sub> Functional width:
0,915 inch
FMT Form type machine side:
EXT
GAMO Rake angle orthogonal:
0 °
h = h<sub>1</sub> Shank height:
1 inch
H Shank height:
25,4 mm
H21 Coolant entry style code:
1
H22 Coolant exit style code:
7
HAND Cutting direction:
R
HF Functional height:
25,4 mm
HF_INCH Functional height:
1 inch
H_INCH Shank height:
1 inch
IIC Insert interface code:
WR$$GX24*******FX**
J1 Standard:
-
J21 Article number:
G1511.16R-T6GX24-P
J3 Company code:
W
J41 Insert interface code:
WR$$GX24*******EX**
J42 Master insert identification:
GX24-X
J6 Connection code machine side:
VKT01B1616$$$$
J7 Data chip provision:
0
J8 Machining operation:
DSS
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
90 °
KEYWORD:
Tool Item|Parting/Grooving|Walter Cut|Tool holders for grooving, external|D54PK
l<sub>1</sub> Overall length:
5,906 inch
l<sub>4</sub> Maximum overhang:
1,299 inch
LAMS Inclination angle:
0 °
LF Functional length:
150 mm
LFCIRP Functional length to cutting item reference:
150
LF_INCH Functional length:
5,90551181102362 inch
LPR Protruding length:
150 mm
LPR_INCH Protruding length:
5,90551181102362 inch
MANUFACTURER_AID:
G1511.16R-T6GX24-P
MIID Master insert identification:
GX24-X
NOI Insert index count:
45
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-90
OAL Overall length:
150 mm
OAL_INCH Overall length:
5,90551181102362 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Shank tool – Universal G1511...-P • Screw clamping • Precision cooling • inch • Square shank • Right
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21181004
REFERENCE_FEATURE_GROUP_ID_GTC:
TRNPEI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153308
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112809
REFERENCE_FEATURE_GROUP_ID_Walter:
G1511-16-R-GX-INCH-P
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RMPX Ramping angle maximum:
90 °
s Indexable insert width:
2 - 6
SUPPLIER_AID:
6955291
SUPPLIER_ALT_AID:
6955291
T<sub>max</sub> Maximum cutting depth:
0,236 inch
TERRITORY:
US
TQ Torque:
5 Nm
TQ_INCH Torque:
44,253729 lbf in
TSYC Tool style code:
G1511-16-R-GX-INCH-P
Type Possible indexable inserts:
GX24- ..
UDX.APPAREA:
Parting/Grooving
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
Screw clamping
UDX.BULLETTEXT_2:
Precision cooling
UDX.CATFAM_CODE:
G1511...-P
UDX.CATFAM_DESCR:
Shank tool – Universal
UDX.DESCR_APPLICATION:
Can be used from 10 bar up to a maximum coolant pressure of 150 bar;Grooving and recessing with precision cooling in radial and axial machining directions;Can be used on all types of lathes
UDX.DESCR_BENEFITS:
Universal use – carry out radial and axial grooving operations with a single tool, without loss of stability;Suitable for universal use with all cutting edges from 0.6 mm to 6.35 mm;Longer tool life and higher productivity
UDX.DESCR_TOOL:
G1511-P tool holder – with precision cooling, can be used universally
UDX.DISCOUNTGROUP:
060
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
1.4707
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
1.3780
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
6.1024
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
1.4707
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
11.5869
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
1.3780
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
D54PK
WF Functional width:
23,25 mm
WFCIRP Width to cutting item reference point:
23,25 mm
WFCIRP_INCH Width to cutting item reference point:
0,915354330708661 inch
WF_INCH Functional width:
0,915354330708661 inch
WT Weight of item:
0,667 kg
WT_INCH Weight of item:
1,4704682 lbs
XYWD xyw plane distance:
-150 mm
XYWD_INCH xyw plane distance:
-5,90551181102362 inch
XZWD xzw plane distance:
25,4 mm
XZWD_INCH xzw plane distance:
1 inch
Manufactured By:
Walter Tool
