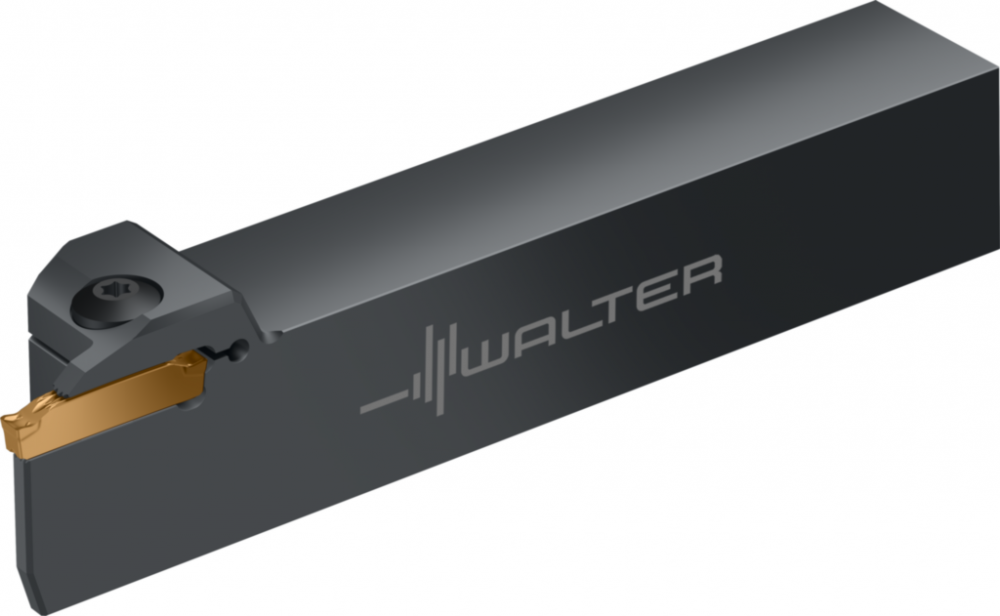

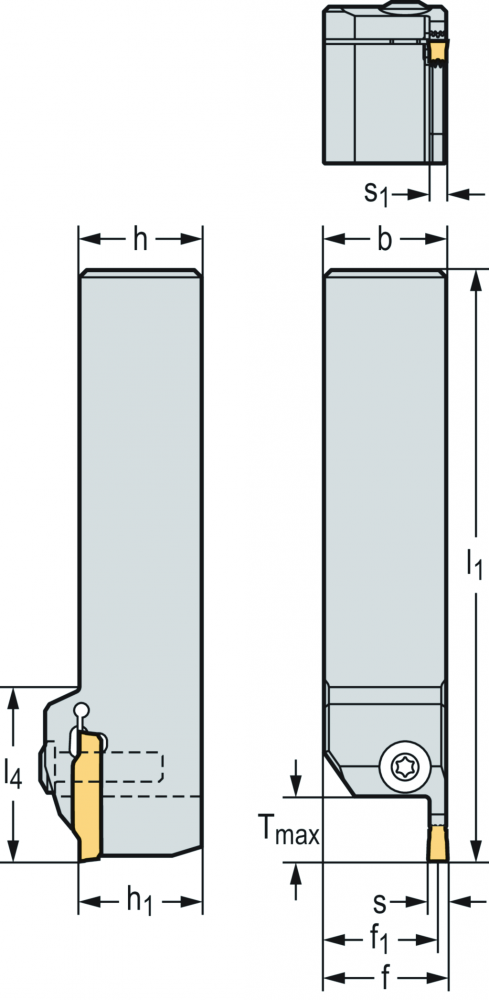

Shank tool – Radial grooving by Walter Tool
Call For Price
- Part Number: 8543701
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (488)
Product Overview
Shank tool – Radial grooving G5011-2525R-6T21GD26
Long Description
Shank tool – Radial grooving G5011 • Screw clamping • metric • Square shank • Right • GD26 • s=0.2362in • Tmax=0.8268in
Specifications
Details
Category:
Cutting Tools
Subcategory:
Cut-Off
Subtype:
Indexable Cutting Tools
Category Level 4:
Cut-Off Toolholders
A1 Cutting edge length:
6 mm
A1_INCH Cutting edge length:
0,236220472440945 inch
A2 Functional width:
22,8 mm
A2_INCH Functional width:
0,897637795275591 inch
A3 Functional length:
150 mm
A3_INCH Functional length:
5,90551181102362 inch
A4 Functional height:
25 mm
A4_INCH Functional height:
0,984251968503937 inch
A8 Cutting depth maximum:
21 mm
A8_INCH Cutting depth maximum:
0,826771653543307 inch
ART_ID_TO type=accessories:
5050322,5050334,6421702
ART_ID_TO type=consists_of:
5040976,5566295
ART_ID_TO type=others:
8541909, ;8542181, ;8542184, ;8542188, ;8542196, ;8542197, ;8542201, ;8542203, ;8592693, ;8592694, ;8592695, ;8592696, ;8592697, ;8592698, ;8637485, ;8647374, ;8647381, ;8647382, ;8647383, ;8647384, ;8647385, ;8647391, ;8647393, ;8647396, ;8647399, ;864740
b Shank width:
25 mm
B3 Protruding length:
150 mm
B3_INCH Protruding length:
5,90551181102362 inch
B5 Overall length:
150 mm
B5_INCH Overall length:
5,90551181102362 inch
BLD Tool style code:
4
BMC Body material code:
S
B_INCH Shank width:
0,984251968503937 inch
C11 Connection code type machine side:
VKT
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
0
C15 Connection code style machine side:
5
C2 Connection size code machine side:
2525
C4 Shank height:
25 mm
C4_INCH Shank height:
0,984251968503937 inch
C5 Shank width:
25 mm
C5_INCH Shank width:
0,984251968503937 inch
CCMS Connection code machine side:
VKT01A2525$$$$
CDX Cutting depth maximum:
21 mm
CDX_INCH Cutting depth maximum:
0,826771653543307 inch
CICT Cutting item count:
1
CNSC Coolant entry style code:
0
CONTENT_UNIT:
PCE
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
A
CURRENCY:
USD
CW Cutting edge length:
6 mm
CW_INCH Cutting edge length:
0,236220472440945 inch
CXSC Coolant exit style code:
0
CZCMS Connection size code machine side:
2525
D7 Weight of item:
0,646 kg
D7_INCH Weight of item:
1,4241716 lbs
Designation Tool designation:
G5011-2525R-6T21GD26
E1 Tool cutting edge angle:
90 °
E2 Tool cutting edge angle type code:
E
E4 Rake angle orthogonal:
0 °
E5 Inclination angle:
0 °
EAN:
4063465912505
F1 Cutting direction:
R
F2 Tool holder shape code:
G
F5 Clamping type code:
C
f<sub>1</sub> Functional width:
22,8 mm
FMT Form type machine side:
EXT
GAMO Rake angle orthogonal:
0 °
h = h<sub>1</sub> Shank height:
25 mm
H Shank height:
25 mm
H21 Coolant entry style code:
0
H22 Coolant exit style code:
0
HAND Cutting direction:
R
HF Functional height:
25 mm
HF_INCH Functional height:
0,984251968503937 inch
H_INCH Shank height:
0,984251968503937 inch
IIC Insert interface code:
WR$$GD2660007**FX**
J1 Standard:
-
J21 Article number:
G5011-2525R-6T21GD26
J22 Product designation:
8351
J3 Company code:
W
J41 Insert interface code:
WR$$GD2660007**FX**
J6 Connection code machine side:
VKT01A2525$$$$
J7 Data chip provision:
0
J8 Machining operation:
DEA
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
90 °
KEYWORD:
Tool Item|Parting/Grooving|Groov·tec™ GD|Tool holders for grooving, external|G5011
l<sub>1</sub> Overall length:
150 mm
l<sub>4</sub> Maximum projection length:
40 mm
LAMS Inclination angle:
0 °
LF Functional length:
150 mm
LFCIRP Functional length to cutting item reference:
150
LF_INCH Functional length:
5,90551181102362 inch
LPR Protruding length:
150 mm
LPR_INCH Protruding length:
5,90551181102362 inch
MANUFACTURER_AID:
G5011-2525R-6T21GD26
NOI Insert index count:
120
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-90
OAL Overall length:
150 mm
OAL_INCH Overall length:
5,90551181102362 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Shank tool – Radial grooving G5011 • metric
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21181004
REFERENCE_FEATURE_GROUP_ID_GTC:
TRNPEI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153308
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112809
REFERENCE_FEATURE_GROUP_ID_Walter:
G5011-20-32-R-GD
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RMPX Ramping angle maximum:
45 °
s Indexable insert width:
6
s<sub>1</sub> Body width:
5,2 mm
SUPPLIER_AID:
8543701
SUPPLIER_ALT_AID:
8543701
TERRITORY:
US
TQ Torque:
5 Nm
TQ_INCH Torque:
44,253729 lbf in
TSYC Tool style code:
G5011-20-32-R-GD
Type Possible indexable inserts:
GD26-6 ..
UDX.APPAREA:
Parting/Grooving
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
Screw clamping
UDX.CATFAM_CODE:
G5011
UDX.CATFAM_DESCR:
Shank tool – Radial grooving
UDX.DESCR_APPLICATION:
First choice for all grooving/recessing operations;Radial grooving and parting off, recess turning and copy turning up to 26 mm recess depth;Universal use on lathes of all kinds
UDX.DESCR_BENEFITS:
Increased cutting parameters thanks to new toothing profile and precision cooling;Increased stability and process reliability thanks to Groov·tec™ GD gearing profile;(Benefits-9465663);(Benefits-9465666)
UDX.DESCR_TOOL:
Clamping screw can be operated from above or below;(Tool-9465512);(Tool-9465515)
UDX.DISCOUNTGROUP:
060
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
1.4244
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
1.6929
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
6.2992
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
1.5104
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
18.0533
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
1.6929
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
G5011
WF Functional width:
22,8 mm
WFCIRP Width to cutting item reference point:
22,8 mm
WFCIRP_INCH Width to cutting item reference point:
0,897637795275591 inch
WF_INCH Functional width:
0,897637795275591 inch
WT Weight of item:
0,646 kg
WT_INCH Weight of item:
1,4241716 lbs
XYWD xyw plane distance:
-150 mm
XYWD_INCH xyw plane distance:
-5,90551181102362 inch
XZWD xzw plane distance:
25 mm
XZWD_INCH xzw plane distance:
0,984251968503937 inch
Manufactured By:
Walter Tool
Other Details
Screw clamping
