Shank tool – Radial grooving

Shank tool – Radial grooving by Walter Tool

Call For Price
  • Part Number: 7921477
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (488)
Product Overview
Info & Guides

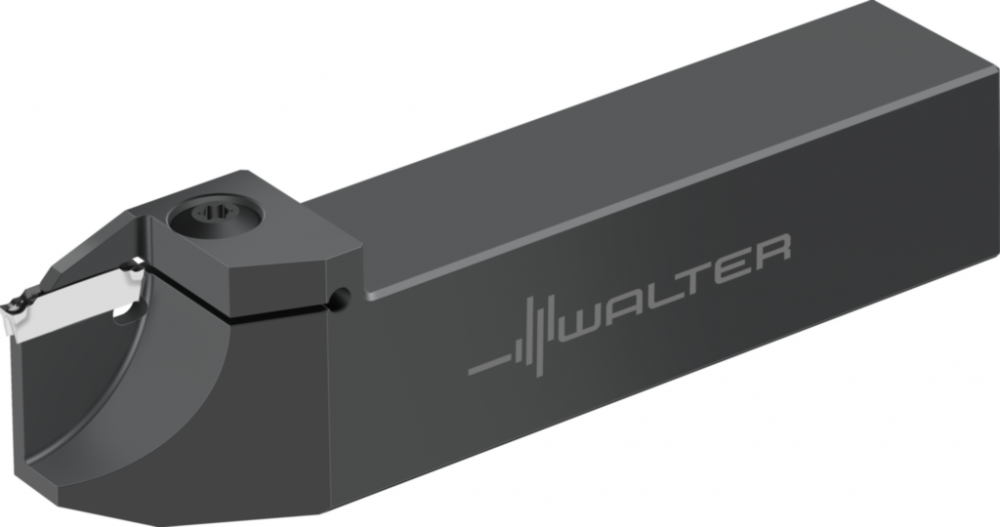

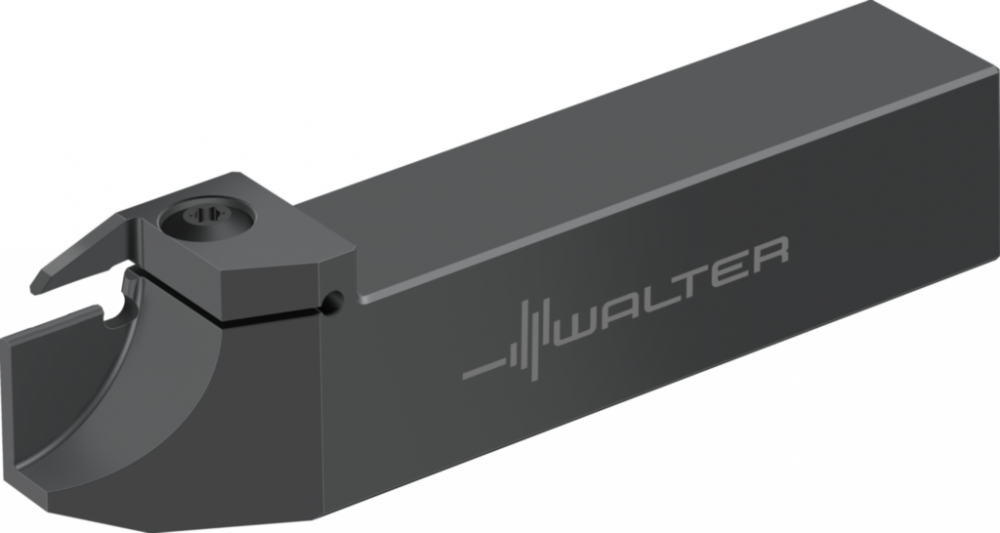

Shank tool – Radial grooving G4011-2525L-2T17DX18
Long Description
Shank tool – Radial grooving G4011 • Screw clamping • metric • Square shank • Left • DX18 • s=0.0787in • Tmax=0.6693in

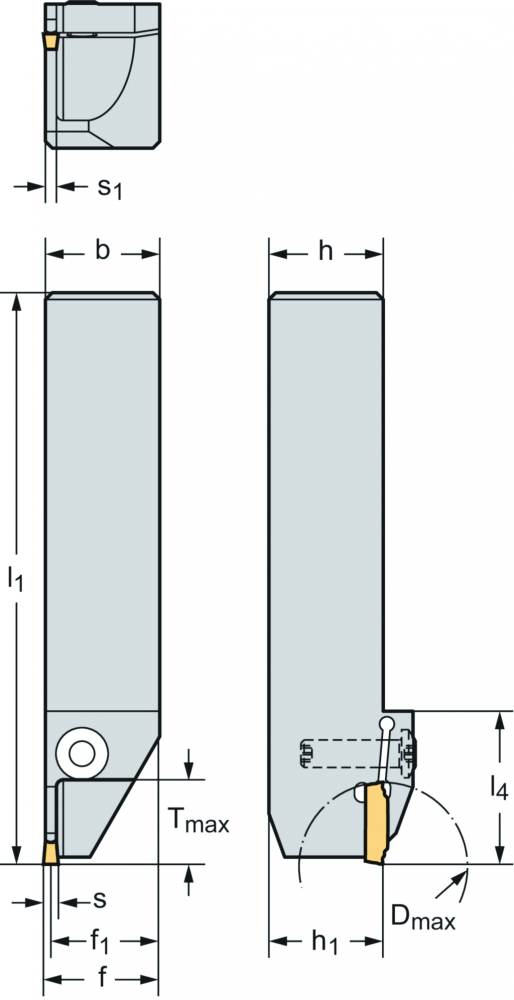

Specifications
Details
Category:
Cutting Tools
Subcategory:
Cut-Off
Subtype:
Indexable Cutting Tools
Category Level 4:
Cut-Off Toolholders
A1 Cutting edge length:
2 mm
A1_INCH Cutting edge length:
0,078740157480315 inch
A2 Functional width:
24,2 mm
A2_INCH Functional width:
0,952755905511811 inch
A3 Functional length:
125 mm
A3_INCH Functional length:
4,92125984251969 inch
A4 Functional height:
25 mm
A4_INCH Functional height:
0,984251968503937 inch
A8 Cutting depth maximum:
17 mm
A8_INCH Cutting depth maximum:
0,669291338582677 inch
ART_ID_TO type=accessories:
5050322,5050334,6421702
ART_ID_TO type=consists_of:
5040976,5566295
ART_ID_TO type=others:
7782837, ;7782838, ;7782839, ;7795851, ;7795852, ;7795853, ;7795854, ;7795860, ;7795861, ;7795862, ;7795863, ;7795875, ;7795876, ;7795880, ;7795884, ;7795885, ;7795886, ;7795887, ;7795888, ;7795889, ;7795890, ;7795891, ;7795900, ;7795901, ;7795906, ;779590
b Shank width:
25 mm
B3 Protruding length:
125 mm
B3_INCH Protruding length:
4,92125984251969 inch
B5 Overall length:
125 mm
B5_INCH Overall length:
4,92125984251969 inch
BLD Tool style code:
4
BMC Body material code:
S
B_INCH Shank width:
0,984251968503937 inch
C11 Connection code type machine side:
VKT
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
0
C15 Connection code style machine side:
5
C2 Connection size code machine side:
2525
C4 Shank height:
25 mm
C4_INCH Shank height:
0,984251968503937 inch
C5 Shank width:
25 mm
C5_INCH Shank width:
0,984251968503937 inch
CCMS Connection code machine side:
VKT01A2525$$$$
CDX Cutting depth maximum:
17 mm
CDX_INCH Cutting depth maximum:
0,669291338582677 inch
CICT Cutting item count:
1
CNSC Coolant entry style code:
0
CONTENT_UNIT:
PCE
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
A
CURRENCY:
USD
CW Cutting edge length:
2 mm
CW_INCH Cutting edge length:
0,078740157480315 inch
CXSC Coolant exit style code:
0
CZCMS Connection size code machine side:
2525
D7 Weight of item:
0,574 kg
D7_INCH Weight of item:
1,2654404 lbs
D<sub>max</sub> Maximum grooving diameter:
35 mm
Designation Tool designation:
G4011-2525L-2T17DX18
E1 Tool cutting edge angle:
90 °
E2 Tool cutting edge angle type code:
E
E4 Rake angle orthogonal:
0 °
E5 Inclination angle:
0 °
EAN:
0626656935
F1 Cutting direction:
L
F2 Tool holder shape code:
G
F5 Clamping type code:
C
f<sub>1</sub> Functional width:
24,2 mm
FMT Form type machine side:
EXT
GAMO Rake angle orthogonal:
0 °
h = h<sub>1</sub> Shank height:
25 mm
H Shank height:
25 mm
H21 Coolant entry style code:
0
H22 Coolant exit style code:
0
HAND Cutting direction:
L
HF Functional height:
25 mm
HF_INCH Functional height:
0,984251968503937 inch
H_INCH Shank height:
0,984251968503937 inch
IIC Insert interface code:
WR$$DX182000***EX**
J1 Standard:
-
J21 Article number:
G4011-2525L-2T17DX18
J3 Company code:
W
J41 Insert interface code:
WR$$DX182000***EX**
J42 Master insert identification:
DX18-2
J6 Connection code machine side:
VKT01A2525$$$$
J7 Data chip provision:
0
J8 Machining operation:
DEA
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
90 °
KEYWORD:
Tool Item|Parting/Grooving|Walter Cut|Tool holders for grooving, external|G4011
l<sub>1</sub> Overall length:
125 mm
l<sub>4</sub> Maximum projection length:
33,5 mm
LAMS Inclination angle:
0 °
LF Functional length:
125 mm
LFCIRP Functional length to cutting item reference:
125
LF_INCH Functional length:
4,92125984251969 inch
LPR Protruding length:
125 mm
LPR_INCH Protruding length:
4,92125984251969 inch
MANUFACTURER_AID:
G4011-2525L-2T17DX18
MIID Master insert identification:
DX18-2
NOI Insert index count:
80
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-90
OAL Overall length:
125 mm
OAL_INCH Overall length:
4,92125984251969 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Shank tool – Radial grooving G4011 • Screw clamping • metric
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21181004
REFERENCE_FEATURE_GROUP_ID_GTC:
TRNPEI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153308
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112809
REFERENCE_FEATURE_GROUP_ID_Walter:
G4011-20-32-L-DX-VERST
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RMPX Ramping angle maximum:
90 °
s Indexable insert width:
2
s<sub>1</sub> Body width:
1,6 mm
SUPPLIER_AID:
7921477
SUPPLIER_ALT_AID:
7921477
T<sub>max</sub> Maximum cutting depth:
17 mm
TERRITORY:
US
TSYC Tool style code:
G4011-20-32-L-DX-VERST
Type Possible indexable inserts:
DX18-2E2 ..
UDX.APPAREA:
Parting/Grooving
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
Screw clamping
UDX.CATFAM_CODE:
G4011
UDX.CATFAM_DESCR:
Shank tool – Radial grooving
UDX.DESCR_APPLICATION:
For use on lathes of all types;First choice for all grooving/recessing operations
UDX.DESCR_BENEFITS:
Easier chip evacuation thanks to reduced tool head height [h];Easy handling in inverted use;Optimum stability thanks to a selection of different cutting depths;Reliable thanks to unique positive engagement design (no incorrect fitting of the cutting insert
UDX.DESCR_TOOL:
Cutting depths 10 and 17 mm;Shank dimensions: 16×16 to 25×25 mm;Insert widths: 2–4 mm;Clamping screw can be operated from above or below;For double-edged DX18 grooving insert
UDX.DISCOUNTGROUP:
060
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
1.2657
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
1.3780
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
5.1181
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
1.2723
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
9.7180
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
1.3780
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
G4011
WF Functional width:
24,2 mm
WFCIRP Width to cutting item reference point:
24,2 mm
WFCIRP_INCH Width to cutting item reference point:
0,952755905511811 inch
WF_INCH Functional width:
0,952755905511811 inch
WT Weight of item:
0,574 kg
WT_INCH Weight of item:
1,2654404 lbs
XYWD xyw plane distance:
-125 mm
XYWD_INCH xyw plane distance:
-4,92125984251969 inch
XZWD xzw plane distance:
25 mm
XZWD_INCH xzw plane distance:
0,984251968503937 inch
Manufactured By:
Walter Tool
Other Details
Screw clamping
