Shank tool – Radial grooving by Walter Tool
Call For Price
- Part Number: 6526524
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (488)
Product Overview

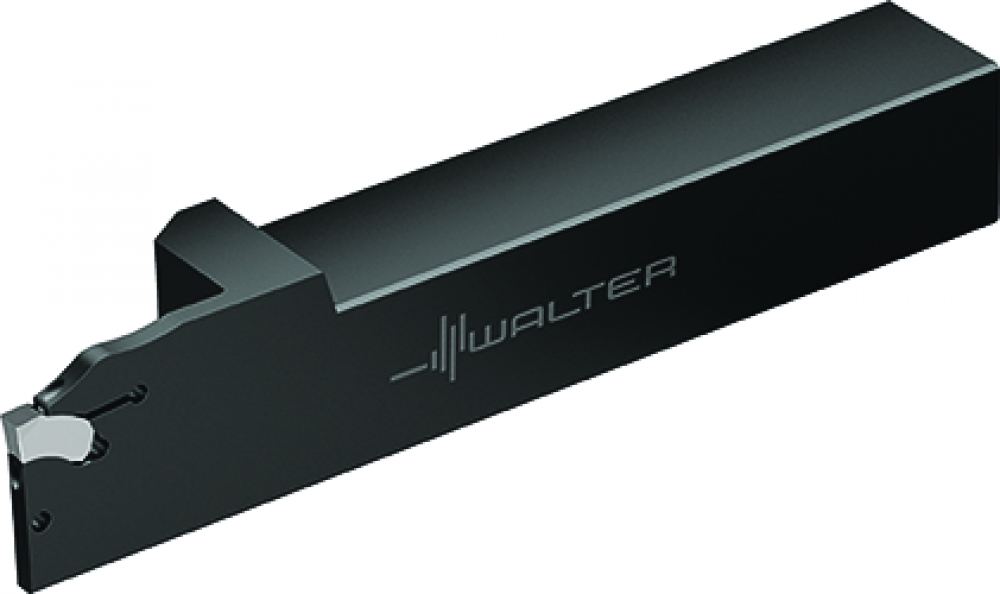

Shank tool – Radial grooving G2012.16R-5T40SX-P
Long Description

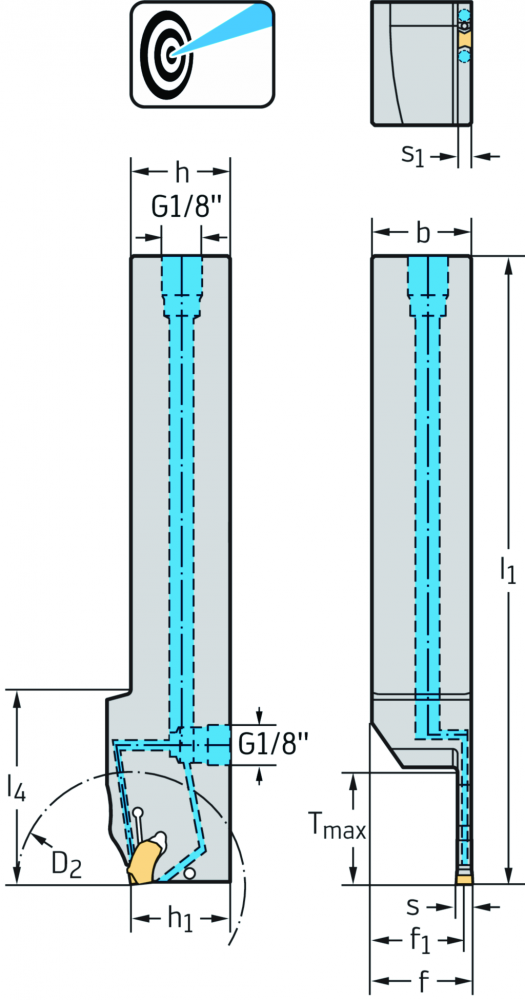

Shank tool – Radial grooving G2012...-P • Precision cooling • inch • Square shank • Right • SX00 • s=0.1969in • Tmax=1.5748in
Specifications
Details
Category:
Cutting Tools
Subcategory:
Cut-Off
Subtype:
Indexable Cutting Tools
Category Level 4:
Cut-Off Toolholders
A1 Cutting edge length:
5 mm
A1_INCH Cutting edge length:
0,196850393700787 inch
A2 Functional width:
23,25 mm
A2_INCH Functional width:
0,915354330708661 inch
A3 Functional length:
150 mm
A3_INCH Functional length:
5,90551181102362 inch
A4 Functional height:
25,4 mm
A4_INCH Functional height:
1 inch
A8 Cutting depth maximum:
40 mm
A8_INCH Cutting depth maximum:
1,5748031496063 inch
ART_ID_TO type=accessories:
5163278
ART_ID_TO type=consists_of:
6470228,6728374
ART_ID_TO type=others:
6427098, ;6427099, ;6572449, ;6646225, ;6646226, ;6677510, ;7036969, ;8492918, ;8492919, ;8492921, ;8567936, ;8567937, ;8591058, ;8591059,
b Shank width:
1 inch
B Shank width:
25,4 mm
B3 Protruding length:
150 mm
B3_INCH Protruding length:
5,90551181102362 inch
B5 Overall length:
150 mm
B5_INCH Overall length:
5,90551181102362 inch
BLD Tool style code:
4
BMC Body material code:
S
B_INCH Shank width:
1 inch
C11 Connection code type machine side:
VKT
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
3
C15 Connection code style machine side:
5
C2 Connection size code machine side:
1616
C4 Shank height:
25,4 mm
C4_INCH Shank height:
1 inch
C5 Shank width:
25,4 mm
C5_INCH Shank width:
1 inch
CCMS Connection code machine side:
VKT01B1616$$$$
CDX Cutting depth maximum:
40 mm
CDX_INCH Cutting depth maximum:
1,5748031496063 inch
CICT Cutting item count:
1
CNSC Coolant entry style code:
1
CONTENT_UNIT:
PCE
CP Coolant pressure:
150 MPa
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
B
CURRENCY:
USD
CW Cutting edge length:
5 mm
CW_INCH Cutting edge length:
0,196850393700787 inch
CXSC Coolant exit style code:
1
CZCMS Connection size code machine side:
1616
D7 Weight of item:
0,571 kg
D7_INCH Weight of item:
1,2588266 lbs
Designation Tool designation:
G2012.16R-5T40SX-P
E1 Tool cutting edge angle:
90 °
E2 Tool cutting edge angle type code:
E
E4 Rake angle orthogonal:
0 °
E5 Inclination angle:
0 °
EAN:
0816849935
F1 Cutting direction:
R
F2 Tool holder shape code:
G
F5 Clamping type code:
C
f<sub>1</sub> Functional width:
0,915 inch
FMT Form type machine side:
EXT
GAMO Rake angle orthogonal:
0 °
h = h<sub>1</sub> Shank height:
1 inch
H Shank height:
25,4 mm
H21 Coolant entry style code:
1
H22 Coolant exit style code:
1
HAND Cutting direction:
R
HF Functional height:
25,4 mm
HF_INCH Functional height:
1 inch
H_INCH Shank height:
1 inch
IIC Insert interface code:
WR$$SX005000*******
J1 Standard:
-
J21 Article number:
G2012.16R-5T40SX-P
J3 Company code:
W
J41 Insert interface code:
WR$$SX005000*******
J6 Connection code machine side:
VKT01B1616$$$$
J7 Data chip provision:
0
J8 Machining operation:
DEA
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
90 °
KEYWORD:
Tool Item|Parting/Grooving|Walter Cut|Tool holders for grooving, external|D54PK
l<sub>1</sub> Overall length:
5,906 inch
l<sub>4</sub> Maximum overhang:
2,047 inch
LAMS Inclination angle:
0 °
LF Functional length:
150 mm
LFCIRP Functional length to cutting item reference:
150
LF_INCH Functional length:
5,90551181102362 inch
LPR Protruding length:
150 mm
LPR_INCH Protruding length:
5,90551181102362 inch
MANUFACTURER_AID:
G2012.16R-5T40SX-P
NOI Insert index count:
55
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-90
OAL Overall length:
150 mm
OAL_INCH Overall length:
5,90551181102362 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Shank tool – Radial grooving G2012...-P • Precision cooling • inch • Square shank • Right
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21181004
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21181004
REFERENCE_FEATURE_GROUP_ID_GTC:
TRNPEI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153308
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112809
REFERENCE_FEATURE_GROUP_ID_Walter:
G2012-12-20-R-SX-INCH-P
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
s Indexable insert width:
5
s<sub>1</sub> Body width:
0,169 inch
SUPPLIER_AID:
6526524
SUPPLIER_ALT_AID:
6924004
T<sub>max</sub> Maximum cutting depth:
1,575 inch
TERRITORY:
US
TSYC Tool style code:
G2012-12-20-R-SX-INCH-P
Type Possible indexable inserts:
SX-5E5
UDX.APPAREA:
Parting/Grooving
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
Precision cooling
UDX.CATFAM_CODE:
G2012...-P
UDX.CATFAM_DESCR:
Shank tool – Radial grooving
UDX.DESCR_APPLICATION:
For grooving and parting off on all types of lathes;For parting off where long tool projection lengths are involved, with low stability loss
UDX.DESCR_BENEFITS:
State-of-the-art tool technology for grooving and parting off;Straight coolant outlet near the cutting edge, resulting in optimal cooling;Longer tool life and higher productivity thanks to precision cooling on the rake and flank faces
UDX.DESCR_TOOL:
Precision cooling on the rake and flank faces;Parting off of diameters up to 80 mm;G2012 – SX monoblock tools with precision cooling on the rake and flank faces
UDX.DISCOUNTGROUP:
060
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
1.2591
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
1.2598
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
7.8740
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
1.2591
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
12.4977
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
1.2598
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
D54PK
WF Functional width:
23,25 mm
WFCIRP Width to cutting item reference point:
23,25 mm
WFCIRP_INCH Width to cutting item reference point:
0,915354330708661 inch
WF_INCH Functional width:
0,915354330708661 inch
WT Weight of item:
0,571 kg
WT_INCH Weight of item:
1,2588266 lbs
XYWD xyw plane distance:
-150 mm
XYWD_INCH xyw plane distance:
-5,90551181102362 inch
XZWD xzw plane distance:
25,4 mm
XZWD_INCH xzw plane distance:
1 inch
Manufactured By:
Walter Tool
Other Details
Precision cooling
