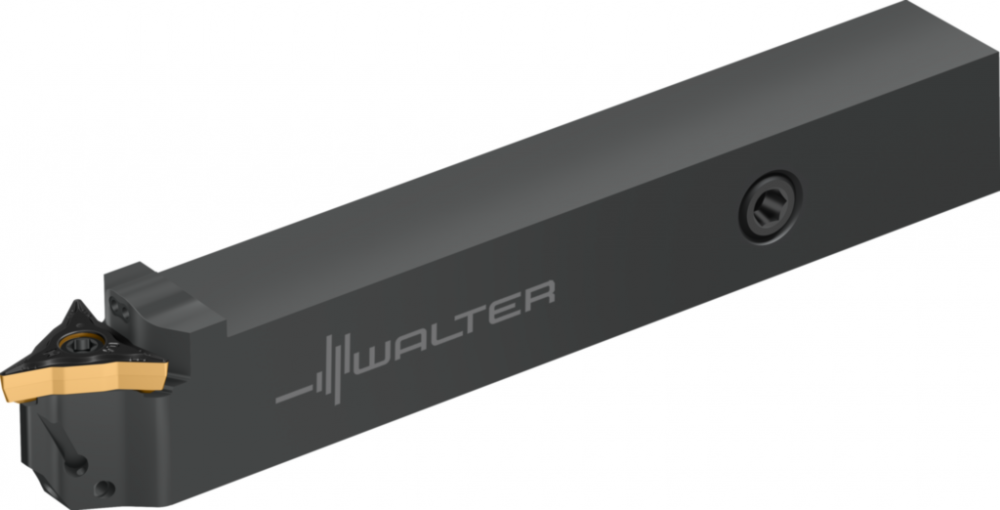

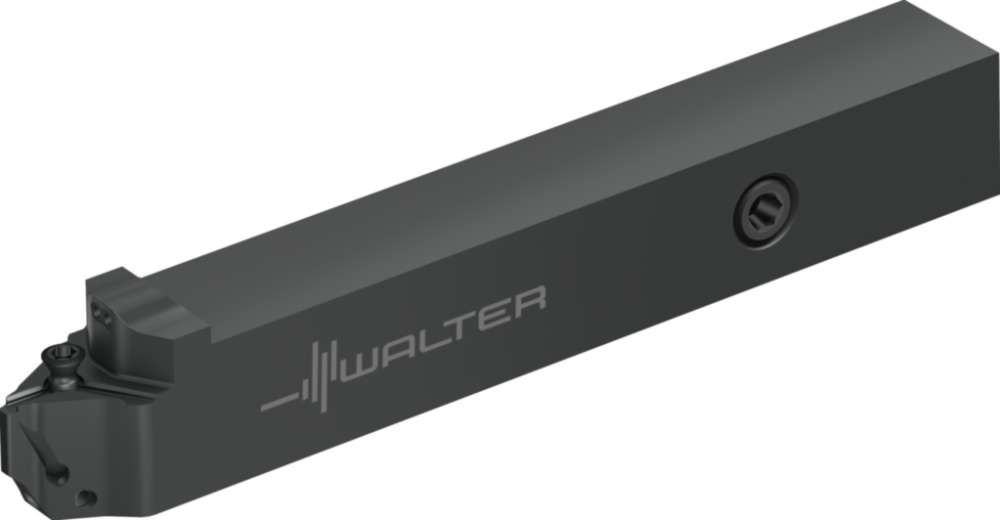

Shank tool – Copy turning system

Shank tool – Copy turning system by Walter Tool

Call For Price
  • Part Number: 8341680
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (29)
Product Overview
Info & Guides
Shank tool – Copy turning system W1010-1616N-WL17-P
Long Description
Shank tool – Copy turning system W1010...-P • Walter Turn • metric • Square shank • ?=72,5° • Neutral • 0.6299x0.6299in • specific profile insert • WL .. 1703 .. • Precision cooling
Specifications
Details
Category:
Turning
Subcategory:
Indexable Cutting Tools
Subtype:
Turning Toolholders
A1 Cutting edge length:
17 mm
A1_INCH Cutting edge length:
0,669291338582677 inch
A2 Functional width:
8,4 mm
A2_INCH Functional width:
0,330708661417323 inch
A3 Functional length:
120 mm
A3_INCH Functional length:
4,7244094488189 inch
A4 Functional height:
16 mm
A4_INCH Functional height:
0,62992125984252 inch
ART_ID_TO type=consists_of:
5039028,5040978,5163249,6470228
ART_ID_TO type=others:
8340681, ;8340682, ;8340683, ;8340684, ;8340685, ;8340686, ;8340687, ;8340688, ;8340689, ;8341200, ;8341201, ;8341202, ;8341203, ;8341204, ;8341205, ;8341206, ;8341207, ;8341208, ;8341209, ;8341210, ;8341211, ;8341212, ;8341213, ;8341214, ;8341215, ;834121
b Shank width:
16 mm
B3 Protruding length:
120 mm
B3_INCH Protruding length:
4,7244094488189 inch
B5 Overall length:
120 mm
B5_INCH Overall length:
4,7244094488189 inch
BLD Tool style code:
15
BMC Body material code:
S
B_INCH Shank width:
0,62992125984252 inch
C11 Connection code type machine side:
VKT
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
1
C15 Connection code style machine side:
5
C2 Connection size code machine side:
1616
CICT Cutting item count:
1
CNSC Coolant entry style code:
1
CONTENT_UNIT:
PCE
CP Coolant pressure:
150 MPa
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
A
CURRENCY:
USD
CXSC Coolant exit style code:
7
CZCMS Connection size code machine side:
1616
D7 Weight of item:
0,18 kg
D7_INCH Weight of item:
0,396828 lbs
Designation Tool designation:
W1010-1616N-WL17-P
E1 Tool cutting edge angle:
72,5 °
E2 Tool cutting edge angle type code:
B
E3 Insert included angle:
35 °
E4 Rake angle orthogonal:
0 °
E5 Inclination angle:
0 °
EAN:
4063464967995
F1 Cutting direction:
N
F2 Tool holder shape code:
G
F5 Clamping type code:
S
FMTMS Form type machine side:
EXT
GAMO Rake angle orthogonal:
0 °

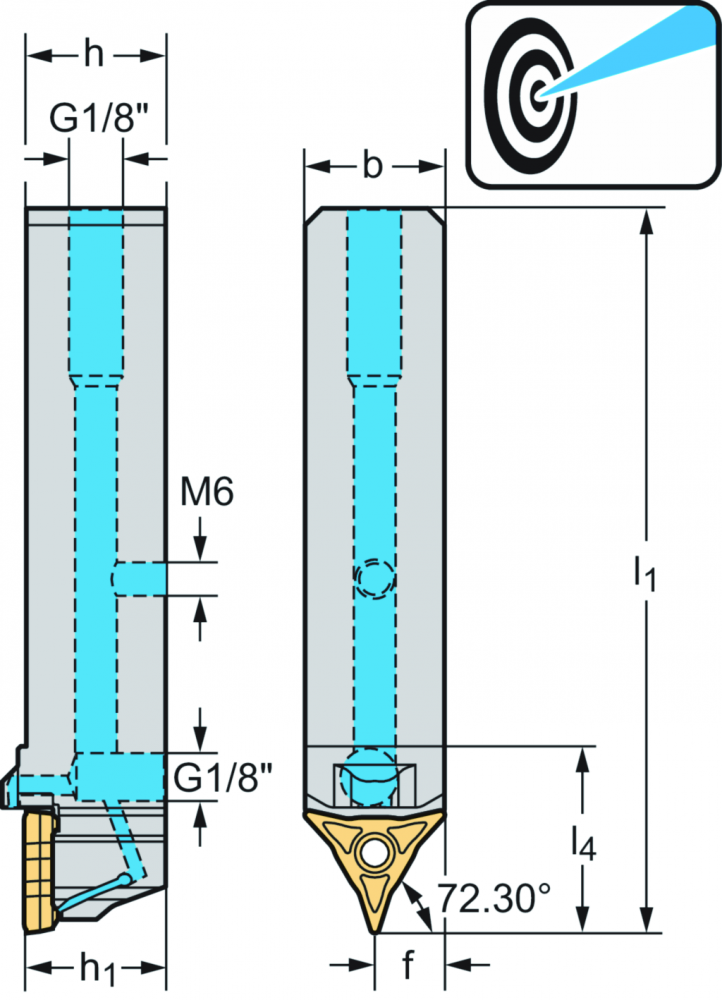

h = h<sub>1</sub> Shank height:
16 mm
H Shank height:
16 mm
H21 Coolant entry style code:
1
H22 Coolant exit style code:
7
HAND Cutting direction:
N
HF Functional height:
16 mm
HF_INCH Functional height:
0,62992125984252 inch
H_INCH Shank height:
0,62992125984252 inch
J1 Standard:
-
J21 Article number:
W1010-1616N-WL17-P
J22 Product designation:
7724
J3 Company code:
W
J41 Insert interface code:
WR$$WL1703**3******
J42 Master insert identification:
WL17-VC050804N-FM4
J6 Connection code machine side:
VKT01A1616$$$$
J7 Data chip provision:
0
J8 Machining operation:
DFA
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
72,5 °
KEYWORD:
Tool Item|Turning|Walter Turn|Neutral tool heads, turning, external|W1010
l<sub>4</sub> Functional length:
22 mm
LAMS Inclination angle:
0 °
LF Functional length:
120 mm
LF_INCH Functional length:
4,7244094488189 inch
LPR Protruding length:
120 mm
LPR_INCH Protruding length:
4,7244094488189 inch
MANUFACTURER_AID:
W1010-1616N-WL17-P
MIID Master insert identification:
WL17-VC050804N-FM4
NOI Insert index count:
400
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-90
OAL Overall length:
120 mm
OAL_INCH Overall length:
4,7244094488189 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Shank tool – Copy turning system W1010...-P • Walter Turn • metric • Square shank • κ=72,5° • Neutral • Precision cooling
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21181008
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21181008
REFERENCE_FEATURE_GROUP_ID_GTC:
TRNGEI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153308
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112809
REFERENCE_FEATURE_GROUP_ID_Walter:
W1010-AUSSEN-WL25-P
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RMPX Ramping angle maximum:
70 °
SC Insert shape code:
V
SSC Insert seat size code:
17
SUPPLIER_AID:
8341680
SUPPLIER_ALT_AID:
8341680
TERRITORY:
US
TSYCISO Tool style code:
W1010-AUSSEN-WL25-P
UDX.APPAREA:
Turning
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
Precision cooling
UDX.BULLETTEXT_2:
With WL form-fit system
UDX.CATFAM_CODE:
W1010...-P
UDX.CATFAM_DESCR:
Shank tool – Copy turning system
UDX.DISCOUNTGROUP:
060
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
.3969
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
1.4370
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
5.1181
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
.4631
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
10.5689
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
1.4370
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
W1010
WF Functional width:
8,4 mm
WF_INCH Functional width:
0,330708661417323 inch
WT Weight of item:
0,18 kg
WT_INCH Weight of item:
0,396828 lbs
XYWD xyw plane distance:
-120 mm
XYWD_INCH xyw plane distance:
-4,7244094488189 inch
XZWD xzw plane distance:
16 mm
XZWD_INCH xzw plane distance:
0,62992125984252 inch
YZWD yzw plane distance:
-8,4 mm
YZWD_INCH yzw plane distance:
-0,330708661417323 inch
γ Orthogonal rake angle:
0 °
λ<sub>s</sub> Inclination angle:
0 °
Manufactured By:
Walter Tool
Other Details
Precision cooling
Precision cooling|With WL form-fit system
With WL form-fit system
