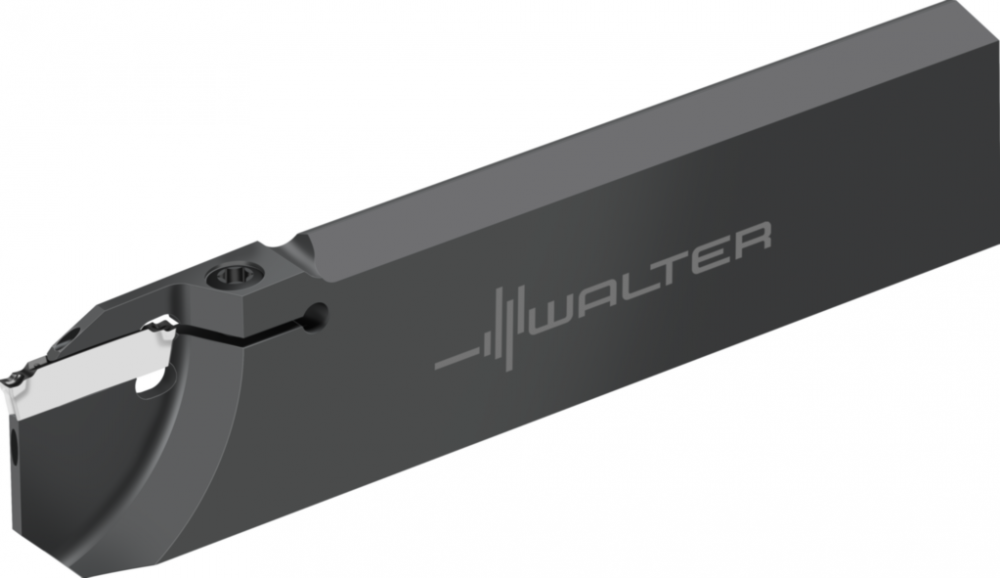

Reinforced parting blade

Reinforced parting blade by Walter Tool

Call For Price
  • Part Number: 7921598
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (58)
Failed to load
Product Overview
Info & Guides
Reinforced parting blade G4041-26L-2T17DX18-P
Long Description
Reinforced parting blade G4041...-P • metric • Left • DX18 • Precision cooling
Specifications
Details
Category:
Cutting Tools
Subcategory:
Cut-Off
Subtype:
Indexable Cutting Tools
Category Level 4:
Cut-Off Blades

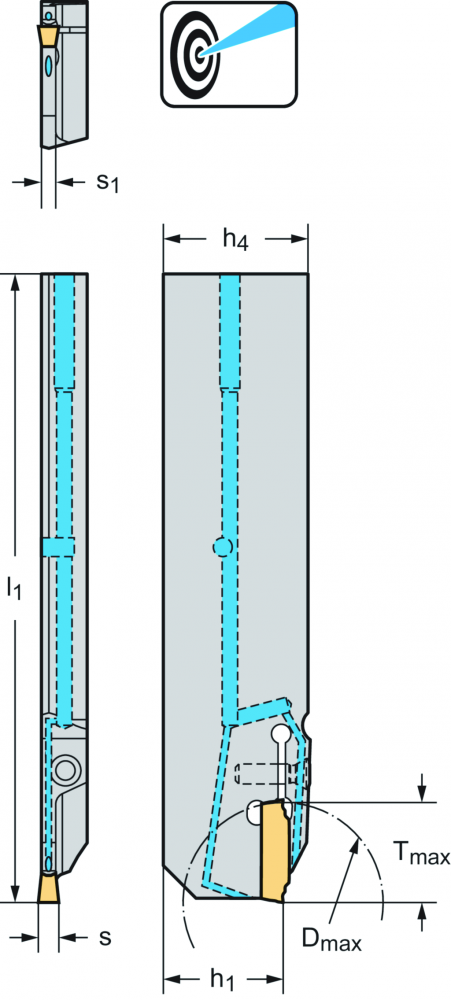

A18 Cutting width:
2 mm
A18_INCH Cutting width:
0,078740157480315 inch
A3 Functional length:
110 mm
A3_INCH Functional length:
4,33070866141732 inch
A4 Functional height:
0 mm
A4_INCH Functional height:
0 inch
A8 Cutting depth maximum:
17 mm
A8_INCH Cutting depth maximum:
0,669291338582677 inch
ART_ID_TO type=accessories:
5043211,5050322,5050333,6421702
ART_ID_TO type=consists_of:
5097334,5930317
ART_ID_TO type=others:
7782837, ;7782838, ;7782839, ;7795851, ;7795852, ;7795853, ;7795854, ;7795860, ;7795861, ;7795862, ;7795863, ;7795875, ;7795876, ;7795880, ;7795884, ;7795885, ;7795886, ;7795887, ;7795888, ;7795889, ;7795890, ;7795891, ;7795900, ;7795901, ;7795906, ;779590
B5 Overall length:
110 mm
B5_INCH Overall length:
4,33070866141732 inch
BLD Tool style code:
4
C11 Connection code type machine side:
PMW
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
9
C15 Connection code style machine side:
5
C2 Connection size code machine side:
026L
C31 ISO-tolerance class shank diameter:
$$$$
C4 Shank height:
26 mm
C4_INCH Shank height:
1,02362204724409 inch
C8 Shank width:
8 mm
C8_INCH Shank width:
0,31496062992126 inch
CONTENT_UNIT:
PCE
CURRENCY:
USD
D7 Weight of item:
0,137 kg
D7_INCH Weight of item:
0,3020302 lbs
D<sub>max</sub> Maximum grooving diameter:
35 mm
Designation Tool designation:
G4041-26L-2T17DX18-P
E1 Tool cutting edge angle:
90 °
E4 Rake angle orthogonal:
0 °
E5 Inclination angle:
0 °
EAN:
0626710937
F1 Cutting direction:
L
F5 Clamping type code:
C
H4 Body material code:
S
h<sub>1</sub> Center height:
21,3 mm
h<sub>4</sub> Shank height:
26 mm
J1 Standard:
-
J21 Article number:
G4041-26L-2T17DX18-P
J22 Product designation:
7554
J3 Company code:
W
J41 Insert interface code:
WR$$DX182000***EX**
J42 Master insert identification:
DX18-2
J6 Connection code machine side:
PMW01C026L$$00
J7 Data chip provision:
0
J8 Machining operation:
DEA
KEYWORD:
Tool Item|Parting/Grooving|Walter Cut|Cartridge, prismatic|G4041
l<sub>1</sub> Overall length:
110 mm
MANUFACTURER_AID:
G4041-26L-2T17DX18-P
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-175
ORDER_UNIT:
PCE
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Reinforced parting blade G4041...-P • metric • Left • Precision cooling
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21181503
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21181503
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21181503
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21012001
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21012001
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21012001
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21181090
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21181090
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21181090
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21181503
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21181503
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21181503
REFERENCE_FEATURE_GROUP_ID_GTC:
BLTGTI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
23231001
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
23242106
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
23171619
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23171619
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
23171619
REFERENCE_FEATURE_GROUP_ID_Walter:
G4041-L-DX-P
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
s Indexable insert width:
2
s<sub>1</sub> Body width:
1,6 mm
SUPPLIER_AID:
7921598
SUPPLIER_ALT_AID:
7921598
T<sub>max</sub> Maximum cutting depth:
17 mm
TERRITORY:
US
Type Possible indexable inserts:
DX18-2E2 ..
UDX.APPAREA:
Parting/Grooving
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
Screw clamping
UDX.BULLETTEXT_2:
Precision cooling
UDX.CATFAM_CODE:
G4041...-P
UDX.CATFAM_DESCR:
Reinforced parting blade
UDX.DESCR_APPLICATION:
Parting off operations where space is limited;Parting off with long tool overhangs;First choice when using parting blades
UDX.DESCR_BENEFITS:
Optimum cooling directly in the cutting zone starting from a coolant pressure as low as 10 bar;Long tool life and high productivity;Reduced vibration tendency thanks to reinforced shank;Little deflection due to reinforced tool body;High cost-efficiency tha
UDX.DESCR_TOOL:
Reinforced tool body;Double-edged DX18 cutting inserts for parting off operations;Optimum chip control thanks to precision cooling on the rake and flank faces;G4041..R/L-P parting blades with reinforced shank and precision cooling on the rake and flank fac
UDX.DISCOUNTGROUP:
060
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
.3021
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
.5906
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
4.3307
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
.3021
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
3.2221
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
1.2598
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
G4041
WT Weight of item:
0,137 kg
WT_INCH Weight of item:
0,3020302 lbs
Manufactured By:
Walter Tool
Other Details
Precision cooling
Screw clamping
Screw clamping|Precision cooling
