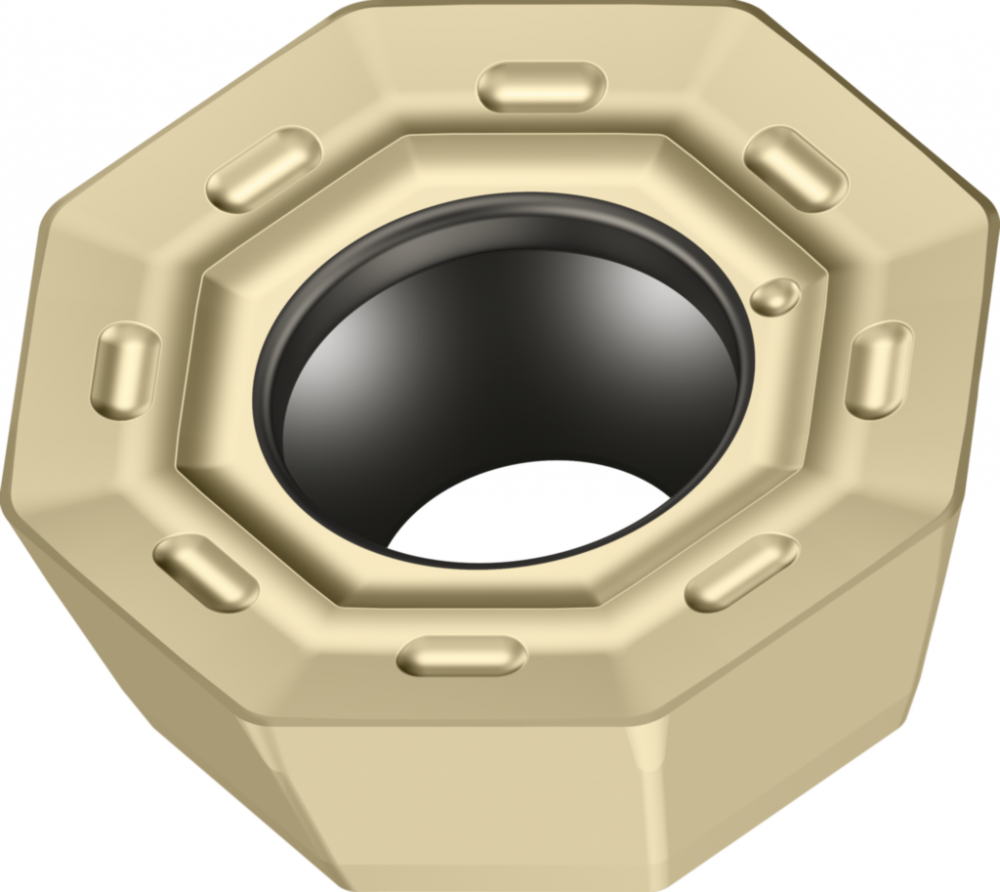

Positive octagonal ODMT060512-D57 WSP45G
Long Description
Positive octagonal ODMT ...-D57 • clearance angle major=15° • WSP45G • Tiger·tec® Gold • Corner radius=0.0472in

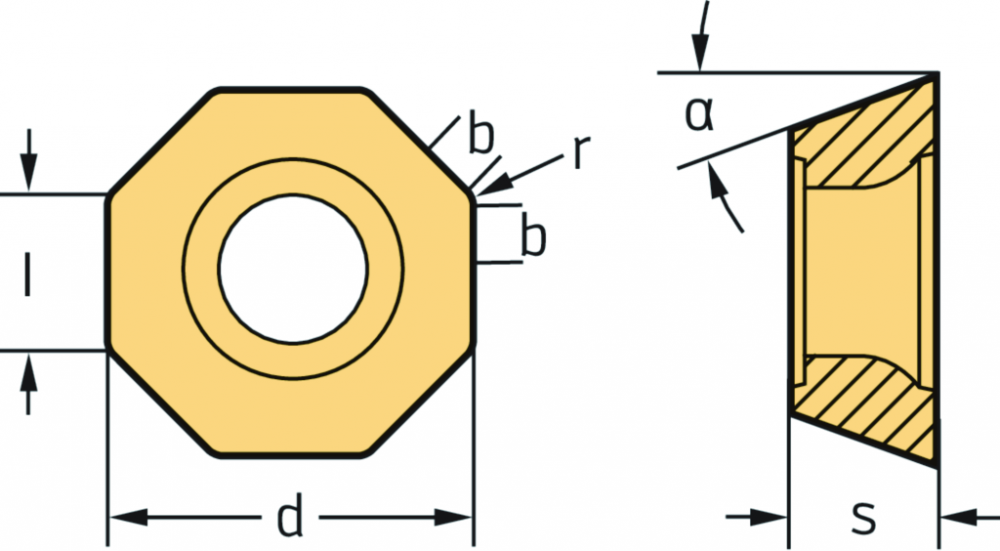

Specifications
Details
Category:
Milling
Subcategory:
Indexable
Subtype:
Milling Indexable Inserts
A1 Insert included angle:
135 °
A2 Clearance angle major:
15 °
AN Clearance angle major:
15 °
B1 Cutting edge length:
6,58 mm
B1_INCH Cutting edge length:
0,259055118110236 inch
B3 Inscribed circle diameter:
15,88 mm
B3_INCH Inscribed circle diameter:
0,625196850393701 inch
BLD Tool style code:
9
C1 Insert thickness:
5,56 mm
C1_INCH Insert thickness:
0,218897637795276 inch
CBMD Chip breaker manufacturers designation:
D57
CECC Cutting edge condition code:
S
CECV Cutting edge curvature:
0 mm
CECV_INCH Cutting edge curvature:
0 inch
CNC Corner count:
8
COATING Coating:
TiAlN+Al2O3+(ZrN)
CONTENT_UNIT:
PCE
CSP Coolant supply property:
0
CURRENCY:
USD
d Diameter of inscribed circle:
15,88 mm
D1 Corner radius:
1,2 mm
D1 Fixing hole diameter:
5,5 mm
D1_INCH Corner radius:
0,047244094488189 inch
D1_INCH Fixing hole diameter:
0,216535433070866 inch
D7 Insert rake angle:
10 °
D75 Weight of item:
0,011 kg
D75_INCH Weight of item:
0,0242506 lbs
Designation Designation:
ODMT060512-D57 WSP45G
E41 Cutting edge condition code:
S
E6 Chip breaker face count:
1
E9 Chip breaker manufacturers designation:
D57
EAN:
0627668789
EPSR Insert included angle:
135 °
F1 Insert hand:
N
F2 Insert index count:
8
G1 Tolerance class insert:
M
G4 Insert thickness total:
5,56 mm
G4_INCH Insert thickness total:
0,218897637795276 inch
G5 Insert mounting style code:
3
G6 Fixing hole diameter:
5,5 mm
G6_INCH Fixing hole diameter:
0,216535433070866 inch
GRADE Grade manufacturer's designation:
WSP45G
GRDPRIO Standard designation of the grade, main ap:
-
H11 Standard designation of the grade, main applic:
-
H2 Coolant supply property:
0
H3 Grade manufacturer's designation:
WSP45G
H5 Coating:
TiAlN+Al2O3+(ZrN)
H6 Tipped cutting edge code:
S
HAND Insert hand:
N
IC Inscribed circle diameter:
15,88 mm
IC_INCH Inscribed circle diameter:
0,625196850393701 inch
IFS Insert mounting style code:
3
IIC Insert interface code:
WR$$OD0605123NB$$12
J1 Standard:
-
J11 Standard designation:
ODMT060512
J21 Article number:
ODMT060512-D57 WSP45G
J3 Company code:
W
J6 Connection code machine side:
WR$$OD0605123NB$$12
J8 Machining operation:
FPL
KAP Kappa:
0 °
KEYWORD:
Insert|Milling||Tiger·tec® Gold|Octagonal inserts (135°)|P3000
l Cutting edge length:
6,58 mm
L_INCH Cutting edge length:
0,259055118110236 inch
MANUFACTURER_AID:
ODMT060512-D57 WSP45G
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-76
Number of cutting edges Number of cutting edges:
8
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
10
QUANTITY_MIN:
10
r Radius:
1,2 mm
RE Corner radius:
1,2 mm
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Positive octagonal ODMT ...-D57
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21182009
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21182009
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21182009
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21011901
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21011901
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21011901
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21182009
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21182009
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21182009
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21182009
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21182009
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21182009
REFERENCE_FEATURE_GROUP_ID_GTC:
INSCMIL
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
23242105
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
23242105
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
23171618
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153309
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
23171618
REFERENCE_FEATURE_GROUP_ID_Walter:
ODMT-D57 MIT ECKENRADIUS
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RE_INCH Corner radius:
0,047244094488189 inch
RHO Rho:
0 °
S Insert thickness:
5,56 mm
S1 Insert thickness total:
5,56 mm
S1_INCH Insert thickness total:
0,218897637795276 inch
SSC Insert seat size code:
6
SUPPLIER_AID:
7924254
SUPPLIER_ALT_AID:
7924254
S_INCH Insert thickness:
0,218897637795276 inch
TC Tolerance class insert:
M
TCE Tipped cutting edge code:
S
TERRITORY:
US
Tolerance class Indexable insert tolerance class:
M
TSYC Tool style code:
ODMT-D57 MIT ECKENRADIUS
UDX.APPAREA:
Milling
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
For Xtra·tec® XT milling cutters
UDX.CATFAM_CODE:
ODMT
UDX.CATFAM_DESCR:
Positive octagonal
UDX.DESCR_TOOL:
Eight-edged, positive indexable inserts;For medium machining conditions;Can be used universally for most materials;Sintered version;10° rake angle;D57 – The universal one
UDX.DISCOUNTGROUP:
009
UDX.ITEMTYPE:
Insert
UDX.NET_WEIGHT:
.0243
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
.4331
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
3.8583
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
.2668
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
2.6313
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
1.5748
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
P3000
UDX.RANKING_ISO_H:
No application
UDX.RANKING_ISO_K:
No application
UDX.RANKING_ISO_M:
No application
UDX.RANKING_ISO_N:
No application
UDX.RANKING_ISO_O:
No application
UDX.RANKING_ISO_P:
No application
UDX.RANKING_ISO_S:
No application
UDX.WORKING_CONDITION_ISO_H:
n/a
UDX.WORKING_CONDITION_ISO_K:
n/a
UDX.WORKING_CONDITION_ISO_M:
unfavourable
UDX.WORKING_CONDITION_ISO_N:
n/a
UDX.WORKING_CONDITION_ISO_O:
n/a
UDX.WORKING_CONDITION_ISO_P:
unfavourable
UDX.WORKING_CONDITION_ISO_S:
unfavourable
WEP Wiper edge property:
0
WT Weight of item:
0,011 kg
WT_INCH Weight of item:
0,0242506 lbs
XYWD xyw plane distance:
0 mm
XYWD_INCH xyw plane distance:
0 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
α Clearance angle major:
15 °
Manufactured By:
Walter Tool
Other Details
For Xtra·tec® XT milling cutters
