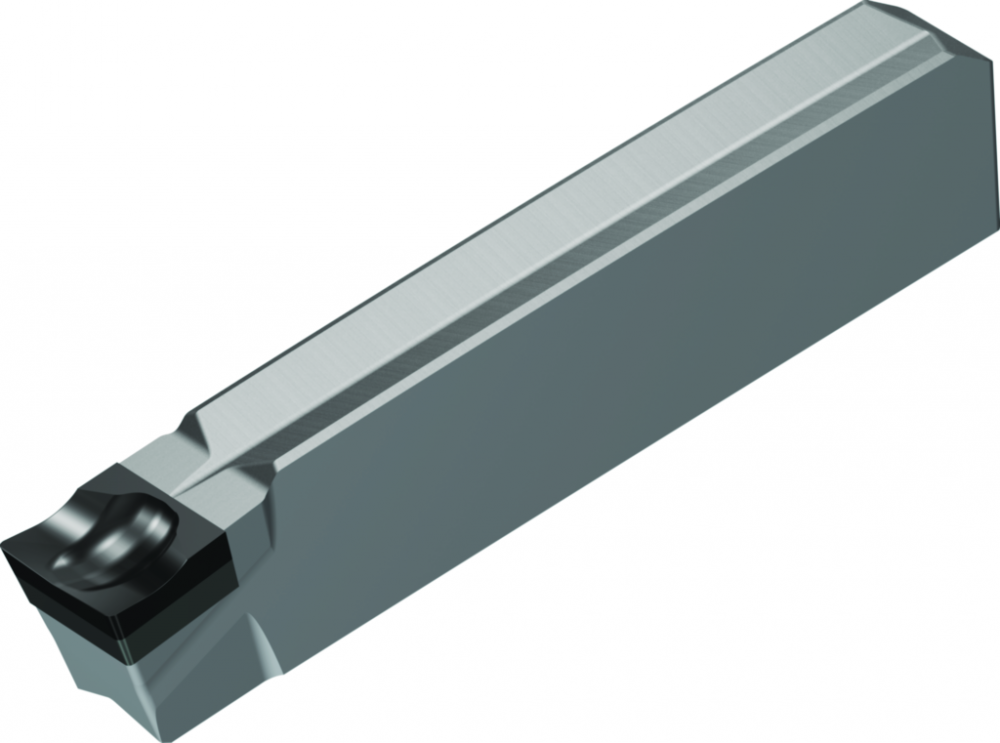

PCD – grooving and parting off GX24-3F500N02FS-F1 WDN10
Long Description
PCD – grooving and parting off GX ...-FS-F1 • Neutral • WDN10 • s=0.1969in • r=0.0079in
Specifications
Details
Category:
Grooving
Subcategory:
Indexable Cutting Tools
Subtype:
Grooving Inserts
A1 Profile form:
1
A2 Cutting width:
5 mm
A2_INCH Cutting width:
0,196850393700787 inch
A8 Profile depth insert:
22 mm
A8_INCH Profile depth insert:
0,866141732283465 inch
AN Clearance angle major:
6 °
BLD Tool style code:
1
C5 Corner radius right hand:
0,2 mm
C5_INCH Corner radius right hand:
0,0078740157480315 inch
C6 Corner radius left hand:
0,2 mm
C6_INCH Corner radius left hand:
0,0078740157480315 inch
CBMD Chip breaker manufacturers designation:
FS-F1
CDX Cutting depth maximum:
22 mm
CDX_INCH Cutting depth maximum:
0,866141732283465 inch
CEDC Flute count:
1
CNC Corner count:
1
COATING Coating:
PCD
CONTENT_UNIT:
PCE
CURRENCY:
USD
CW Cutting width:
5 mm
CW_INCH Cutting width:
0,196850393700787 inch
D75 Weight of item:
0,006 kg
D75_INCH Weight of item:
0,0132276 lbs
DAXN Axial groove od min:
0 mm
DAXN_INCH Axial groove od min:
0 inch
Designation Designation:
GX24-3F500N02FS-F1 WDN10
E1 Clearance angle major:
6 °
E6 Chip breaker face count:
1
E7 Insert hand:
N
E9 Chip breaker manufacturers designation:
FS-F1
EAN:
0953958939
f Feed rate:
0.06–0.25 mm
F2 Flute count:
1
G1 Insert length:
24 mm
G1_INCH Insert length:
0,94488188976378 inch
G2 Insert width:
4 mm
G2_INCH Insert width:
0,15748031496063 inch
G4 Insert thickness total:
5,2 mm
G4_INCH Insert thickness total:
0,204724409448819 inch
G5 Insert mounting style code:
7
G7 Insert thickness:
4,7 mm
G7_INCH Insert thickness:
0,18503937007874 inch
GRADE Grade manufacturer's designation:
WDN10
GRDPRIO Standard designation of the grade, main ap:
-
H11 Standard designation of the grade, main applic:
-
H3 Grade manufacturer's designation:
WDN10
H5 Coating:
PCD
H6 Tipped cutting edge code:
S
HAND Insert hand:
N
IIC Insert interface code:
WR$$GX2430507$$FX50
INSL Insert length:
24 mm
INSL_INCH Insert length:
0,94488188976378 inch
J1 Standard:
-
J21 Article number:
GX24-3F500N02FS-F1 WDN10
J3 Company code:
W
J6 Connection code machine side:
WR$$GX2430507$$FX50
J8 Machining operation:
DSS
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
90 °
KEYWORD:
Insert|Parting/Grooving||Profile form 1|P9GX
l Cutting edge length:
24 mm
l<sub>Tol</sub> Length tolerance:
±0.02
MANUFACTURER_AID:
GX24-3F500N02FS-F1 WDN10
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-77
ORDER_UNIT:
PCE
PFS Profile form:
1
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
r Radius:
0,2 mm
RE Corner radius:
0,2 mm
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
PCD – grooving and parting off GX ...-FS-F1 • Neutral
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21182101
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21182101
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21182101
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21011902
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21011902
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21011902
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21182101
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21182101
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21182101
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21182101
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21182101
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21182101
REFERENCE_FEATURE_GROUP_ID_GTC:
INSCPRT
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
23242105
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
23242105
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
23171618
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153309
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
23171618
REFERENCE_FEATURE_GROUP_ID_Walter:
GX-F_FS-F1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
REL Corner radius left hand:
0,2 mm
REL_INCH Corner radius left hand:
0,0078740157480315 inch
RER Corner radius right hand:
0,2 mm
RER_INCH Corner radius right hand:
0,0078740157480315 inch
RE_INCH Corner radius:
0,0078740157480315 inch
RHO Rho:
0 °
s Cutting width:
5 mm
S Insert thickness:
4,7 mm
S1 Insert thickness total:
5,2 mm
S1_INCH Insert thickness total:
0,204724409448819 inch
S<sub>Tol</sub> Tolerance cutting width:
±0.02
SUPPLIER_AID:
7629620
SUPPLIER_ALT_AID:
7629620
S_INCH Insert thickness:
0,18503937007874 inch
TCE Tipped cutting edge code:
S
TERRITORY:
US
TSYC Tool style code:
GX-F_FS-F1
UDX.APPAREA:
Parting/Grooving
UDX.BRAND:
Walter
UDX.CATFAM_CODE:
GX
UDX.CATFAM_DESCR:
PCD – grooving and parting off
UDX.DESCR_APPLICATION:
Finishing to medium machining
UDX.DESCR_BENEFITS:
Maximum repeat accuracy;Excellent chip control
UDX.DESCR_GEOMETRY:
Sharp cutting edge;PCD finishing insert with fully ground circumference in G tolerance;Laser-generated chip breaker geometry
UDX.DISCOUNTGROUP:
025
UDX.ITEMTYPE:
Insert
UDX.NET_WEIGHT:
.0132
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
.5118
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
.7874
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
.0287
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
.3173
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
.7874
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
P9GX
UDX.RANKING_ISO_H:
No application
UDX.RANKING_ISO_K:
No application
UDX.RANKING_ISO_M:
No application
UDX.RANKING_ISO_N:
No application
UDX.RANKING_ISO_O:
No application
UDX.RANKING_ISO_P:
No application
UDX.RANKING_ISO_S:
No application
UDX.WORKING_CONDITION_ISO_H:
n/a
UDX.WORKING_CONDITION_ISO_K:
n/a
UDX.WORKING_CONDITION_ISO_M:
n/a
UDX.WORKING_CONDITION_ISO_N:
good
UDX.WORKING_CONDITION_ISO_O:
good
UDX.WORKING_CONDITION_ISO_P:
n/a
UDX.WORKING_CONDITION_ISO_S:
n/a
WT Weight of item:
0,006 kg
WT_INCH Weight of item:
0,0132276 lbs
XYWD xyw plane distance:
0 mm
XYWD_INCH xyw plane distance:
0 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Manufactured By:
Walter Tool
