Product Overview

PCD – grooving and copy turning GX24-2F300N15FS-M1 WDN10

PCD – grooving and copy turning GX ...-FS-M1 • Neutral • WDN10 • s=0.1181in • r=0.0591in

Category Path

Category:

Grooving

Subcategory:

Indexable Cutting Tools

Subtype:

Grooving Inserts

Product Specs

A1 Profile form:

10

A2 Cutting width:

3 mm

A2_INCH Cutting width:

0,118110236220472 inch

A8 Profile depth insert:

22 mm

A8_INCH Profile depth insert:

0,866141732283465 inch

AN Clearance angle major:

6 °

APMX Depth of cut maximum:

1,5 mm

APMX_INCH Depth of cut maximum:

0,0590551181102362 inch

BLD Tool style code:

10

C8 Spot radius:

1,5 mm

C8_INCH Spot radius:

0,0590551181102362 inch

CBMD Chip breaker manufacturers designation:

FS-M1

CDX Cutting depth maximum:

22 mm

CDX_INCH Cutting depth maximum:

0,866141732283465 inch

CEDC Flute count:

1

CNC Corner count:

1

COATING Coating:

PCD

CONTENT_UNIT:

PCE

CURRENCY:

USD

CW Cutting width:

3 mm

CW_INCH Cutting width:

0,118110236220472 inch

D75 Weight of item:

0,01 kg

D75_INCH Weight of item:

0,022046 lbs

DAXN Axial groove od min:

0 mm

DAXN_INCH Axial groove od min:

0 inch

Designation Designation:

GX24-2F300N15FS-M1 WDN10

E1 Clearance angle major:

6 °

E6 Chip breaker face count:

1

E7 Insert hand:

N

E9 Chip breaker manufacturers designation:

FS-M1

EAN:

0953961939

f Feed rate:

0.05–0.30 mm

F2 Flute count:

1

G1 Insert length:

24 mm

G1_INCH Insert length:

0,94488188976378 inch

G2 Insert width:

2,3 mm

G2_INCH Insert width:

0,0905511811023622 inch

G4 Insert thickness total:

4,5 mm

G4_INCH Insert thickness total:

0,177165354330709 inch

G5 Insert mounting style code:

7

G7 Insert thickness:

4,3 mm

G7_INCH Insert thickness:

0,169291338582677 inch

GRADE Grade manufacturer's designation:

WDN10

GRDPRIO Standard designation of the grade, main ap:

-

H11 Standard designation of the grade, main applic:

-

H3 Grade manufacturer's designation:

WDN10

H5 Coating:

PCD

H6 Tipped cutting edge code:

S

HAND Insert hand:

N

IIC Insert interface code:

WR$$GX2420007$$FX$$

INSL Insert length:

24 mm

INSL_INCH Insert length:

0,94488188976378 inch

J1 Standard:

-

J21 Article number:

GX24-2F300N15FS-M1 WDN10

J3 Company code:

W

J6 Connection code machine side:

WR$$GX2420007$$FX$$

J8 Machining operation:

DSS

KAP Kappa:

0 °

KAPR Tool cutting edge angle:

90 °

KEYWORD:

Insert|Parting/Grooving||Profile form 10|P9GX

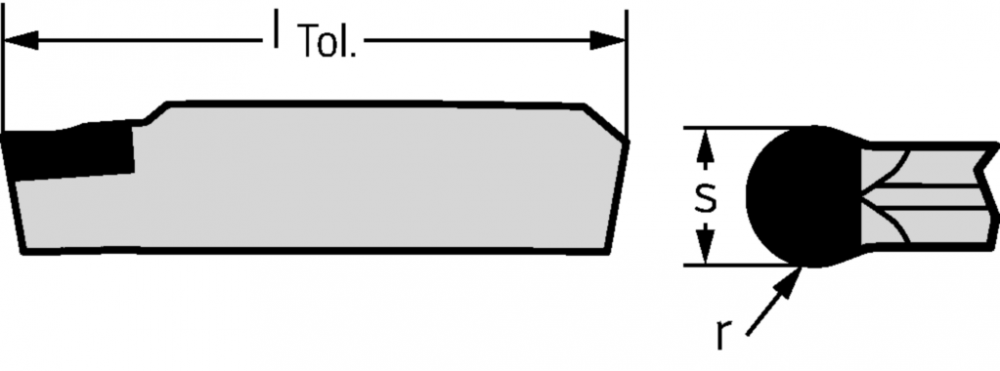

l Cutting edge length:

24 mm

l_Tol Length tolerance:

±0.02

MANUFACTURER_AID:

GX24-2F300N15FS-M1 WDN10

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-77

ORDER_UNIT:

PCE

PFS Profile form:

10

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

r Radius:

1,5 mm

RE Corner radius:

1,5 mm

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

PCD – grooving and copy turning GX ...-FS-M1 • Neutral

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21182110

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21182110

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21182110

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21011902

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21011902

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21011902

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21182110

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21182110

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21182110

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21182110

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21182110

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21182110

REFERENCE_FEATURE_GROUP_ID_GTC:

INSCPRT

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

23242105

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

23242105

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

23171618

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

23153309

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

23171618

REFERENCE_FEATURE_GROUP_ID_Walter:

GX-F_FS-M1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RE_INCH Corner radius:

0,0590551181102362 inch

RHO Rho:

0 °

RMPX Ramping angle maximum:

45 °

s Cutting width:

3 mm

S Insert thickness:

4,3 mm

S1 Insert thickness total:

4,5 mm

S1_INCH Insert thickness total:

0,177165354330709 inch

S_Tol Tolerance cutting width:

±0.02

SUPPLIER_AID:

7629623

SUPPLIER_ALT_AID:

7629623

S_INCH Insert thickness:

0,169291338582677 inch

TCE Tipped cutting edge code:

S

TERRITORY:

US

TSYC Tool style code:

GX-F_FS-M1

UDX.APPAREA:

Parting/Grooving

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

GX

UDX.CATFAM_DESCR:

PCD – grooving and copy turning

UDX.DESCR_APPLICATION:

Finishing to medium machining

UDX.DESCR_BENEFITS:

Maximum repeat accuracy;Excellent chip control

UDX.DESCR_GEOMETRY:

Sharp cutting edge;PCD finishing insert with fully ground circumference in G tolerance;Laser-generated chip breaker geometry

UDX.DISCOUNTGROUP:

025

UDX.ITEMTYPE:

Insert

UDX.NET_WEIGHT:

.0221

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

.6299

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

1.7717

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.0243

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

1.8893

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.6929

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

P9GX

UDX.RANKING_ISO_H:

No application

UDX.RANKING_ISO_K:

No application

UDX.RANKING_ISO_M:

No application

UDX.RANKING_ISO_N:

No application

UDX.RANKING_ISO_O:

No application

UDX.RANKING_ISO_P:

No application

UDX.RANKING_ISO_S:

No application

UDX.WORKING_CONDITION_ISO_H:

n/a

UDX.WORKING_CONDITION_ISO_K:

n/a

UDX.WORKING_CONDITION_ISO_M:

n/a

UDX.WORKING_CONDITION_ISO_N:

good

UDX.WORKING_CONDITION_ISO_O:

good

UDX.WORKING_CONDITION_ISO_P:

n/a

UDX.WORKING_CONDITION_ISO_S:

n/a

WT Weight of item:

0,01 kg

WT_INCH Weight of item:

0,022046 lbs

XYWD xyw plane distance:

0 mm

XYWD_INCH xyw plane distance:

0 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Manufacturer Info

Manufactured By:

Walter Tool
