Modular holders for milling heads AB191.W15-F12-024
Long Description
Modular holders for milling heads AB191 • inch • Steel shank • for modular milling heads • d1=5/8 • d11=12
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Milling Holders
ART_ID_TO type=consists_of:
8539258
ART_ID_TO type=others:
5029505;5029515;5034298;5034312;5035311;5043220;5043221;5043222;5043224;5043232;5043233;5043234;5043235;5043236;5043638;5043639;5043641;5043642;5043644;5043645;5043646;5043647;5043648;5051412;5193088;6258782;6258784;6258819;6258821;6261605;6261646;6261647;
BBD Balanced By Design:
0
BD Body diameter:
12 mm
BD_INCH Body diameter:
0,47244094488189 inch
BMC Body material code:
S
CCFMS Connection code form at machine side:
10
CCFWS Connection code form at workpiece side:
2
CCMS Connection code machine side:
ZYL10R6250h$06
CCTMS Connection code type machine side:
ZYL
CCTWS Connection code type workpiece side:
CMS
CCWS Connection code workpiece side:
CMS02C0120****
CNSC Coolant entry style code:
1
CONTENT_UNIT:
PCE
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
R
CUBPWS Connection unit base precision workpiece si:
C
CURRENCY:
USD
CXSC Coolant exit style code:
2
CZCMS Connection size code machine side:
625
CZCWS Connection size code workpiece side:
120
d<sub>11</sub> Connection diameter:
F12
d<sub>1</sub> Connection diameter:
0,625 inch
Designation Tool designation:
AB191.W15-F12-024
EAN:
4063465886547
FMT Form type workpiece side:
INT
H Shank height:
14,22 mm
H_INCH Shank height:
0,559842519685039 inch
KAP Kappa:
0 °
KEYWORD:
Adaptive Item|Holding||AB191

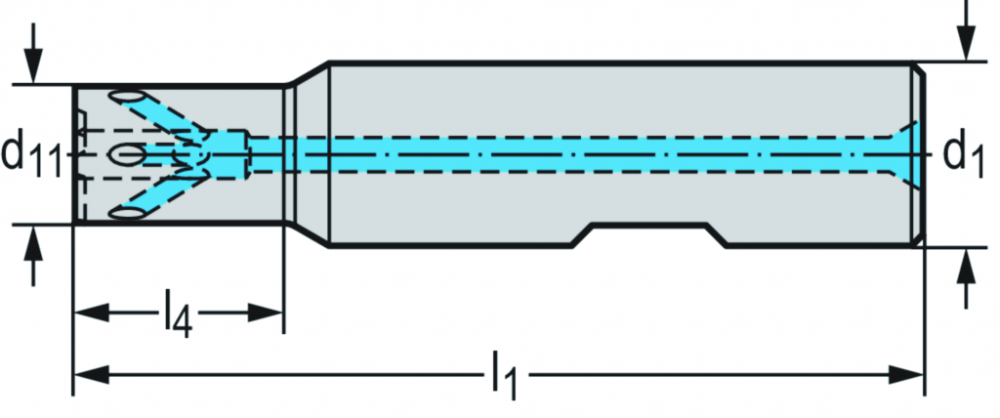

l<sub>1</sub> Overall length:
2,925 inch
l<sub>4</sub> Functional length:
0,996 inch
LF Functional length:
50,091 mm
LF_INCH Functional length:
1,97208661417323 inch
LPR Protruding length:
25,3 mm
LPR_INCH Protruding length:
0,996062992125984 inch
LS Shank length:
49 mm
LS_INCH Shank length:
1,92913385826772 inch
MANUFACTURER_AID:
AB191.W15-F12-024
NO_CU_PER_OU:
1
OAL Overall length:
74,3 mm
OAL_INCH Overall length:
2,9251968503937 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Modular holders for milling heads AB191
REFERENCE_FEATURE_GROUP_ID_GTC:
ADPRS
REFERENCE_FEATURE_GROUP_ID_Walter:
AB191.W
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RPMX Rotational speed maximum:
2400 1/min
SUPPLIER_AID:
8539074
SUPPLIER_ALT_AID:
8539074
TERRITORY:
US
TSYC Tool style code:
AB191.W
UDX.APPAREA:
Holding
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
for modular milling heads
UDX.BULLETTEXT_2:
Steel shank
UDX.CATFAM_CODE:
AB191
UDX.CATFAM_DESCR:
Modular holders for milling heads
UDX.DISCOUNTGROUP:
048
UDX.ITEMTYPE:
Adaptive Item
UDX.NET_WEIGHT:
.2117
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
1.3780
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
3.3465
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
.2580
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
6.3541
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
1.3780
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
AB191
WT Weight:
0,212 lbs
WT Weight of item:
0,096 kg
WT_INCH Weight of item:
0,2116416 lbs
XYWD xyw plane distance:
-74,3 mm
XYWD_INCH xyw plane distance:
-2,9251968503937 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Manufactured By:
Walter Tool
Other Details
for modular milling heads
for modular milling heads|Steel shank
Steel shank
