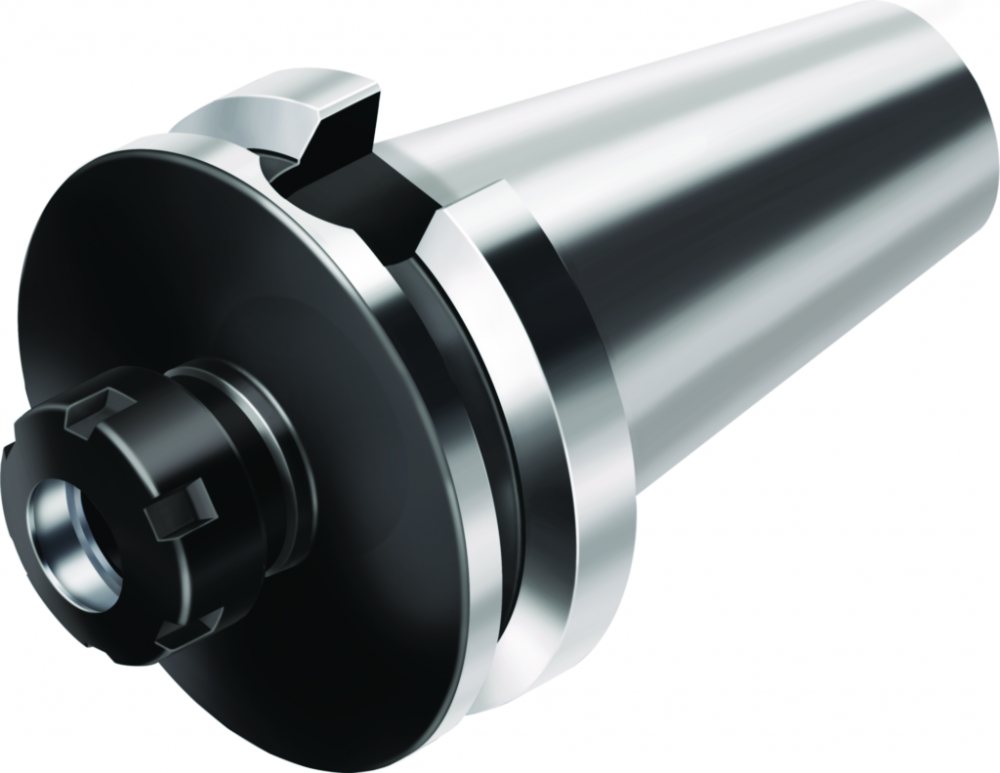

MAS-BT JIS B 6339 ER collet chuck

MAS-BT JIS B 6339 ER collet chuck by Walter Tool

Call For Price
  • Part Number: 6265009
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (17)
Failed to load
Product Overview
Info & Guides
MAS-BT JIS B 6339 ER collet chuck AK300.BT50.080.ER40
Long Description
MAS-BT JIS B 6339 ER collet chuck AK300.BT • metric • For ER collets in accordance with DIN 6499/ISO15488 • ISO 7388-2 • d1=50 • d11=ER40
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Collet Chucks
A1 Body diameter:
63 mm
A1_INCH Body diameter:
2,48031496062992 inch
A4 Flange diameter:
100 mm
A4_INCH Flange diameter:
3,93700787401575 inch
A5 Diameter lock nut:
63 mm
A5_INCH Diameter lock nut:
2,48031496062992 inch
ART_ID_TO type=accessories:
5040702
ART_ID_TO type=consists_of:
5040666
B1 Body length 1:
42 mm
B1_INCH Body length 1:
1,65354330708661 inch
B3 Protruding length:
80 mm
B3_INCH Protruding length:
3,1496062992126 inch
B4 Overall length:
171,8 mm
B4_INCH Overall length:
6,76377952755906 inch
B71 Functional length:
65,1 mm
B71_INCH Functional length:
2,56299212598425 inch
BBD Balanced By Design:
0
BD Body diameter:
63 mm
BD_INCH Body diameter:
2,48031496062992 inch
BMC Body material code:
S
C11 Connection code type machine side:
SKG
C12 Connection code form at machine side:
50
C13 Connection thread nominal size machine side:
M24
C14 Connection code unit base machine side:
8
C15 Connection code style machine side:
5
C2 Connection size code machine side:
500
C3 Connection diameter machine side:
41 mm
C3_INCH Connection diameter machine side:
1,61417322834646 inch
C4 Shank length:
101,8 mm
C4_INCH Shank length:
4,00787401574803 inch
C51 Connection code type workpiece side:
SZD
C52 Connection code form at workpiece side:
2
C54 Connection code unit base workpiece side:
8
C55 Connection code style workpiece side:
5
C6 Connection size code workpiece side:
400
CCFMS Connection code form at machine side:
50
CCFWS Connection code form at workpiece side:
2
CCMS Connection code machine side:
SKG50C0500$$$$
CCTMS Connection code type machine side:
SKG
CCTWS Connection code type workpiece side:
SZD
CCWS Connection code workpiece side:
SZD02C0400****
CNSC Coolant entry style code:
0
Collets Collets:
ER40
CONTENT_UNIT:
PCE
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
C
CUBPWS Connection unit base precision workpiece si:
C
CURRENCY:
USD
CXSC Coolant exit style code:
0
CZCMS Connection size code machine side:
500
CZCWS Connection size code workpiece side:
400
D6 Rotational speed maximum:
12000 1/min
D7 Weight of item:
4,09 kg
D7_INCH Weight of item:
9,016814 lbs

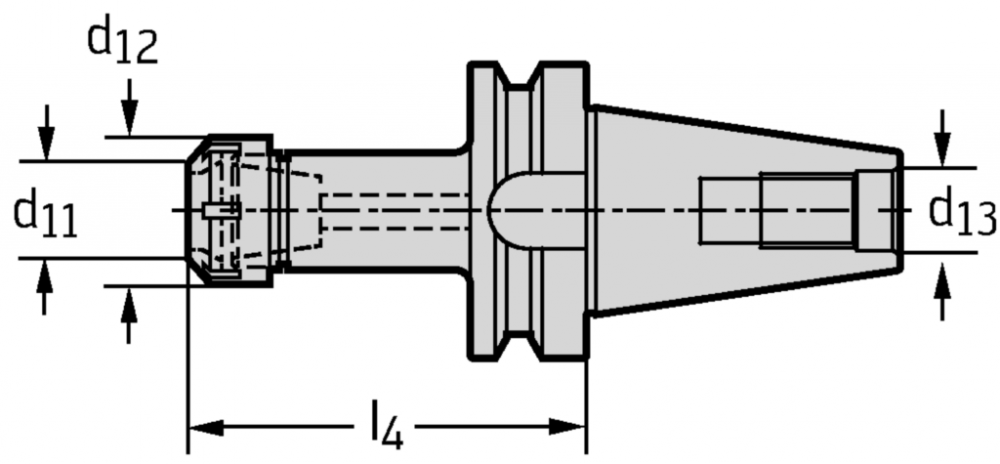

d<sub>11</sub> Connection size code:
2-26
d<sub>12</sub> Body diameter:
63 mm
d<sub>13</sub> Pull stud, thread size:
M24
d<sub>1</sub> Connection size code:
BT50
Designation Tool designation:
AK300.BT50.080.ER40
E2 Kappa:
0 °
EAN:
0671353853
FMT Form type workpiece side:
INT
G35 Mounting hole count:
1
H21 Coolant entry style code:
0
H22 Coolant exit style code:
0
J1 Standard:
MAS403-BT
J11 Standard letter to the standard number:
A
J21 Article number:
AK300.BT50.080.ER40
J3 Company code:
W
J4 Connection code workpiece side:
SZD02C0400****
J6 Connection code machine side:
SKG50C0500$$$$
J7 Data chip provision:
0
KAP Kappa:
0 °
KEYWORD:
Adaptive Item|Holding||Basic Holders steep taper shank - Collet chuck SANDVIK Coromant|A1400
l<sub>4</sub> Functional length:
80 mm
LF Functional length:
65,1 mm
LF_INCH Functional length:
2,56299212598425 inch
LPR Protruding length:
80 mm
LPR_INCH Protruding length:
3,1496062992126 inch
LS Shank length:
101,8 mm
LS_INCH Shank length:
4,00787401574803 inch
MANUFACTURER_AID:
AK300.BT50.080.ER40
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-89
OAL Overall length:
171,8 mm
OAL_INCH Overall length:
6,76377952755906 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
MAS-BT JIS B 6339 ER collet chuck AK300.BT • metric • For ER collets in accordance with DIN 6499/ISO15488 • ISO 7388-2
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21022002
REFERENCE_FEATURE_GROUP_ID_GTC:
ADPRS
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112807
REFERENCE_FEATURE_GROUP_ID_Walter:
AK300.BT
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RPMX Rotational speed maximum:
12000 1/min
SUPPLIER_AID:
6265009
SUPPLIER_ALT_AID:
6265009
TERRITORY:
US
TSYC Tool style code:
AK300.BT
UDX.APPAREA:
Holding
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
ISO 7388-2
UDX.BULLETTEXT_2:
For ER collets in accordance with DIN 6499/ISO15488
UDX.CATFAM_CODE:
AK300.BT
UDX.CATFAM_DESCR:
MAS-BT JIS B 6339 ER collet chuck
UDX.DISCOUNTGROUP:
076
UDX.ITEMTYPE:
Adaptive Item
UDX.NET_WEIGHT:
9.0185
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
4.5276
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
10.0394
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
9.0185
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
205.7949
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
4.5276
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
A1400
WT Weight:
4,09 kg
WT Weight of item:
4,09 kg
WT_INCH Weight of item:
9,016814 lbs
XYWD xyw plane distance:
-65,1 mm
XYWD_INCH xyw plane distance:
-2,56299212598425 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Manufactured By:
Walter Tool
Other Details
For ER collets in accordance with DIN 6499/ISO15488
