Indexable insert thread milling cutter by Walter Tool
Call For Price
- Part Number: 7493806
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (60)
Product Overview

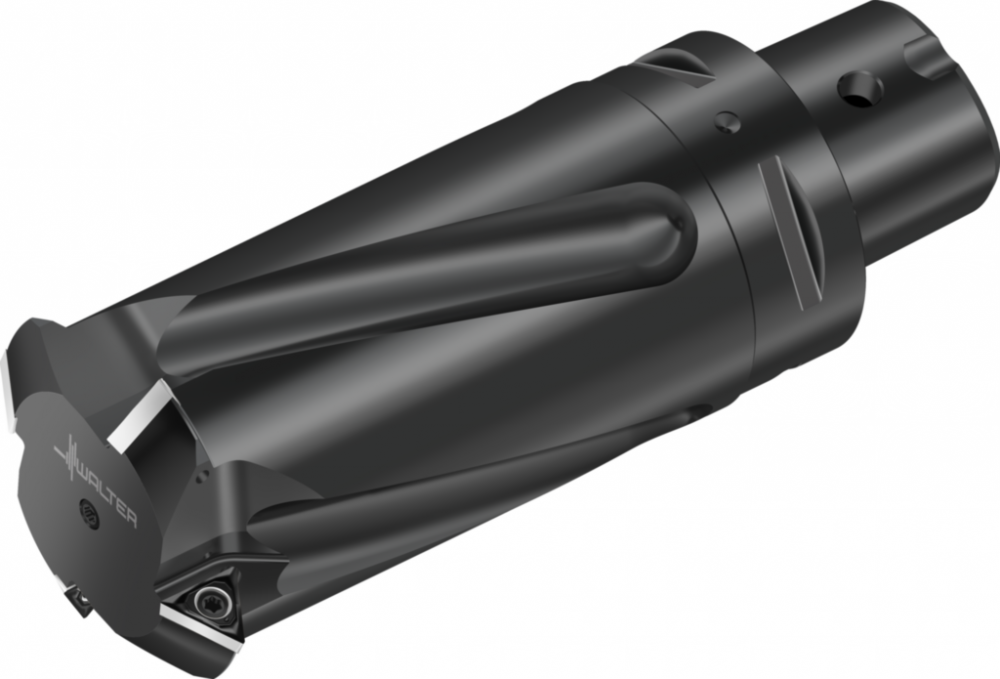

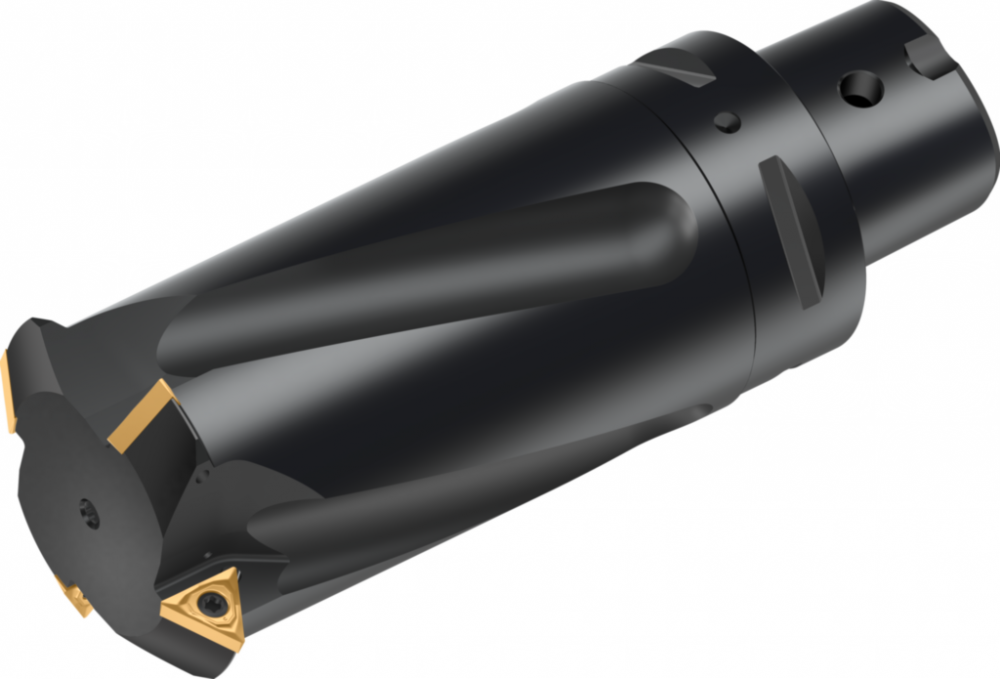

Indexable insert thread milling cutter T2713-60-C5-4-14
Long Description
Indexable insert thread milling cutter T2713 • Walter CaptoTM ISO 26623 • metric • ?3xD • number of rings with inserts=1 • M 72
Specifications
Details
Category:
Threading
Subcategory:
Thread Mills
Subtype:
Indexable Threadmill Bodies
A1 Cutting diameter:
60 mm
A1_INCH Cutting diameter:
2,36220472440945 inch
A3 Body diameter:
51,4 mm
A3_INCH Body diameter:
2,02362204724409 inch
A5 Neck diameter:
51,4 mm
A5_INCH Neck diameter:
2,02362204724409 inch
APMX Depth of cut maximum:
115 mm
APMX_INCH Depth of cut maximum:
4,52755905511811 inch
ART_ID_TO type=accessories:
5043210,5050322,5050332,6421702
ART_ID_TO type=consists_of:
5039028,7553642
ART_ID_TO type=others:
7356305, ;7566171, ;7356306, ;7013084, ;7493813, ;7493814, ;7493815, ;8414211, ;8414212, ;8414214, ;8414215, ;8414221, ;8414223, ;8414224, ;8694488, ;8694489, 5012376;5012378;5012379;5012384;5012387;5012388;5012389;5012394;5012395;5012398;5012399;5012400;5
B2 Depth of cut maximum:
115 mm
B2_INCH Depth of cut maximum:
4,52755905511811 inch
B3 Protruding length:
115 mm
B3_INCH Protruding length:
4,52755905511811 inch
B4 Usable length:
115 mm
B4_INCH Usable length:
4,52755905511811 inch
B5 Overall length:
151,7 mm
B5_INCH Overall length:
5,97244094488189 inch
B6 Head length:
121,7 mm
B6_INCH Head length:
4,79133858267717 inch
BD Body diameter:
51,4 mm
BD_INCH Body diameter:
2,02362204724409 inch
BLD Tool style code:
5
C11 Connection code type machine side:
CCS
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
9
C15 Connection code style machine side:
5
C2 Connection size code machine side:
500
C3 Connection diameter machine side:
50 mm
C3_INCH Connection diameter machine side:
1,96850393700787 inch
C4 Shank length:
30 mm
C4_INCH Shank length:
1,18110236220472 inch
CCMS Connection code machine side:
CCS01C0500$$$$
CICT Cutting item count:
4
CONTENT_UNIT:
PCE
CURRENCY:
USD
CXSC Coolant exit style code:
2
D11 Mill tool type ISO:
T
D31 Thread form type:
3.00"
D32 Thread pitch:
6 mm
D32_INCH Thread pitch:
0,236220472440945 inch
D33 Threads per inch:
4
D6 Rotational speed maximum:
17000 1/min
D7 Weight of item:
1,758 kg
D7_INCH Weight of item:
3,8756868 lbs
D9 Adjustment property:
0

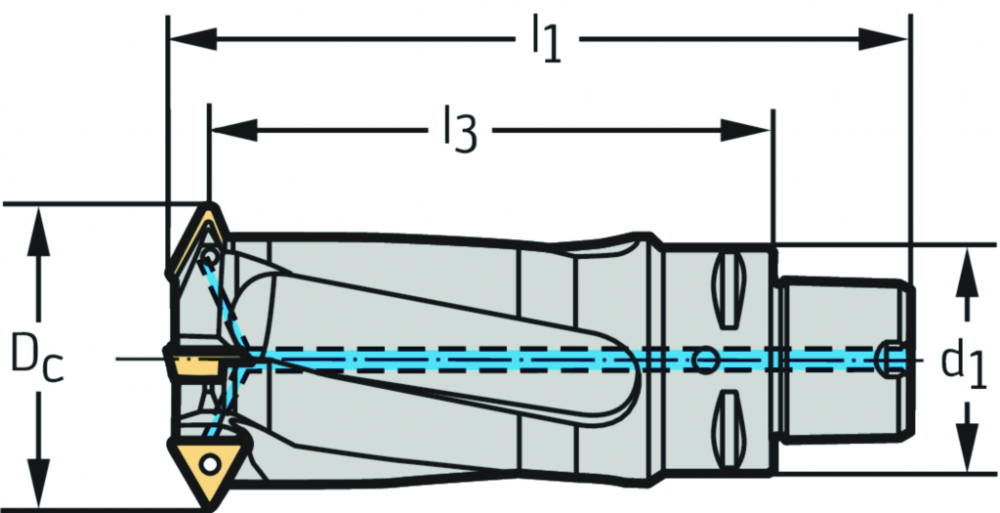

d<sub>1</sub> Connection diameter:
50 mm
D<sub>c</sub> Body diameter:
60 mm
D<sub>N</sub> For thread diameter size:
M 72
DC Cutting diameter:
60 mm
DC_INCH Cutting diameter:
2,36220472440945 inch
Designation Tool designation:
T2713-60-C5-4-14
DN Neck diameter:
51,4 mm
DN_INCH Neck diameter:
2,02362204724409 inch
EAN:
0923752730
F1 Cutting direction:
R
F21 Peripheral effective cutting edge count:
4
F23 Number of insert mounting levels:
1
F24 Number of inserts per mounting level:
4
G15 Peripheral mounted insert count:
4
G21 Clamping type code:
S
H21 Coolant entry style code:
3
H22 Coolant exit style code:
2
H4 Body material code:
S
HAND Cutting direction:
R
IIC Insert interface code:
WR$$TC1403013R***04
J1 Standard:
ISO26623-1
J21 Article number:
T2713-60-C5-4-14
J3 Company code:
W
J51 Insert interface code:
WR$$TC1403013R***04
J52 Master insert identification, position B:
TCGT 14 03 04
J6 Connection code machine side:
CCS01C0500$$$$
J7 Data chip provision:
0
J8 Machining operation:
FPR
KAP Kappa:
0 °
KEYWORD:
Tool Item|Threading||Thread-milling cutters, (1 on 1)|T2713
l<sub>1</sub> Overall length:
152 mm
l<sub>3</sub> Functional length:
115 mm
LB Body length:
121,7 mm
LB_INCH Body length:
4,79133858267717 inch
LF Functional length:
118,503 mm
LF_INCH Functional length:
4,66547244094488 inch
LU Usable length:
115 mm
LU_INCH Usable length:
4,52755905511811 inch
MANUFACTURER_AID:
T2713-60-C5-4-14
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-87
Number of cutting edges Number of indexable insert:
4
OAL Overall length:
151,7 mm
OAL_INCH Overall length:
5,97244094488189 inch
ORDER_UNIT:
PCE
P<sub>max</sub> P<sub>max</sub>:
6 mm
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Indexable insert thread milling cutter T2713 • Walter CaptoTM ISO 26623 • metric • ≤3xD • number of rings with inserts=1
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21180805
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21180805
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21180805
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010503
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010503
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010503
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21180805
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21180805
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21180805
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21180805
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21180805
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21180805
REFERENCE_FEATURE_GROUP_ID_GTC:
MILTHGI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
23241623
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
23241623
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
23171613
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23171613
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
23171613
REFERENCE_FEATURE_GROUP_ID_Walter:
T2713-M-C-1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
SUPPLIER_AID:
7493806
SUPPLIER_ALT_AID:
7493806
TERRITORY:
US
THFT Thread form type:
3.00"
TP Thread pitch:
6 mm
TPX_INCH Thread pitch maximum:
0,236220472440945 inch
TP_INCH Thread pitch:
0,236220472440945 inch
TSYC Tool style code:
T2713-M-C-1
Type Possible indexable inserts:
P26300-14 ..
UDX.APPAREA:
Threading
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
Universal indexable insert thread milling cutter
UDX.BULLETTEXT_2:
Radius correction values: Walter GPS / Technical information
UDX.CATFAM_CODE:
T2713
UDX.CATFAM_DESCR:
Indexable insert thread milling cutter
UDX.DESCR_APPLICATION:
Thread depth ≤ 3 × DN;Blind-hole and through-hole threads;Can be used universally with ISO P, M, K, N, S and H up to 55 HRC
UDX.DESCR_TOOL:
With flute for completely cylindrical threads;Universal indexable insert thread milling cutter;Designed for high cutting speeds and high feeds per tooth;Variable coolant supply: Radial or axial coolant outlets
UDX.DISCOUNTGROUP:
TIB
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
3.8764
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
2.7559
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
6.6929
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
4.0352
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
50.8328
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
2.7559
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
T2713
UDX.RANKING_ISO_H:
Additional application
UDX.RANKING_ISO_K:
Main application
UDX.RANKING_ISO_M:
Main application
UDX.RANKING_ISO_N:
Additional application
UDX.RANKING_ISO_O:
Additional application
UDX.RANKING_ISO_P:
Main application
UDX.RANKING_ISO_S:
Main application
UDX.WORKING_CONDITION_ISO_H:
n/a
UDX.WORKING_CONDITION_ISO_K:
n/a
UDX.WORKING_CONDITION_ISO_M:
n/a
UDX.WORKING_CONDITION_ISO_N:
n/a
UDX.WORKING_CONDITION_ISO_O:
n/a
UDX.WORKING_CONDITION_ISO_P:
n/a
UDX.WORKING_CONDITION_ISO_S:
n/a
WT Weight of item:
1,758 kg
WT_INCH Weight of item:
3,8756868 lbs
Z Number of teeth:
4
ZEFP Peripheral effective cutting edge count:
4
Manufactured By:
Walter Tool
Other Details
Radius correction values: Walter GPS / Technical information
Universal indexable insert thread milling cutter
Universal indexable insert thread milling cutter|Radius correction values: Walter GPS / Technical information
