Product Overview

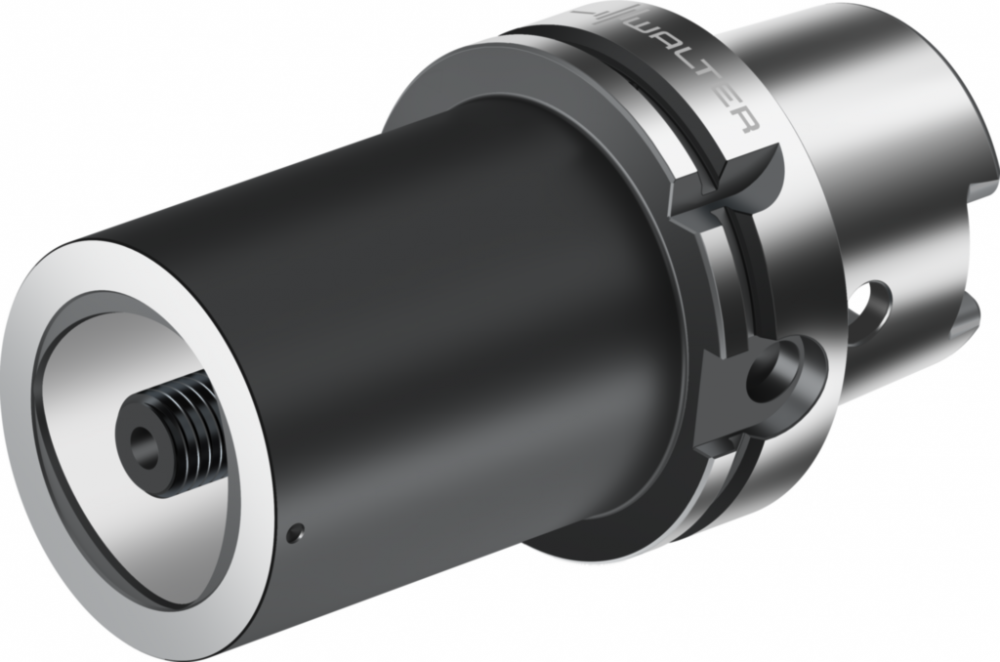

HSK DIN 69893-1 A master HA10-C8-080-120

HSK DIN 69893-1 A master AB584-HSK-MASTER • metric • d1=100 • d11=C8

Category Path

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Modular Tool Holding System Adapters

Product Specs

A1 Body diameter:

80 mm

A1_INCH Body diameter:

3,1496062992126 inch

A4 Flange diameter:

100 mm

A4_INCH Flange diameter:

3,93700787401575 inch

ART_ID_TO type=accessories:

5008713,5006906

B1 Body length 1:

91 mm

B1_INCH Body length 1:

3,58267716535433 inch

B3 Protruding length:

120 mm

B3_INCH Protruding length:

4,7244094488189 inch

B4 Overall length:

170 mm

B4_INCH Overall length:

6,69291338582677 inch

B71 Functional length:

120 mm

B71_INCH Functional length:

4,7244094488189 inch

BBD Balanced By Design:

0

BD Body diameter:

80 mm

BD_INCH Body diameter:

3,1496062992126 inch

BLD Tool style code:

504107

BMC Body material code:

S

C11 Connection code type machine side:

HSK

C12 Connection code form at machine side:

1

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

1000

C3 Connection diameter machine side:

100 mm

C3_INCH Connection diameter machine side:

3,93700787401575 inch

C4 Shank length:

50 mm

C4_INCH Shank length:

1,96850393700787 inch

C51 Connection code type workpiece side:

CCS

C52 Connection code form at workpiece side:

3

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

800

CCFMS Connection code form at machine side:

1

CCFWS Connection code form at workpiece side:

3

CCMS Connection code machine side:

HSK01C1000$$$$

CCTMS Connection code type machine side:

HSK

CCTWS Connection code type workpiece side:

CCS

CCWS Connection code workpiece side:

CCS03C0800****

CNSC Coolant entry style code:

1

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

C

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

1000

CZCWS Connection size code workpiece side:

800

D6 Rotational speed maximum:

12500 1/min

D7 Weight of item:

4,82 kg

D7_INCH Weight of item:

10,626172 lbs

d₁₁ Connection size code:

C8

d₁ Connection size code:

HSK-A100

Designation Tool designation:

HA10-C8-080-120

E2 Kappa:

0 °

EAN:

4063465529918

FMT Form type workpiece side:

INT

G35 Mounting hole count:

1

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

J1 Standard:

ISO26623-2

J11 Standard letter to the standard number:

A

J21 Article number:

HA10-C8-080-120

J22 Product designation:

8271

J3 Company code:

W

J4 Connection code workpiece side:

CCS03C0800****

J6 Connection code machine side:

HSK01C1000$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders Hollow taper shank - Coromant Capto System SANDVIK|AB584

l₁₆ Usable length:

91 mm

l₄ Functional length:

120 mm

LF Functional length:

120 mm

LF_INCH Functional length:

4,7244094488189 inch

LPR Protruding length:

120 mm

LPR_INCH Protruding length:

4,7244094488189 inch

LS Shank length:

50 mm

LS_INCH Shank length:

1,96850393700787 inch

MANUFACTURER_AID:

HA10-C8-080-120

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

170 mm

OAL_INCH Overall length:

6,69291338582677 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

HSK DIN 69893-1 A master AB584-HSK-MASTER • metric

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021104

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022002

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022002

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

AB584-HSK-MASTER

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

12500 1/min

SUPPLIER_AID:

8463585

SUPPLIER_ALT_AID:

8463585

TERRITORY:

US

TSYC Tool style code:

AB584-HSK-MASTER

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.CATFAM_CODE:

AB584-HSK-MASTER

UDX.CATFAM_DESCR:

HSK DIN 69893-1 A master

UDX.DESCR_APPLICATION:

Areas of application: Mould and die making, aerospace and energy industries;Can be used on machining centres, lathes and multi-task machines;Turning, holemaking and milling;Areas of use: Automotive industry, general mechanical engineering, etc.

UDX.DESCR_BENEFITS:

Can be used on all machine types (machining centres, lathes, etc.);Stability, rigidity and flexibility combined in one system;High level of process reliability due to robust system;Minimal preparation needed as balanced construction created at the factory

UDX.DESCR_INTERFACE:

Walter Capto™ C3–C8;HSK-A

UDX.DESCR_TOOL:

Balanced construction;Modular design;HA06-C... for HSK-A 63;HA10-C... for HSK-A 100;Master from HSK-A to Walter Capto™;Update in accordance with ISO 12164-1 with data carrier hole

UDX.DISCOUNTGROUP:

070

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

10.6281

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

5.1181

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

6.8898

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

10.6325

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

180.4777

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

5.1181

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

AB584

WT Weight:

4,82 kg

WT Weight of item:

4,82 kg

WT_INCH Weight of item:

10,626172 lbs

XYWD xyw plane distance:

-120 mm

XYWD_INCH xyw plane distance:

-4,7244094488189 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

Manufacturer Info

Manufactured By:

Walter Tool
