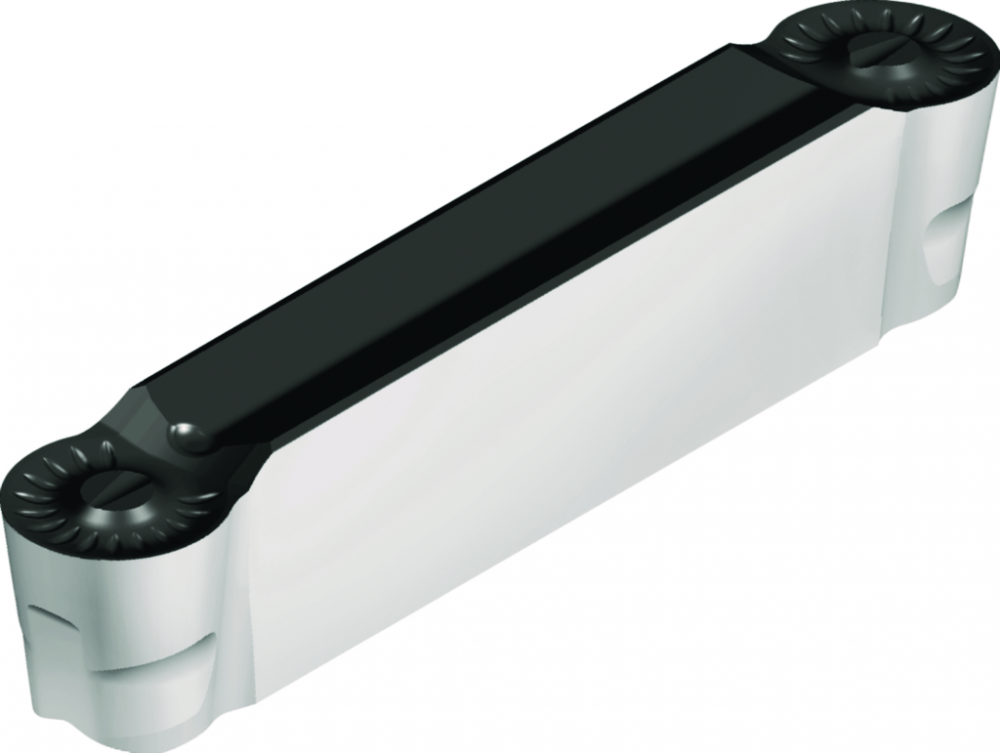

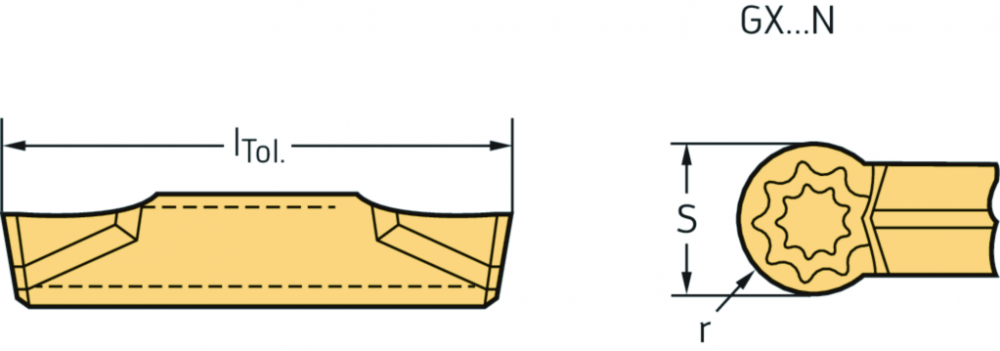

Grooving and copy turning – cutting inserts GX09-1E200N10-RF8 WSM23S
Grooving and copy turning – cutting inserts GX ...-RF8 • Neutral • WSM23S • Tiger·tec® Silver • s=0.0787in • r=0.0394in
Category:
Grooving
Subcategory:
Indexable Cutting Tools
Subtype:
Grooving Inserts
A1 Profile form:
10
A2 Cutting width:
2 mm
A2_INCH Cutting width:
0,078740157480315 inch
A8 Profile depth insert:
7 mm
A8_INCH Profile depth insert:
0,275590551181102 inch
a<sub>p</sub> Depth of cut:
0.1–1.0 mm
AN Clearance angle major:
26 °
APMX Depth of cut maximum:
1 mm
APMX_INCH Depth of cut maximum:
0,0393700787401575 inch
BLD Tool style code:
10
C8 Spot radius:
1 mm
C8_INCH Spot radius:
0,0393700787401575 inch
CBMD Chip breaker manufacturers designation:
RF8
CDX Cutting depth maximum:
7 mm
CDX_INCH Cutting depth maximum:
0,275590551181102 inch
CEDC Flute count:
2
CNC Corner count:
2
COATING Coating:
TiAlN+Al2O3+(Al)
CONTENT_UNIT:
PCE
CURRENCY:
USD
CW Cutting width:
2 mm
CW_INCH Cutting width:
0,078740157480315 inch
D75 Weight of item:
0,001 kg
D75_INCH Weight of item:
0,0022046 lbs
DAXN Axial groove od min:
0 mm
DAXN_INCH Axial groove od min:
0 inch
Designation Designation:
GX09-1E200N10-RF8 WSM23S
E1 Clearance angle major:
26 °
E6 Chip breaker face count:
1
E7 Insert hand:
N
E9 Chip breaker manufacturers designation:
RF8
EAN:
0842042939
f Feed rate:
0.05–0.17 mm
F2 Flute count:
2
G1 Insert length:
9 mm
G1_INCH Insert length:
0,354330708661417 inch
G2 Insert width:
1,4 mm
G2_INCH Insert width:
0,0551181102362205 inch
G4 Insert thickness total:
2,95 mm
G4_INCH Insert thickness total:
0,116141732283465 inch
G5 Insert mounting style code:
7
G7 Insert thickness:
2,44 mm
G7_INCH Insert thickness:
0,0960629921259843 inch
GRADE Grade manufacturer's designation:
WSM23S
GRDPRIO Standard designation of the grade, main ap:
-
H11 Standard designation of the grade, main applic:
-
H3 Grade manufacturer's designation:
WSM23S
H5 Coating:
TiAlN+Al2O3+(Al)
H6 Tipped cutting edge code:
S
HAND Insert hand:
N
IIC Insert interface code:
WR$$GX0910007$$EX$$
INSL Insert length:
9 mm
INSL_INCH Insert length:
0,354330708661417 inch
J1 Standard:
-
J21 Article number:
GX09-1E200N10-RF8 WSM23S
J3 Company code:
W
J6 Connection code machine side:
WR$$GX0910007$$EX$$
J8 Machining operation:
DSS
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
90 °
KEYWORD:
Insert|Parting/Grooving||Tiger·tec® Silver|Profile form 10|P9GX
l Cutting edge length:
9 mm
l<sub>Tol</sub> Length tolerance:
±0.02
MANUFACTURER_AID:
GX09-1E200N10-RF8 WSM23S
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-77
ORDER_UNIT:
PCE
PFS Profile form:
10
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
10
QUANTITY_MIN:
10
r Radius:
1 mm
RE Corner radius:
1 mm
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Grooving and copy turning – cutting inserts GX ...-RF8 • Neutral
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21182110
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21182110
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21182110
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21011902
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21011902
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21011902
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21182110
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21182110
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21182110
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21182110
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21182110
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21182110
REFERENCE_FEATURE_GROUP_ID_GTC:
INSCPRT
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
23242105
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
23242105
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
23171618
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153309
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
23171618
REFERENCE_FEATURE_GROUP_ID_Walter:
GX-E-RF8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RE_INCH Corner radius:
0,0393700787401575 inch
RHO Rho:
0 °
RMPX Ramping angle maximum:
45 °
s Cutting width:
2 mm
S Insert thickness:
2,44 mm
S1 Insert thickness total:
2,95 mm
S1_INCH Insert thickness total:
0,116141732283465 inch
S<sub>Tol</sub> Tolerance cutting width:
±0.02
SUPPLIER_AID:
7046054
SUPPLIER_ALT_AID:
7046054
S_INCH Insert thickness:
0,0960629921259843 inch
TCE Tipped cutting edge code:
S
TERRITORY:
US
TSYC Tool style code:
GX-E-RF8
UDX.APPAREA:
Parting/Grooving
UDX.BRAND:
Walter
UDX.CATFAM_CODE:
GX
UDX.CATFAM_DESCR:
Grooving and copy turning – cutting inserts
UDX.DESCR_APPLICATION:
For copy and relief turning;Machining of ISO S materials, such as Inconel 718, Waspaloy
UDX.DESCR_BENEFITS:
Outstanding chip control in any machining operation
UDX.DESCR_GEOMETRY:
RF8 – geometry for copy turning;Reduction of cutting forces due to positive cutting edge with fully ground circumference
