Forward turning – cutting inserts
by Walter Tool
Call For Price
Part Number:
8464590
UPC:
Availability:
Quantity:
pkgs
pcs
Add To Quote
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (8)
Failed to load
Product Overview
Info & Guides
MIMESOURCEDATASHEET
MIMESOURCEDXFDRAWING
MIMESOURCEISOMODEL1
MIMESOURCEISOMODEL2

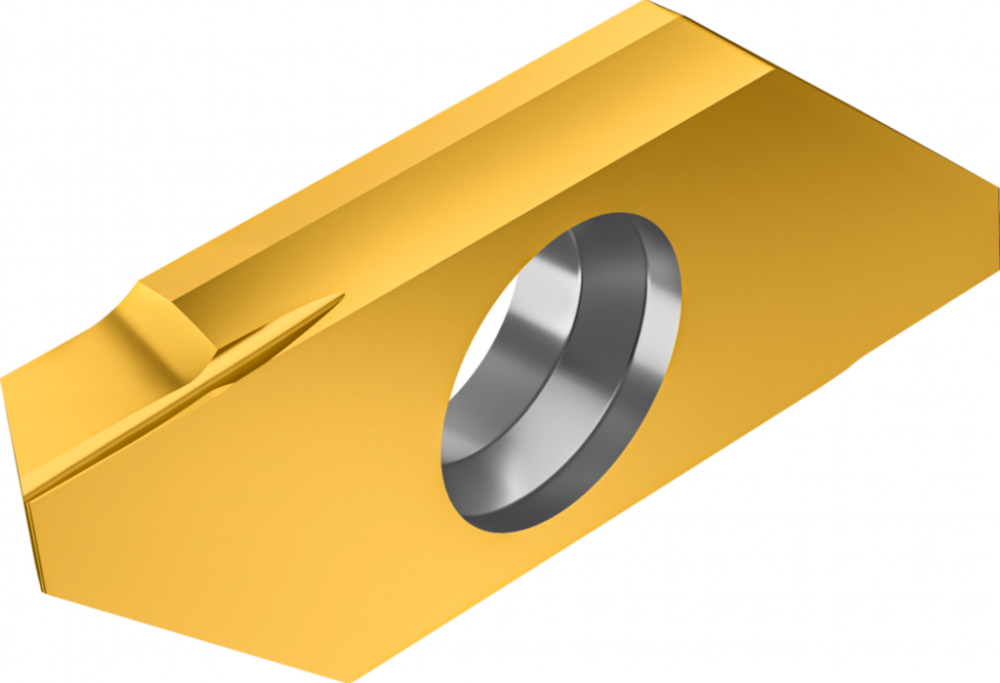

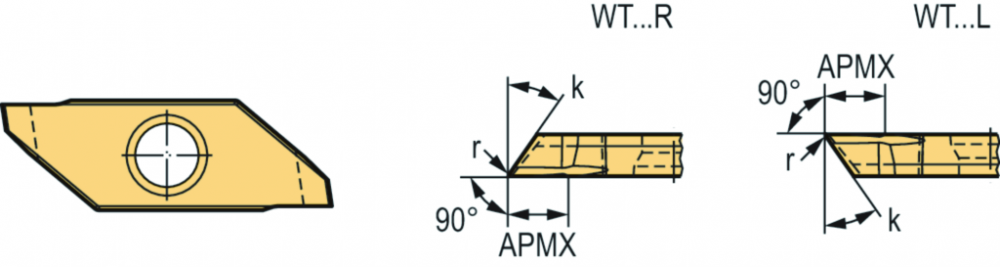

Forward turning – cutting inserts WT26-R300L020-DG8 WSM23X
Long Description
Forward turning – cutting inserts WT ...-DG8 • Right • WSM23X • s=0.1181in • r=0.0079in
Specifications
Details
Category:
Grooving
Subcategory:
Indexable Cutting Tools
Subtype:
Grooving Inserts
A1 Profile form:
2
A2 Cutting width:
3 mm
A2_INCH Cutting width:
0,118110236220472 inch
AN Clearance angle major:
6 °
APMX Depth of cut maximum:
4 mm
APMX_INCH Depth of cut maximum:
0,15748031496063 inch
B2 Cutting edge angle major left hand:
35 °
BLD Tool style code:
2
CBMD Chip breaker manufacturers designation:
DG8
CECC Cutting edge condition code:
F
CEDC Flute count:
1
CNC Corner count:
1
COATING Coating:
TiAlN
CONTENT_UNIT:
PCE
CURRENCY:
USD
CW Cutting width:
3 mm
CW_INCH Cutting width:
0,118110236220472 inch
D75 Weight of item:
0,006 kg
D75_INCH Weight of item:
0,0132276 lbs
Designation Designation:
WT26-R300L020-DG8 WSM23X
E1 Clearance angle major:
6 °
E41 Cutting edge condition code:
F
E6 Chip breaker face count:
1
E7 Insert hand:
R
E9 Chip breaker manufacturers designation:
DG8
EAN:
4063465534998
f Feed per revolution:
0.02–0.16 mm
F2 Flute count:
1
G1 Insert length:
25 mm
G1_INCH Insert length:
0,984251968503937 inch
G4 Insert thickness total:
3,18 mm
G4_INCH Insert thickness total:
0,125196850393701 inch
G5 Insert mounting style code:
3
G7 Insert thickness:
3,18 mm
G7_INCH Insert thickness:
0,125196850393701 inch
GRADE Grade manufacturer's designation:
WSM23X
GRDPRIO Standard designation of the grade, main ap:
-
H11 Standard designation of the grade, main applic:
-
H3 Grade manufacturer's designation:
WSM23X
H5 Coating:
TiAlN
H6 Tipped cutting edge code:
S
HAND Insert hand:
R
IIC Insert interface code:
WR$$WT2603$$3LA**$$
INSL Insert length:
25 mm
INSL_INCH Insert length:
0,984251968503937 inch
J1 Standard:
-
J21 Article number:
WT26-R300L020-DG8 WSM23X
J3 Company code:
W
J6 Connection code machine side:
WR$$WT2603$$3LA**$$
J8 Machining operation:
DEA
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
55 °
KEYWORD:
Insert|Parting/Grooving||Profile form 2|P9WT
l Cutting edge length:
25 mm
l<sub>Tol</sub> Length tolerance:
±0.03
MANUFACTURER_AID:
WT26-R300L020-DG8 WSM23X
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-77
ORDER_UNIT:
PCE
PFS Profile form:
2
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
PSIRL Cutting edge angle major left hand:
35 °
QUANTITY_INTERVAL:
2
QUANTITY_MIN:
2
r Corner radius:
0,2 mm
RE Corner radius:
0,2 mm
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Forward turning – cutting inserts WT ...-DG8 • Left
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21182102
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21182102
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21182102
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21011902
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21011902
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21011902
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21182102
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21182102
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21182102
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21182102
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21182102
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21182102
REFERENCE_FEATURE_GROUP_ID_GTC:
INSCPRT
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
23242105
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
23242105
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
23171618
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153309
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
23171618
REFERENCE_FEATURE_GROUP_ID_Walter:
WT-R-L-DG8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RE_INCH Corner radius:
0,0078740157480315 inch
RHO Rho:
0 °
S Insert thickness:
3,18 mm
S1 Insert thickness total:
3,18 mm
S1_INCH Insert thickness total:
0,125196850393701 inch
S<sub>Tol</sub> Tolerance cutting width:
±0.02
SUPPLIER_AID:
8464590
SUPPLIER_ALT_AID:
8464590
S_INCH Insert thickness:
0,125196850393701 inch
TCE Tipped cutting edge code:
S
TERRITORY:
US
TSYC Tool style code:
WT-R-L-DG8
UDX.APPAREA:
Parting/Grooving
UDX.BRAND:
Walter
UDX.CATFAM_CODE:
WT
UDX.CATFAM_DESCR:
Forward turning – cutting inserts
UDX.DISCOUNTGROUP:
020
UDX.ITEMTYPE:
Insert
UDX.NET_WEIGHT:
.0132
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
.5118
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
2.5591
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
.0529
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
2.0626
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
1.5748
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
P9WT
UDX.RANKING_ISO_H:
No application
UDX.RANKING_ISO_K:
No application
UDX.RANKING_ISO_M:
No application
UDX.RANKING_ISO_N:
No application
UDX.RANKING_ISO_O:
No application
UDX.RANKING_ISO_P:
No application
UDX.RANKING_ISO_S:
No application
UDX.WORKING_CONDITION_ISO_H:
n/a
UDX.WORKING_CONDITION_ISO_K:
n/a
UDX.WORKING_CONDITION_ISO_M:
good
UDX.WORKING_CONDITION_ISO_N:
n/a
UDX.WORKING_CONDITION_ISO_O:
n/a
UDX.WORKING_CONDITION_ISO_P:
good
UDX.WORKING_CONDITION_ISO_S:
good
WT Weight of item:
0,006 kg
WT_INCH Weight of item:
0,0132276 lbs
XYWD xyw plane distance:
0 mm
XYWD_INCH xyw plane distance:
0 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
κ Tool cutting edge angle:
35.00000000000000
