Product Overview

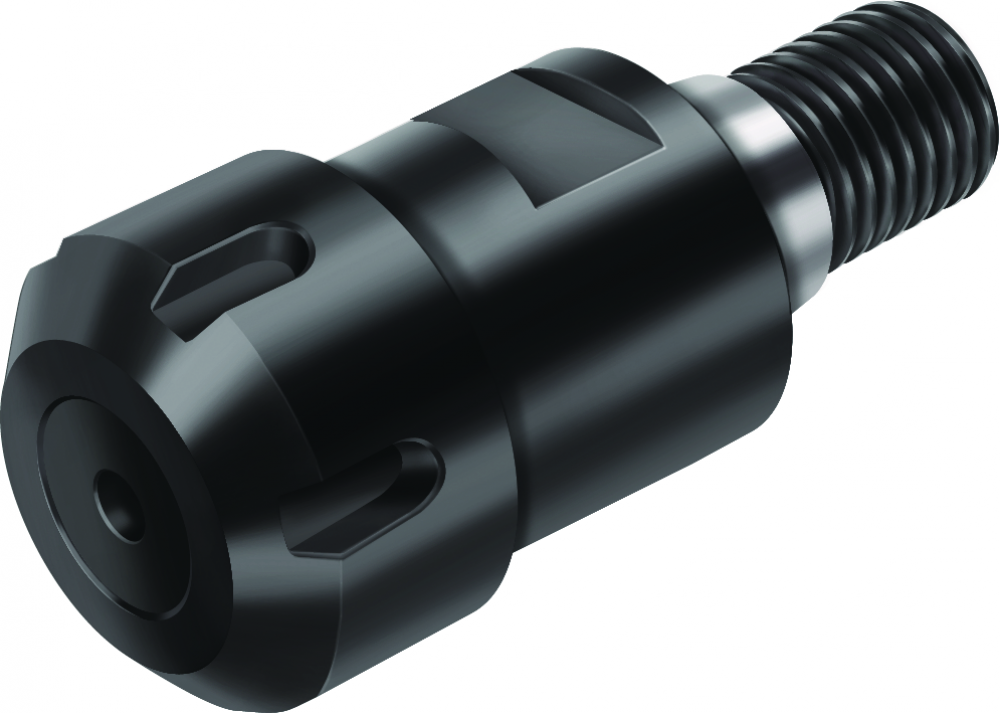

ER collet chucks AK300.T22.045.10

ER collet chucks AK300.T • metric • For ER collets in accordance with DIN 6499/ISO15488 • d1=T22 • d11=ER16

Category Path

Category:

Tooling Systems

Subcategory:

Tool Holders

Subtype:

Collet Chucks

Product Specs

A1 Body diameter:

28 mm

A1_INCH Body diameter:

1,10236220472441 inch

A4 Flange diameter:

22 mm

A4_INCH Flange diameter:

0,866141732283465 inch

A5 Diameter lock nut:

28 mm

A5_INCH Diameter lock nut:

1,10236220472441 inch

ART_ID_TO type=accessories:

5040706

ART_ID_TO type=consists_of:

5040694

ART_ID_TO type=others:

5015178;5015238;5015239;5015240;5016042;5016043;5016044;5016072;5016073;5016074;5016098;5016099;5016100;5016113;5016114;5016115;5016132;5017263;5017269;5027827;5027828;5027829;5027845;5027848;5027856;5027858;5032751;5032752;5032753;5032754;5032765;5032766;

B1 Body length 1:

45 mm

B1_INCH Body length 1:

1,77165354330709 inch

B3 Protruding length:

45 mm

B3_INCH Protruding length:

1,77165354330709 inch

B4 Overall length:

68 mm

B4_INCH Overall length:

2,67716535433071 inch

B71 Functional length:

29,4 mm

B71_INCH Functional length:

1,15748031496063 inch

BBD Balanced By Design:

0

BD Body diameter:

28 mm

BD_INCH Body diameter:

1,10236220472441 inch

BLD Tool style code:

624011

BMC Body material code:

S

C11 Connection code type machine side:

SAW

C12 Connection code form at machine side:

1

C13 Connection thread nominal size machine side:

M12

C14 Connection code unit base machine side:

9

C15 Connection code style machine side:

5

C2 Connection size code machine side:

220

C3 Connection diameter machine side:

22 mm

C3_INCH Connection diameter machine side:

0,866141732283465 inch

C51 Connection code type workpiece side:

SZD

C52 Connection code form at workpiece side:

2

C54 Connection code unit base workpiece side:

9

C55 Connection code style workpiece side:

5

C6 Connection size code workpiece side:

160

CCFMS Connection code form at machine side:

1

CCFWS Connection code form at workpiece side:

2

CCMS Connection code machine side:

SAW01C0220$$$$

CCTMS Connection code type machine side:

SAW

CCTWS Connection code type workpiece side:

SZD

CCWS Connection code workpiece side:

SZD02C0160****

CNSC Coolant entry style code:

1

Collets Collets:

ER16

CONTENT_UNIT:

PCE

CUB Connection unit basis:

C

CUBPMS Connection unit base precision machine side:

C

CUBPWS Connection unit base precision workpiece si:

C

CURRENCY:

USD

CXSC Coolant exit style code:

1

CZCMS Connection size code machine side:

220

CZCWS Connection size code workpiece side:

160

D6 Rotational speed maximum:

50000 1/min

D7 Weight of item:

0,145 kg

D7_INCH Weight of item:

0,319667 lbs

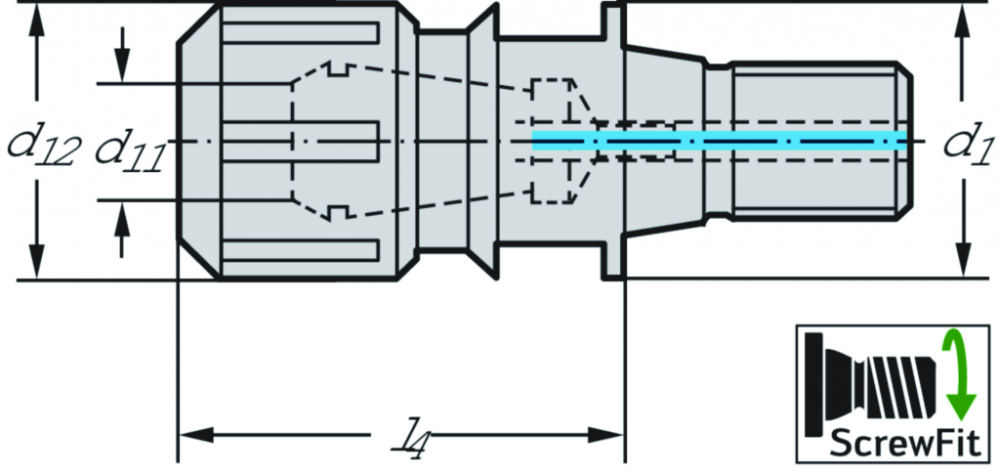

d₁₁ Connection size code:

1-10

d₁₂ Body diameter:

28 mm

d₁ Connection size code:

T22

Designation Tool designation:

AK300.T22.045.10

E2 Kappa:

0 °

EAN:

0571360853

FMT Form type workpiece side:

INT

G35 Mounting hole count:

1

H21 Coolant entry style code:

1

H22 Coolant exit style code:

1

J1 Standard:

-

J21 Article number:

AK300.T22.045.10

J22 Product designation:

738

J3 Company code:

W

J4 Connection code workpiece side:

SZD02C0160****

J6 Connection code machine side:

SAW01C0220$$$$

J7 Data chip provision:

0

KAP Kappa:

0 °

KEYWORD:

Adaptive Item|Holding||Basic Holders Screw mounting SANDVIK Coromant - Collet chuck SANDVIK Coromant|A1400

l₄ Functional length:

45 mm

LF Functional length:

29,4 mm

LF_INCH Functional length:

1,15748031496063 inch

LPR Protruding length:

45 mm

LPR_INCH Protruding length:

1,77165354330709 inch

MANUFACTURER_AID:

AK300.T22.045.10

NO_CU_PER_OU:

1

NSM Standard number of properties layout:

DIN4000-89

OAL Overall length:

68 mm

OAL_INCH Overall length:

2,67716535433071 inch

ORDER_UNIT:

PCE

PHI Phi:

0 °

PRICE_CURRENCY:

USD

PRICE_QUANTITY:

1

QUANTITY_INTERVAL:

1

QUANTITY_MIN:

1

REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:

ER collet chucks AK300.T • metric • For ER collets in accordance with DIN 6499/ISO15488

REFERENCE_FEATURE_GROUP_ID_ECLASS_10:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_11:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:

21021105

REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:

21021105

REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:

21021105

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_7:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_8:

21022003

REFERENCE_FEATURE_GROUP_ID_ECLASS_9:

21022003

REFERENCE_FEATURE_GROUP_ID_GTC:

ADPRS

REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:

27112807

REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:

27112807

REFERENCE_FEATURE_GROUP_ID_Walter:

AK300.T

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:

ECLASS-10

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:

ECLASS-10.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:

ECLASS-11

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:

ECLASS-4.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:

ECLASS-4.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:

ECLASS-5.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:

ECLASS-6.0

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:

ECLASS-6.1

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:

ECLASS-6.2

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:

ECLASS-7

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:

ECLASS-8

REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:

ECLASS-9

REFERENCE_FEATURE_SYSTEM_NAME_GTC:

GTC

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:

UNSPSC-19

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:

UNSPSC-20

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:

UNSPSC-5

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:

UNSPSC-6

REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:

UNSPSC-7

REFERENCE_FEATURE_SYSTEM_NAME_Walter:

Walter

RHO Rho:

0 °

RPMX Rotational speed maximum:

50000 1/min

SUPPLIER_AID:

5193086

SUPPLIER_ALT_AID:

5193086

TERRITORY:

US

TSYC Tool style code:

AK300.T

UDX.APPAREA:

Holding

UDX.BRAND:

Walter

UDX.BULLETTEXT_1:

For ER collets in accordance with DIN 6499/ISO15488

UDX.CATFAM_CODE:

AK300.T

UDX.CATFAM_DESCR:

ER collet chucks

UDX.DISCOUNTGROUP:

077

UDX.ITEMTYPE:

Adaptive Item

UDX.NET_WEIGHT:

.3197

UDX.NET_WEIGHT_UNIT:

LBS

UDX.PACKAGING_HEIGHT:

1.5354

UDX.PACKAGING_HEIGHT_UNIT:

IN

UDX.PACKAGING_LENGTH:

3.9764

UDX.PACKAGING_LENGTH_UNIT:

IN

UDX.PACKAGING_MATERIAL_WEIGHT:

.3197

UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:

LBS

UDX.PACKAGING_VOLUME:

9.3745

UDX.PACKAGING_VOLUME_UNIT:

CU IN

UDX.PACKAGING_WIDTH:

1.5354

UDX.PACKAGING_WIDTH_UNIT:

IN

UDX.PRODUCTFAMILY:

A1400

WT Weight:

0,14 kg

WT Weight of item:

0,145 kg

WT_INCH Weight of item:

0,319667 lbs

XYWD xyw plane distance:

-29,4 mm

XYWD_INCH xyw plane distance:

-1,15748031496063 inch

XZWD xzw plane distance:

0 mm

XZWD_INCH xzw plane distance:

0 inch

YZWD yzw plane distance:

0 mm

YZWD_INCH yzw plane distance:

0 inch

For ER collets in accordance with DIN 6499/ISO15488

Manufacturer Info

Manufactured By:

Walter Tool
