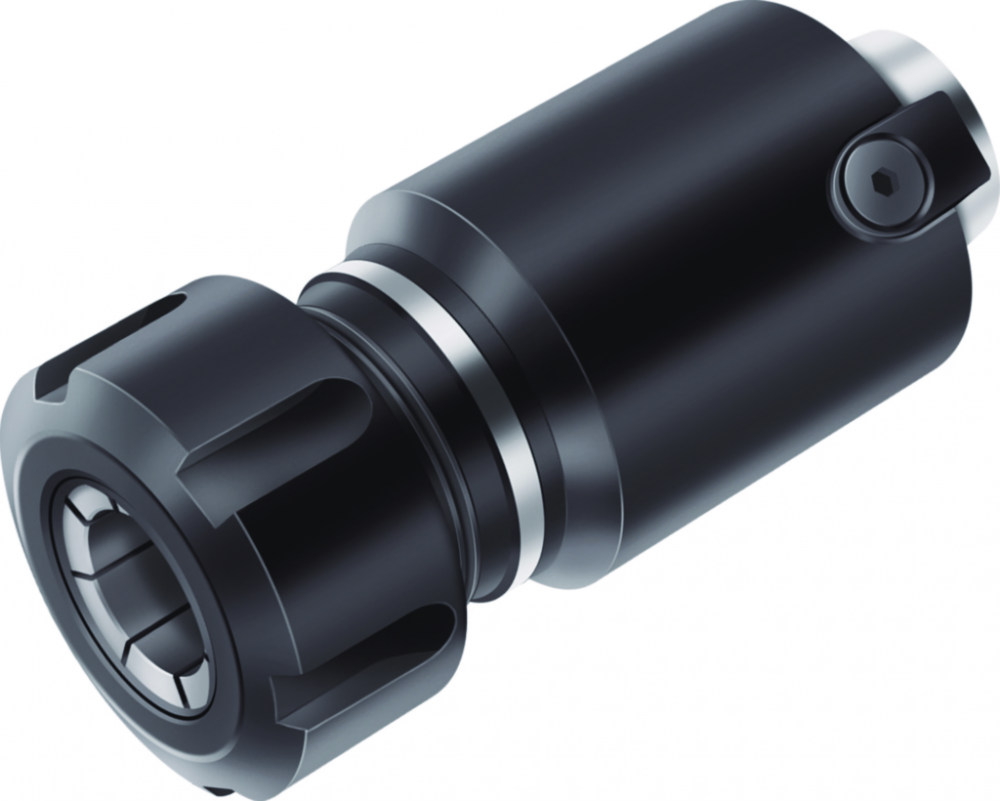

ER collet chuck with internal cooling AK300M.0.63.085.26
Long Description
ER collet chuck with internal cooling AK300M • metric • For ER collets in accordance with DIN 6499/ISO15488 • d1=63 • d11=ER40
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Collet Chucks
A1 Body diameter:
63 mm
A1_INCH Body diameter:
2,48031496062992 inch
A4 Flange diameter:
63 mm
A4_INCH Flange diameter:
2,48031496062992 inch
A5 Diameter lock nut:
63 mm
A5_INCH Diameter lock nut:
2,48031496062992 inch
ART_ID_TO type=accessories:
5040702
ART_ID_TO type=consists_of:
5041203
ART_ID_TO type=others:
5006966;5006971;5006982;5006988;5006993;5006999;5007014;5007019;5007034;5007039;5007347;5007348;5007357;5007423;5007424;5007425;5020995;5021529;5024336;5024342;5034434;5034440
B1 Body length 1:
85 mm
B1_INCH Body length 1:
3,34645669291339 inch
B3 Protruding length:
85 mm
B3_INCH Protruding length:
3,34645669291339 inch
B4 Overall length:
101 mm
B4_INCH Overall length:
3,97637795275591 inch
B71 Functional length:
65 mm
B71_INCH Functional length:
2,55905511811024 inch
BBD Balanced By Design:
0
BD Body diameter:
63 mm
BD_INCH Body diameter:
2,48031496062992 inch
BMC Body material code:
S
C11 Connection code type machine side:
NCT
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
9
C15 Connection code style machine side:
5
C2 Connection size code machine side:
630
C3 Connection diameter machine side:
63 mm
C3_INCH Connection diameter machine side:
2,48031496062992 inch
C4 Shank length:
16 mm
C4_INCH Shank length:
0,62992125984252 inch
C51 Connection code type workpiece side:
SZD
C52 Connection code form at workpiece side:
2
C54 Connection code unit base workpiece side:
9
C55 Connection code style workpiece side:
5
C6 Connection size code workpiece side:
400
CCFMS Connection code form at machine side:
1
CCFWS Connection code form at workpiece side:
2
CCMS Connection code machine side:
NCT01C0630$$$$
CCTMS Connection code type machine side:
NCT
CCTWS Connection code type workpiece side:
SZD
CCWS Connection code workpiece side:
SZD02C0400****
CNSC Coolant entry style code:
1
Collets Collets:
ER40
CONTENT_UNIT:
PCE
CUB Connection unit basis:
C
CUBPMS Connection unit base precision machine side:
C
CUBPWS Connection unit base precision workpiece si:
C
CURRENCY:
USD
CXSC Coolant exit style code:
1
CZCMS Connection size code machine side:
630
CZCWS Connection size code workpiece side:
400
D6 Rotational speed maximum:
30000 1/min
D7 Weight of item:
1,363 kg
D7_INCH Weight of item:
3,0048698 lbs

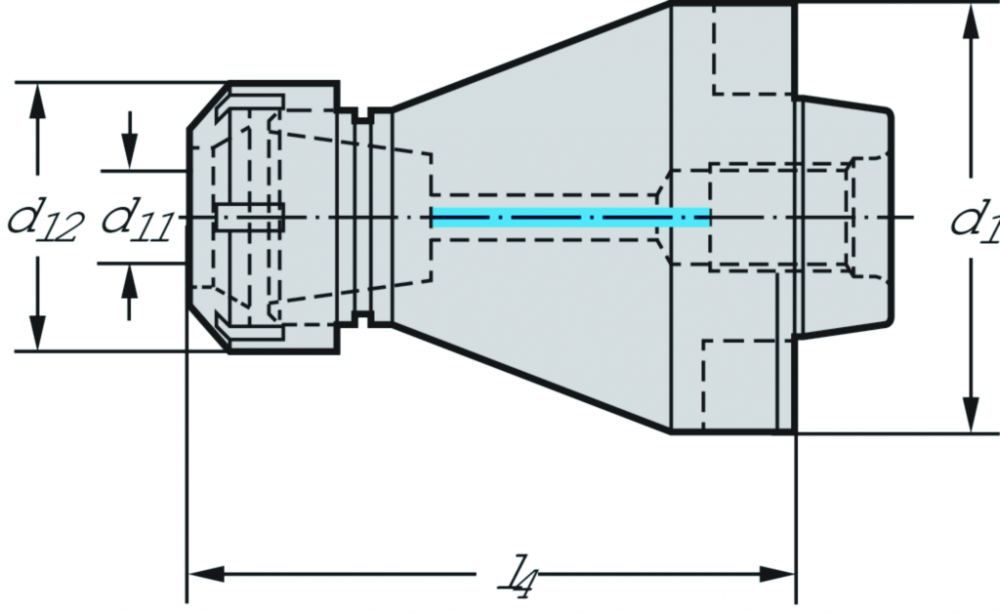

d<sub>11</sub> Connection size code:
2-26
d<sub>12</sub> Body diameter:
63 mm
d<sub>1</sub> Connection size code:
NCT 63
Designation Tool designation:
AK300M.0.63.085.26
E2 Kappa:
0 °
EAN:
0439014852
FMT Form type workpiece side:
INT
G35 Mounting hole count:
1
H21 Coolant entry style code:
1
H22 Coolant exit style code:
1
J1 Standard:
-
J21 Article number:
AK300M.0.63.085.26
J3 Company code:
W
J4 Connection code workpiece side:
SZD02C0400****
J6 Connection code machine side:
NCT01C0630$$$$
J7 Data chip provision:
0
KAP Kappa:
0 °
KEYWORD:
Adaptive Item|Holding||Basic Holders Novex-NC-Tools WALTER - Collet chuck SANDVIK Coromant|A1300
l<sub>4</sub> Functional length:
85 mm
LF Functional length:
65 mm
LF_INCH Functional length:
2,55905511811024 inch
LPR Protruding length:
85 mm
LPR_INCH Protruding length:
3,34645669291339 inch
LS Shank length:
16 mm
LS_INCH Shank length:
0,62992125984252 inch
MANUFACTURER_AID:
AK300M.0.63.085.26
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-89
OAL Overall length:
101 mm
OAL_INCH Overall length:
3,97637795275591 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
ER collet chuck with internal cooling AK300M • metric • For ER collets in accordance with DIN 6499/ISO15488
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21022090
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21022090
REFERENCE_FEATURE_GROUP_ID_GTC:
ADPRS
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112807
REFERENCE_FEATURE_GROUP_ID_Walter:
AK300M.0-IK
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RPMX Rotational speed maximum:
30000 1/min
SUPPLIER_AID:
5043224
SUPPLIER_ALT_AID:
5043224
TERRITORY:
US
TSYC Tool style code:
AK300M.0-IK
UDX.APPAREA:
Holding
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
For ER collets in accordance with DIN 6499/ISO15488
UDX.CATFAM_CODE:
AK300M
UDX.CATFAM_DESCR:
ER collet chuck with internal cooling
UDX.DISCOUNTGROUP:
077
UDX.ITEMTYPE:
Adaptive Item
UDX.NET_WEIGHT:
3.0054
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
2.7559
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
4.0551
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
3.0627
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
31.6786
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
2.8346
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
A1300
WT Weight:
1,36 kg
WT Weight of item:
1,363 kg
WT_INCH Weight of item:
3,0048698 lbs
XYWD xyw plane distance:
-65 mm
XYWD_INCH xyw plane distance:
-2,55905511811024 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Manufactured By:
Walter Tool
Other Details
For ER collets in accordance with DIN 6499/ISO15488
