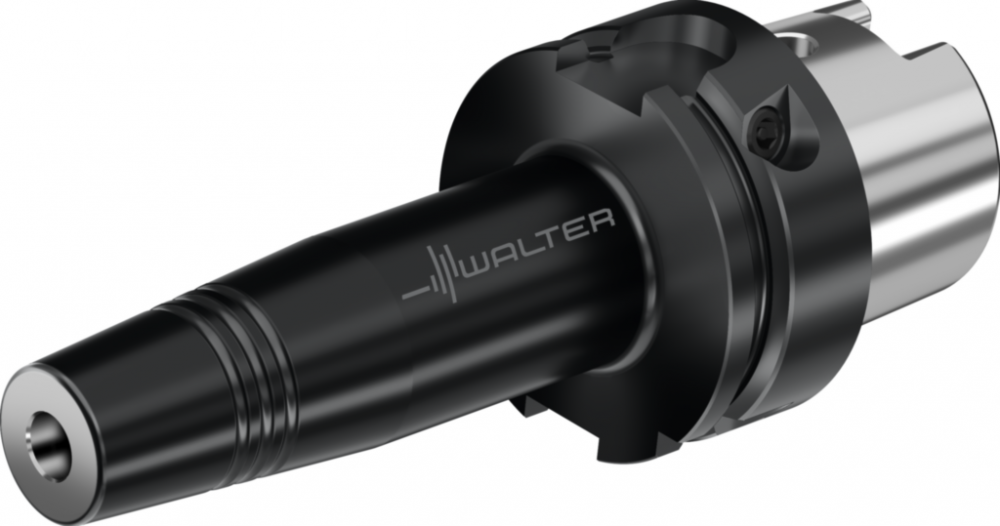

DIN 69893-1 A slim hydraulic expansion chuck

DIN 69893-1 A slim hydraulic expansion chuck by Walter Tool

Call For Price
  • Part Number: 8156088
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (26)
Failed to load
Product Overview
Info & Guides
DIN 69893-1 A slim hydraulic expansion chuck AB019-H100-P20-120
Long Description
DIN 69893-1 A slim hydraulic expansion chuck AB019-H • metric • For tools with shank in accordance with DIN 1835 Form A • d1=100 • d11=20
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Milling Holders
A1 Body diameter:
33 mm
A1_INCH Body diameter:
1,2992125984252 inch
A2 Body diameter 2:
42 mm
A2_INCH Body diameter 2:
1,65354330708661 inch
A4 Flange diameter:
100 mm
A4_INCH Flange diameter:
3,93700787401575 inch
ART_ID_TO type=accessories:
5008713,5006906
B1 Body length 1:
57,1 mm
B1_INCH Body length 1:
2,24803149606299 inch
B2 Length 2:
91 mm
B2_INCH Length 2:
3,58267716535433 inch
B3 Protruding length:
120 mm
B3_INCH Protruding length:
4,7244094488189 inch
B4 Overall length:
170 mm
B4_INCH Overall length:
6,69291338582677 inch
B71 Functional length:
64,3 mm
B71_INCH Functional length:
2,53149606299213 inch
BBD Balanced By Design:
0
BD Body diameter:
33 mm
BD_INCH Body diameter:
1,2992125984252 inch
BMC Body material code:
S
C11 Connection code type machine side:
HSK
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
9
C15 Connection code style machine side:
5
C2 Connection size code machine side:
1000
C3 Connection diameter machine side:
100 mm
C3_INCH Connection diameter machine side:
3,93700787401575 inch
C4 Shank length:
50 mm
C4_INCH Shank length:
1,96850393700787 inch
C51 Connection code type workpiece side:
ZYL
C52 Connection code form at workpiece side:
13
C54 Connection code unit base workpiece side:
1
C55 Connection code style workpiece side:
5
C6 Connection size code workpiece side:
200
C71 Connection diameter min:
20 mm
C71_INCH Connection diameter min:
0,78740157480315 inch
C81 Clamping length maximum:
55,7 mm
C81_INCH Clamping length maximum:
2,19291338582677 inch
C82 Clamping length minimum:
45,7 mm
C82_INCH Clamping length minimum:
1,7992125984252 inch
CCFMS Connection code form at machine side:
1
CCFWS Connection code form at workpiece side:
13
CCMS Connection code machine side:
HSK01C1000$$$$
CCTMS Connection code type machine side:
HSK
CCTWS Connection code type workpiece side:
ZYL
CCWS Connection code workpiece side:
ZYL20R7874****
CNSC Coolant entry style code:
1
CONTENT_UNIT:
PCE
CUB Connection unit basis:
M
CUBPMS Connection unit base precision machine side:
C
CUBPWS Connection unit base precision workpiece si:
G
CURRENCY:
USD
CXSC Coolant exit style code:
1
CZCMS Connection size code machine side:
1000
CZCWS Connection size code workpiece side:
200
D6 Rotational speed maximum:
30000 1/min
D7 Weight of item:
2,6 kg
D7_INCH Weight of item:
5,73196 lbs
d<sub>11</sub> Connection diameter:
20 mm
d<sub>12</sub> Body diameter:
42 mm
d<sub>14</sub> Mounting diameter:
33 mm
d<sub>1</sub> Connection size code:
HSK-A100
Designation Tool designation:
AB019-H100-P20-120
E2 Kappa:
0 °
EAN:
0694444851
FMT Form type workpiece side:
INT
G35 Mounting hole count:
1
H21 Coolant entry style code:
1
H22 Coolant exit style code:
1
J1 Standard:
ISO12164-1
J11 Standard letter to the standard number:
A
J21 Article number:
AB019-H100-P20-120
J3 Company code:
W
J4 Connection code workpiece side:
ZYL13G2000****
J6 Connection code machine side:
HSK01C1000$$$$
J7 Data chip provision:
0
KAP Kappa:
0 °
KEYWORD:
Adaptive Item|Holding||Basic Holders Hollow taper shank - XXX|AB019
l<sub>16</sub> Functional length:
91 mm
l<sub>17</sub> Clamping diameter depth:
55,7 mm
l<sub>17min</sub> Min. clamping diameter depth:
45,7 mm
l<sub>4</sub> Functional length:
120 mm
LF Functional length:
64,3 mm
LF_INCH Functional length:
2,53149606299213 inch
LPR Protruding length:
120 mm
LPR_INCH Protruding length:
4,7244094488189 inch
LS Shank length:
50 mm
LSC Clamping length maximum:
55,7 mm
LSC_INCH Clamping length maximum:
2,19291338582677 inch
LS_INCH Shank length:
1,96850393700787 inch
MANUFACTURER_AID:
AB019-H100-P20-120
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-89
OAL Overall length:
170 mm
OAL_INCH Overall length:
6,69291338582677 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
DIN 69893-1 A slim hydraulic expansion chuck AB019-H • metric • For tools with shank in accordance with DIN 1835 Form A
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21021104
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21022002
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21022002
REFERENCE_FEATURE_GROUP_ID_GTC:
ADPRS
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112807
REFERENCE_FEATURE_GROUP_ID_Walter:
AB019-H
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RPMX Rotational speed maximum:
30000 1/min
SUPPLIER_AID:
8156088
SUPPLIER_ALT_AID:
8156088
TERRITORY:
US
TSYC Tool style code:
AB019-H
UDX.APPAREA:
Holding
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
For tools with shank in accordance with DIN 1835 Form A
UDX.CATFAM_CODE:
AB019-H
UDX.CATFAM_DESCR:
DIN 69893-1 A slim hydraulic expansion chuck
UDX.DESCR_APPLICATION:
Universal application for milling, holemaking, thread milling and reaming;Clamping of parallel shanks and tools in accordance with DIN 1835 form B, E and in accordance with DIN 6535 form HB, HE;Drilling from solid and reaming with Walter Titex tools;Roughi
UDX.DESCR_BENEFITS:
Up to 40% increase in tool life;High level of concentricity and vibration-damping effect especially when milling;Tool change in a matter of seconds without peripheral devices;Precise adjustment of tool lengths and clamping against an adjustable stop;High l
UDX.DESCR_TOOL:
AB019 slim hydraulic expansion adaptor;High torque transfer;Concentricity and indexing accuracy 0.003mm
UDX.DISCOUNTGROUP:
076
UDX.ITEMTYPE:
Adaptive Item
UDX.NET_WEIGHT:
5.7330
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
5.1181
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
6.8110
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
5.9667
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
178.4151
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
5.1181
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
AB019
WT Weight:
2,6 kg
WT Weight of item:
2,6 kg
WT_INCH Weight of item:
5,73196 lbs
XYWD xyw plane distance:
-120 mm
XYWD_INCH xyw plane distance:
-4,7244094488189 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Manufactured By:
Walter Tool
Other Details
For tools with shank in accordance with DIN 1835 Form A
