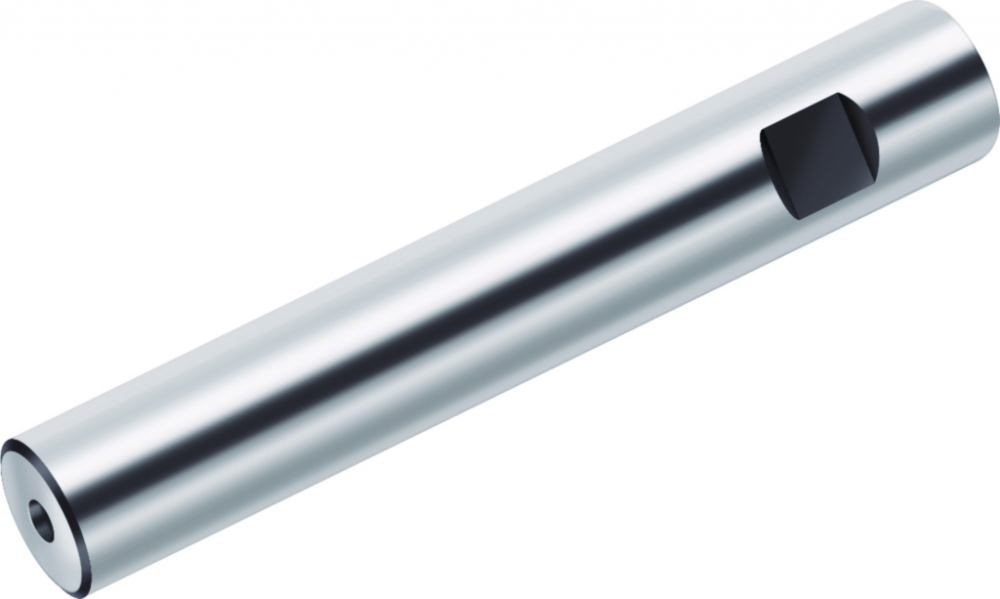

DIN 1835 B milling cutter extension

DIN 1835 B milling cutter extension by Walter Tool

Call For Price
  • Part Number: 5007055
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (13)
Product Overview
Info & Guides
DIN 1835 B milling cutter extension A175.0.20.090.05
Long Description

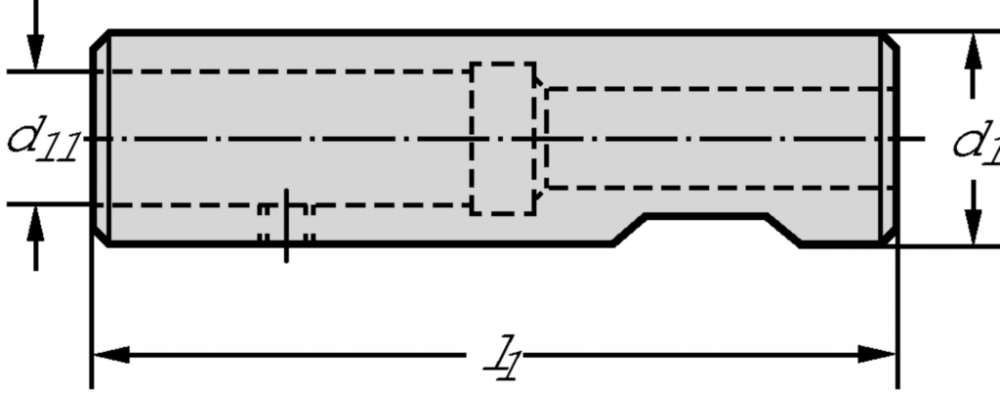

DIN 1835 B milling cutter extension A175 • metric • For tools with shank in accordance with DIN 6535 HB • d1=20 • d11=5
Specifications
Details
Category:
Tooling Systems
Subcategory:
Tool Holders
Subtype:
Milling Holders
A1 Body diameter:
20 mm
A1_INCH Body diameter:
0,78740157480315 inch
ART_ID_TO type=consists_of:
5035327
ART_ID_TO type=others:
5007116;5007126;5007379;5007382;5012632;5012641;5033139;5033140;5034316;5034501;5035315;5040066;5040069;5029306;5040074;5040075;5043222;5043224;5043227;5043228;5043229;5043230;5043233;5043234;5043235;5043236;5043639;5043642;5043646;5043647;5043648;5887144;
B1 Body length 1:
41 mm
B1_INCH Body length 1:
1,61417322834646 inch
B3 Protruding length:
40 mm
B3_INCH Protruding length:
1,5748031496063 inch
B4 Overall length:
90 mm
B4_INCH Overall length:
3,54330708661417 inch
B71 Functional length:
65 mm
B71_INCH Functional length:
2,55905511811024 inch
BBD Balanced By Design:
0
BD Body diameter:
20 mm
BD_INCH Body diameter:
0,78740157480315 inch
BMC Body material code:
S
C11 Connection code type machine side:
ZYL
C12 Connection code form at machine side:
10
C14 Connection code unit base machine side:
0
C15 Connection code style machine side:
5
C2 Connection size code machine side:
200
C3 Connection diameter machine side:
20 mm
C31 ISO-tolerance class shank diameter:
h6
C3_INCH Connection diameter machine side:
0,78740157480315 inch
C4 Shank length:
50 mm
C4_INCH Shank length:
1,96850393700787 inch
C51 Connection code type workpiece side:
ZYL
C52 Connection code form at workpiece side:
1
C54 Connection code unit base workpiece side:
0
C55 Connection code style workpiece side:
5
C6 Connection size code workpiece side:
50
C71 Connection diameter min:
5 mm
C711 ISO-tolerance class connection bore diameter:
h6
C71_INCH Connection diameter min:
0,196850393700787 inch
C81 Clamping length maximum:
50 mm
C81_INCH Clamping length maximum:
1,96850393700787 inch
CCFMS Connection code form at machine side:
10
CCFWS Connection code form at workpiece side:
1
CCMS Connection code machine side:
ZYL10G2000h$06
CCTMS Connection code type machine side:
ZYL
CCTWS Connection code type workpiece side:
ZYL
CCWS Connection code workpiece side:
ZYL20R1968****
CNSC Coolant entry style code:
0
CONTENT_UNIT:
PCE
CUB Connection unit basis:
M
CUBPMS Connection unit base precision machine side:
G
CUBPWS Connection unit base precision workpiece si:
F
CURRENCY:
USD
CXSC Coolant exit style code:
0
CZCMS Connection size code machine side:
200
CZCWS Connection size code workpiece side:
50
D6 Rotational speed maximum:
50000 1/min
D7 Weight of item:
0,189 kg
D7_INCH Weight of item:
0,4166694 lbs
d<sub>11</sub> Connection size code:
5
d<sub>1</sub> Connection size code:
20
Designation Tool designation:
A175.0.20.090.05
E2 Kappa:
0 °
EAN:
0197935851
FMT Form type workpiece side:
INT
G35 Mounting hole count:
1
H Shank height:
18,2 mm
H21 Coolant entry style code:
0
H22 Coolant exit style code:
0
H_INCH Shank height:
0,716535433070866 inch
J1 Standard:
ISO3338-2
J11 Standard letter to the standard number:
WE
J21 Article number:
A175.0.20.090.05
J3 Company code:
W
J4 Connection code workpiece side:
ZYL01F5000****
J6 Connection code machine side:
ZYL10G2000h$06
J7 Data chip provision:
0
KAP Kappa:
0 °
KEYWORD:
Adaptive Item|Holding||Basic Holders Ingersoll Tool connection - Screw mounting|E1100
l<sub>1</sub> Overall length:
90 mm
l<sub>4</sub> Functional length:
40 mm
LF Functional length:
65 mm
LF_INCH Functional length:
2,55905511811024 inch
LPR Protruding length:
40 mm
LPR_INCH Protruding length:
1,5748031496063 inch
LS Shank length:
50 mm
LSC Clamping length maximum:
50 mm
LSC_INCH Clamping length maximum:
1,96850393700787 inch
LS_INCH Shank length:
1,96850393700787 inch
MANUFACTURER_AID:
A175.0.20.090.05
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-89
OAL Overall length:
90 mm
OAL_INCH Overall length:
3,54330708661417 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
DIN 1835 B milling cutter extension A175 • metric • For tools with shank in accordance with DIN 6535 HB
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21022001
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21022001
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21022001
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21021105
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21021105
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21021105
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21022001
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21022001
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21022001
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21022001
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21022001
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21022001
REFERENCE_FEATURE_GROUP_ID_GTC:
ADPRS
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
27112807
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112807
REFERENCE_FEATURE_GROUP_ID_Walter:
A175.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
0 °
RPMX Rotational speed maximum:
50000 1/min
SUPPLIER_AID:
5007055
SUPPLIER_ALT_AID:
5007055
TERRITORY:
US
TSYC Tool style code:
A175.0
UDX.APPAREA:
Holding
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
For tools with shank in accordance with DIN 6535 HB
UDX.CATFAM_CODE:
A175
UDX.CATFAM_DESCR:
DIN 1835 B milling cutter extension
UDX.DISCOUNTGROUP:
070
UDX.ITEMTYPE:
Adaptive Item
UDX.NET_WEIGHT:
.4167
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
.9843
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
3.6614
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
.4410
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
3.5470
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
.9843
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
E1100
WT Weight:
0,19 kg
WT Weight of item:
0,189 kg
WT_INCH Weight of item:
0,4166694 lbs
XYWD xyw plane distance:
-90 mm
XYWD_INCH xyw plane distance:
-3,54330708661417 inch
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
0 mm
YZWD_INCH yzw plane distance:
0 inch
Manufactured By:
Walter Tool
Other Details
For tools with shank in accordance with DIN 6535 HB
