Deep parting blade by Walter Tool
Call For Price
- Part Number: 8120899
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (41)
Product Overview

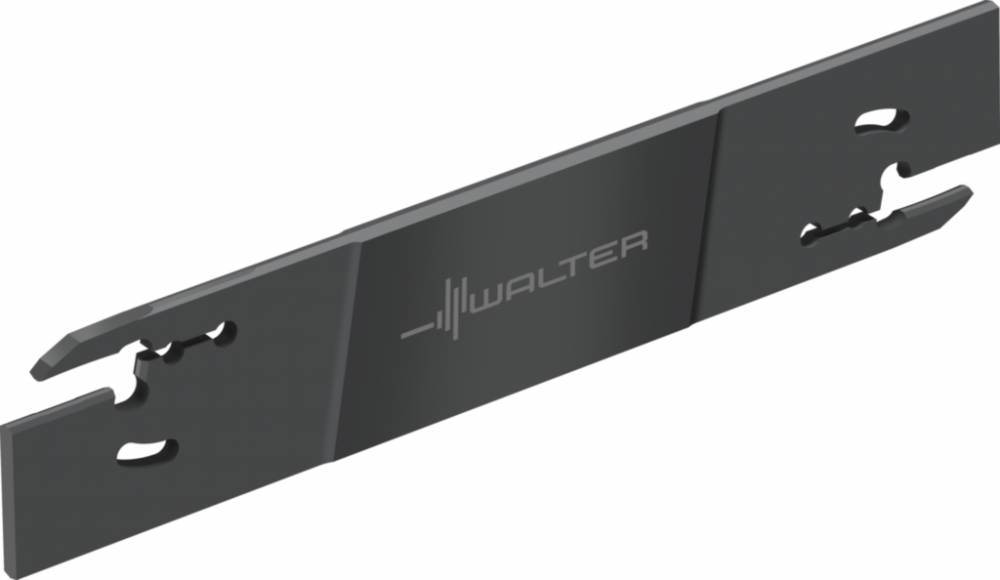

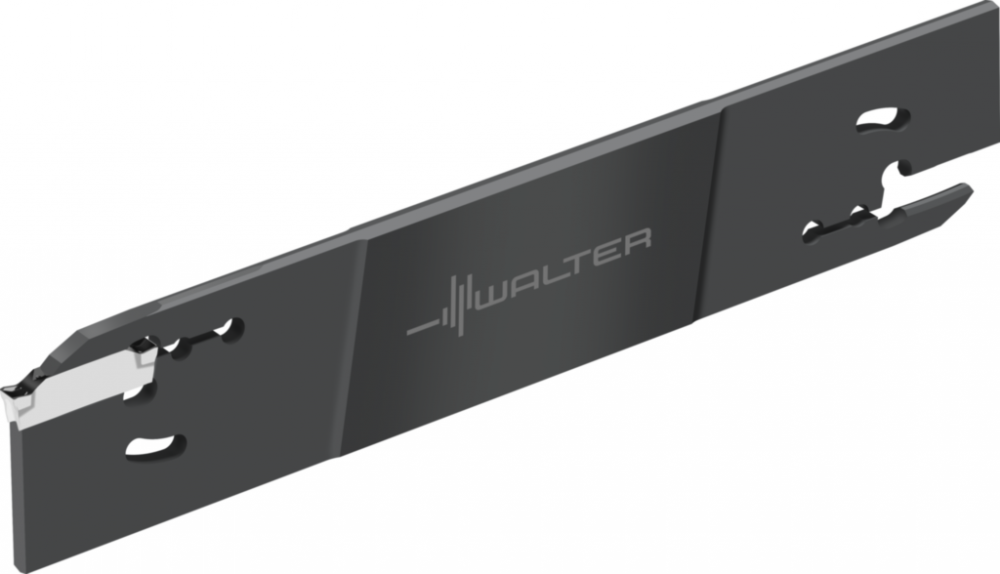

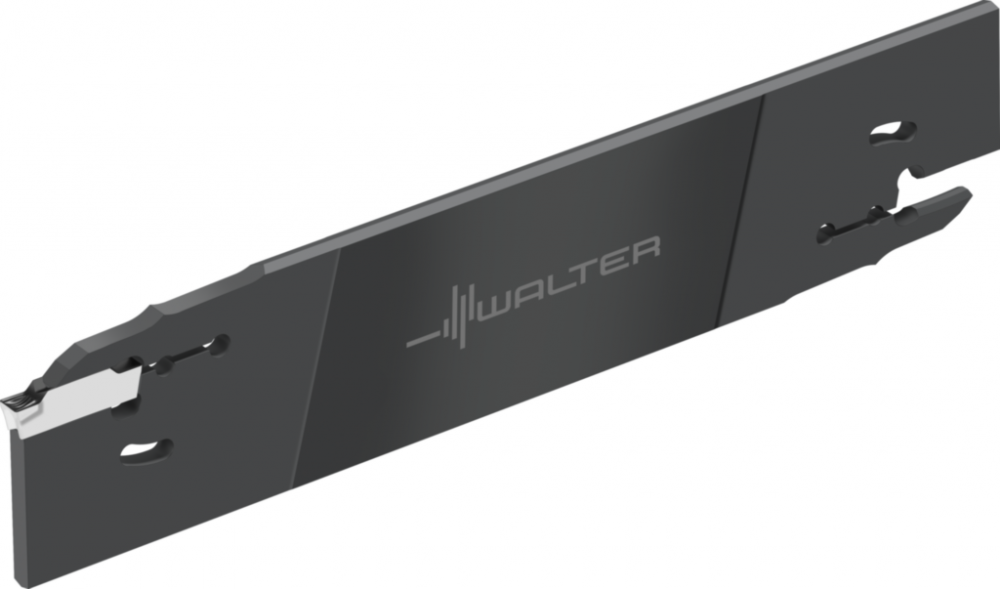

Deep parting blade G4042-26N-3T40DX18
Long Description
Deep parting blade G4042...N • metric • Neutral • DX18
Specifications
Details
Category:
Cutting Tools
Subcategory:
Cut-Off
Subtype:
Indexable Cutting Tools
Category Level 4:
Cut-Off Toolholders
A18 Cutting width:
3 mm
A18_INCH Cutting width:
0,118110236220472 inch
A3 Functional length:
130 mm
A3_INCH Functional length:
5,11811023622047 inch
A4 Functional height:
0 mm
A4_INCH Functional height:
0 inch
A8 Cutting depth maximum:
40 mm
A8_INCH Cutting depth maximum:
1,5748031496063 inch
ART_ID_TO type=accessories:
5163278
ART_ID_TO type=others:
7782851, ;7795859, ;7795866, ;7795867, ;7795868, ;7795869, ;7795870, ;7795871, ;7795883, ;7795894, ;7795895, ;7795896, ;7795897, ;7795904, ;7795905, ;7795912, ;7795913, ;7795918, ;7795919, ;7910420, ;7910421, ;7910423, ;7910424, ;7910428, ;7910429, ;791043
b Shank width:
3,5 mm
B5 Overall length:
130 mm
B5_INCH Overall length:
5,11811023622047 inch
BLD Tool style code:
4
C11 Connection code type machine side:
PMW
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
8
C15 Connection code style machine side:
5
C2 Connection size code machine side:
260
C31 ISO-tolerance class shank diameter:
$$$$
C4 Shank height:
26 mm
C4_INCH Shank height:
1,02362204724409 inch
C8 Shank width:
3,5 mm
C8_INCH Shank width:
0,137795275590551 inch
CONTENT_UNIT:
PCE
CURRENCY:
USD
D7 Weight of item:
0,066 kg
D7_INCH Weight of item:
0,1455036 lbs

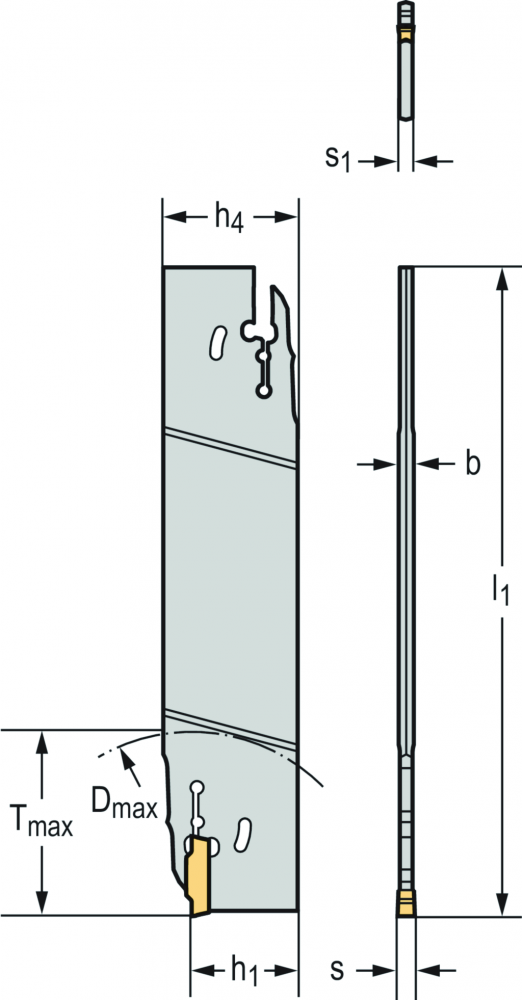

D<sub>max</sub> Maximum grooving diameter:
80 mm
Designation Tool designation:
G4042-26N-3T40DX18
E1 Tool cutting edge angle:
90 °
E4 Rake angle orthogonal:
0 °
E5 Inclination angle:
0 °
EAN:
0685269937
F1 Cutting direction:
N
F5 Clamping type code:
C
H4 Body material code:
S
h<sub>1</sub> Center height:
17,3 mm
h<sub>4</sub> Shank height:
26 mm
J1 Standard:
-
J21 Article number:
G4042-26N-3T40DX18
J22 Product designation:
7841
J3 Company code:
W
J41 Insert interface code:
WR$$DX183000***FX**
J6 Connection code machine side:
PMW01C0260$$00
J7 Data chip provision:
0
J8 Machining operation:
DEA
KEYWORD:
Tool Item|Parting/Grooving|Walter Cut|Cartridge, prismatic|G4042
l<sub>1</sub> Overall length:
130 mm
MANUFACTURER_AID:
G4042-26N-3T40DX18
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-175
ORDER_UNIT:
PCE
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Deep parting blade G4042...N • metric • Neutral
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21181503
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21181503
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21181503
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21012001
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21012001
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21012001
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21181090
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21181090
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21181090
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21181503
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21181503
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21181503
REFERENCE_FEATURE_GROUP_ID_GTC:
BLTGTI
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
23231001
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
23242106
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
23171619
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23171619
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
23171619
REFERENCE_FEATURE_GROUP_ID_Walter:
G4042-26-N-DX18
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
s Indexable insert width:
3
s<sub>1</sub> Body width:
2,4 mm
SUPPLIER_AID:
8120899
SUPPLIER_ALT_AID:
8120899
T<sub>max</sub> Maximum cutting depth:
40 mm
TERRITORY:
US
Type Possible indexable inserts:
DX18-3E3 ..; DX18-3F3 ..
UDX.APPAREA:
Parting/Grooving
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
Self-clamping system
UDX.CATFAM_CODE:
G4042...N
UDX.CATFAM_DESCR:
Deep parting blade
UDX.DESCR_APPLICATION:
Grooving and parting off where space is limited
UDX.DESCR_BENEFITS:
Maximum process reliability due to minimal deflection of the grooving inserts thanks to reinforced tool body and DX positive engagement;High cost-efficiency thanks to two cutting edges
UDX.DESCR_TOOL:
Innovative new self-clamping system:Perfect four-point retention in the insert seat
UDX.DISCOUNTGROUP:
060
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
.1455
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
.2756
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
5.5512
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
.1632
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
2.4092
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
1.5748
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
G4042
WT Weight of item:
0,066 kg
WT_INCH Weight of item:
0,1455036 lbs
Manufactured By:
Walter Tool
Other Details
Self-clamping system
