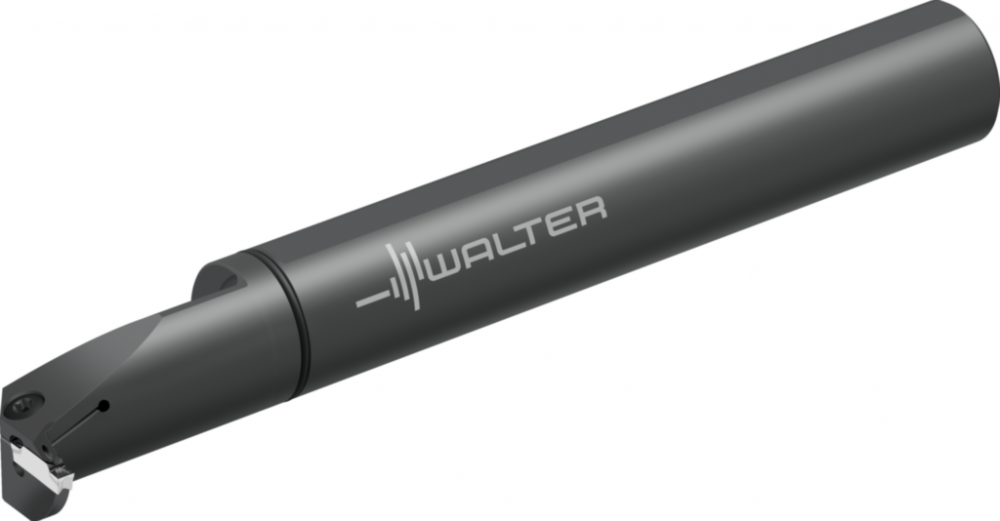

Boring bar – Internal grooving

Boring bar – Internal grooving by Walter Tool

Call For Price
  • Part Number: 8120949
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (74)
Product Overview
Info & Guides
Boring bar – Internal grooving G4221-32SR-4T10-DX18-P
Long Description
Boring bar – Internal grooving G4221...-P • Screw clamping • Precision cooling • metric • Parallel shank with flat • Right • DX18 • s=0.1575in • Tmax=0.3937in
Specifications
Details
Category:
Cutting Tools
Subcategory:
Cut-Off
Subtype:
Indexable Cutting Tools
Category Level 4:
Cut-Off Toolholders
A1 Cutting edge length:
4 mm
A12 Cutting width:
4 mm
A12_INCH Cutting width:
0,15748031496063 inch
A1_INCH Cutting edge length:
0,15748031496063 inch
A2 Functional width:
26,6 mm
A2_INCH Functional width:
1,04724409448819 inch
A4 Functional height:
0 mm
A4_INCH Functional height:
0 inch
A6 Minimum bore diameter:
32 mm
A6_INCH Minimum bore diameter:
1,25984251968504 inch
A8 Cutting depth maximum:
10 mm
A8_INCH Cutting depth maximum:
0,393700787401575 inch
ART_ID_TO type=accessories:
5050322,5050335,6421702
ART_ID_TO type=consists_of:
5043213,5096227,5334327,6730795
ART_ID_TO type=others:
8039201, ;8039202, ;8039203, ;8039204, ;8039205, ;8039206, ;8039207, ;8039208, ;8039209, ;8039210, ;8039211, ;8039212, ;8039213, ;8039214, ;8039215, ;8039216, ;8039217, ;8039218, ;8039219, ;8039220, ;8039221, ;8039222, ;8042306, ;8408870, ;8492970, ;849297
B3 Protruding length:
250,3 mm
B3_INCH Protruding length:
9,85433070866142 inch
B5 Overall length:
250,3 mm
B5_INCH Overall length:
9,85433070866142 inch
BLD Tool style code:
5
BMC Body material code:
S
C11 Connection code type machine side:
ZYL
C12 Connection code form at machine side:
11
C14 Connection code unit base machine side:
1
C15 Connection code style machine side:
5
C2 Connection size code machine side:
320
C3 Connection diameter machine side:
32 mm
C3_INCH Connection diameter machine side:
1,25984251968504 inch
C4 Shank height:
31,25 mm
C4_INCH Shank height:
1,23031496062992 inch
CCMS Connection code machine side:
ZYL11G3200$$$$
CDX Cutting depth maximum:
10 mm
CDX_INCH Cutting depth maximum:
0,393700787401575 inch
CICT Cutting item count:
1
CNSC Coolant entry style code:
1
CONTENT_UNIT:
PCE
CUB Connection unit basis:
M
CUBPMS Connection unit base precision machine side:
G
CURRENCY:
USD
CW Cutting edge length:
4 mm
CW_INCH Cutting edge length:
0,15748031496063 inch
CXSC Coolant exit style code:
7
CZCMS Connection size code machine side:
320
D7 Weight of item:
1,334 kg
D7_INCH Weight of item:
2,9409364 lbs

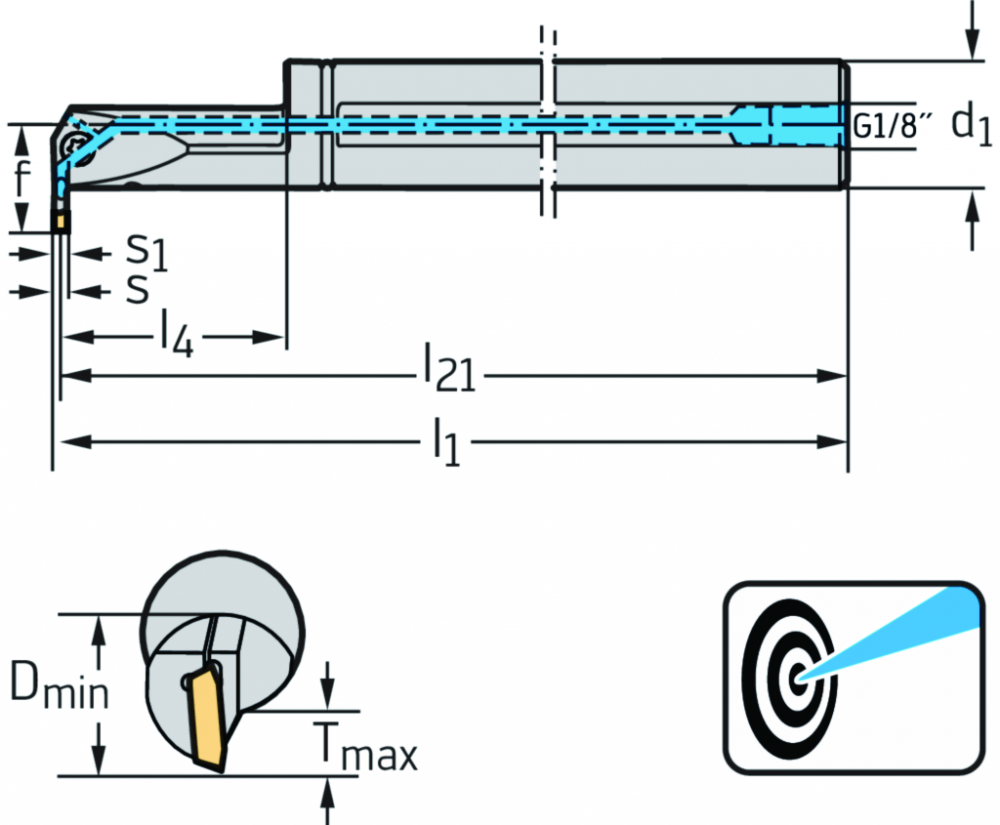

d<sub>1</sub> Boring bar diameter d<sub>1</sub>:
32 mm
D<sub>min</sub> Minimum hole diameter:
32 mm
Designation Tool designation:
G4221-32SR-4T10-DX18-P
DMIN Minimum bore diameter:
32 mm
DMIN_INCH Minimum bore diameter:
1,25984251968504 inch
E1 Tool cutting edge angle:
90 °
E2 Tool cutting edge angle type code:
S
E4 Rake angle orthogonal:
0 °
E5 Inclination angle:
0 °
EAN:
0685222936
f Functional width:
26,6 mm
F1 Cutting direction:
R
F2 Tool holder shape code:
G
F5 Clamping type code:
C
FMT Form type machine side:
EXT
GAMO Rake angle orthogonal:
0 °
H Shank height:
31,25 mm
H21 Coolant entry style code:
1
H22 Coolant exit style code:
7
HAND Cutting direction:
R
HF Functional height:
0 mm
HF_INCH Functional height:
0 inch
H_INCH Shank height:
1,23031496062992 inch
IIC Insert interface code:
WR$$DX184000***FX**
J1 Standard:
-
J21 Article number:
G4221-32SR-4T10-DX18-P
J3 Company code:
W
J41 Insert interface code:
WR$$DX184000***EX**
J42 Master insert identification:
DX18-4
J6 Connection code machine side:
ZYL11G3200$$$$
J7 Data chip provision:
0
J8 Machining operation:
DEI
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
90 °
KEYWORD:
Tool Item|Parting/Grooving|Walter Cut|Tool holders for grooving, internal|G4221
l<sub>21</sub> Functional length:
248,3 mm
l<sub>4</sub> Maximum projection length:
59,3 mm
LAMS Inclination angle:
0 °
LFCIRP Functional length to cutting item reference:
248,3
LPR Protruding length:
250,3 mm
LPR_INCH Protruding length:
9,85433070866142 inch
LS Shank length:
60 mm
LS_INCH Shank length:
2,36220472440945 inch
MANUFACTURER_AID:
G4221-32SR-4T10-DX18-P
MIID Master insert identification:
DX18-4
NOI Insert index count:
100
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-90
OAL Overall length:
250,3 mm
OAL_INCH Overall length:
9,85433070866142 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Boring bar – Internal grooving G4221...-P • Screw clamping • Precision cooling • metric • Parallel shank with flat • Right
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21181005
REFERENCE_FEATURE_GROUP_ID_GTC:
TRNPII
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153308
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112809
REFERENCE_FEATURE_GROUP_ID_Walter:
G4221-20-32-R-DX-P
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
90 °
RMPX Ramping angle maximum:
90 °
s Indexable insert width:
4
s<sub>1</sub> Body width:
3,4 mm
SUPPLIER_AID:
8120949
SUPPLIER_ALT_AID:
8120949
T<sub>max</sub> Maximum grooving diameter:
10 mm
TERRITORY:
US
TSYC Tool style code:
G4221-20-32-R-DX-P
Type Possible indexable inserts:
DX18-4E4 ..; DX18-4F4 ..
UDX.APPAREA:
Parting/Grooving
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
Screw clamping
UDX.BULLETTEXT_2:
Precision cooling
UDX.CATFAM_CODE:
G4221...-P
UDX.CATFAM_DESCR:
Boring bar – Internal grooving
UDX.DESCR_BENEFITS:
Process reliability and reduced costs due to unique DX positive engagement design (the cutting insert does not move);Reliable blind-hole machining due to flushing effect thanks to unique axial cooling bore;Extremely high productivity and extra-long tool li
UDX.DESCR_TOOL:
Walter Cut G4221-P/DX18 grooving system;Precision cooling via the top clamp;Axial cooling bore (sealable) for blind-hole machining;Flexible O-ring seal for leak-free coolant transfer
UDX.DISCOUNTGROUP:
060
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
2.9415
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
1.9685
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
12.3228
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
3.3031
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
47.7511
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
1.9685
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
G4221
WF Functional width:
26,6 mm
WFCIRP Width to cutting item reference point:
26,6 mm
WFCIRP_INCH Width to cutting item reference point:
1,04724409448819 inch
WF_INCH Functional width:
1,04724409448819 inch
WT Weight of item:
1,334 kg
WT_INCH Weight of item:
2,9409364 lbs
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
-26,6 mm
YZWD_INCH yzw plane distance:
-1,04724409448819 inch
Manufactured By:
Walter Tool
Other Details
Precision cooling
Screw clamping
Screw clamping|Precision cooling
