Boring bar – Internal grooving

Boring bar – Internal grooving by Walter Tool

Call For Price
  • Part Number: 5009511
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (74)
Product Overview
Info & Guides

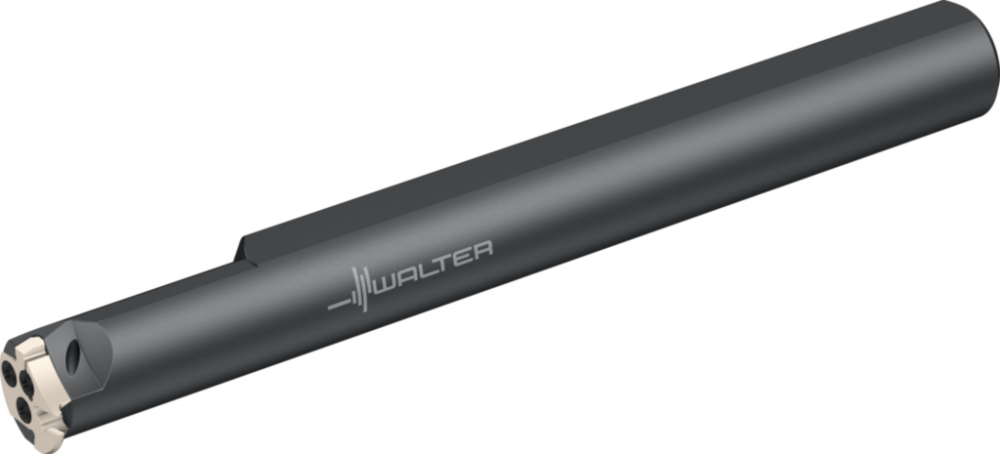

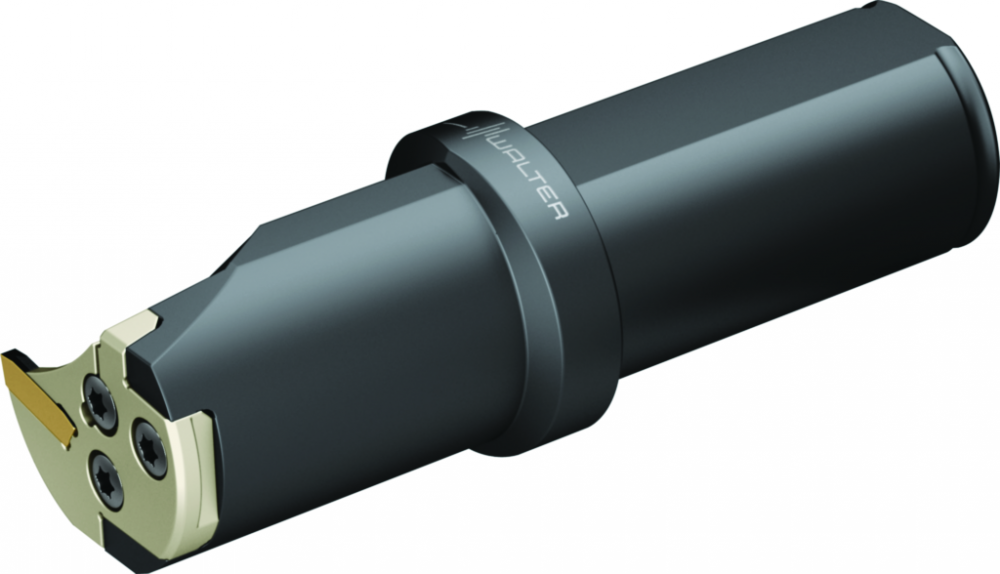

Boring bar – Internal grooving NCCI16-2025R-GX09-1
Long Description
Boring bar – Internal grooving NCCI • Screw clamping • Circlip grooves • metric • Parallel shank • Right • GX09 • s= • Tmax=0.0787in

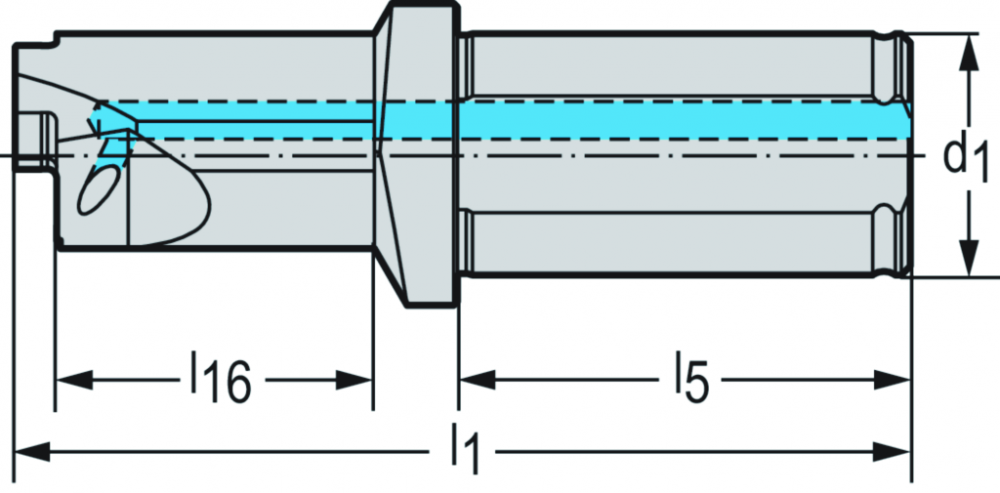

Specifications
Details
Category:
Cutting Tools
Subcategory:
Cut-Off
Subtype:
Indexable Cutting Tools
Category Level 4:
Cut-Off Toolholders
A1 Cutting edge length:
0,6 mm
A12 Cutting width:
0,6 mm
A2 Functional width:
14,5 mm
A2_INCH Functional width:
0,570866141732283 inch
A4 Functional height:
0 mm
A4_INCH Functional height:
0 inch
A6 Minimum bore diameter:
20 mm
A6_INCH Minimum bore diameter:
0,78740157480315 inch
A8 Cutting depth maximum:
2 mm
A8_INCH Cutting depth maximum:
0,078740157480315 inch
ART_ID_TO type=consists_of:
5009531,5009658
ART_ID_TO type=others:
6152231, ;6152236, ;6152586, ;6152643, ;6529682, ;7046054, ;7319495, ;7319496, ;7319497, ;7319498, ;7350848, ;7350849, ;7350900, ;7350901, ;7350902, ;7350903, ;8564825, ;8564826, ;8564830, ;8567941, ;8567942, ;8567943, ;8567944, ;8567945, ;8567946, ;856794
B3 Protruding length:
180,75 mm
B3_INCH Protruding length:
7,11614173228346 inch
B5 Overall length:
180,75 mm
B5_INCH Overall length:
7,11614173228346 inch
BLD Tool style code:
5
BMC Body material code:
S
C11 Connection code type machine side:
ZYL
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
0
C15 Connection code style machine side:
5
C2 Connection size code machine side:
200
C3 Connection diameter machine side:
20 mm
C3_INCH Connection diameter machine side:
0,78740157480315 inch
CCMS Connection code machine side:
ZYL01G2000$$$$
CDX Cutting depth maximum:
2 mm
CDX_INCH Cutting depth maximum:
0,078740157480315 inch
CICT Cutting item count:
1
CNSC Coolant entry style code:
0
CONTENT_UNIT:
PCE
CP Coolant pressure:
80 MPa
CUB Connection unit basis:
M
CUBPMS Connection unit base precision machine side:
G
CURRENCY:
USD
CW Cutting width:
0,6 mm
CXSC Coolant exit style code:
1
CZCMS Connection size code machine side:
200
D7 Weight of item:
0,402 kg
D7_INCH Weight of item:
0,8862492 lbs
d<sub>1</sub> Boring bar diameter d<sub>1</sub>:
20 mm
D<sub>min</sub> Minimum bore diameter:
20 mm
Designation Tool designation:
NCCI16-2025R-GX09-1
DMIN Minimum bore diameter:
20 mm
DMIN_INCH Minimum bore diameter:
0,78740157480315 inch
E1 Tool cutting edge angle:
90 °
E2 Tool cutting edge angle type code:
S
E4 Rake angle orthogonal:
0 °
E5 Inclination angle:
0 °
EAN:
0329961936
f Functional width:
14,5 mm
F1 Cutting direction:
R
F2 Tool holder shape code:
G
F5 Clamping type code:
C
FMT Form type machine side:
EXT
GAMO Rake angle orthogonal:
0 °
H21 Coolant entry style code:
0
H22 Coolant exit style code:
1
HAND Cutting direction:
R
HF Functional height:
0 mm
HF_INCH Functional height:
0 inch
IIC Insert interface code:
WR$$GX091000***SS**
J1 Standard:
-
J21 Article number:
NCCI16-2025R-GX09-1
J3 Company code:
W
J41 Insert interface code:
WR$$GX091000***EX**
J42 Master insert identification:
GX09-1
J6 Connection code machine side:
ZYL01G2000$$$$
J7 Data chip provision:
0
J8 Machining operation:
DEI
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
90 °
KEYWORD:
Tool Item|Parting/Grooving|Walter Cut|Tool holders for grooving, internal|D55PK
l<sub>1</sub> Overall length:
180,75 mm
l<sub>21</sub> Functional length:
179,3 mm
l<sub>4</sub> Maximum projection length:
39,4 mm
LAMS Inclination angle:
0 °
LFCIRP Functional length to cutting item reference:
179,35
LPR Protruding length:
180,75 mm
LPR_INCH Protruding length:
7,11614173228346 inch
LS Shank length:
50 mm
LS_INCH Shank length:
1,96850393700787 inch
MANUFACTURER_AID:
NCCI16-2025R-GX09-1
MIID Master insert identification:
GX09-1
NOI Insert index count:
40
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-90
OAL Overall length:
180,75 mm
OAL_INCH Overall length:
7,11614173228346 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Boring bar – Internal grooving NCCI • Screw clamping • Circlip grooves • metric • Parallel shank • Right
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21181005
REFERENCE_FEATURE_GROUP_ID_GTC:
TRNPII
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153308
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112809
REFERENCE_FEATURE_GROUP_ID_Walter:
NCCIR-GX-ISO-2,5XD
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
90 °
s Indexable insert width:
0
s<sub>1</sub> Body width:
1,3 mm
SUPPLIER_AID:
5009511
SUPPLIER_ALT_AID:
5009511
T<sub>max</sub> Maximum cutting depth:
2 mm
TERRITORY:
US
TSYC Tool style code:
NCCIR-GX-ISO-2,5XD
Type Possible indexable inserts:
GX09-1E ..
UDX.APPAREA:
Parting/Grooving
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
Circlip grooves
UDX.BULLETTEXT_2:
Screw clamping
UDX.CATFAM_CODE:
NCCI
UDX.CATFAM_DESCR:
Boring bar – Internal grooving
UDX.DISCOUNTGROUP:
060
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
.0000
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
D55PK
WF Functional width:
14,5 mm
WFCIRP Width to cutting item reference point:
14,5 mm
WFCIRP_INCH Width to cutting item reference point:
0,570866141732283 inch
WF_INCH Functional width:
0,570866141732283 inch
WT Weight of item:
0,402 kg
WT_INCH Weight of item:
0,8862492 lbs
XZWD xzw plane distance:
0 mm
XZWD_INCH xzw plane distance:
0 inch
YZWD yzw plane distance:
-14,5 mm
YZWD_INCH yzw plane distance:
-0,570866141732283 inch
Manufactured By:
Walter Tool
Other Details
Circlip grooves
Circlip grooves|Screw clamping
Screw clamping
