Boring bar – Internal grooving

Boring bar – Internal grooving by Walter Tool

Call For Price
  • Part Number: 5009479
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (74)
Product Overview
Info & Guides

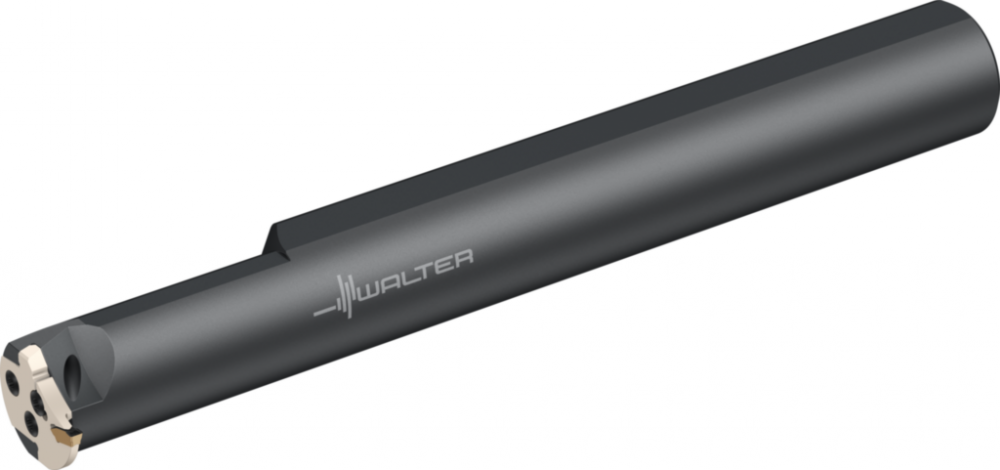

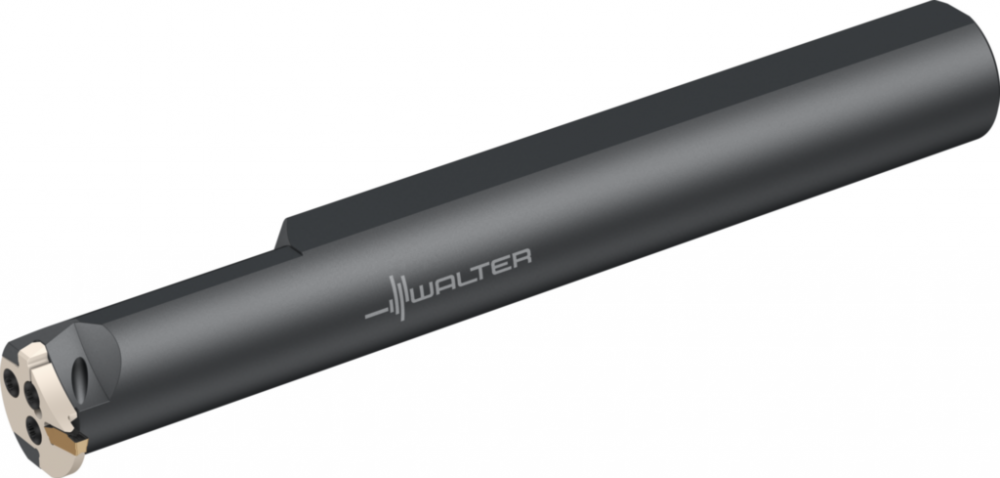

Boring bar – Internal grooving NCAI25-3225R-GX09-1
Long Description
Boring bar – Internal grooving NCAI • Screw clamping • metric • Parallel shank • Right • GX09 • s= • Tmax=0.2362in
Specifications
Details
Category:
Cutting Tools
Subcategory:
Cut-Off
Subtype:
Indexable Cutting Tools
Category Level 4:
Cut-Off Toolholders
A1 Cutting edge length:
2 mm
A12 Cutting width:
2 mm
A2 Functional width:
22,5 mm
A2_INCH Functional width:
0,885826771653543 inch
A4 Functional height:
32 mm
A4_INCH Functional height:
1,25984251968504 inch
A6 Minimum bore diameter:
32 mm
A6_INCH Minimum bore diameter:
1,25984251968504 inch
A8 Cutting depth maximum:
6 mm
A8_INCH Cutting depth maximum:
0,236220472440945 inch
ART_ID_TO type=consists_of:
5009758,5009547
ART_ID_TO type=others:
6152231, ;6152236, ;6152586, ;6152643, ;6529682, ;7046054, ;7319495, ;7319496, ;7319497, ;7319498, ;8564825, ;8564826, ;8564830, ;8567941, ;8567942, ;8567949, ;8567950, ;8567951, ;8567952, ;8567953, ;8567954, 6381079;6381127;6381181;6852048
B3 Protruding length:
250,35 mm
B3_INCH Protruding length:
9,85629921259843 inch
B5 Overall length:
250,35 mm
B5_INCH Overall length:
9,85629921259843 inch
BLD Tool style code:
5
BMC Body material code:
S
C11 Connection code type machine side:
ZYL
C12 Connection code form at machine side:
1
C14 Connection code unit base machine side:
0
C15 Connection code style machine side:
5
C2 Connection size code machine side:
320
C3 Connection diameter machine side:
32 mm
C3_INCH Connection diameter machine side:
1,25984251968504 inch
CCMS Connection code machine side:
ZYL01G3200$$$$
CDX Cutting depth maximum:
6 mm
CDX_INCH Cutting depth maximum:
0,236220472440945 inch
CICT Cutting item count:
1
CNSC Coolant entry style code:
0
CONTENT_UNIT:
PCE
CUB Connection unit basis:
M
CUBPMS Connection unit base precision machine side:
G
CURRENCY:
USD
CW Cutting width:
2 mm
CXSC Coolant exit style code:
1
CZCMS Connection size code machine side:
320
D7 Weight of item:
1,406 kg
D7_INCH Weight of item:
3,0996676 lbs

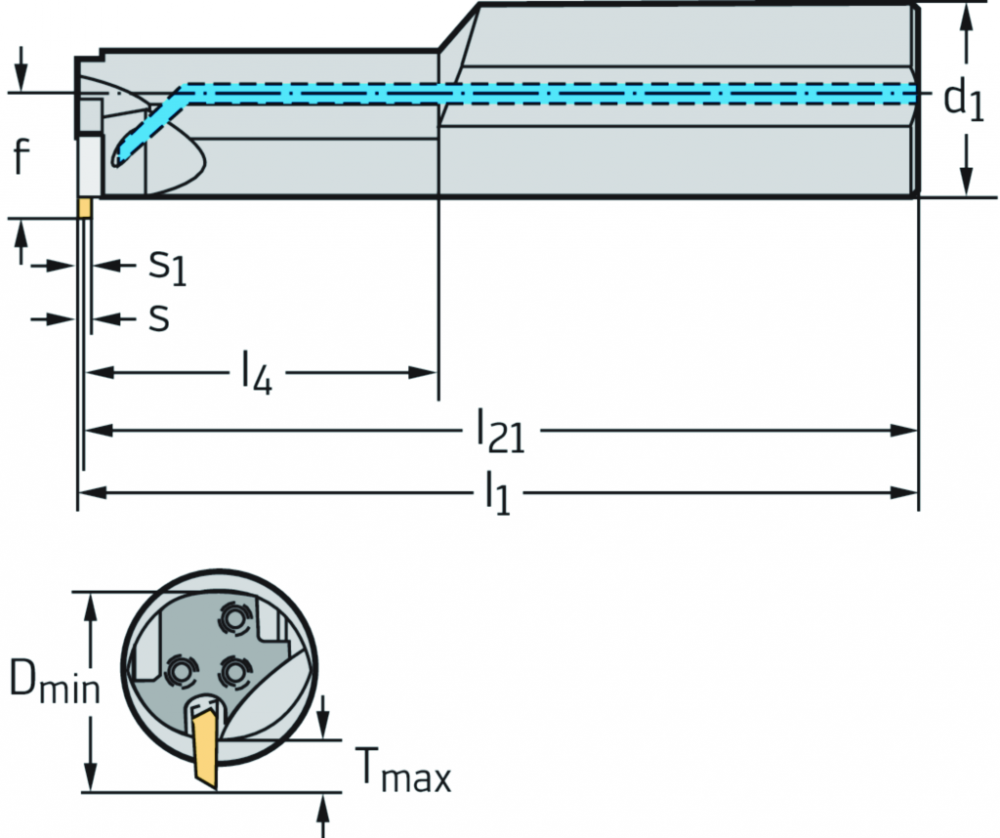

d<sub>1</sub> Boring bar diameter d<sub>1</sub>:
32 mm
D<sub>min</sub> Minimum bore diameter:
32 mm
Designation Tool designation:
NCAI25-3225R-GX09-1
DMIN Minimum bore diameter:
32 mm
DMIN_INCH Minimum bore diameter:
1,25984251968504 inch
E1 Tool cutting edge angle:
90 °
E2 Tool cutting edge angle type code:
S
E4 Rake angle orthogonal:
0 °
E5 Inclination angle:
0 °
EAN:
0329924936
f Functional width:
22,5 mm
F1 Cutting direction:
R
F2 Tool holder shape code:
G
F5 Clamping type code:
C
FMT Form type machine side:
EXT
GAMO Rake angle orthogonal:
0 °
H21 Coolant entry style code:
0
H22 Coolant exit style code:
1
HAND Cutting direction:
R
HF Functional height:
32 mm
HF_INCH Functional height:
1,25984251968504 inch
IIC Insert interface code:
WR$$GX091000***FX**
J1 Standard:
-
J21 Article number:
NCAI25-3225R-GX09-1
J3 Company code:
W
J41 Insert interface code:
WR$$GX091000***EX**
J42 Master insert identification:
GX09-1
J6 Connection code machine side:
ZYL01G3200$$$$
J7 Data chip provision:
0
J8 Machining operation:
DEI
KAP Kappa:
0 °
KAPR Tool cutting edge angle:
90 °
KEYWORD:
Tool Item|Parting/Grooving|Walter Cut|Tool holders for grooving, internal|D55PK
l<sub>1</sub> Overall length:
250,35 mm
l<sub>21</sub> Functional length:
249,3 mm
l<sub>4</sub> Maximum projection length:
62,4 mm
LAMS Inclination angle:
0 °
LFCIRP Functional length to cutting item reference:
249,35
LPR Protruding length:
250,35 mm
LPR_INCH Protruding length:
9,85629921259843 inch
LS Shank length:
60 mm
LS_INCH Shank length:
2,36220472440945 inch
MANUFACTURER_AID:
NCAI25-3225R-GX09-1
MIID Master insert identification:
GX09-1
NOI Insert index count:
40
NO_CU_PER_OU:
1
NSM Standard number of properties layout:
DIN4000-90
OAL Overall length:
250,35 mm
OAL_INCH Overall length:
9,85629921259843 inch
ORDER_UNIT:
PCE
PHI Phi:
0 °
PRICE_CURRENCY:
USD
PRICE_QUANTITY:
1
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
REFERENCE_FEATURE_GROUP_DESCRIPTION_Walter:
Boring bar – Internal grooving NCAI • Screw clamping • metric • Parallel shank • Right
REFERENCE_FEATURE_GROUP_ID_ECLASS_10:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_10_1:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_11:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_0:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_4_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_5_1:
21010903
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_0:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_1:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_6_2:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_7:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_8:
21181005
REFERENCE_FEATURE_GROUP_ID_ECLASS_9:
21181005
REFERENCE_FEATURE_GROUP_ID_GTC:
TRNPII
REFERENCE_FEATURE_GROUP_ID_UNSPSC_19:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_20:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_5:
27112809
REFERENCE_FEATURE_GROUP_ID_UNSPSC_6:
23153308
REFERENCE_FEATURE_GROUP_ID_UNSPSC_7:
27112809
REFERENCE_FEATURE_GROUP_ID_Walter:
NCAIR-GX-ISO-2,5XD
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10:
ECLASS-10
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_10_1:
ECLASS-10.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_11:
ECLASS-11
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_0:
ECLASS-4.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_4_1:
ECLASS-4.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_5_1:
ECLASS-5.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_0:
ECLASS-6.0
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_1:
ECLASS-6.1
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_6_2:
ECLASS-6.2
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_7:
ECLASS-7
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_8:
ECLASS-8
REFERENCE_FEATURE_SYSTEM_NAME_ECLASS_9:
ECLASS-9
REFERENCE_FEATURE_SYSTEM_NAME_GTC:
GTC
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_19:
UNSPSC-19
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_20:
UNSPSC-20
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_5:
UNSPSC-5
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_6:
UNSPSC-6
REFERENCE_FEATURE_SYSTEM_NAME_UNSPSC_7:
UNSPSC-7
REFERENCE_FEATURE_SYSTEM_NAME_Walter:
Walter
RHO Rho:
90 °
s Indexable insert width:
0
s<sub>1</sub> Body width:
1,3 mm
SUPPLIER_AID:
5009479
SUPPLIER_ALT_AID:
5009479
T<sub>max</sub> Maximum cutting depth:
6 mm
TERRITORY:
US
TSYC Tool style code:
NCAIR-GX-ISO-2,5XD
Type Possible indexable inserts:
GX09-1E1 ..
UDX.APPAREA:
Parting/Grooving
UDX.BRAND:
Walter
UDX.BULLETTEXT_1:
Screw clamping
UDX.CATFAM_CODE:
NCAI
UDX.CATFAM_DESCR:
Boring bar – Internal grooving
UDX.DISCOUNTGROUP:
060
UDX.ITEMTYPE:
Tool Item
UDX.NET_WEIGHT:
3.1002
UDX.NET_WEIGHT_UNIT:
LBS
UDX.PACKAGING_HEIGHT:
2.7559
UDX.PACKAGING_HEIGHT_UNIT:
IN
UDX.PACKAGING_LENGTH:
10.1181
UDX.PACKAGING_LENGTH_UNIT:
IN
UDX.PACKAGING_MATERIAL_WEIGHT:
3.2722
UDX.PACKAGING_MATERIAL_WEIGHT_UNIT:
LBS
UDX.PACKAGING_VOLUME:
76.8472
UDX.PACKAGING_VOLUME_UNIT:
CU IN
UDX.PACKAGING_WIDTH:
2.7559
UDX.PACKAGING_WIDTH_UNIT:
IN
UDX.PRODUCTFAMILY:
D55PK
WF Functional width:
22,5 mm
WFCIRP Width to cutting item reference point:
22,5 mm
WFCIRP_INCH Width to cutting item reference point:
0,885826771653543 inch
WF_INCH Functional width:
0,885826771653543 inch
WT Weight of item:
1,406 kg
WT_INCH Weight of item:
3,0996676 lbs
XZWD xzw plane distance:
32 mm
XZWD_INCH xzw plane distance:
1,25984251968504 inch
YZWD yzw plane distance:
-22,5 mm
YZWD_INCH yzw plane distance:
-0,885826771653543 inch
Manufactured By:
Walter Tool
Other Details
Screw clamping
