WNMG432EGUW-AC4015K by Sumitomo
Call For Price
- Part Number: 19T2824
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (255)
Product Overview

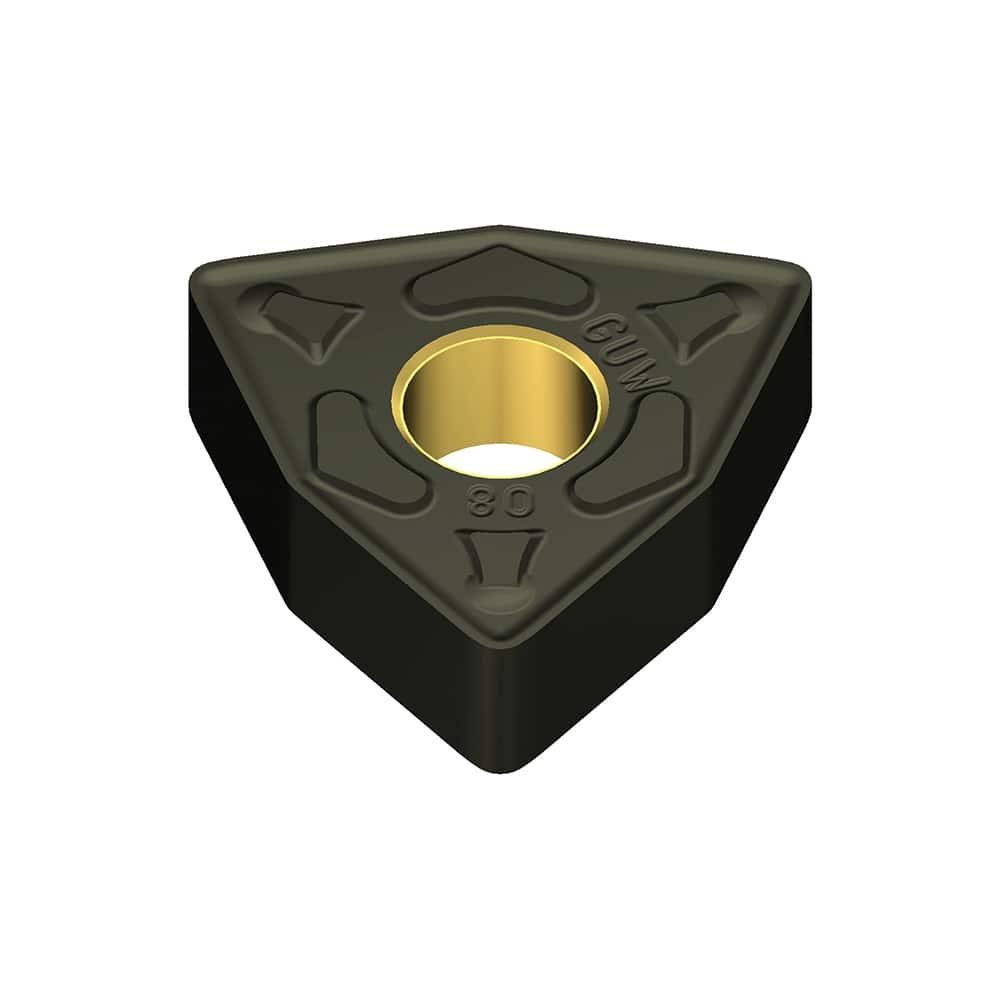

WNMG432EGUW Grade AC4015K Carbide Turning Insert
Long Description
Specifications
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts
Chipbreaker:
EGUW
Coating:
Absotech
Coating Process:
CVD
Hole Diameter:
5.16
Hole Diameter (Decimal Inch):
5.16
Inscribed Circle (Decimal Inch):
0.5
12.7
Insert Material:
Carbide
Insert Style:
WNMG
Insert Thickness (Decimal Inch):
0.1874
4.76
Manufacturer Grade:
AC4015K
Primary Workpiece Material:
Cast Iron
Rake Angle:
Negative
Series:
AC4015K
Chip Breaker:
EGUW
Corner Angle:
80
Cutting Edge Length:
0.3425
Cutting Edge Length-2:
8.7
Inscribed Circle Diameter:
0.5
Inscribed Circle Diameter-2:
12.7
Insert Holding Method:
Pin & Clamp
Insert Holding Method:
Pin & Clamp
Insert Size:
432
Insert Thickness:
0.1874
Insert Thickness-2:
4.76
Manufacturer Grade Identification:
AC4015K
Nose Radius:
0.0315
Nose Radius-2:
0.8
Relief Angle:
0
Standard designation of the grade, main applicatio:
K15
Tolerance Class:
M
Manufactured By:
Sumitomo
