VNMG333EGU-AC8020P by Sumitomo
Call For Price
- Part Number: 19W1180
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (2800)
Product Overview

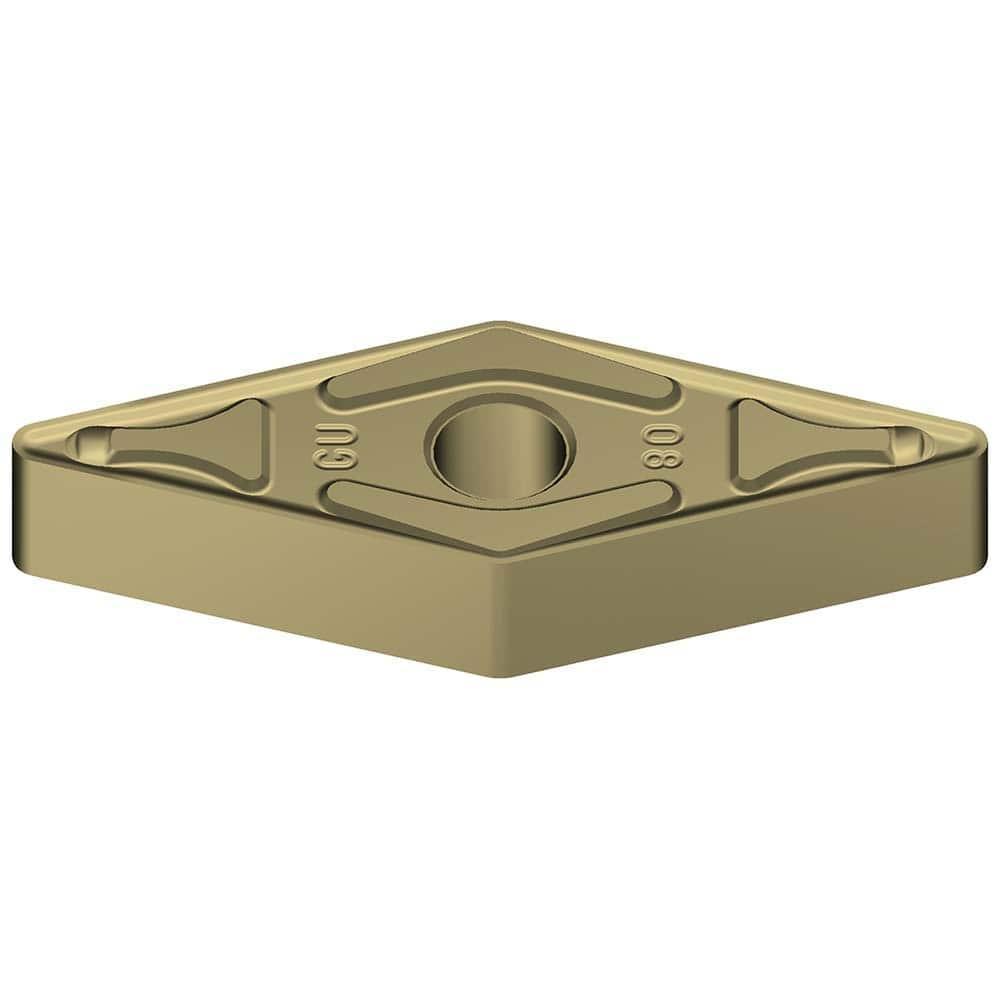

VNMG333EGU Grade AC8020P Carbide Turning Insert
Long Description
Specifications
Details
Category:
Turning
Subcategory:
External Turning
Subtype:
Turning Indexable Inserts
Chipbreaker:
EGU
Coating:
Absotech
Coating Process:
CVD
Hole Diameter:
3.81
Hole Diameter (Decimal Inch):
3.81
Inscribed Circle (Decimal Inch):
0.375
9.53
Insert Material:
Carbide
Insert Style:
VNMG
Insert Thickness (Decimal Inch):
0.1874
4.76
Manufacturer Grade:
AC8020P
Primary Workpiece Material:
Steel
Rake Angle:
Negative
Series:
AC8000P
Chip Breaker:
EGU
Corner Angle:
35
Cutting Edge Length:
0.6535
Cutting Edge Length-2:
16.6
Inscribed Circle Diameter:
0.375
Inscribed Circle Diameter-2:
9.53
Insert Holding Method:
Pin & Clamp
Insert Holding Method:
Pin & Clamp
Insert Size:
333
Insert Thickness:
0.1874
Insert Thickness-2:
4.76
Manufacturer Grade Identification:
AC8020P
Nose Radius:
0.0472
Nose Radius-2:
1.2
Relief Angle:
0
Secondary Workpiece Material:
Steel
Standard designation of the grade, main applicatio:
P20
Tolerance Class:
M
Manufactured By:
Sumitomo
