Part Number: 10139227 / Vendor ID #: 11420
T33-FSN02C05-16X1.5-65R
by Seco Tools
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unknown.
Dimensions
Coating: TN
Specific Products: 10139227
Thread Tapping

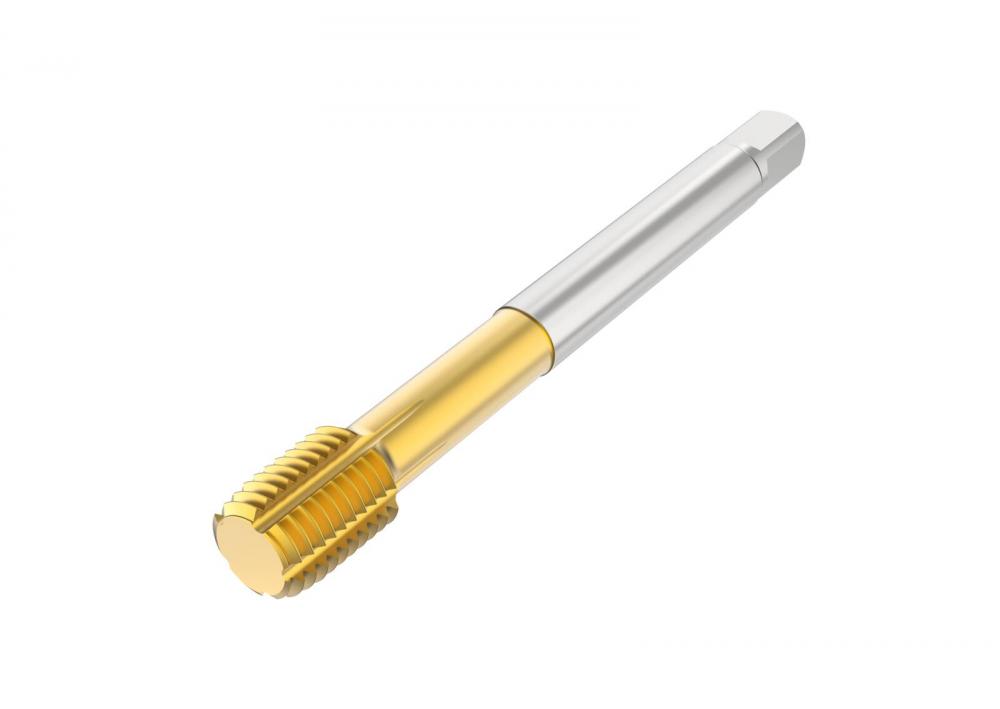

Seco T33-FSN02C05-16X1.5-65R Thread Tapping Forming Tap
Category:
Threading
Subcategory:
Taps
Subtype:
Form Taps
Coating:
TN
Brand Name:
Seco
BSG - Basic Standard:
DIN374
CGT- Cutting Geometry Type:
T33
CZC - Connection Size Code:
11.00X9.00
DMM - Shank Diameter (mm):
11.0
HAND - Cutting Direction:
Right
Item Material:
HSS-E-PM

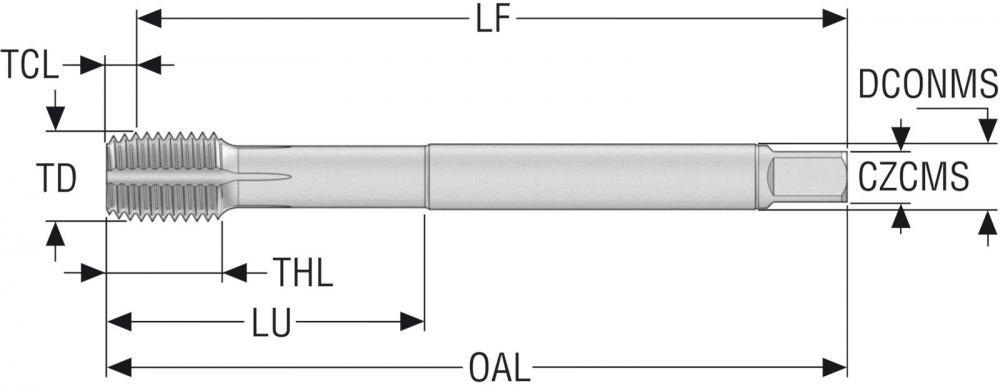

LF - Functional Length (mm):
95.67
LU - Usable Length (mm):
71
NOF - Number of Flutes:
6
OAL - Overall Length (mm):
100.0
Package Height (inches):
0.787
Package Length (inches):
5.118
Package Weight (lbs):
0.029
Package Width (inches):
0.984
PHDR - Pre-Machined Hole Dia. (mm):
15.35
PHDX - Premachined Hole Dia. Max (mm):
15.35
Product Series:
T33
ShankType:
Cylindrical
TCTR - Thread Tol. Class:
6HX
TD - Thread Dia. (mm):
16.0
TDZ - Thread Dia. Size:
MF16X1.5
THCHT - Thread Chamfer Type:
C
THFT - Thread Form Type:
MF
THLGTH - Thread Length (mm):
15.0
TPN - Thread Pitch Min:
1.5
TPX - Thread Pitch Max:
1.5
ULDR - Usable Length Dia. Ratio:
3.0
UPC Number:
39227101000100
Manufactured By:
Seco Tools
