S4531-100D3C.3Z3, AXT by Seco Tools
Call For Price
- Part Number: 10286942
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Variations (113)
Product Overview
Info & Guides
Corner Chamfer End Mills
Long Description

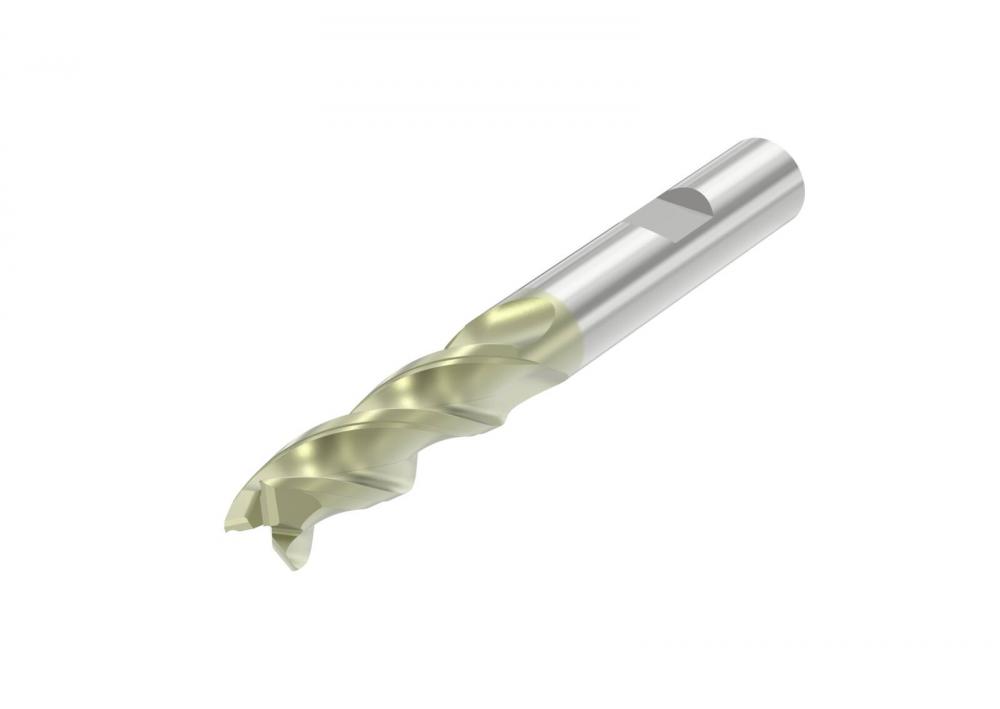

Seco S4531-100D3C.3Z3, AXT Corner Chamfer End Mill

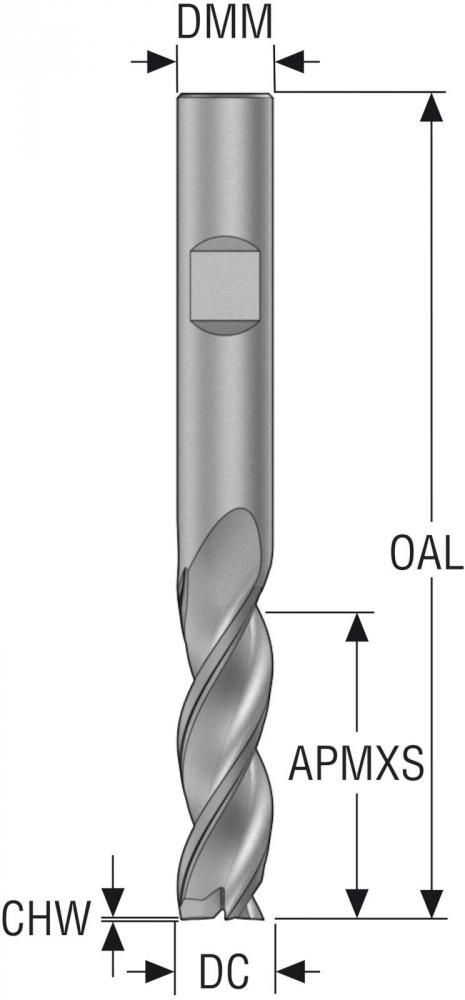

Specifications
Details
Category:
Milling
Subcategory:
Solid
Subtype:
Corner Radius and Corner Chamfer End Mills
APMX - mm:
38.00
APMXE - mm:
2.40
APMXS - mm:
38.00
CCC:
Yes
CEDC:
3
CEINT:
No
CGT:
S4531
CGTT:
S4531
CHW - mm:
0.10
CHWTOLL - mm:
0.00
CHWTOLU - mm:
0.04
Cmax - mm:
23.79
Cmin - mm:
15.60
COATING:
AXT
DATAMATRIX:
Yes
DC - mm:
12.00
DC1 - mm:
12.00
DCTOLL - mm:
-0.05
DCTOLU - mm:
-0.03
Dc_variant:
Pointed
DMM - mm:
12.00
FCEDC:
3
FHA:
35.0
FHH:
Right Hand
GAMF:
15.0
GAMP:
0.0
Gradetype:
Carbide-AXT
HAND:
Right Hand
ICC:
No
insert_variant:
Chamfer
Item Quantity:
1
Item Weight (lbs.):
0.16
KAPR:
90.0
KAPRE:
93.0
KAPRF1:
3.0
KAPRS:
90.0
KCH:
45.0
L - mm:
38.00
L1 - mm:
38.00
LE - mm:
38.00
LSCN - mm:
45.00
LVCatalogue:
Regular
NOF:
3
OAL - mm:
99.00
OperationSuitability:
FinRough
Package Height (inches):
0.98
Package Length (inches):
0.39
Package Weight (lbs):
0.16
Package Width (inches):
0.51
PCEDC:
3
Product Series:
S4531
Program:
Metric
PSIR:
0.0
RMPX:
10.0
RNA - mm:
0.02
RNR - mm:
0.02
ShankType:
Weldon
TCDC:
e7
TCDMM:
h5
TCG:
ISO2768-cH
TSCAT:
D
TSMOD:
52000
UPC Number:
86942102000109
UST:
METRIC
ZEFF:
3
ZEFP:
3
ZNP:
3
Manufactured By:
Seco Tools
