Part Number: 10286955 / Vendor ID #: 11420
S4531-080E2C.3Z3, AXT
by Seco Tools
Call for Price
Item Sales Info
Add To Wishlist
Compare Item
Email
Print
Availability
- Manufacturer availability unknown.
Dimensions
Info & Guides
Specific Products: 10286955
Corner Chamfer End Mills

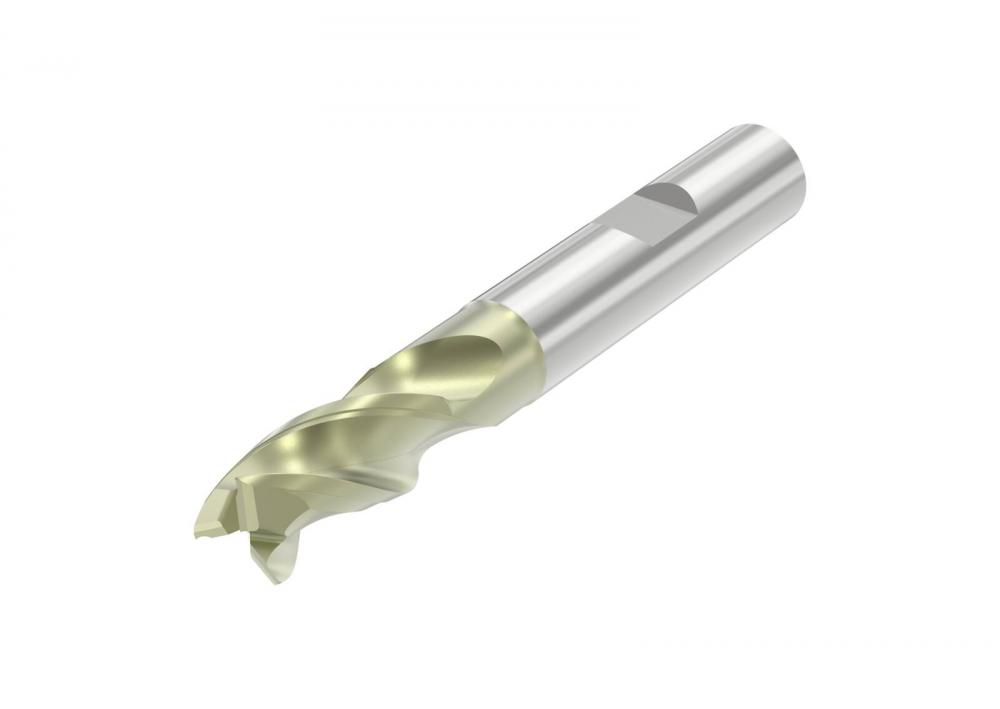

Seco S4531-080E2C.3Z3, AXT Corner Chamfer End Mill
Category:
Milling
Subcategory:
Solid
Subtype:
Corner Radius and Corner Chamfer End Mills

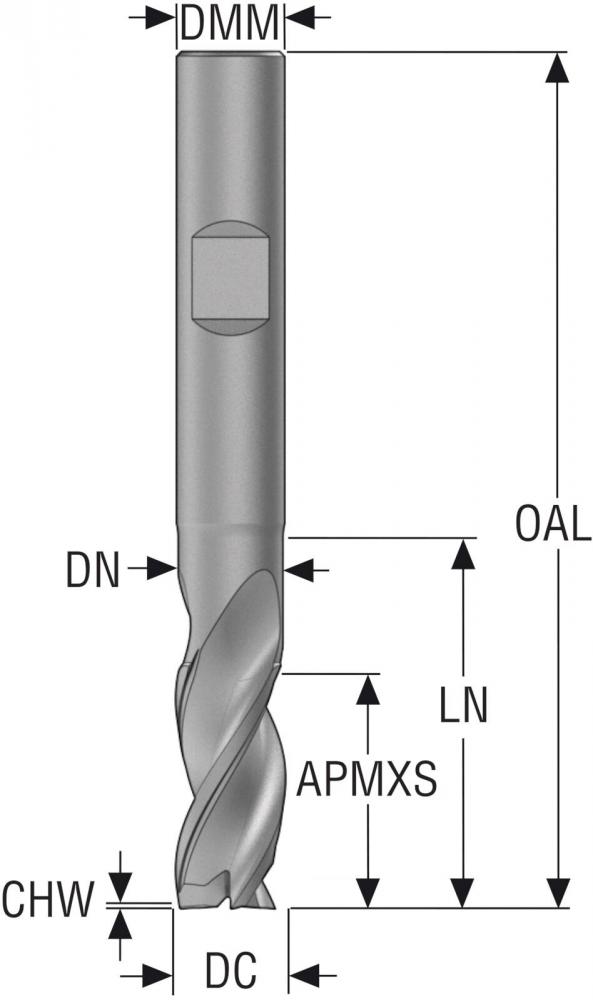

APMX - mm:
16.00
APMXE - mm:
1.60
APMXS - mm:
16.00
CCC:
Yes
CEDC:
3
CEINT:
No
CGT:
S4531
CGTT:
S4531
Cmax - mm:
14.95
Cmin - mm:
10.40
COATING:
AXT
DATAMATRIX:
Yes
DC - mm:
8.00
DC1 - mm:
8.00
DCTOLL - mm:
-0.04
DCTOLU - mm:
-0.03
Dc_variant:
Pointed
DMM - mm:
8.00
DN - mm:
7.60
DN1 - mm:
7.60
FCEDC:
3
FHA:
35.0
FHH:
Right Hand
GAMF:
15.0
GAMP:
0.0
Gradetype:
Carbide-AXT
HAND:
Right Hand
ICC:
No
insert_variant:
Nose
Item Quantity:
1
Item Weight (lbs.):
0.08
KAPR:
90.0
KAPRE:
93.0
KAPRF1:
3.0
KAPRS:
90.0
L - mm:
16.00
L1 - mm:
16.00
LE - mm:
16.00
LN - mm:
25.00
LN1 - mm:
25.00
LSCN - mm:
36.00
LVCatalogue:
Short
NA1:
0.0
NOF:
3
OAL - mm:
63.00
OperationSuitability:
FinRough
Package Height (inches):
0.71
Package Length (inches):
0.31
Package Weight (lbs):
0.08
Package Width (inches):
0.31
PCEDC:
3
Product Series:
S4531
Program:
Metric
PSIR:
0.0
RE - mm:
0.50
RE1 - mm:
0.50
RETOLL - mm:
-0.02
RETOLU - mm:
0.02
RMPX:
10.0
RN - mm:
2.00
RN1 - mm:
2.00
RN2 - mm:
5.00
RNA - mm:
0.02
RNR - mm:
0.02
ShankType:
Weldon
TCDC:
e7
TCDMM:
h5
TCG:
ISO2768-cH
TSCAT:
E
TSMOD:
32204
UPC Number:
86955102000109
UST:
METRIC
ZEFF:
3
ZEFP:
3
ZNP:
3
0.0
Manufactured By:
Seco Tools
