Product Overview

Corner Chamfer End Mills

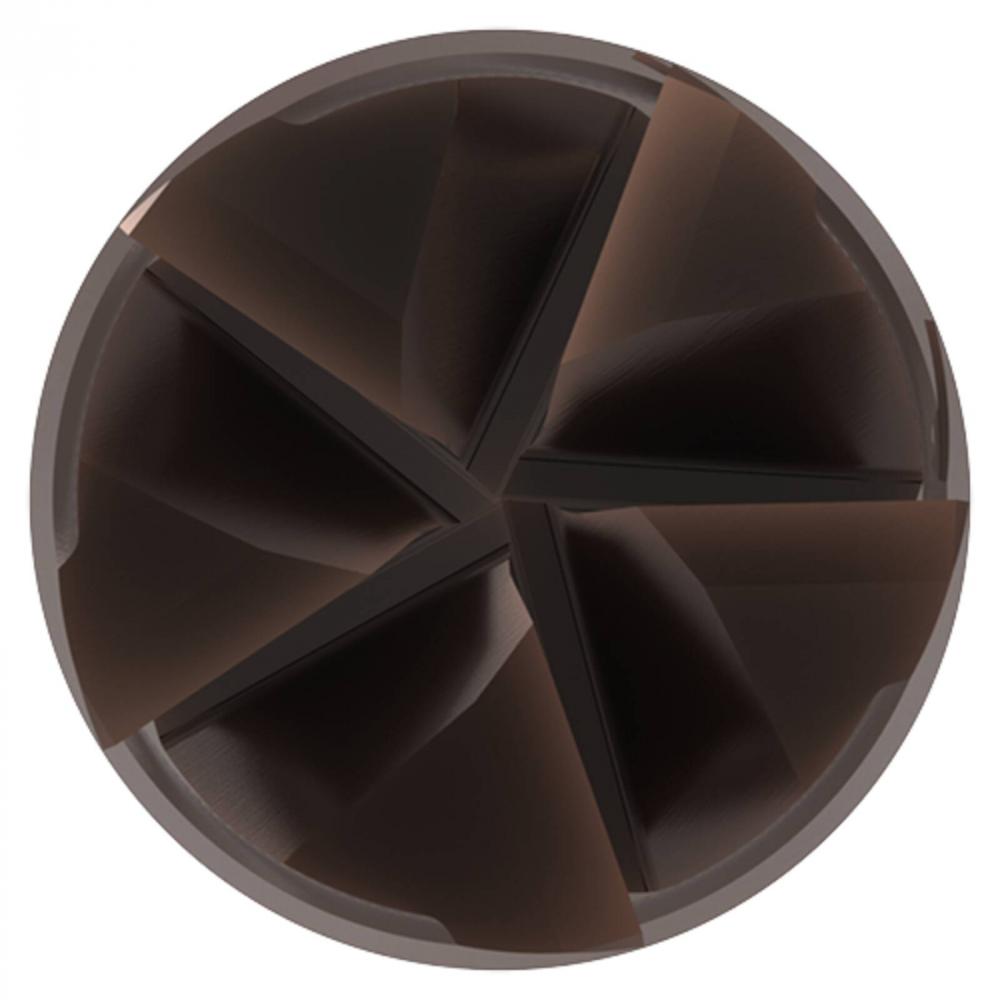

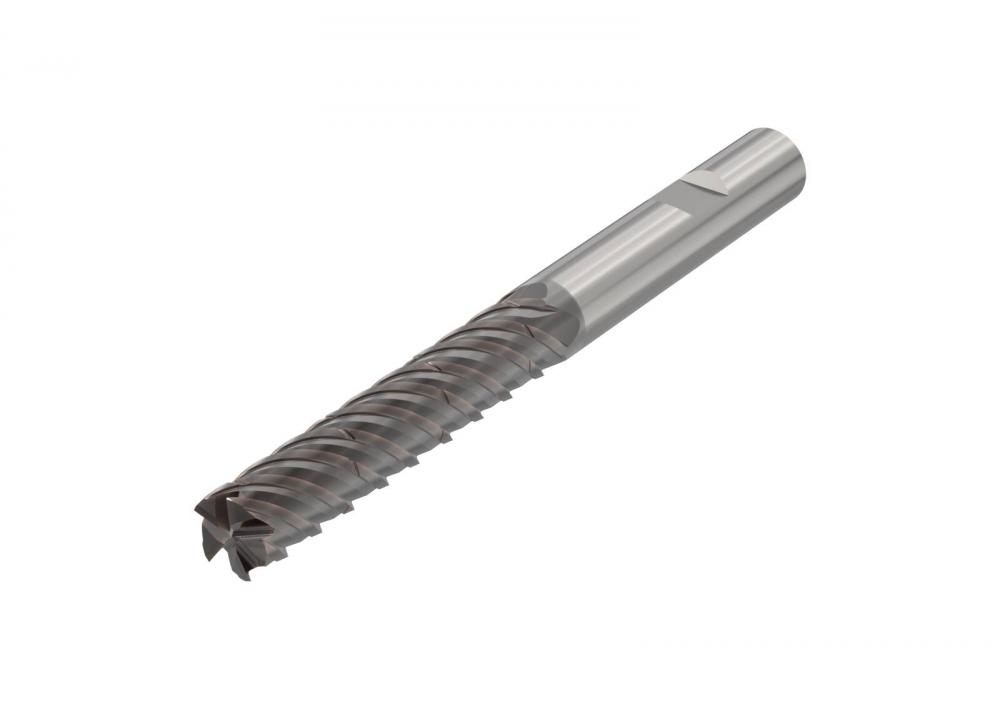

Seco JS565200D4C.3Z5C-NXT, Corner Chamfer End Mill

Category Path

Category:

Milling

Subcategory:

Solid

Subtype:

Corner Radius and Corner Chamfer End Mills

Product Specs

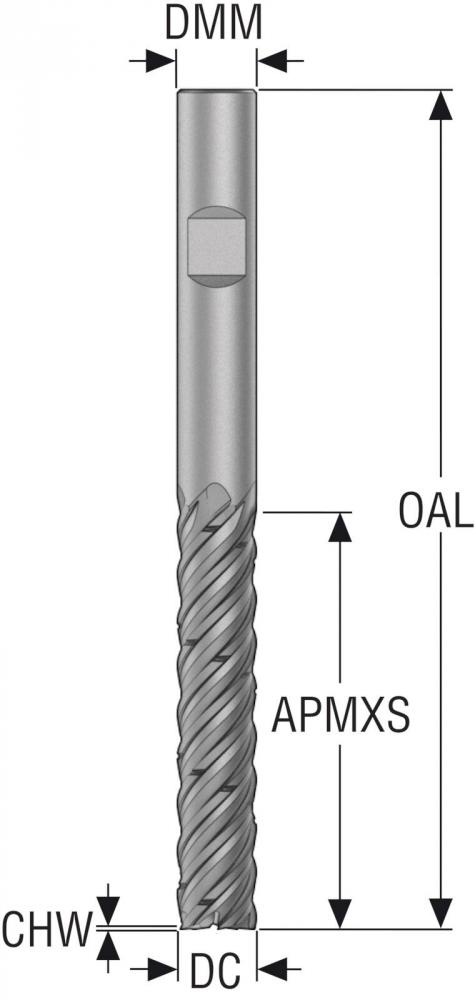

APMX - mm:

125.00

APMXE - mm:

5.00

APMXS - mm:

125.00

CCC:

No

CEDC:

5

CEINT:

Yes

CEINTT:

TYPE B

CGT:

JS565

CGTT:

JS565

CHW - mm:

0.30

CHWTOLL - mm:

0.00

CHWTOLU - mm:

0.07

Cmax - mm:

49.37

Cmin - mm:

32.50

COATING:

NXT

DATAMATRIX:

Yes

DC - mm:

25.00

DC1 - mm:

25.00

DCTOLL - mm:

-0.06

DCTOLU - mm:

-0.04

Dc_variant:

Pointed

DMM - mm:

25.00

FCEDC:

5

FHA:

48.0

FHH:

Right Hand

GAMF:

8.0

GAMP:

48.0

Gradetype:

Carbide-NXT

HAND:

Right Hand

ICC:

No

insert_variant:

Chamfer

Item Quantity:

1

Item Weight (lbs.):

1.65

KAPR:

90.0

KAPRE:

94.0

KAPRF1:

4.0

KAPRS:

90.0

KCH:

45.0

L - mm:

125.00

L1 - mm:

125.00

LE - mm:

125.00

LSCN - mm:

56.00

LVCatalogue:

Long

NOF:

5

OAL - mm:

205.00

OperationSuitability:

FinRough

Package Height (inches):

1.00

Package Length (inches):

5.35

Package Weight (lbs):

1.65

Package Width (inches):

1.00

PCEDC:

5

Product Series:

JS565

Program:

Metric

PSIR:

0.0

RMPX:

4.0

RNA - mm:

0.01

RNR - mm:

0.01

ShankType:

Weldon

TCDC:

e7

TCDMM:

h5

TCG:

ISO 2768 cH

TSCAT:

D

TSMOD:

52000

UPC Number:

73205102000101

UST:

METRIC

ZEFF:

5

ZEFP:

5

ZNP:

5

Manufacturer Info

Manufactured By:

Seco Tools
