PFERD 79184355 by PFERD
Call For Price
- Part Number: 79184355
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

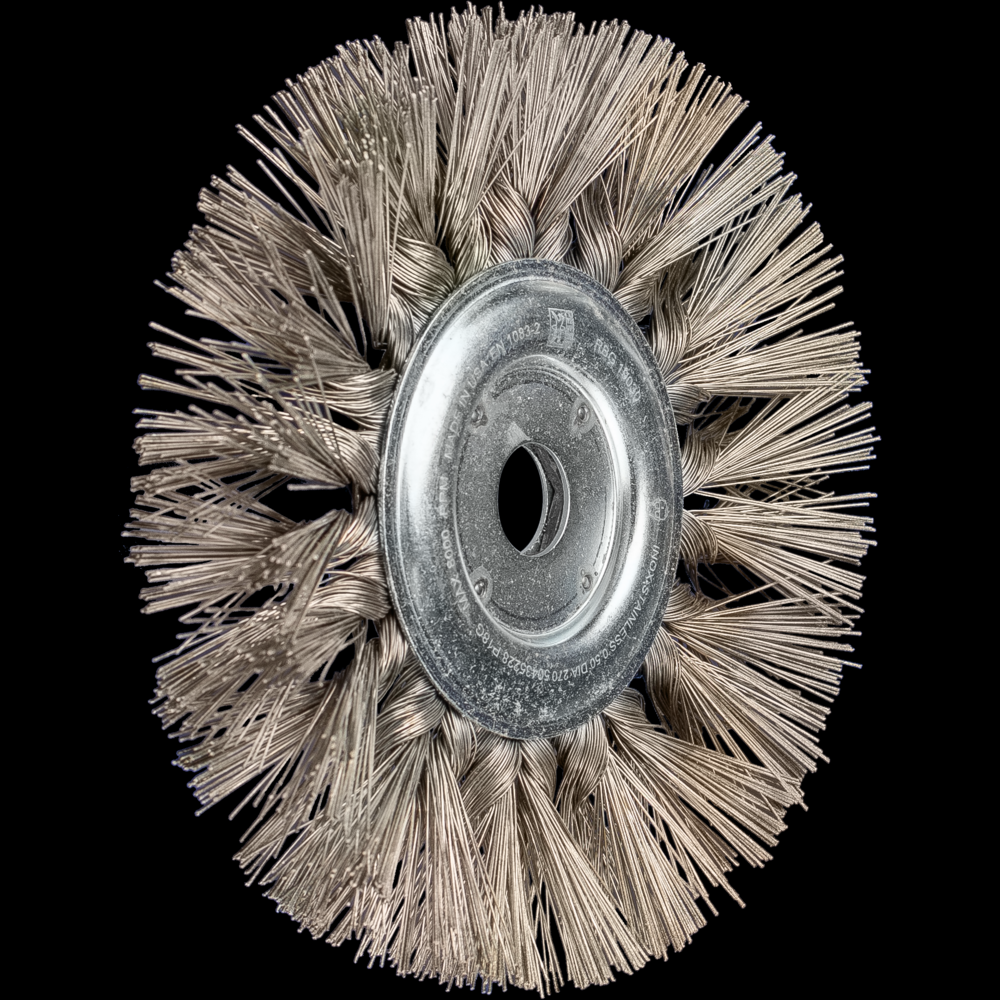

PFERD Standard Twist Knot Wire Wheel Brush 7-1/2" Dia. 400 Grit 1-1/4" Arbor
Long Description
The brush knots are knotted to 50% of the length. The brush achieves a better surface quality on uneven surfaces than conventional knotted brushes. INOX DIA filament brushes are designed for particularly demanding applciations that require an aggressive brush. They are primarily used on extremely hard materials. Stainless steel wire (INOX) diamond (DIA) is temperature-resistant up to 850 °F.
Specifications
Details
Category:
Abrasives
Subcategory:
Abrasive Brushes and Wheel Kits
Subtype:
Wire Wheel Brushes
Advantages:
Optimal ratio of aggressiveness and flexibility.
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Descaling
Applications 3:
Removing oxide layers
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
US
DEPTH:
0.216
Dia. external:
7 1/2
Dia. external UNIT:
Inch
Dia. filament material:
0.02
Dia. filament material UNIT:
Inch
Dia. hole:
1-1/4
Dia. hole UNIT:
Inch
Dia. thread:
0
Diam. arbor hole with adapter:
1-1/4
Diam. arbor hole with adapter UNIT:
Inch
Drive types:
Stationary machines
EAN pcs.:
97758843553
Filament material:
Stainless steel wire (INOX) diamond (DIA)
Grit size:
400
Gross weight (Piece):
0.825
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
216
Height (Packaging unit) UNIT:
mm
INTERNATIONAL_PID (edp):
84355
INTERNATIONAL_PID (upc):
97758843553
KEYWORD:
Industrial power brushes
KEYWORD 1:
Wheel brushes
KEYWORD 2:
Knotted / standard twist, long flag
KEYWORD 3:
With hole
LEADTIME:
3
LENGTH:
0.216
Length (Packaging unit):
216
Length (Packaging unit) UNIT:
mm
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
79184355
MANUFACTURER_TYPE_DESCR:
RBG 19020/22,2 INOX 0,50 DIA 400
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Bronze
Materials that can be worked 10:
Stainless steel (INOX)
Materials that can be worked 11:
Titanium
Materials that can be worked 12:
Titanium alloys
Materials that can be worked 13:
Tungsten carbide
Materials that can be worked 14:
Wear-resistant coatings (powder metal alloys and hardfacing alloys)
Materials that can be worked 2:
Cobalt-based alloys
Materials that can be worked 3:
Hard non-ferrous metal
Materials that can be worked 4:
High-temperature-resistant materials
Materials that can be worked 5:
Mill scale
Materials that can be worked 6:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 7:
Nickel or titanium-based superalloys
Materials that can be worked 8:
Other non-ferrous metals
Materials that can be worked 9:
Soft titanium alloys (tensile strength 500 N/mm²)
Mounting system:
Centre hole
NO_CU_PER_OU:
1
Number, knots:
24
Number, knots UNIT:
Stück
Ordering notes:
Grit size DIA 400 = D 46
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD Standard Twist Knot Wire Wheel Brush 7-1/2" Dia. 400 Grit 1-1/4" Arbor
Product issue name web for bmecat:
Wheel brushes, knotted DIA
PRODUCT_ORDER:
20
prop65:
Warning: Cancer -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
Recommendations for use:
Please observe the recommended rotational speeds.
REFERENCE_FEATURE_GROUP_ID:
P_16322_199561
RPM, max.:
8000
RPM, max. UNIT:
RPM
RPM, optimum, from:
1000
RPM, optimum, from UNIT:
RPM
RPM, optimum, to:
2000
RPM, optimum, to UNIT:
RPM
SPECIAL_TREATMENT_CLASS:
Warning: Cancer -- www.P65Warnings.ca.gov
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
Trim length:
2
Trim length UNIT:
Inch
UNSPSC 25.0901:
31191521
UPC pcs.:
0
UPC type:
UC
UPC VE:
97758843553
VOLUME:
0.002589
Volume (Packaging unit):
2589
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.825
WIDTH:
0.216
Width (Packaging unit):
216
Width (Packaging unit) UNIT:
mm
Manufactured By:
PFERD
