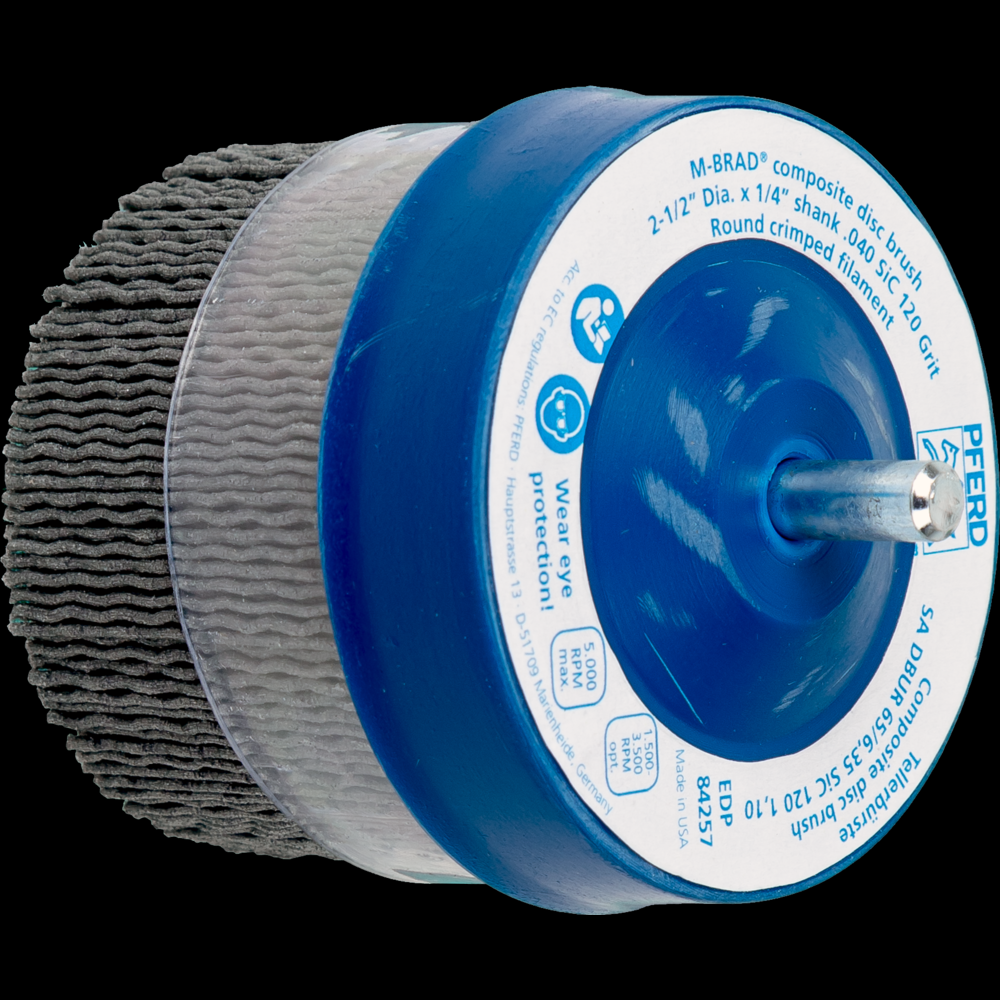

PFERD M-BRAD® Mounted Disc Brush 2-1/2" Dia. .040/120 Grit SiC 1/4" Shank
Long Description

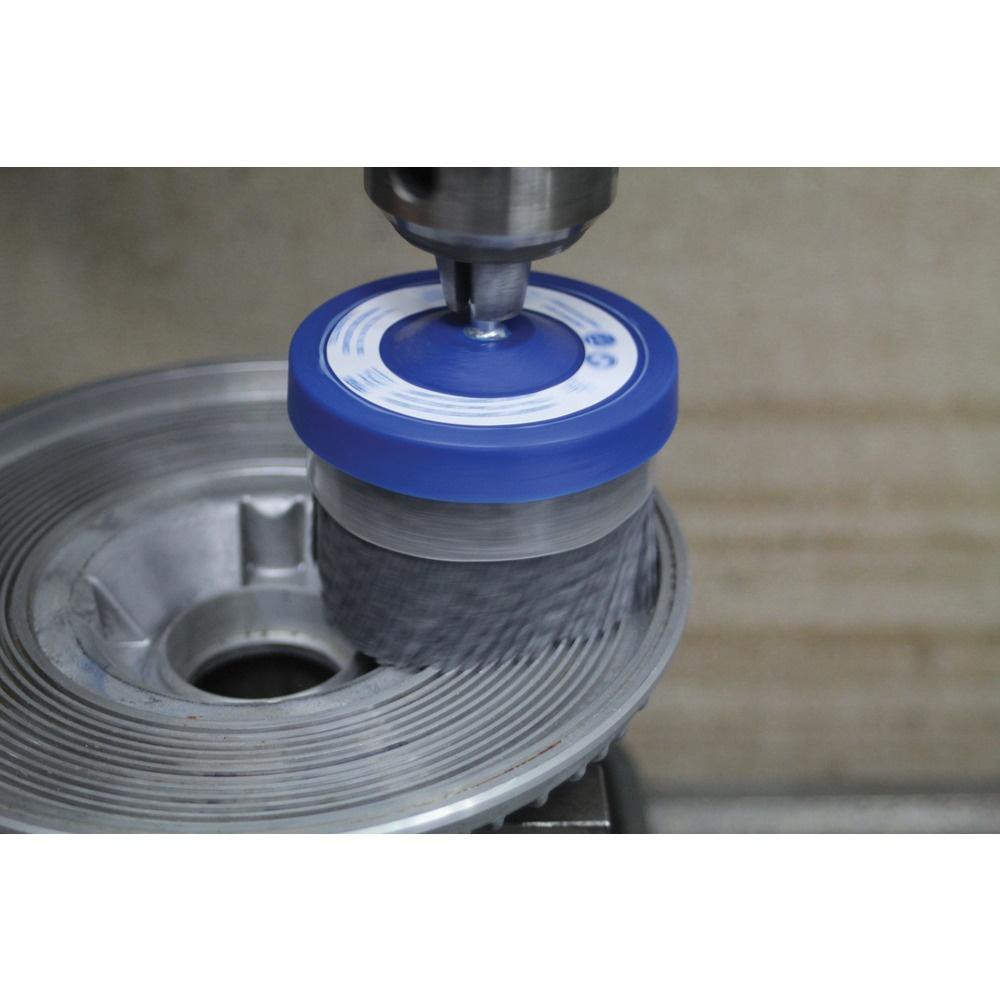

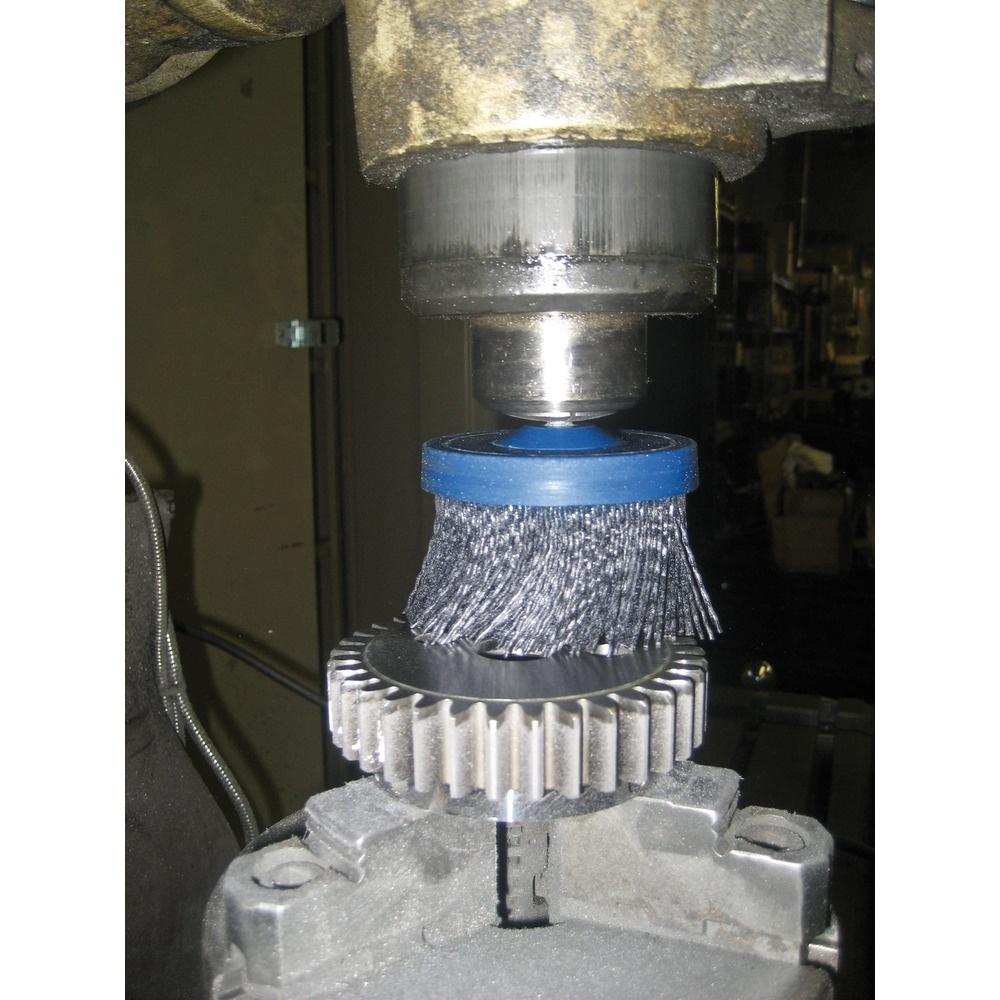

Particularly aggressive brush with bridle. Ideal for deburring and work on surfaces on stationary machines. Composite brushes from PFERD have been specifically developed for industrial, automated use. They are suitable for a variety of applications and their variable mounting options mean that they can be used on many different drive systems. This offers the advantage that the workpiece can be produced and finished on the same machine. As a result, labour-intensive, manual work is reduced and repeatable results are achieved with short cycle times. Silicon carbide (SiC) filament brushes are designed for deburring work and surface improvement. Platstic filaments are temperature-resistant up to 410°F.
Specifications
Details
Category:
Abrasives
Subcategory:
Abrasive Brushes and Wheel Kits
Subtype:
Disc Brushes
Advantages:
Long tool life and aggressive brushing action due to a very high filament density.
Advantages 1:
Extremely smooth operation due to evenly distributed filament material.
Advantages 2:
If the filament has worn away down to the bridle, it can be removed from the bridle for further use. This does not affect the brushing behavior.
Advantages 3:
The bridle enables the spreading out and flexibility of the brush filament to be controlled.
Advantages 4:
The bridle prevents the wires spreading out sideways.
Advantages 5:
Abrasive grains are embedded in flexible plastic filaments, which means that the filament works on the sides as well as at the tip.
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Roughening
Applications 3:
Structuring (matt finishing, brush matting and satin finishing)
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
US
DEPTH:
0.111
Dia. external:
2 1/2
Dia. external UNIT:
Inch
Dia. filament material:
0.04
Dia. filament material UNIT:
Inch
Dia. shank:
1/4
Dia. shank UNIT:
Inch
Drive types:
Flexible shaft drive
Drive types 1:
Tool machine
Drive types 2:
Robot
Drive types 3:
Stationary machines
Drive types 4:
Straight grinder
EAN pcs.:
4007220034026
EAN type:
AR
Filament material:
Silicon carbide (SiC)
Grit size:
120
Gross weight (Piece):
0.154
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
111
Height (Packaging unit) UNIT:
mm
INTERNATIONAL_PID (ean):
4007220034026
INTERNATIONAL_PID (edp):
84257
INTERNATIONAL_PID (gtin):
4007220034026
KEYWORD:
Industrial power brushes
KEYWORD 1:
Composite disc brushes
KEYWORD 2:
Crimped
KEYWORD 3:
COMPOSITE / with ring / shank-mounted
LEADTIME:
3
LENGTH:
0.111
Length (Packaging unit):
111
Length (Packaging unit) UNIT:
mm
Length, filament to ring:
3/4
Length, filament to ring UNIT:
Inch
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
79184257
MANUFACTURER_TYPE_DESCR:
DBUR 65/6,35 SiC 120 1,10
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Bronze
Materials that can be worked 10:
Steels up to 370 HV (< 38 HRC)
Materials that can be worked 11:
Thermoplastics
Materials that can be worked 12:
Wood
Materials that can be worked 2:
Cast iron
Materials that can be worked 3:
Cast steel
Materials that can be worked 4:
Cobalt-based alloys
Materials that can be worked 5:
Thermosetting plastics
Materials that can be worked 6:
Other non-ferrous metals
Materials that can be worked 7:
Stainless steel (INOX)
Materials that can be worked 8:
Steel, cast steel
Materials that can be worked 9:
Steel materials with a hardness > 54 HRC
Mounting system:
Shank
NO_CU_PER_OU:
1
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD M-BRAD® Mounted Disc Brush 2-1/2" Dia. .040/120 Grit SiC 1/4" Shank
PFERDEFFICIENCY:
PFERDEFFICIENCY recommends composite brushes to achieve maximum stock removal as quickly as possible.
PFERDERGONOMICS:
PFERDERGONOMICS recommends composite brushes to sustainably reduce the vibrations produced during use.
Product issue name web for bmecat:
Composite disc brushes crimped Composite, with bridle, shank-mounted
PRODUCT_ORDER:
60
prop65:
Warning: Cancer -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
1
QUANTITY_MIN:
1
Recommendations for use:
Please observe the recommended rotational speeds.
Recommendations for use 1:
Use coolant for applications where large amounts of heat are produced.
Recommendations for use 2:
Remove the bridle once the filament is worn down. Then the rest of the filament can be used.
Recommendations for use 3:
Remove the bridle before starting work if you would like to achieve a large spreading diameter or access hard-to-reach areas.
REFERENCE_FEATURE_GROUP_ID:
P_16318_184869
RPM, max.:
5000
RPM, max. UNIT:
RPM
RPM, optimum, from:
1500
RPM, optimum, from UNIT:
RPM
RPM, optimum, to:
3500
RPM, optimum, to UNIT:
RPM
Safety notes:
When clamping the brush, ensure that the shank is clamped as far into the arbor as possible. This especially applies to high rotational speed ranges. The minimum clamping length is 10 mm.
SPECIAL_TREATMENT_CLASS:
Warning: Cancer -- www.P65Warnings.ca.gov
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
Trim length:
1 1/2
Trim length UNIT:
Inch
UNSPSC 25.0901:
31191521
UPC pcs.:
0
VOLUME:
0.000847
Volume (Packaging unit):
847
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.154
WIDTH:
0.111
Width (Packaging unit):
111
Width (Packaging unit) UNIT:
mm
