PFERD 79180497

PFERD 79180497 by PFERD

Call For Price
  • Part Number: 79180497
  • UPC:
  • Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

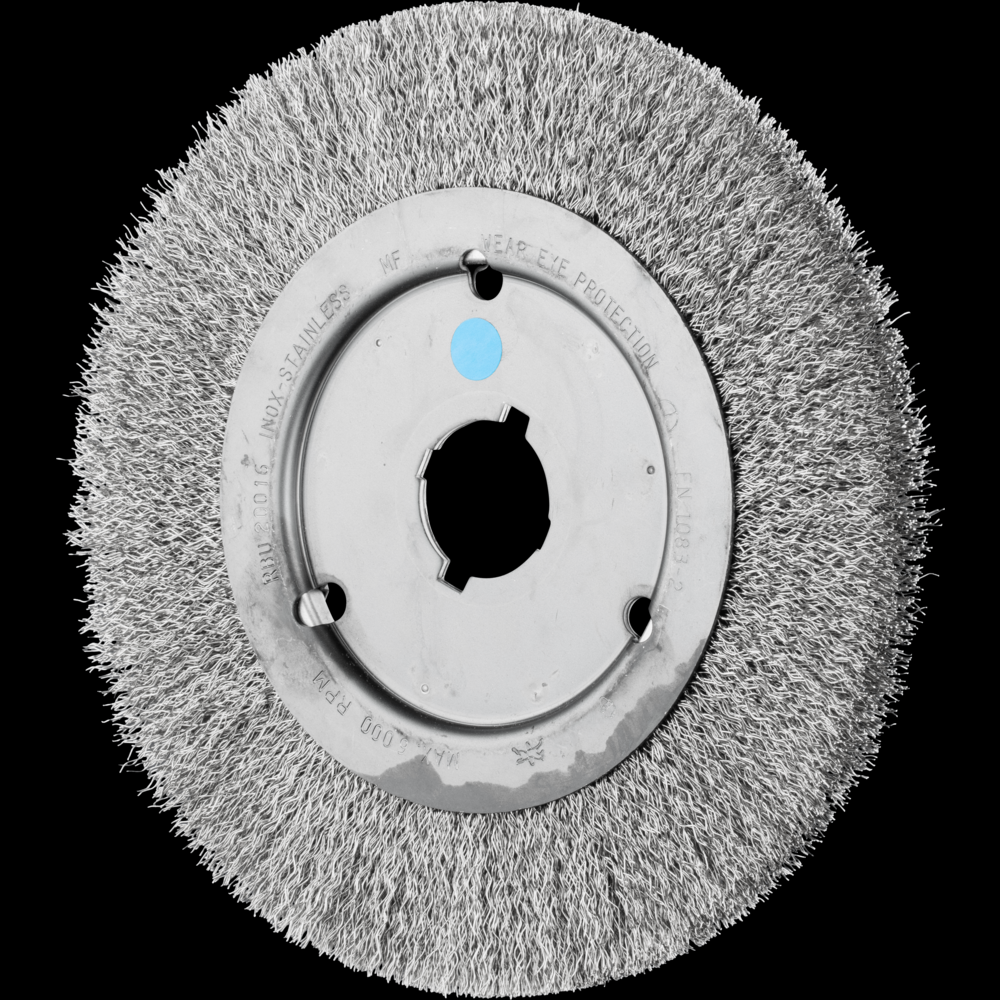

PFERD Crimped Wire Wheel Brush 8" Dia Narrow Face .012 Stainless Steel 2" Keyed Arbor
Long Description
In order to fulfill the requirements for brushing stainless steel (INOX), PFERD produces all stainless steel (INOX) brushes using 302 stainless steel wire. Practical experience gained from industrial use confirms that this wire quality achieves excellent corrosion resistance with optimum brush life. The wire found in stainless steel (INOX) brushes tends to become magnetic after cold working. All PFERD brush products with stainless steel wire (INOX) are color-coded blue in the Tool Manual. All of these brushes are recommended for use on all stainless steels (INOX), such as 316.;The reason for this is a change in the microstructure caused by deformation (e.g. during the wire drawing process). This does not have any impact on the quality and corrosion resistance of the INOX filament. The filament is still resistant to corrosion. Stainless steel wire (INOX) is temperature-resistant up to 850 °F. Excellent for medium-duty hand-held or automated brushing of large workpieces.
Specifications
Details
Advantages:
Can be used with all common stationary drive systems and bench grinders.
Advantages 1:
The special design enables bunching to create wide gapless rollers. This enables a uniform surface finish to be achieved.
Advantages 2:
Highly flexible, enabling optimal adaptation to the workpiece contour.
Advantages 3:
Very corrosion-resistant.
Advantages 4:
Creates fine surfaces.
Applications:
Cleaning
Applications 1:
Deburring
Applications 2:
Derusting
Applications 3:
Removing heat discolouration
Applications 4:
Removing oxide layers
Applications 5:
Paint stripping
Applications 6:
Roughening
Brush keyways:
1/4 x 1/8
Brush keyways UNIT:
Inch
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
US
DEPTH:
0.216
Dia. external:
8
Dia. external UNIT:
Inch
Dia. filament material:
0.012
Dia. filament material UNIT:
Inch
Drive types:
Bench grinder
Drive types 1:
Stationary machines
EAN pcs.:
697940804975
Filament material:
Stainless steel wire (INOX)
Grit size:
No information
Gross weight (Piece):
0.508
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
216
Height (Packaging unit) UNIT:
mm
Installation width:
1/2
Installation width UNIT:
Inch
INTERNATIONAL_PID (edp):
80497
KEYWORD:
Industrial power brushes
KEYWORD 1:
Wheel brushes
KEYWORD 2:
Crimped
KEYWORD 3:
Slim / with hole
LEADTIME:
3
LENGTH:
0.216
Length (Packaging unit):
216
Length (Packaging unit) UNIT:
mm
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
79180497
MANUFACTURER_TYPE_DESCR:
WHL CRP NF 8X.012SSX1-1/4DK
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Bronze
Materials that can be worked 10:
Titanium
Materials that can be worked 11:
Titanium alloys
Materials that can be worked 2:
Cobalt-based alloys
Materials that can be worked 3:
Hard non-ferrous metal
Materials that can be worked 4:
High-temperature-resistant materials
Materials that can be worked 5:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 6:
Nickel or titanium-based superalloys
Materials that can be worked 7:
Other non-ferrous metals
Materials that can be worked 8:
Soft titanium alloys (tensile strength 500 N/mm²)
Materials that can be worked 9:
Stainless steel (INOX)
Mounting system:
Centre hole
NO_CU_PER_OU:
1
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD Crimped Wire Wheel Brush 8" Dia Narrow Face .012 Stainless Steel 2" Keyed Arbor
Product issue name web for bmecat:
Wheel brushes crimped slim, with hole
PRODUCT_ORDER:
120
prop65:
Warning: Cancer -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
2
QUANTITY_MIN:
2
Recommendations for use:
Please observe the recommended rotational speeds.
REFERENCE_FEATURE_GROUP_ID:
P_16322_184973
RPM, max.:
6000
RPM, max. UNIT:
RPM
RPM, optimum, from:
2000
RPM, optimum, from UNIT:
RPM
RPM, optimum, to:
4000
RPM, optimum, to UNIT:
RPM
SPECIAL_TREATMENT_CLASS:
Warning: Cancer -- www.P65Warnings.ca.gov
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
Trim length:
1 1/2
Trim length UNIT:
Inch
UNSPSC 25.0901:
27111907
UPC pcs.:
0
VOLUME:
0.002589
Volume (Packaging unit):
2589
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.508
WIDTH:
0.216
Width:
3/4
Width (Packaging unit):
216
Width (Packaging unit) UNIT:
mm
Width UNIT:
Inch
Manufactured By:
PFERD
