PFERD 69401284 by PFERD
Call For Price
- Part Number: 69401284
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

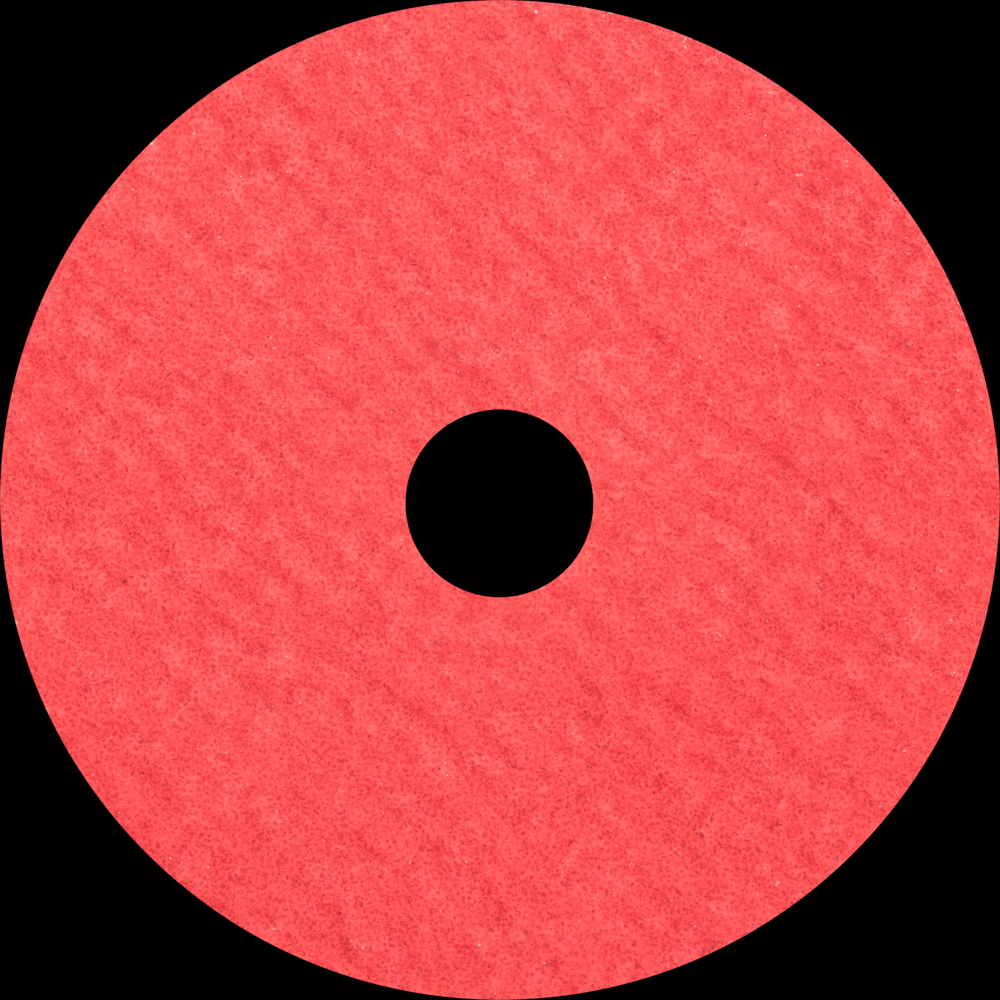

PFERD Fiber Disc, 5" x 7/8, 60 Grit, Ceramic CO-COOL
Long Description
PFERD fibre discs are manufactured in accordance with ISO 16057 in shape A2 version F under the designation "vulcanized fibre disc". For aggressive grinding with maximum stock removal rate on hard materials that do not conduct heat well. Consistently high performance due to self-sharpening ceramic oxide grain. Active grinding additives in the coating substantially improve the stock removal rate, prevent loading, and result in cooler grinding.
Specifications
Details
Abrasive:
CO-COOL
Advantages:
High productivity due to long service life and very high stock removal rate.
Advantages 1:
Consistent surface finish resulting from high-quality abrasives.
Advantages 2:
Conforms to contours due to high flexibility.
Applications:
Deburring
Applications 1:
Step-by-step fine grinding
Applications 2:
Leveling
Applications 3:
Surface work
Applications 4:
Work on weld seams
Applications 5:
Working on edges
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
DE
CUSTOMS_NUMBER:
6805301000
DEPTH:
0.089
Dia. external:
5
Dia. external UNIT:
Inch
Dia. hole:
7/8
Dia. hole UNIT:
Inch
Drive types:
Angle grinder
Drive types 1:
Cordless angle grinder
EAN pcs.:
4007220351888
EAN type:
AR
Grit size:
60
Gross weight (Piece):
0.032
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
89
Height (Packaging unit) UNIT:
mm
INTERNATIONAL_PID (ean):
4007220686652
INTERNATIONAL_PID (edp):
62519
INTERNATIONAL_PID (gtin):
4007220686652
INTERNATIONAL_PID (upc):
97758625197
KEYWORD:
Coated abrasives
KEYWORD 1:
Fibre discs
KEYWORD 2:
Ceramic oxide grain CO-COOL version
LEADTIME:
3
LENGTH:
0.131
Length (Packaging unit):
131
Length (Packaging unit) UNIT:
mm
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
69401284
MANUFACTURER_TYPE_DESCR:
FS 125-22 CO-COOL 60 UNSL
Materials that can be worked:
Annealed cast iron
Materials that can be worked 1:
Bronze
Materials that can be worked 2:
Cobalt-based alloys
Materials that can be worked 3:
Grey/nodular cast iron (GG/GJL, GGG/GJS)
Materials that can be worked 4:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 5:
Stainless steel (INOX)
Materials that can be worked 6:
Titanium
NO_CU_PER_OU:
1
Ordering notes:
Please order backing pad separately.
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD Fiber Disc, 5" x 7/8, 60 Grit, Ceramic CO-COOL
Product issue name web for bmecat:
Fibre discs unslotted
PRODUCT_ORDER:
40
prop65:
Warning: Cancer -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
25
QUANTITY_MIN:
25
Recommendations for use:
Use fibre disc in accordance with ISO 15636 with backing pad on commercially available angle grinders.
Recommendations for use 1:
Use the appropriate grinding oil for the material to significantly increase the service life and the abrasive performance of the discs.
REFERENCE_FEATURE_GROUP_ID:
P_16001_179728
RPM, max.:
12200
RPM, max. UNIT:
RPM
Safety notes:
The maximum permitted peripheral speed is 15,800 SFPM.
Safety notes 1:
For safety reasons, the maximum permitted rotational speed indicated must never be exceeded.
SEGMENT:
Fine grinding and finishing products
SPECIAL_TREATMENT_CLASS:
Warning: Cancer -- www.P65Warnings.ca.gov
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
UNSPSC 25.0901:
31191506
UPC pcs.:
0
UPC type:
UC
UPC VE:
97758625197
VOLUME:
0.001527
Volume (Packaging unit):
1527
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.032
WIDTH:
0.131
Width (Packaging unit):
131
Width (Packaging unit) UNIT:
mm
Manufactured By:
PFERD
