PFERD 69121066 by PFERD
Call For Price
- Part Number: 69121066
- UPC:
- Availability:
Quantity:
Add To Quote
Add To Estimate
Add To Wishlist
Compare Item
Product Overview
Info & Guides

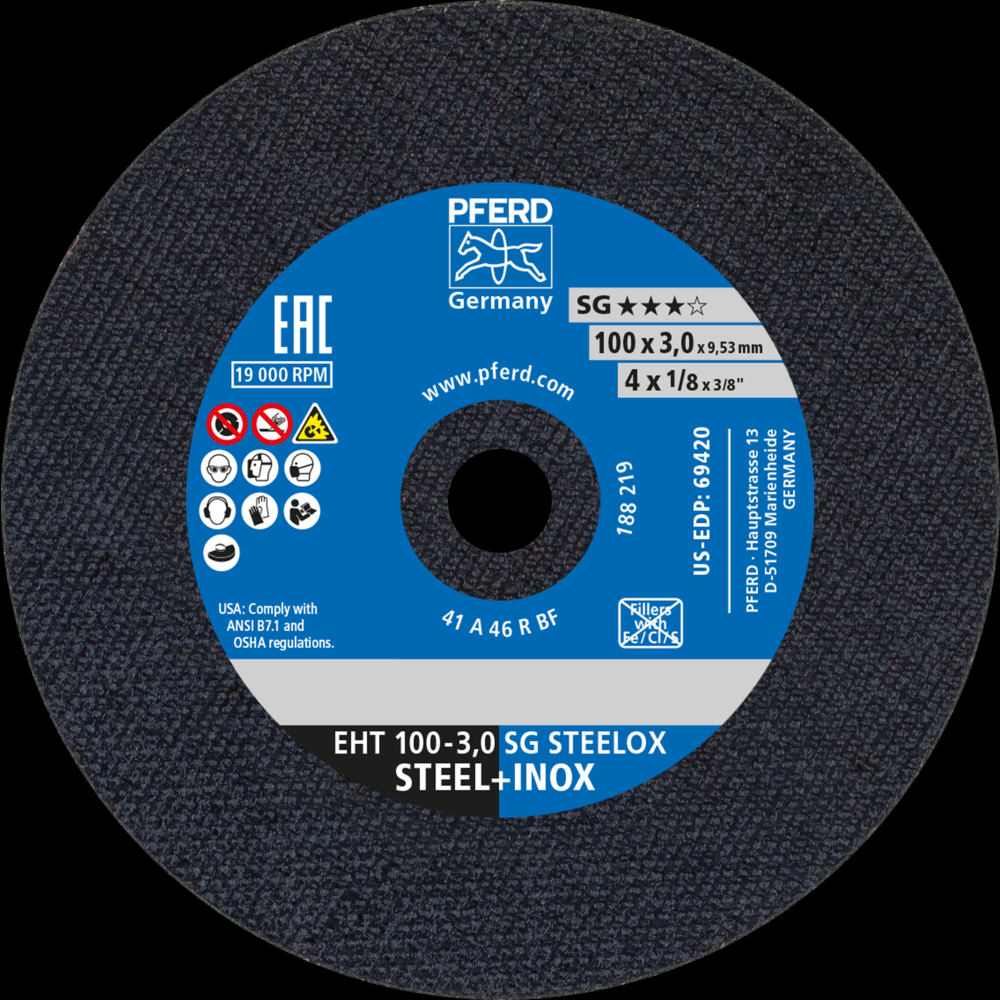

PFERD Die Grinder Cut-Off Wheel, 4" x 1/8 x 3/8, SG STEELOX, T1, Aluminum oxide
Long Description
The wide range Performance Line SG offers high-performance solutions for every application and material. Performance Line SG products achieve optimum results with excellent economic efficiency. PFERD offers small cut-off wheels in various dimensions for straight grinders. These general-purpose cut-off wheels are designed to cut steel, stainless steel (INOX), cast iron, aluminum and other materials. General-purpose cut-off wheel for use on straight grinders. High cutting performance and maximum service life.
Specifications
Details
Abrasive:
Aluminium oxide A
Advantages:
Ideal for hard-to-reach areas.
Advantages 1:
General-purpose cut-off wheel for many different materials.
Advantages 2:
Fast work due to high cutting performance.
Advantages 3:
Maximum economic efficiency due to maximum durability.
Applications:
Cutting of profiles
Applications 1:
Cutting of sheet metal
Applications 2:
Cutting of solid material
Applications 3:
Cutting out holes
CONTENT_UNIT:
C62
COUNTRY_OF_ORIGIN:
DE
CUSTOMS_NUMBER:
6804221000
DEPTH:
0.004
Dia. external:
4
Dia. external UNIT:
Inch
Dia. hole:
3/8
Dia. hole UNIT:
Inch
Drive types:
Flexible shaft drive
Drive types 1:
Straight grinder
EAN pcs.:
4007220238783
EAN type:
AR
Gross weight (Piece):
0.058
Gross weight (Piece) UNIT:
kg
Height (Packaging unit):
4
Height (Packaging unit) UNIT:
mm
INTERNATIONAL_PID (ean):
4007220133040
INTERNATIONAL_PID (edp):
69420
INTERNATIONAL_PID (gtin):
4007220133040
INTERNATIONAL_PID (upc):
97758694209
KEYWORD:
Cut-off wheels
KEYWORD 1:
Performance Line SG ★★★☆
KEYWORD 2:
Cut-off wheels for straight grinders
LEADTIME:
3
LENGTH:
0.004
Length (Packaging unit):
4
Length (Packaging unit) UNIT:
mm
MANUFACTURER_NAME:
PFERD
MANUFACTURER_PID:
69121066
MANUFACTURER_TYPE_DESCR:
EHT 100-3,0 SG STEELOX/3/8" TMNA
Materials that can be worked:
Aluminum
Materials that can be worked 1:
Cast iron
Materials that can be worked 2:
Nickel-based alloys (e.g. Inconell and Hastelloy)
Materials that can be worked 3:
Nickel or titanium-based superalloys
Materials that can be worked 4:
Other non-ferrous metals
Materials that can be worked 5:
Stainless steel (INOX)
Materials that can be worked 6:
Steel
NO_CU_PER_OU:
1
Ordering notes:
Please order compatible arbor separately.
ORDER_UNIT:
C62
Output name <= 80 characters:
PFERD Die Grinder Cut-Off Wheel, 4" x 1/8 x 3/8, SG STEELOX, T1, Aluminum oxide
Product issue name web for bmecat:
Cut-off wheels for die grinders SG STEELOX ★★★☆
PRODUCT_ORDER:
150
prop65:
Warning: Cancer -- www.P65Warnings.ca.gov
QUANTITY_INTERVAL:
25
QUANTITY_MIN:
25
REFERENCE_FEATURE_GROUP_ID:
P_15102_170791
RPM, max.:
19000
RPM, max. UNIT:
RPM
Safety notes:
Note the maximum rotational speed for the cut-off wheel and arbor – adhere to whichever speed is lower.
SEGMENT:
Cut-off wheels, flap discs and grinding wheels
Shape:
EHT / 41 / T1
SPECIAL_TREATMENT_CLASS:
Warning: Cancer -- www.P65Warnings.ca.gov
TIME_BASE:
dayofweek
TIME_VALUE_END:
5
TIME_VALUE_START:
1
UNSPSC 25.0901:
23131503
UPC pcs.:
0
UPC type:
UC
UPC VE:
97758694209
VOLUME:
6.4e-008
Volume (Packaging unit):
0.064
Volume (Packaging unit) UNIT:
CCM
WEIGHT:
0.058
WIDTH:
0.004
Width:
7/64
Width (Packaging unit):
4
Width (Packaging unit) UNIT:
mm
Width UNIT:
Inch
Manufactured By:
PFERD
